Congratulations! You have found a bug in the minkowski operator. That is
what I get with Thrown Together:

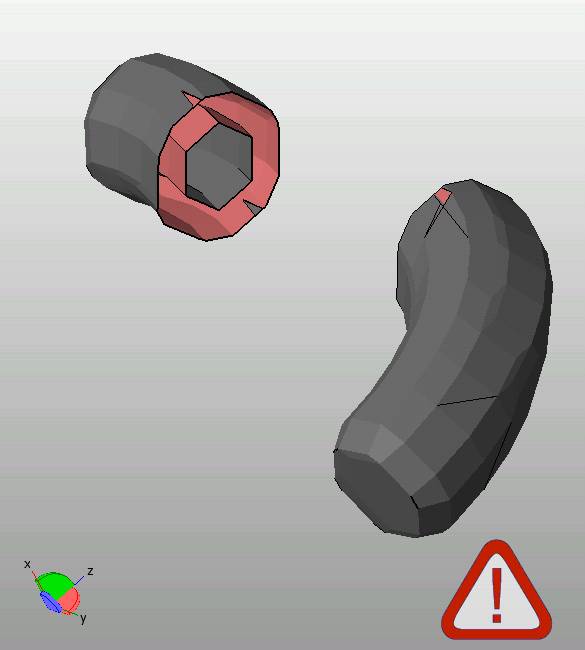

[image: image.png]

Yes, there is some reversed face in the minkowski! Just the minkowsky
renders fine but CGAL finds an error when it is boolean operated with the
connector. That face seems to be the cause.

I have never seen that bug before. The bug seems to be related to the
number of faces in the sphere and edges in the extrusion circle. Something
odd happens when both $fn are equal to 6.

Em seg., 25 de mai. de 2020 às 22:10, dpa sc@pankd.de escreveu:

why is there no error AND no output?

I get a CGAL error,

Rendering Polygon Mesh using CGAL...

ERROR: CGAL error in CGAL_Nef_polyhedron3(): CGAL ERROR: assertion violation! Expr:
e->incident_sface() != SFace_const_handle() File:
/mxe/usr/x86_64-w64-mingw32.static.posix/include/CGAL/Nef_S2/SM_const_decorator.h Line: 329

Geometries in cache: 8

Geometry cache size in bytes: 80896

CGAL Polyhedrons in cache: 1

CGAL cache size in bytes: 0

Total rendering time: 0 hours, 0 minutes, 0 seconds

Rendering finished.

If you missed that and tried F6 again, you don't get the error as the geometry is cached.

Whenever you have strange things like that it is good to try Design/Flush-cache.

Thank you, you have found a simple example of a bug I have seen hiding, where F5 then F6 has a CGAL
error, but F6 alone (fresh run or flush cache) does not, but the exported STL is bad.

A change in rotation will produce different angles where faces meet, sometimes they meet in a way
that is non-manifold, like an edge or point meeting exactly in the middle of a face.

But in this case I suspect a bug.

Interesting what I found inside (with add_rotate=7):

From: Discuss [mailto:discuss-bounces@lists.openscad.org] On Behalf Of dpa
Sent: Tue, 26 May 2020 07:09
To: discuss@lists.openscad.org
Subject: [OpenSCAD] rendering problem

Hey,

I was using OpenSCAD because it's so reliable, but yesterday I was very disappointed. I researched
the frequing same problem for almost exactly one day now and just couldn't get any further. There
are probably several in one.

For this question mail I didn't use my own polygons, just circle, rotate_extrude and minkowski with
a sphere.
The preview is fine, the rendering doesn't say enything but stays empty. Thats my first question:
why is there no error AND no output?
It brings an error when you change the "add_rotate" in cutomizer. What brings me to the 2nd
question: why does a rotation bring different errors?
And last but not least: how can I bring this object to render with a "add_rotate"=7 at all? Where
is the error / what I'm doing wrong?

best

Dietrich

--
This email has been checked for viruses by AVG.
https://www.avg.com

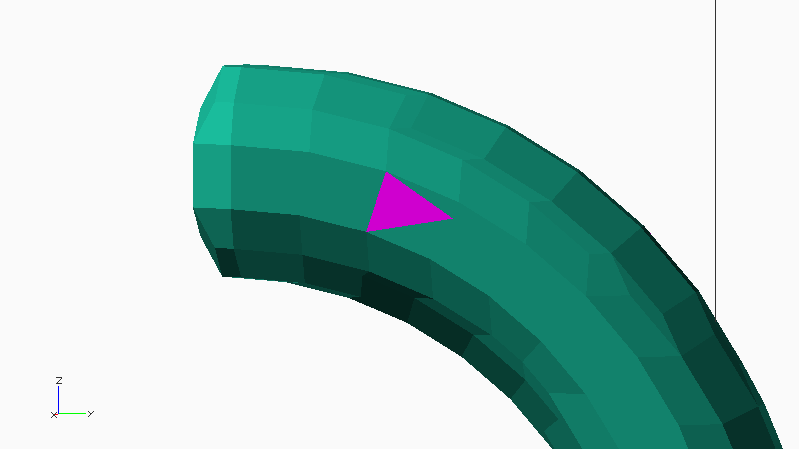

BTW those inverted triangle z-fight when it is moved. I presume that means it is duplicated, one
