Guenther Sohler

Thu, Jan 26, 2023 4:25 PM

Hi List,

right now i am attempting to add a path_extrude function to openscad

A demonstration what i am talking about is here:

(sorry, its in python, but still i hope you get the idea. )

This shows an arbitrary path_extrude of a square,

but in the video you can clearly see the triangles in the faces,

so i believe the cross section at the joints is not correct.

IMHO the square must turn to a deltoid especially when the base square is

rotated by 45 degrees to be correct.

Can anybody shade some light on that for me ?

Hi List,
right now i am attempting to add a path_extrude function to openscad
A demonstration what i am talking about is here:
https://youtu.be/igMupYGvX1s
(sorry, its in python, but still i hope you get the idea. )
This shows an arbitrary path_extrude of a square,
but in the video you can clearly see the triangles in the faces,
so i believe the cross section at the joints is not correct.
IMHO the square must turn to a deltoid especially when the base square is
rotated by 45 degrees to be correct.
Can anybody shade some light on that for me ?

AM

Adrian Mariano

Thu, Jan 26, 2023 9:49 PM

Guenther, I'm a little unsure of your goal here. If you are excited to

implement path_sweep for the fun of it that's fine, of course, but this has

been done before by many people in OpenSCAD, starting with

list-comprehension-demos and also in dotSCAD, and BOSL2. These methods

exist already as OpenSCAD code. so a demonstration isn't needed to show the

possibilities. There are some very difficult questions about how to rotate

the cross sections as you move around the path, and yes, it's entirely

possible that you've gotten it wrong...assuming that you can figure out

what "wrong" means. It's not clear. There was a very long thread on the

forum many years ago about the various complications. I implemented

several different algorithms in BOSL2 for choosing how to line up the

sections. You might want to take a look to get more understanding of the

issues.

https://github.com/revarbat/BOSL2/wiki/skin.scad#functionmodule-path_sweep

On Thu, Jan 26, 2023 at 11:26 AM Guenther Sohler guenther.sohler@gmail.com

wrote:

Hi List,

right now i am attempting to add a path_extrude function to openscad

A demonstration what i am talking about is here:

(sorry, its in python, but still i hope you get the idea. )

This shows an arbitrary path_extrude of a square,

but in the video you can clearly see the triangles in the faces,

so i believe the cross section at the joints is not correct.

IMHO the square must turn to a deltoid especially when the base square is

rotated by 45 degrees to be correct.

Can anybody shade some light on that for me ?

OpenSCAD mailing list

To unsubscribe send an email to discuss-leave@lists.openscad.org

Guenther, I'm a little unsure of your goal here. If you are excited to
implement path_sweep for the fun of it that's fine, of course, but this has
been done before by many people in OpenSCAD, starting with
list-comprehension-demos and also in dotSCAD, and BOSL2. These methods
exist already as OpenSCAD code. so a demonstration isn't needed to show the
possibilities. There are some very difficult questions about how to rotate
the cross sections as you move around the path, and yes, it's entirely
possible that you've gotten it wrong...assuming that you can figure out
what "wrong" means. It's not clear. There was a very long thread on the
forum many years ago about the various complications. I implemented
several different algorithms in BOSL2 for choosing how to line up the
sections. You might want to take a look to get more understanding of the
issues.
https://github.com/revarbat/BOSL2/wiki/skin.scad#functionmodule-path_sweep
On Thu, Jan 26, 2023 at 11:26 AM Guenther Sohler <guenther.sohler@gmail.com>
wrote:
> Hi List,
>
> right now i am attempting to add a path_extrude function to openscad
> A demonstration what i am talking about is here:
>
> https://youtu.be/igMupYGvX1s
>
> (sorry, its in python, but still i hope you get the idea. )
> This shows an arbitrary path_extrude of a square,
> but in the video you can clearly see the triangles in the faces,
> so i believe the cross section at the joints is not correct.
> IMHO the square must turn to a deltoid especially when the base square is
> rotated by 45 degrees to be correct.
> Can anybody shade some light on that for me ?
>
>
> _______________________________________________
> OpenSCAD mailing list
> To unsubscribe send an email to discuss-leave@lists.openscad.org
>

AC

A. Craig West

Thu, Jan 26, 2023 10:11 PM

It's definitely a challenge, I spent months implementing something like

this to allow me to design arbitrary air flow paths for ducting.

On Thu, 26 Jan 2023, 16:51 Adrian Mariano, avm4@cornell.edu wrote:

Guenther, I'm a little unsure of your goal here. If you are excited to

implement path_sweep for the fun of it that's fine, of course, but this has

been done before by many people in OpenSCAD, starting with

list-comprehension-demos and also in dotSCAD, and BOSL2. These methods

exist already as OpenSCAD code. so a demonstration isn't needed to show the

possibilities. There are some very difficult questions about how to rotate

the cross sections as you move around the path, and yes, it's entirely

possible that you've gotten it wrong...assuming that you can figure out

what "wrong" means. It's not clear. There was a very long thread on the

forum many years ago about the various complications. I implemented

several different algorithms in BOSL2 for choosing how to line up the

sections. You might want to take a look to get more understanding of the

issues.

https://github.com/revarbat/BOSL2/wiki/skin.scad#functionmodule-path_sweep

On Thu, Jan 26, 2023 at 11:26 AM Guenther Sohler <

guenther.sohler@gmail.com> wrote:

Hi List,

right now i am attempting to add a path_extrude function to openscad

A demonstration what i am talking about is here:

(sorry, its in python, but still i hope you get the idea. )

This shows an arbitrary path_extrude of a square,

but in the video you can clearly see the triangles in the faces,

so i believe the cross section at the joints is not correct.

IMHO the square must turn to a deltoid especially when the base square is

rotated by 45 degrees to be correct.

Can anybody shade some light on that for me ?

OpenSCAD mailing list

To unsubscribe send an email to discuss-leave@lists.openscad.org

OpenSCAD mailing list

To unsubscribe send an email to discuss-leave@lists.openscad.org

It's definitely a challenge, I spent months implementing something like
this to allow me to design arbitrary air flow paths for ducting.
On Thu, 26 Jan 2023, 16:51 Adrian Mariano, <avm4@cornell.edu> wrote:
> Guenther, I'm a little unsure of your goal here. If you are excited to
> implement path_sweep for the fun of it that's fine, of course, but this has
> been done before by many people in OpenSCAD, starting with
> list-comprehension-demos and also in dotSCAD, and BOSL2. These methods
> exist already as OpenSCAD code. so a demonstration isn't needed to show the
> possibilities. There are some very difficult questions about how to rotate
> the cross sections as you move around the path, and yes, it's entirely
> possible that you've gotten it wrong...assuming that you can figure out
> what "wrong" means. It's not clear. There was a very long thread on the
> forum many years ago about the various complications. I implemented
> several different algorithms in BOSL2 for choosing how to line up the
> sections. You might want to take a look to get more understanding of the
> issues.
>
> https://github.com/revarbat/BOSL2/wiki/skin.scad#functionmodule-path_sweep
>
>
> On Thu, Jan 26, 2023 at 11:26 AM Guenther Sohler <
> guenther.sohler@gmail.com> wrote:
>
>> Hi List,
>>
>> right now i am attempting to add a path_extrude function to openscad
>> A demonstration what i am talking about is here:
>>
>> https://youtu.be/igMupYGvX1s
>>
>> (sorry, its in python, but still i hope you get the idea. )
>> This shows an arbitrary path_extrude of a square,
>> but in the video you can clearly see the triangles in the faces,
>> so i believe the cross section at the joints is not correct.
>> IMHO the square must turn to a deltoid especially when the base square is
>> rotated by 45 degrees to be correct.
>> Can anybody shade some light on that for me ?
>>
>>
>> _______________________________________________
>> OpenSCAD mailing list
>> To unsubscribe send an email to discuss-leave@lists.openscad.org
>>
> _______________________________________________
> OpenSCAD mailing list
> To unsubscribe send an email to discuss-leave@lists.openscad.org
>

SP

Sanjeev Prabhakar

Fri, Jan 27, 2023 5:21 AM

it would be better to give a path without sharp corners and which is also

practically feasible.

then the testing could be more meaningful as per my understanding.

example:

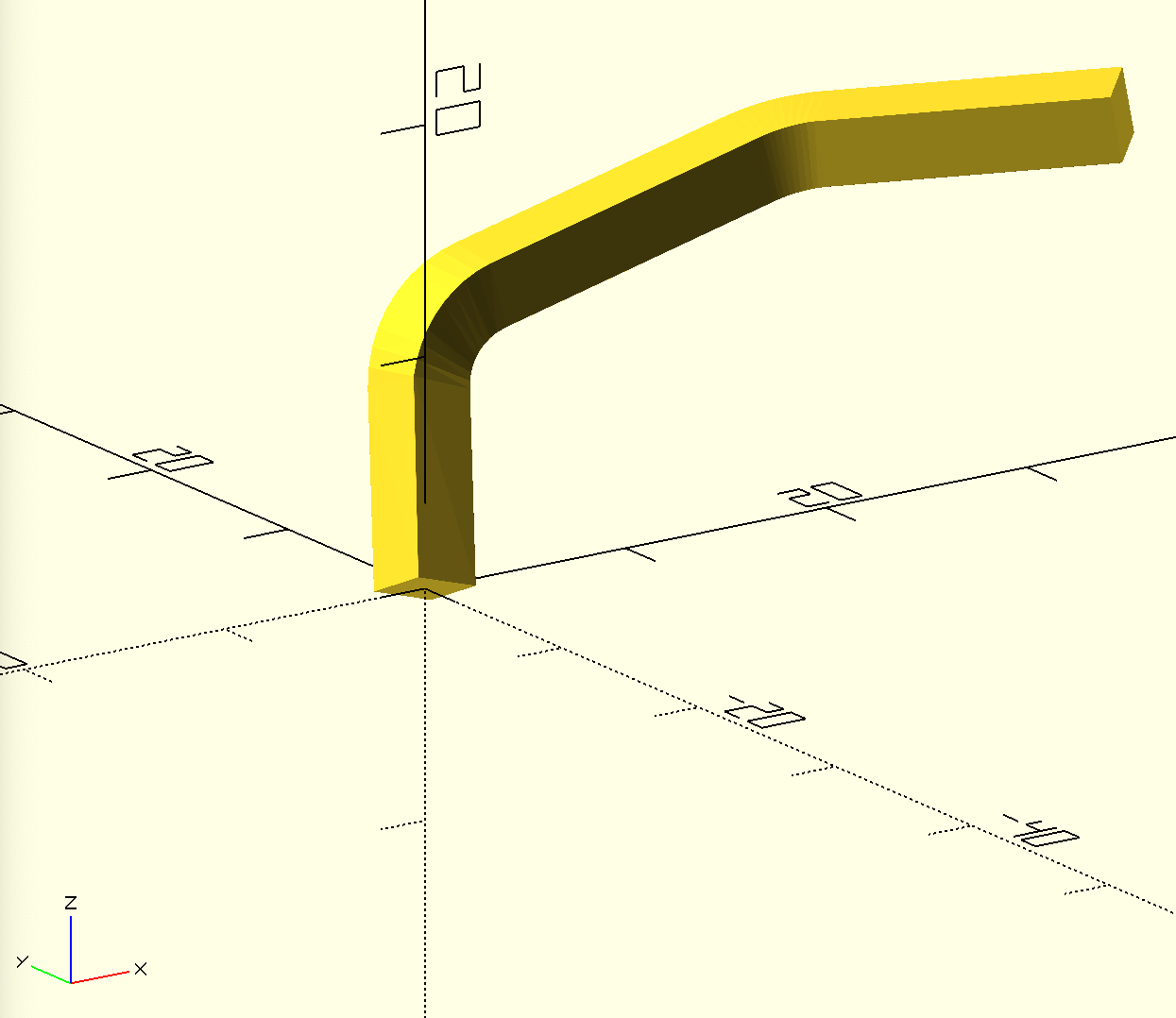

[image: Screenshot 2023-01-27 at 10.40.32 AM.png]
