Re: Fillet
I've increased the bevel size so you can see it, but it works for
integer values above 2. But, for some reason, it doesn't work for some
even numbers 12 and below.
2.0001 is fine, however, and 12.0001. (in manifold, but not cgal rendering)
On 14/01/2025 14:45, Sanjeev Prabhakar wrote:
I could not see any chamfer or fillet here.
Anything missing?
On Tue, 14 Jan 2025 at 18:04, Raymond West via Discuss
discuss@lists.openscad.org wrote:

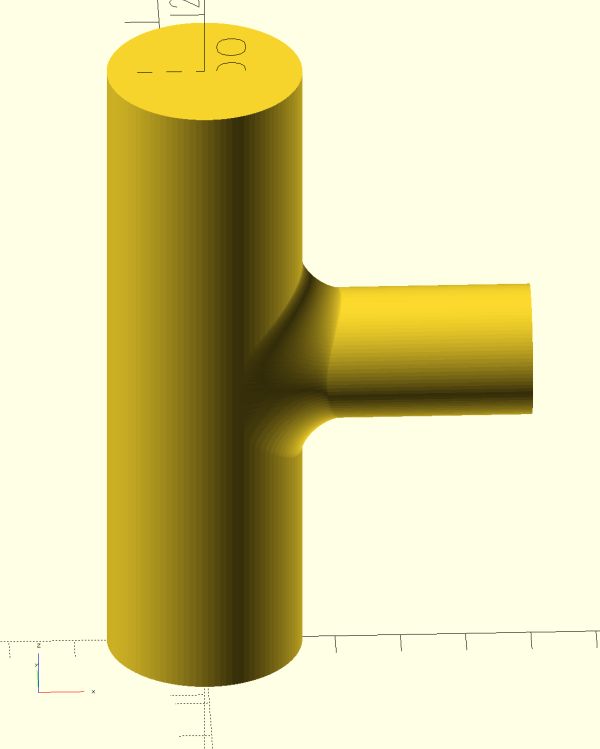

This gives a flat fillet (which I've called a bevel - depends if
you think it is internal or external, draughtsman or carpenter)

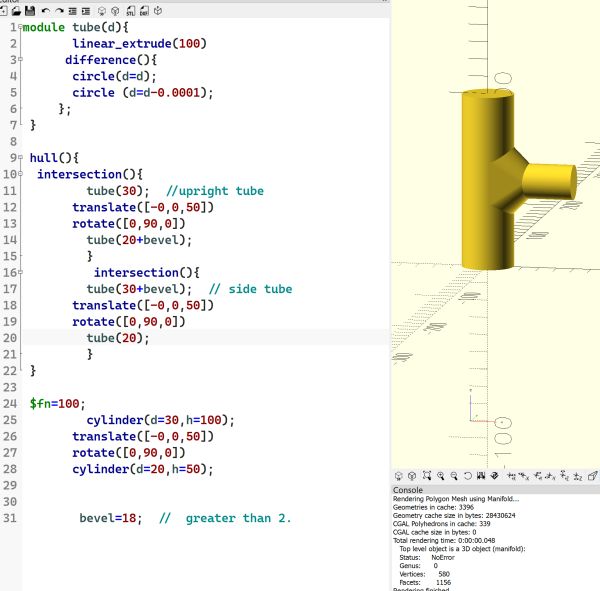

module tube(d){
linear_extrude(100)
difference(){
circle(d=d);
circle (d=d-0.0001);
};
}
hull(){
intersection(){
tube(30); //upright tube
translate([-0,0,50])
rotate([0,90,0])
tube(20+bevel);
}
intersection(){
tube(30+bevel); // side tube
translate([-0,0,50])
rotate([0,90,0])
tube(20);
}
}
$fn=100;
cylinder(d=30,h=100);
translate([-0,0,50])
rotate([0,90,0])
cylinder(d=20,h=50);
bevel=6; // greater than 2.
module tube(d){
linear_extrude(100)
difference(){
circle(d=d);
circle (d=d-0.0001);
};
}
module fillet(a,b,c,d){
hull(){
intersection(){
tube(30+a); //upright tube
translate([-0,0,50])
rotate([0,90,0])
tube(20+b);
}
intersection(){
tube(30+c); // side tube
translate([-0,0,50])
rotate([0,90,0])
tube(20+d);
}
}
}
$fn=100;
cylinder(d=30,h=100);
translate([-0,0,50])
rotate([0,90,0])
cylinder(d=20,h=50);
for (j= [0:2:90]){
bevel=12.01;
a=bevelsin(j);
b=bevelcos(j);
fillet(0,a,b,0);
}
///////////////////////////////// More is better....
