3D Scanners

LM
Leonard Martin Struttmann
Thu, Nov 21, 2024 3:50 AM

I am considering getting one of the Creality 3D scanners.  Has anyone here
used one and imported the resulting STLs into OpenSCAD?  Are they usable in
OpenSCAD?

I build electronics projects and typically hand-build 3D models of the
PCBs, displays, etc., to help design the cases.  I would truly love to be
able to merely scan them and import them into the case design.

Thanks!  Len

I am considering getting one of the Creality 3D scanners. Has anyone here used one and imported the resulting STLs into OpenSCAD? Are they usable in OpenSCAD? I build electronics projects and typically hand-build 3D models of the PCBs, displays, etc., to help design the cases. I would truly love to be able to merely scan them and import them into the case design. Thanks! Len
GH
gene heskett
Thu, Nov 21, 2024 7:26 AM

On 11/20/24 22:56, Leonard Martin Struttmann via Discuss wrote:

I am considering getting one of the Creality 3D scanners.  Has anyone
here used one and imported the resulting STLs into OpenSCAD?  Are they
usable in OpenSCAD?

Not here. We have such a scanner for linuxcnc, but I haven't messed with
it, written in the original python decades ago, supposedly handles
.png's and .jpg's for input but when fed to linuxcnc does not fare well
at all. I wrote, just to see if I could using an optical height probe,
found a 2x4" rifle magazine floor plate at 50 thou resolution was both
a several day project for my cnc'd g0704 and the backtrace was not
easily recognizable. So I hadn't developed any more interest, if I need
that, I just get out the calipers, measure the board and make it in
OpenSCAD with a cube statement.

Did you just elect yourself as guinea pig? :o)>  Somebody should.

But anything Creality makes needs copied in quality parts. Creality
doesn't. And if something breaks, you can't get the parts to fix it.

I probably have $2,800+ in an old Ender 5 Plus, a big printer that OOTB
would layer shift Y at only 20 mmps, now runs at 100+ mmps with 10x the
accuracy. But I've also been 3 years getting it there. It also prints at
that speed in PC, something no other sub $1K printer from anyone can do.
Biggest change was to switch XY motors to stepper/servo's running on 72
volts. And subbing a 20mm sq cf tube for the X transport bar with an
mgn9 rail top and bottom. That's a weight reduction of around 50%, an
improvement in accuracy and speed. And it has none of the gcode
modifying speedup tricks called /input shaping/ the $900 printers use to
get the speeds they advertise but cannot actually do on an everyday basis.

I also have a tronxy-400 thats about half done with a similar rebuild,
but I am now 90 yo and diabetic, slowing me down.

I build electronics projects and typically hand-build 3D models of the
PCBs, displays, etc., to help design the cases.  I would truly love to
be able to merely scan them and import them into the case design.

Thanks!  Len

Take care of #1, Len., better than I have.  OTOH I've had one hell of a
ride.  And I wouldn't want to miss too much of it other than the 3 wives
and and 5 children I have outlived.

Cheers, Gene Heskett, CET.

"There are four boxes to be used in defense of liberty:
soap, ballot, jury, and ammo. Please use in that order."
-Ed Howdershelt (Author, 1940)
If we desire respect for the law, we must first make the law respectable.

  • Louis D. Brandeis
On 11/20/24 22:56, Leonard Martin Struttmann via Discuss wrote: > I am considering getting one of the Creality 3D scanners.  Has anyone > here used one and imported the resulting STLs into OpenSCAD?  Are they > usable in OpenSCAD? > Not here. We have such a scanner for linuxcnc, but I haven't messed with it, written in the original python decades ago, supposedly handles .png's and .jpg's for input but when fed to linuxcnc does not fare well at all. I wrote, just to see if I could using an optical height probe, found a 2x4" rifle magazine floor plate at 50 thou resolution was both a several day project for my cnc'd g0704 and the backtrace was not easily recognizable. So I hadn't developed any more interest, if I need that, I just get out the calipers, measure the board and make it in OpenSCAD with a cube statement. Did you just elect yourself as guinea pig? :o)> Somebody should. But anything Creality makes needs copied in quality parts. Creality doesn't. And if something breaks, you can't get the parts to fix it. I probably have $2,800+ in an old Ender 5 Plus, a big printer that OOTB would layer shift Y at only 20 mmps, now runs at 100+ mmps with 10x the accuracy. But I've also been 3 years getting it there. It also prints at that speed in PC, something no other sub $1K printer from anyone can do. Biggest change was to switch XY motors to stepper/servo's running on 72 volts. And subbing a 20mm sq cf tube for the X transport bar with an mgn9 rail top and bottom. That's a weight reduction of around 50%, an improvement in accuracy and speed. And it has none of the gcode modifying speedup tricks called /input shaping/ the $900 printers use to get the speeds they advertise but cannot actually do on an everyday basis. I also have a tronxy-400 thats about half done with a similar rebuild, but I am now 90 yo and diabetic, slowing me down. > I build electronics projects and typically hand-build 3D models of the > PCBs, displays, etc., to help design the cases.  I would truly love to > be able to merely scan them and import them into the case design. > > Thanks!  Len > Take care of #1, Len., better than I have. OTOH I've had one hell of a ride. And I wouldn't want to miss too much of it other than the 3 wives and and 5 children I have outlived. Cheers, Gene Heskett, CET. -- "There are four boxes to be used in defense of liberty: soap, ballot, jury, and ammo. Please use in that order." -Ed Howdershelt (Author, 1940) If we desire respect for the law, we must first make the law respectable. - Louis D. Brandeis
RW
Raymond West
Thu, Nov 21, 2024 9:53 AM

I bought the ferret pro, about a year ago. I have not had time to
practice very much in using it. The stls are full of holes. For pcbs,
when I was into that. I'd use an ordinary document flat bed scanner. It
gets the outline pretty exact, and it is easy enough to get the height
of individual components.

I'm not sure if much improvement has been made in the past year or so,
with the creality stuff, but it was a very much a case of practice in
using it, and the software had plenty of room for improvement. If I get
time, I'll find a pcb, and spend a few minutes scanning it, and show you
the results.

On 21/11/2024 03:50, Leonard Martin Struttmann via Discuss wrote:

I am considering getting one of the Creality 3D scanners.  Has anyone
here used one and imported the resulting STLs into OpenSCAD?  Are they
usable in OpenSCAD?

I build electronics projects and typically hand-build 3D models of the
PCBs, displays, etc., to help design the cases.  I would truly love to
be able to merely scan them and import them into the case design.

Thanks! Len


OpenSCAD mailing list
To unsubscribe send an email todiscuss-leave@lists.openscad.org

I bought the ferret pro, about a year ago. I have not had time to practice very much in using it. The stls are full of holes. For pcbs, when I was into that. I'd use an ordinary document flat bed scanner. It gets the outline pretty exact, and it is easy enough to get the height of individual components. I'm not sure if much improvement has been made in the past year or so, with the creality stuff, but it was a very much a case of practice in using it, and the software had plenty of room for improvement. If I get time, I'll find a pcb, and spend a few minutes scanning it, and show you the results. On 21/11/2024 03:50, Leonard Martin Struttmann via Discuss wrote: > I am considering getting one of the Creality 3D scanners.  Has anyone > here used one and imported the resulting STLs into OpenSCAD?  Are they > usable in OpenSCAD? > > I build electronics projects and typically hand-build 3D models of the > PCBs, displays, etc., to help design the cases.  I would truly love to > be able to merely scan them and import them into the case design. > > Thanks! Len > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email todiscuss-leave@lists.openscad.org
NH
nop head
Thu, Nov 21, 2024 10:05 AM

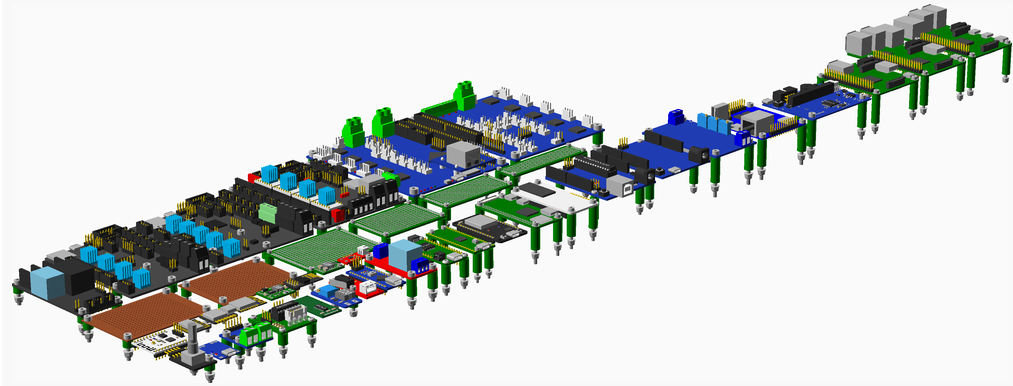

I model all the PCBs I use in OpenSCAD. I don't always do all the
components but I do the ones that affect the enclosure. If the PCB is open
source in a Kicad compatible format I can get the component positions from
that, otherwise I measure it with calipers.

[image: image.png]

On Thu, 21 Nov 2024 at 09:54, Raymond West via Discuss <
discuss@lists.openscad.org> wrote:

I bought the ferret pro, about a year ago. I have not had time to practice
very much in using it. The stls are full of holes. For pcbs, when I was
into that. I'd use an ordinary document flat bed scanner. It gets the
outline pretty exact, and it is easy enough to get the height of individual
components.

I'm not sure if much improvement has been made in the past year or so,
with the creality stuff, but it was a very much a case of practice in using
it, and the software had plenty of room for improvement. If I get time,
I'll find a pcb, and spend a few minutes scanning it, and show you the
results.
On 21/11/2024 03:50, Leonard Martin Struttmann via Discuss wrote:

I am considering getting one of the Creality 3D scanners.  Has anyone here
used one and imported the resulting STLs into OpenSCAD?  Are they usable in
OpenSCAD?

I build electronics projects and typically hand-build 3D models of the
PCBs, displays, etc., to help design the cases.  I would truly love to be
able to merely scan them and import them into the case design.

Thanks!  Len


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

I model all the PCBs I use in OpenSCAD. I don't always do all the components but I do the ones that affect the enclosure. If the PCB is open source in a Kicad compatible format I can get the component positions from that, otherwise I measure it with calipers. [image: image.png] On Thu, 21 Nov 2024 at 09:54, Raymond West via Discuss < discuss@lists.openscad.org> wrote: > I bought the ferret pro, about a year ago. I have not had time to practice > very much in using it. The stls are full of holes. For pcbs, when I was > into that. I'd use an ordinary document flat bed scanner. It gets the > outline pretty exact, and it is easy enough to get the height of individual > components. > > I'm not sure if much improvement has been made in the past year or so, > with the creality stuff, but it was a very much a case of practice in using > it, and the software had plenty of room for improvement. If I get time, > I'll find a pcb, and spend a few minutes scanning it, and show you the > results. > On 21/11/2024 03:50, Leonard Martin Struttmann via Discuss wrote: > > I am considering getting one of the Creality 3D scanners. Has anyone here > used one and imported the resulting STLs into OpenSCAD? Are they usable in > OpenSCAD? > > I build electronics projects and typically hand-build 3D models of the > PCBs, displays, etc., to help design the cases. I would truly love to be > able to merely scan them and import them into the case design. > > Thanks! Len > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org >
LM
Leonard Martin Struttmann
Thu, Nov 21, 2024 11:53 AM

Yeah, that's what I was afraid of.

Gene: I started out with an Ender 3.  A great machine to learn on and to
modify, but don't expect much help from Creality.

Raymond: Yes, the ferret is what I am/was looking at.  I look forward to
seeing something that you've scanned.

nop: Your library is awesome, and I intend on using it for modeling some of
the wiring.  But, there are still parts/assemblies that aren't there and,
even though I thoroughly enjoy modelling these in OpenSCAD, I was trying to
save some time.

For my own boards, I can export a 3D model of the board from EasyEDA and
then quickly run that through Prusaslicer to repair.  The resulting model
is not good enough to F6, but it >IS< good enough to preview and that's
generally what I need for case design.

With all of the current AI craze, I wish I knew how to train an AI to
quickly, reliably repair OBJ and STl 3D models so that they were viable for
OpenSCAD.

Thanks, everyone!

Len

On Thu, Nov 21, 2024 at 4:06 AM nop head via Discuss <
discuss@lists.openscad.org> wrote:

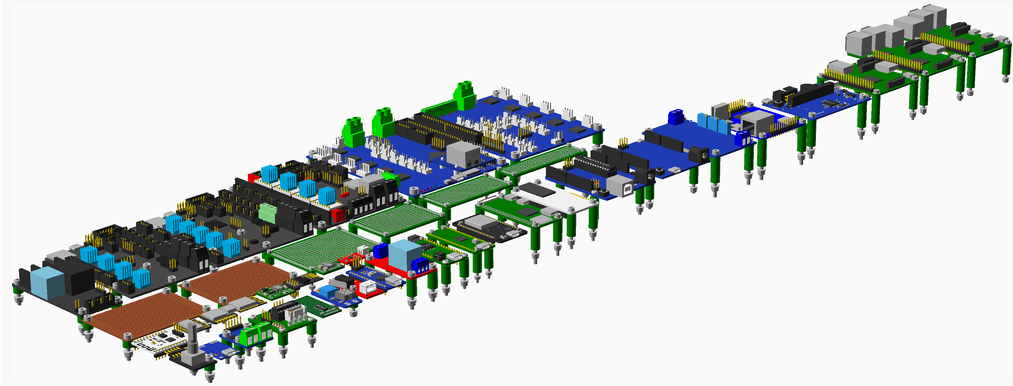

I model all the PCBs I use in OpenSCAD. I don't always do all the
components but I do the ones that affect the enclosure. If the PCB is open
source in a Kicad compatible format I can get the component positions from
that, otherwise I measure it with calipers.

[image: image.png]

On Thu, 21 Nov 2024 at 09:54, Raymond West via Discuss <
discuss@lists.openscad.org> wrote:

I bought the ferret pro, about a year ago. I have not had time to
practice very much in using it. The stls are full of holes. For pcbs, when
I was into that. I'd use an ordinary document flat bed scanner. It gets the
outline pretty exact, and it is easy enough to get the height of individual
components.

I'm not sure if much improvement has been made in the past year or so,
with the creality stuff, but it was a very much a case of practice in using
it, and the software had plenty of room for improvement. If I get time,
I'll find a pcb, and spend a few minutes scanning it, and show you the
results.
On 21/11/2024 03:50, Leonard Martin Struttmann via Discuss wrote:

I am considering getting one of the Creality 3D scanners.  Has anyone
here used one and imported the resulting STLs into OpenSCAD?  Are they
usable in OpenSCAD?

I build electronics projects and typically hand-build 3D models of the
PCBs, displays, etc., to help design the cases.  I would truly love to be
able to merely scan them and import them into the case design.

Thanks!  Len


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

Yeah, that's what I was afraid of. Gene: I started out with an Ender 3. A great machine to learn on and to modify, but don't expect much help from Creality. Raymond: Yes, the ferret is what I am/was looking at. I look forward to seeing something that you've scanned. nop: Your library is awesome, and I intend on using it for modeling some of the wiring. But, there are still parts/assemblies that aren't there and, even though I thoroughly enjoy modelling these in OpenSCAD, I was trying to save some time. For my own boards, I can export a 3D model of the board from EasyEDA and then quickly run that through Prusaslicer to repair. The resulting model is not good enough to F6, but it >IS< good enough to preview and that's generally what I need for case design. With all of the current AI craze, I wish I knew how to train an AI to quickly, reliably repair OBJ and STl 3D models so that they were viable for OpenSCAD. Thanks, everyone! Len On Thu, Nov 21, 2024 at 4:06 AM nop head via Discuss < discuss@lists.openscad.org> wrote: > I model all the PCBs I use in OpenSCAD. I don't always do all the > components but I do the ones that affect the enclosure. If the PCB is open > source in a Kicad compatible format I can get the component positions from > that, otherwise I measure it with calipers. > > [image: image.png] > > On Thu, 21 Nov 2024 at 09:54, Raymond West via Discuss < > discuss@lists.openscad.org> wrote: > >> I bought the ferret pro, about a year ago. I have not had time to >> practice very much in using it. The stls are full of holes. For pcbs, when >> I was into that. I'd use an ordinary document flat bed scanner. It gets the >> outline pretty exact, and it is easy enough to get the height of individual >> components. >> >> I'm not sure if much improvement has been made in the past year or so, >> with the creality stuff, but it was a very much a case of practice in using >> it, and the software had plenty of room for improvement. If I get time, >> I'll find a pcb, and spend a few minutes scanning it, and show you the >> results. >> On 21/11/2024 03:50, Leonard Martin Struttmann via Discuss wrote: >> >> I am considering getting one of the Creality 3D scanners. Has anyone >> here used one and imported the resulting STLs into OpenSCAD? Are they >> usable in OpenSCAD? >> >> I build electronics projects and typically hand-build 3D models of the >> PCBs, displays, etc., to help design the cases. I would truly love to be >> able to merely scan them and import them into the case design. >> >> Thanks! Len >> >> _______________________________________________ >> OpenSCAD mailing list >> To unsubscribe send an email to discuss-leave@lists.openscad.org >> >> _______________________________________________ >> OpenSCAD mailing list >> To unsubscribe send an email to discuss-leave@lists.openscad.org >> > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org >
CK
Chun Kit LAM
Thu, Nov 21, 2024 12:04 PM

It might be possible to convert the point cloud into voxels, convert the
voxel into a mesh, and do some post-processing on the mesh. If the
target features are cube like (flat surfaces, right angles, etc.), this
may work well.

On 21/11/2024 19:53, Leonard Martin Struttmann via Discuss wrote:

Yeah, that's what I was afraid of.

Gene: I started out with an Ender 3.  A great machine to learn on and
to modify, but don't expect much help from Creality.

Raymond: Yes, the ferret is what I am/was looking at.  I look forward
to seeing something that you've scanned.

nop: Your library is awesome, and I intend on using it for modeling
some of the wiring.  But, there are still parts/assemblies that aren't
there and, even though I thoroughly enjoy modelling these in OpenSCAD,
I was trying to save some time.

For my own boards, I can export a 3D model of the board from EasyEDA
and then quickly run that through Prusaslicer to repair.  The
resulting model is not good enough to F6, but it >IS< good enough to
preview and that's generally what I need for case design.

With all of the current AI craze, I wish I knew how to train an AI to
quickly, reliably repair OBJ and STl 3D models so that they were
viable for OpenSCAD.

Thanks, everyone!

Len

On Thu, Nov 21, 2024 at 4:06 AM nop head via Discuss
discuss@lists.openscad.org wrote:

 I model all the PCBs I use in OpenSCAD. I don't always do all the
 components but I do the ones that affect the enclosure. If the PCB
 is open source in a Kicad compatible format I can get the
 component positions from that, otherwise I measure it with calipers.


 On Thu, 21 Nov 2024 at 09:54, Raymond West via Discuss
 <discuss@lists.openscad.org> wrote:

     I bought the ferret pro, about a year ago. I have not had time
     to practice very much in using it. The stls are full of holes.
     For pcbs, when I was into that. I'd use an ordinary document
     flat bed scanner. It gets the outline pretty exact, and it is
     easy enough to get the height of individual components.

     I'm not sure if much improvement has been made in the past
     year or so, with the creality stuff, but it was a very much a
     case of practice in using it, and the software had plenty of
     room for improvement. If I get time, I'll find a pcb, and
     spend a few minutes scanning it, and show you the results.

     On 21/11/2024 03:50, Leonard Martin Struttmann via Discuss wrote:
     I am considering getting one of the Creality 3D scanners.
     Has anyone here used one and imported the resulting STLs into
     OpenSCAD?  Are they usable in OpenSCAD?

     I build electronics projects and typically hand-build 3D
     models of the PCBs, displays, etc., to help design the
     cases.  I would truly love to be able to merely scan them and
     import them into the case design.

     Thanks!  Len

     _______________________________________________
     OpenSCAD mailing list
     To unsubscribe send an email todiscuss-leave@lists.openscad.org
     _______________________________________________
     OpenSCAD mailing list
     To unsubscribe send an email to discuss-leave@lists.openscad.org

 _______________________________________________
 OpenSCAD mailing list
 To unsubscribe send an email to discuss-leave@lists.openscad.org

OpenSCAD mailing list
To unsubscribe send an email todiscuss-leave@lists.openscad.org

It might be possible to convert the point cloud into voxels, convert the voxel into a mesh, and do some post-processing on the mesh. If the target features are cube like (flat surfaces, right angles, etc.), this may work well. On 21/11/2024 19:53, Leonard Martin Struttmann via Discuss wrote: > Yeah, that's what I was afraid of. > > Gene: I started out with an Ender 3.  A great machine to learn on and > to modify, but don't expect much help from Creality. > > Raymond: Yes, the ferret is what I am/was looking at.  I look forward > to seeing something that you've scanned. > > nop: Your library is awesome, and I intend on using it for modeling > some of the wiring.  But, there are still parts/assemblies that aren't > there and, even though I thoroughly enjoy modelling these in OpenSCAD, > I was trying to save some time. > > For my own boards, I can export a 3D model of the board from EasyEDA > and then quickly run that through Prusaslicer to repair.  The > resulting model is not good enough to F6, but it >IS< good enough to > preview and that's generally what I need for case design. > > With all of the current AI craze, I wish I knew how to train an AI to > quickly, reliably repair OBJ and STl 3D models so that they were > viable for OpenSCAD. > > Thanks, everyone! > > Len > > > > On Thu, Nov 21, 2024 at 4:06 AM nop head via Discuss > <discuss@lists.openscad.org> wrote: > > I model all the PCBs I use in OpenSCAD. I don't always do all the > components but I do the ones that affect the enclosure. If the PCB > is open source in a Kicad compatible format I can get the > component positions from that, otherwise I measure it with calipers. > > image.png > > On Thu, 21 Nov 2024 at 09:54, Raymond West via Discuss > <discuss@lists.openscad.org> wrote: > > I bought the ferret pro, about a year ago. I have not had time > to practice very much in using it. The stls are full of holes. > For pcbs, when I was into that. I'd use an ordinary document > flat bed scanner. It gets the outline pretty exact, and it is > easy enough to get the height of individual components. > > I'm not sure if much improvement has been made in the past > year or so, with the creality stuff, but it was a very much a > case of practice in using it, and the software had plenty of > room for improvement. If I get time, I'll find a pcb, and > spend a few minutes scanning it, and show you the results. > > On 21/11/2024 03:50, Leonard Martin Struttmann via Discuss wrote: >> I am considering getting one of the Creality 3D scanners.  >> Has anyone here used one and imported the resulting STLs into >> OpenSCAD?  Are they usable in OpenSCAD? >> >> I build electronics projects and typically hand-build 3D >> models of the PCBs, displays, etc., to help design the >> cases.  I would truly love to be able to merely scan them and >> import them into the case design. >> >> Thanks!  Len >> >> _______________________________________________ >> OpenSCAD mailing list >> To unsubscribe send an email todiscuss-leave@lists.openscad.org > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org > > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email todiscuss-leave@lists.openscad.org
JB
Jon Bondy
Thu, Nov 21, 2024 12:37 PM

I have had a variety of Creality and RevoPoint 3D scanners, mostly as a
result of KickStarter campaigns, where I got "deals". None of them were
satisfactory for my purposes.  They require that you keep the scanner at
a somewhat fixed distance from the object being scanned, and they show
this with a display on your computer, to which you attach the scanner.
You can either look at the scanner and object, or the screen, but not
both, and that is very frustrating.  I even asked a friend to monitor
the screen while I tried to scan (shouting out "closer!" "back!") and
that was too frustrating for both of us.  I tried using a tripod and
rotating the objects with a black back drop.  I tried adding colored
dots. I tried Photogrammetry.  None of it would work reliably.

I bought the RevoPoint Miraco, and then I sold all of my other
scanners.  It is expensive, but it is all-in-one: scanner, display,
processor.  It uses structured light, so there is no need for dots
(although I spray shiny objects with foot powder).  You can see the
closeness display while you are scanning, so it is easy to keep the
scanner at the right distance.  I use single shot mode, where each press
of the button takes a picture, rather than video mode.  It is much
easier to discard a single scan if the scanner gets confused about sync
with the object.  And you can import the point clouds to your computer
(via WiFi) and then use other tools to finish the processing, including
RevoPoint's Revo Scan software.  I have scanned two sides of an object
and then merged the point clouds using CloudCompare.  All of this under
Windows.

Highly recommended, if you can afford it.

Jon

On 11/20/2024 10:50 PM, Leonard Martin Struttmann via Discuss wrote:

I am considering getting one of the Creality 3D scanners.  Has anyone
here used one and imported the resulting STLs into OpenSCAD?  Are they
usable in OpenSCAD?

I build electronics projects and typically hand-build 3D models of the
PCBs, displays, etc., to help design the cases.  I would truly love to
be able to merely scan them and import them into the case design.

Thanks! Len


OpenSCAD mailing list
To unsubscribe send an email todiscuss-leave@lists.openscad.org

--
This email has been checked for viruses by AVG antivirus software.
www.avg.com

I have had a variety of Creality and RevoPoint 3D scanners, mostly as a result of KickStarter campaigns, where I got "deals". None of them were satisfactory for my purposes.  They require that you keep the scanner at a somewhat fixed distance from the object being scanned, and they show this with a display on your computer, to which you attach the scanner. You can either look at the scanner and object, or the screen, but not both, and that is very frustrating.  I even asked a friend to monitor the screen while I tried to scan (shouting out "closer!" "back!") and that was too frustrating for both of us.  I tried using a tripod and rotating the objects with a black back drop.  I tried adding colored dots. I tried Photogrammetry.  None of it would work reliably. I bought the RevoPoint Miraco, and then I sold all of my other scanners.  It is expensive, but it is all-in-one: scanner, display, processor.  It uses structured light, so there is no need for dots (although I spray shiny objects with foot powder).  You can see the closeness display while you are scanning, so it is easy to keep the scanner at the right distance.  I use single shot mode, where each press of the button takes a picture, rather than video mode.  It is much easier to discard a single scan if the scanner gets confused about sync with the object.  And you can import the point clouds to your computer (via WiFi) and then use other tools to finish the processing, including RevoPoint's Revo Scan software.  I have scanned two sides of an object and then merged the point clouds using CloudCompare.  All of this under Windows. Highly recommended, if you can afford it. Jon On 11/20/2024 10:50 PM, Leonard Martin Struttmann via Discuss wrote: > I am considering getting one of the Creality 3D scanners.  Has anyone > here used one and imported the resulting STLs into OpenSCAD?  Are they > usable in OpenSCAD? > > I build electronics projects and typically hand-build 3D models of the > PCBs, displays, etc., to help design the cases.  I would truly love to > be able to merely scan them and import them into the case design. > > Thanks! Len > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email todiscuss-leave@lists.openscad.org -- This email has been checked for viruses by AVG antivirus software. www.avg.com
GH
gene heskett
Thu, Nov 21, 2024 2:04 PM

On 11/21/24 06:57, Leonard Martin Struttmann via Discuss wrote:

Yeah, that's what I was afraid of.

Gene: I started out with an Ender 3.  A great machine to learn on and to
modify, but don't expect much help from Creality.

So did I, in fact I still have it, non-functional. So I bought the ender
5 plus, first thing that broke was the plastic lever arm of the frame
mounted extruder, so I replaced it with an exact copy but all metal.
Creality found out and sent me an email telling me the warranty was null
and void. So it didn't bither me a bot to use its frame to build a real
printer.

And I also have a tronxy-400 about half done but there the top end
geometry was hosed, so that has all been redesigbed and should print
square stuff dead square now. Thats been quite a trip. Lots of carbon
fiber in the transport to reduce flying weight by about 75% that the
motors have to throw around. I use bananapi-m5's in place of rpi's,
running armbian, works great. No compatibility problems. 25" flat screen
clipped to the E5+ front frame, 27" curved HP screen on the tronxy. It
came with a Marlin that was busted, all have klipper running them now.
All have net ports. I compose what I want on this machine and send to
the chosen machine, all from a comfy office chair. Whats not to like?

Raymond: Yes, the ferret is what I am/was looking at.  I look forward to
seeing something that you've scanned.

nop: Your library is awesome, and I intend on using it for modeling some
of the wiring.  But, there are still parts/assemblies that aren't there
and, even though I thoroughly enjoy modelling these in OpenSCAD, I was
trying to save some time.

For my own boards, I can export a 3D model of the board from EasyEDA and
then quickly run that through Prusaslicer to repair.  The resulting
model is not good enough to F6, but it >IS< good enough to preview and
that's generally what I need for case design.

With all of the current AI craze, I wish I knew how to train an AI to
quickly, reliably repair OBJ and STl 3D models so that they were viable
for OpenSCAD.

Thanks, everyone!

Len

On Thu, Nov 21, 2024 at 4:06 AM nop head via Discuss
<discuss@lists.openscad.org mailto:discuss@lists.openscad.org> wrote:

 I model all the PCBs I use in OpenSCAD. I don't always do all the
 components but I do the ones that affect the enclosure. If the PCB
 is open source in a Kicad compatible format I can get the component
 positions from that, otherwise I measure it with calipers.


 On Thu, 21 Nov 2024 at 09:54, Raymond West via Discuss
 <discuss@lists.openscad.org <mailto:discuss@lists.openscad.org>> wrote:

     __

     I bought the ferret pro, about a year ago. I have not had time
     to practice very much in using it. The stls are full of holes.
     For pcbs, when I was into that. I'd use an ordinary document
     flat bed scanner. It gets the outline pretty exact, and it is
     easy enough to get the height of individual components.

     I'm not sure if much improvement has been made in the past year
     or so, with the creality stuff, but it was a very much a case of
     practice in using it, and the software had plenty of room for
     improvement. If I get time, I'll find a pcb, and spend a few
     minutes scanning it, and show you the results.

     On 21/11/2024 03:50, Leonard Martin Struttmann via Discuss wrote:
     I am considering getting one of the Creality 3D scanners.  Has
     anyone here used one and imported the resulting STLs into
     OpenSCAD?  Are they usable in OpenSCAD?

     I build electronics projects and typically hand-build 3D
     models of the PCBs, displays, etc., to help design the cases.
     I would truly love to be able to merely scan them and import
     them into the case design.

     Thanks! Len

     _______________________________________________
     OpenSCAD mailing list
     To unsubscribe send an email todiscuss-leave@lists.openscad.org <mailto:discuss-leave@lists.openscad.org>
     _______________________________________________
     OpenSCAD mailing list
     To unsubscribe send an email to discuss-leave@lists.openscad.org
     <mailto:discuss-leave@lists.openscad.org>

 _______________________________________________
 OpenSCAD mailing list
 To unsubscribe send an email to discuss-leave@lists.openscad.org
 <mailto:discuss-leave@lists.openscad.org>

OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

Cheers, Gene Heskett, CET.

"There are four boxes to be used in defense of liberty:
soap, ballot, jury, and ammo. Please use in that order."
-Ed Howdershelt (Author, 1940)
If we desire respect for the law, we must first make the law respectable.

  • Louis D. Brandeis
On 11/21/24 06:57, Leonard Martin Struttmann via Discuss wrote: > Yeah, that's what I was afraid of. > > Gene: I started out with an Ender 3.  A great machine to learn on and to > modify, but don't expect much help from Creality. So did I, in fact I still have it, non-functional. So I bought the ender 5 plus, first thing that broke was the plastic lever arm of the frame mounted extruder, so I replaced it with an exact copy but all metal. Creality found out and sent me an email telling me the warranty was null and void. So it didn't bither me a bot to use its frame to build a real printer. And I also have a tronxy-400 about half done but there the top end geometry was hosed, so that has all been redesigbed and should print square stuff dead square now. Thats been quite a trip. Lots of carbon fiber in the transport to reduce flying weight by about 75% that the motors have to throw around. I use bananapi-m5's in place of rpi's, running armbian, works great. No compatibility problems. 25" flat screen clipped to the E5+ front frame, 27" curved HP screen on the tronxy. It came with a Marlin that was busted, all have klipper running them now. All have net ports. I compose what I want on this machine and send to the chosen machine, all from a comfy office chair. Whats not to like? > > Raymond: Yes, the ferret is what I am/was looking at.  I look forward to > seeing something that you've scanned. > > nop: Your library is awesome, and I intend on using it for modeling some > of the wiring.  But, there are still parts/assemblies that aren't there > and, even though I thoroughly enjoy modelling these in OpenSCAD, I was > trying to save some time. > > For my own boards, I can export a 3D model of the board from EasyEDA and > then quickly run that through Prusaslicer to repair.  The resulting > model is not good enough to F6, but it >IS< good enough to preview and > that's generally what I need for case design. > > With all of the current AI craze, I wish I knew how to train an AI to > quickly, reliably repair OBJ and STl 3D models so that they were viable > for OpenSCAD. > > Thanks, everyone! > > Len > > > > On Thu, Nov 21, 2024 at 4:06 AM nop head via Discuss > <discuss@lists.openscad.org <mailto:discuss@lists.openscad.org>> wrote: > > I model all the PCBs I use in OpenSCAD. I don't always do all the > components but I do the ones that affect the enclosure. If the PCB > is open source in a Kicad compatible format I can get the component > positions from that, otherwise I measure it with calipers. > > image.png > > On Thu, 21 Nov 2024 at 09:54, Raymond West via Discuss > <discuss@lists.openscad.org <mailto:discuss@lists.openscad.org>> wrote: > > __ > > I bought the ferret pro, about a year ago. I have not had time > to practice very much in using it. The stls are full of holes. > For pcbs, when I was into that. I'd use an ordinary document > flat bed scanner. It gets the outline pretty exact, and it is > easy enough to get the height of individual components. > > I'm not sure if much improvement has been made in the past year > or so, with the creality stuff, but it was a very much a case of > practice in using it, and the software had plenty of room for > improvement. If I get time, I'll find a pcb, and spend a few > minutes scanning it, and show you the results. > > On 21/11/2024 03:50, Leonard Martin Struttmann via Discuss wrote: >> I am considering getting one of the Creality 3D scanners.  Has >> anyone here used one and imported the resulting STLs into >> OpenSCAD?  Are they usable in OpenSCAD? >> >> I build electronics projects and typically hand-build 3D >> models of the PCBs, displays, etc., to help design the cases. >> I would truly love to be able to merely scan them and import >> them into the case design. >> >> Thanks! Len >> >> _______________________________________________ >> OpenSCAD mailing list >> To unsubscribe send an email todiscuss-leave@lists.openscad.org <mailto:discuss-leave@lists.openscad.org> > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org > <mailto:discuss-leave@lists.openscad.org> > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org > <mailto:discuss-leave@lists.openscad.org> > > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org Cheers, Gene Heskett, CET. -- "There are four boxes to be used in defense of liberty: soap, ballot, jury, and ammo. Please use in that order." -Ed Howdershelt (Author, 1940) If we desire respect for the law, we must first make the law respectable. - Louis D. Brandeis
GH
gene heskett
Thu, Nov 21, 2024 2:10 PM

On 11/21/24 07:37, Jon Bondy via Discuss wrote:

I have had a variety of Creality and RevoPoint 3D scanners, mostly as a
result of KickStarter campaigns, where I got "deals". None of them were
satisfactory for my purposes.  They require that you keep the scanner at
a somewhat fixed distance from the object being scanned, and they show
this with a display on your computer, to which you attach the scanner.
You can either look at the scanner and object, or the screen, but not
both, and that is very frustrating.  I even asked a friend to monitor
the screen while I tried to scan (shouting out "closer!" "back!") and
that was too frustrating for both of us.  I tried using a tripod and
rotating the objects with a black back drop.  I tried adding colored
dots. I tried Photogrammetry.  None of it would work reliably.

I bought the RevoPoint Miraco, and then I sold all of my other
scanners.  It is expensive, but it is all-in-one: scanner, display,
processor.  It uses structured light, so there is no need for dots
(although I spray shiny objects with foot powder).  You can see the
closeness display while you are scanning, so it is easy to keep the
scanner at the right distance.  I use single shot mode, where each press
of the button takes a picture, rather than video mode.  It is much
easier to discard a single scan if the scanner gets confused about sync
with the object.  And you can import the point clouds to your computer
(via WiFi) and then use other tools to finish the processing, including
RevoPoint's Revo Scan software.  I have scanned two sides of an object
and then merged the point clouds using CloudCompare.  All of this under
Windows.

Highly recommended, if you can afford it.

But you didn't mention a ball park price. That would have been helpful.
Thank you for pointing it out Jon.

Jon

On 11/20/2024 10:50 PM, Leonard Martin Struttmann via Discuss wrote:

I am considering getting one of the Creality 3D scanners.  Has anyone
here used one and imported the resulting STLs into OpenSCAD?  Are they
usable in OpenSCAD?

I build electronics projects and typically hand-build 3D models of the
PCBs, displays, etc., to help design the cases.  I would truly love to
be able to merely scan them and import them into the case design.

Thanks! Len


OpenSCAD mailing list
To unsubscribe send an email todiscuss-leave@lists.openscad.org

<http://www.avg.com/email-signature?
utm_medium=email&utm_source=link&utm_campaign=sig-
email&utm_content=emailclient> Virus-free.www.avg.com <http://
www.avg.com/email-signature?
utm_medium=email&utm_source=link&utm_campaign=sig-
email&utm_content=emailclient>

<#DAB4FAD8-2DD7-40BB-A1B8-4E2AA1F9FDF2>


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

Cheers, Gene Heskett, CET.

"There are four boxes to be used in defense of liberty:
soap, ballot, jury, and ammo. Please use in that order."
-Ed Howdershelt (Author, 1940)
If we desire respect for the law, we must first make the law respectable.

  • Louis D. Brandeis
On 11/21/24 07:37, Jon Bondy via Discuss wrote: > I have had a variety of Creality and RevoPoint 3D scanners, mostly as a > result of KickStarter campaigns, where I got "deals". None of them were > satisfactory for my purposes.  They require that you keep the scanner at > a somewhat fixed distance from the object being scanned, and they show > this with a display on your computer, to which you attach the scanner. > You can either look at the scanner and object, or the screen, but not > both, and that is very frustrating.  I even asked a friend to monitor > the screen while I tried to scan (shouting out "closer!" "back!") and > that was too frustrating for both of us.  I tried using a tripod and > rotating the objects with a black back drop.  I tried adding colored > dots. I tried Photogrammetry.  None of it would work reliably. > > I bought the RevoPoint Miraco, and then I sold all of my other > scanners.  It is expensive, but it is all-in-one: scanner, display, > processor.  It uses structured light, so there is no need for dots > (although I spray shiny objects with foot powder).  You can see the > closeness display while you are scanning, so it is easy to keep the > scanner at the right distance.  I use single shot mode, where each press > of the button takes a picture, rather than video mode.  It is much > easier to discard a single scan if the scanner gets confused about sync > with the object.  And you can import the point clouds to your computer > (via WiFi) and then use other tools to finish the processing, including > RevoPoint's Revo Scan software.  I have scanned two sides of an object > and then merged the point clouds using CloudCompare.  All of this under > Windows. > > Highly recommended, if you can afford it. But you didn't mention a ball park price. That would have been helpful. Thank you for pointing it out Jon. > > Jon > > > On 11/20/2024 10:50 PM, Leonard Martin Struttmann via Discuss wrote: >> I am considering getting one of the Creality 3D scanners.  Has anyone >> here used one and imported the resulting STLs into OpenSCAD?  Are they >> usable in OpenSCAD? >> >> I build electronics projects and typically hand-build 3D models of the >> PCBs, displays, etc., to help design the cases.  I would truly love to >> be able to merely scan them and import them into the case design. >> >> Thanks! Len >> >> _______________________________________________ >> OpenSCAD mailing list >> To unsubscribe send an email todiscuss-leave@lists.openscad.org > > <http://www.avg.com/email-signature? > utm_medium=email&utm_source=link&utm_campaign=sig- > email&utm_content=emailclient> Virus-free.www.avg.com <http:// > www.avg.com/email-signature? > utm_medium=email&utm_source=link&utm_campaign=sig- > email&utm_content=emailclient> > > <#DAB4FAD8-2DD7-40BB-A1B8-4E2AA1F9FDF2> > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org Cheers, Gene Heskett, CET. -- "There are four boxes to be used in defense of liberty: soap, ballot, jury, and ammo. Please use in that order." -Ed Howdershelt (Author, 1940) If we desire respect for the law, we must first make the law respectable. - Louis D. Brandeis
JB
Jon Bondy
Thu, Nov 21, 2024 2:26 PM

The Miraco was $1,300, but they reduced it to $1,000 when they announced
the Miraco Pro (which does not appear to add much, to my eyes).

On 11/21/2024 9:10 AM, gene heskett via Discuss wrote:

On 11/21/24 07:37, Jon Bondy via Discuss wrote:

I have had a variety of Creality and RevoPoint 3D scanners, mostly as
a result of KickStarter campaigns, where I got "deals". None of them
were satisfactory for my purposes.  They require that you keep the
scanner at a somewhat fixed distance from the object being scanned,
and they show this with a display on your computer, to which you
attach the scanner. You can either look at the scanner and object, or
the screen, but not both, and that is very frustrating.  I even asked
a friend to monitor the screen while I tried to scan (shouting out
"closer!" "back!") and that was too frustrating for both of us.  I
tried using a tripod and rotating the objects with a black back
drop.  I tried adding colored dots. I tried Photogrammetry.  None of
it would work reliably.

I bought the RevoPoint Miraco, and then I sold all of my other
scanners.  It is expensive, but it is all-in-one: scanner, display,
processor.  It uses structured light, so there is no need for dots
(although I spray shiny objects with foot powder).  You can see the
closeness display while you are scanning, so it is easy to keep the
scanner at the right distance.  I use single shot mode, where each
press of the button takes a picture, rather than video mode.  It is
much easier to discard a single scan if the scanner gets confused
about sync with the object.  And you can import the point clouds to
your computer (via WiFi) and then use other tools to finish the
processing, including RevoPoint's Revo Scan software.  I have scanned
two sides of an object and then merged the point clouds using
CloudCompare.  All of this under Windows.

Highly recommended, if you can afford it.

But you didn't mention a ball park price. That would have been
helpful. Thank you for pointing it out Jon.

Jon

On 11/20/2024 10:50 PM, Leonard Martin Struttmann via Discuss wrote:

I am considering getting one of the Creality 3D scanners.  Has
anyone here used one and imported the resulting STLs into OpenSCAD?
Are they usable in OpenSCAD?

I build electronics projects and typically hand-build 3D models of
the PCBs, displays, etc., to help design the cases. I would truly
love to be able to merely scan them and import them into the case
design.

Thanks! Len


OpenSCAD mailing list
To unsubscribe send an email todiscuss-leave@lists.openscad.org

<http://www.avg.com/email-signature?
utm_medium=email&utm_source=link&utm_campaign=sig-
email&utm_content=emailclient>    Virus-free.www.avg.com <http://
www.avg.com/email-signature?
utm_medium=email&utm_source=link&utm_campaign=sig-
email&utm_content=emailclient>

<#DAB4FAD8-2DD7-40BB-A1B8-4E2AA1F9FDF2>


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

Cheers, Gene Heskett, CET.

--
This email has been checked for viruses by AVG antivirus software.
www.avg.com

The Miraco was $1,300, but they reduced it to $1,000 when they announced the Miraco Pro (which does not appear to add much, to my eyes). On 11/21/2024 9:10 AM, gene heskett via Discuss wrote: > On 11/21/24 07:37, Jon Bondy via Discuss wrote: >> I have had a variety of Creality and RevoPoint 3D scanners, mostly as >> a result of KickStarter campaigns, where I got "deals". None of them >> were satisfactory for my purposes.  They require that you keep the >> scanner at a somewhat fixed distance from the object being scanned, >> and they show this with a display on your computer, to which you >> attach the scanner. You can either look at the scanner and object, or >> the screen, but not both, and that is very frustrating.  I even asked >> a friend to monitor the screen while I tried to scan (shouting out >> "closer!" "back!") and that was too frustrating for both of us.  I >> tried using a tripod and rotating the objects with a black back >> drop.  I tried adding colored dots. I tried Photogrammetry.  None of >> it would work reliably. >> >> I bought the RevoPoint Miraco, and then I sold all of my other >> scanners.  It is expensive, but it is all-in-one: scanner, display, >> processor.  It uses structured light, so there is no need for dots >> (although I spray shiny objects with foot powder).  You can see the >> closeness display while you are scanning, so it is easy to keep the >> scanner at the right distance.  I use single shot mode, where each >> press of the button takes a picture, rather than video mode.  It is >> much easier to discard a single scan if the scanner gets confused >> about sync with the object.  And you can import the point clouds to >> your computer (via WiFi) and then use other tools to finish the >> processing, including RevoPoint's Revo Scan software.  I have scanned >> two sides of an object and then merged the point clouds using >> CloudCompare.  All of this under Windows. >> >> Highly recommended, if you can afford it. > > But you didn't mention a ball park price. That would have been > helpful. Thank you for pointing it out Jon. >> >> Jon >> >> >> On 11/20/2024 10:50 PM, Leonard Martin Struttmann via Discuss wrote: >>> I am considering getting one of the Creality 3D scanners.  Has >>> anyone here used one and imported the resulting STLs into OpenSCAD?  >>> Are they usable in OpenSCAD? >>> >>> I build electronics projects and typically hand-build 3D models of >>> the PCBs, displays, etc., to help design the cases. I would truly >>> love to be able to merely scan them and import them into the case >>> design. >>> >>> Thanks! Len >>> >>> _______________________________________________ >>> OpenSCAD mailing list >>> To unsubscribe send an email todiscuss-leave@lists.openscad.org >> >> <http://www.avg.com/email-signature? >> utm_medium=email&utm_source=link&utm_campaign=sig- >> email&utm_content=emailclient>    Virus-free.www.avg.com <http:// >> www.avg.com/email-signature? >> utm_medium=email&utm_source=link&utm_campaign=sig- >> email&utm_content=emailclient> >> >> <#DAB4FAD8-2DD7-40BB-A1B8-4E2AA1F9FDF2> >> >> _______________________________________________ >> OpenSCAD mailing list >> To unsubscribe send an email to discuss-leave@lists.openscad.org > > > Cheers, Gene Heskett, CET. -- This email has been checked for viruses by AVG antivirus software. www.avg.com
