Hey all,
I have recently been working on a project where I created an object with
OpenSCAD and then printed it out with my 3D printer. But my ultimate goal
was to use traditional metal machining techniques (i.e. milling machine and
lathe) to create a metal version of the part.
I then realized OpenSCAD's shortcoming in creating paper plans that I could
use when machining. There are no visible dimensions of key points. And
using the scale on the axes is not precise enough. What I ended up doing
was to echo all the information I needed to the console log, and then
printing out a screen capture of the display and manually drawing the
coordinates by hand. It seems so me that the computer should be able to
help me do this. Perhaps I am trying to make the application do something
it is not designed for, but to me it does seem in the scope of the
program. And maybe this has already been solved. If so, please let me
know.
Here is my idea. I would like to change OpenSCAD such that there is a way
to add a display label. Perhaps like this:
DisplayLabel([x,y,z],"My Text", <color>, <
font>, <size>);
This would not put anything into the 3D object (and thus would not be
output when exporting an .STL file), but would just be visible on the
screen. The text would always face the camera. I have seen some
libraries that insert text rendered in 3D shapes (though I can't remember
where). But that 3D text object is actually part of the design, and
flipping the view around to the back would show the backside of the text.
To me is seems less professional to do things that way.
Another helpful tool would be:
DisplayLine(Points = [v1,v2,v3], <color>, <thickness>);
This would just draw a line on the display screen -- not added to the 3D
object. This would allow, for example, one to draw a line between a key
point on the design and the Display label above.

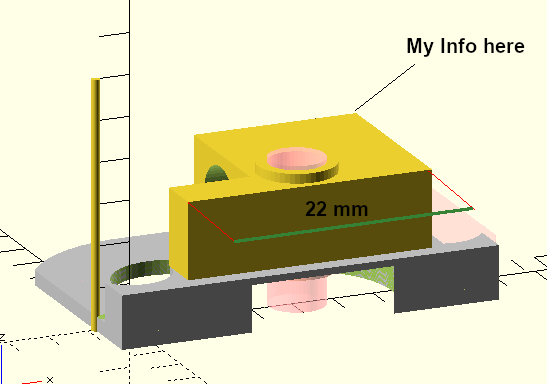

An example of how I would use this is as below, made by altering a screen
shot.
[image: Screen Shot 2019-02-12 at 7.09.16 AM.png]
The downside of this approach is that the designer has to manually set up
everything they want output on the design display. But it seems much
easier (from an OpenSCAD programming change approach) than trying to figure
out how to have the program output schematics like Fusion 360 does.
I know that the usual way to go about this, in an open source situation,
would be to make the change myself. I don't have the bandwidth, however,
to learn out how to make the changes myself. So I would have to depend on
others.
Has this problem already been solved?
Would there be any support for such a change? Does anyone else think it
would be helpful?
Thanks in advance,
K. Toppenberg
Hey all,
I have recently been working on a project where I created an object with
OpenSCAD and then printed it out with my 3D printer. But my ultimate goal
was to use traditional metal machining techniques (i.e. milling machine and
lathe) to create a metal version of the part.
I then realized OpenSCAD's shortcoming in creating paper plans that I could
use when machining. There are no visible dimensions of key points. And
using the scale on the axes is not precise enough. What I ended up doing
was to echo all the information I needed to the console log, and then
printing out a screen capture of the display and manually drawing the
coordinates by hand. It seems so me that the computer should be able to
help me do this. Perhaps I am trying to make the application do something
it is not designed for, but to me it does seem in the scope of the
program. And maybe this has already been solved. If so, please let me
know.
Here is my idea. I would like to change OpenSCAD such that there is a way
to add a display label. Perhaps like this:
DisplayLabel([x,y,z],"My Text", <color>, <
font>, <size>);
This would not put anything into the 3D object (and thus would not be
output when exporting an .STL file), but would just be visible on the
screen. The text would always face the camera. I have seen some
libraries that insert text rendered in 3D shapes (though I can't remember
where). But that 3D text object is actually part of the design, and
flipping the view around to the back would show the backside of the text.
To me is seems less professional to do things that way.
Another helpful tool would be:
DisplayLine(Points = [v1,v2,v3], <color>, <thickness>);
This would just draw a line on the display screen -- not added to the 3D
object. This would allow, for example, one to draw a line between a key
point on the design and the Display label above.
An example of how I would use this is as below, made by altering a screen
shot.
[image: Screen Shot 2019-02-12 at 7.09.16 AM.png]
The downside of this approach is that the designer has to manually set up
everything they want output on the design display. But it seems much
easier (from an OpenSCAD programming change approach) than trying to figure
out how to have the program output schematics like Fusion 360 does.
I know that the usual way to go about this, in an open source situation,
would be to make the change myself. I don't have the bandwidth, however,
to learn out how to make the changes myself. So I would have to depend on
others.
Has this problem already been solved?
Would there be any support for such a change? Does anyone else think it
would be helpful?
Thanks in advance,
K. Toppenberg
NH
nop head
Tue, Feb 12, 2019 1:17 PM
You can add things to the display without them being part of the object
with the % operator.
You can make things always face the camera using $vpr and fix the size with
$vpd.
So I think you can do what you want in user space, without any mods to
OpenSCAD.
Another way is to export an STL and measure it with NetFabb studio.
I haven't done it myself because my lathe and mill are CNC.
