Actually I need to place some holes at a circle:
http://forum.openscad.org/file/t2943/place_holes_on_circle.png
I did with:
diameter = 34.0;
difference () {
cylinder(h=10, d=diameter + 10);
cylinder(h=10, d=6);
translate([0, diameter/2, 0]) {
cylinder(h=10, d=6);
}
rotate (a=120) {
translate([0, diameter/2, 0]) {
cylinder(h=10, d=6);
}
}
rotate (a=-120) {
translate([0, diameter/2, 0]) {
cylinder(h=10, d=6);
}
}
}

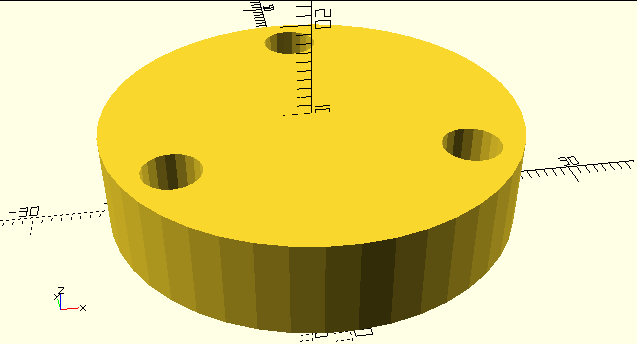

Which results in:
http://forum.openscad.org/file/t2943/place_holes_on_circle_firsttry.png
Is there a better way?
--
Sent from: http://forum.openscad.org/
I assume it's slow?
First, you need to translate the differenced cylinders so that they start below the cylinder you're punching holes in, and make them longer so that they poke out part the top.
That should make it render faster
With a FOR loop you only have one set of commands, repated as many times you want around the rim.
(Sorry, don't have time to check the correect syntax right now. I have a CAKE that needs to be eaten... )
And finally, to clean it up a bit, use indentation.
ROTATE ()
TRANSLATE ()
OBJECT();
Notice that there's no need to use the curly brackets because both ROTATE and TRANSLATE expect an object of some sort to follow.
Trygve
Den 28. august 2020 kl. 14.23.47 +02.00 skrev AndyY via Discuss discuss@lists.openscad.org:
Actually I need to place some holes at a circle:
<http://forum.openscad.org/file/t2943/place_holes_on_circle.png>
I did with:
diameter = 34.0;
difference () {
cylinder(h=10, d=diameter + 10);
cylinder(h=10, d=6);
translate([0, diameter/2, 0]) {
cylinder(h=10, d=6);
}
rotate (a=120) {
translate([0, diameter/2, 0]) {
cylinder(h=10, d=6);
}
}
rotate (a=-120) {
translate([0, diameter/2, 0]) {
cylinder(h=10, d=6);
}
}
}
Which results in:
<http://forum.openscad.org/file/t2943/place_holes_on_circle_firsttry.png>
Is there a better way?
--
Sent from: http://forum.openscad.org/
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
It is faster to do in 2D and then extrude to 3D
diameter = 34.0;
linear_extrude(10)
difference() {
circle(d = diameter + 10);
for(i = [-1 : 1])
rotate(i * 120)
translate([0, diameter / 2])
circle(d = 6);
}
On Fri, 28 Aug 2020 at 14:02, trygve@totallytrygve.com wrote:
I assume it's slow?
First, you need to translate the differenced cylinders so that they start
below the cylinder you're punching holes in, and make them longer so that
they poke out part the top.
That should make it render faster
With a FOR loop you only have one set of commands, repated as many times
you want around the rim.
(Sorry, don't have time to check the correect syntax right now. I have a
CAKE that needs to be eaten... )
And finally, to clean it up a bit, use indentation.
ROTATE ()
TRANSLATE ()
OBJECT();
Notice that there's no need to use the curly brackets because both ROTATE
and TRANSLATE expect an object of some sort to follow.
Trygve
Den 28. august 2020 kl. 14.23.47 +02.00 skrev AndyY via Discuss <
discuss@lists.openscad.org>:
Actually I need to place some holes at a circle:
http://forum.openscad.org/file/t2943/place_holes_on_circle.png
I did with:
diameter = 34.0;
difference () {
cylinder(h=10, d=diameter + 10);
cylinder(h=10, d=6);
translate([0, diameter/2, 0]) {
cylinder(h=10, d=6);
}
rotate (a=120) {
translate([0, diameter/2, 0]) {
cylinder(h=10, d=6);
}
}
rotate (a=-120) {
translate([0, diameter/2, 0]) {
cylinder(h=10, d=6);
}
}
}
Which results in:
http://forum.openscad.org/file/t2943/place_holes_on_circle_firsttry.png
Is there a better way?
--
Sent from: http://forum.openscad.org/
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
Very slick.
On 2020-08-28 9:17 a.m., nop head wrote:
It is faster to do in 2D and then extrude to 3D
diameter = 34.0;
linear_extrude(10)
difference() {
circle(d = diameter + 10);
for(i = [-1 : 1])
rotate(i * 120)
translate([0, diameter / 2])
circle(d = 6);
}
On Fri, 28 Aug 2020 at 14:02, <trygve@totallytrygve.com
mailto:trygve@totallytrygve.com> wrote:
I assume it's slow?
First, you need to translate the differenced cylinders so that
they start below the cylinder you're punching holes in, and make
them longer so that they poke out part the top.
That should make it render faster
With a FOR loop you only have one set of commands, repated as many
times you want around the rim.
(Sorry, don't have time to check the correect syntax right now. I
have a CAKE that needs to be eaten... )
And finally, to clean it up a bit, use indentation.
ROTATE ()
TRANSLATE ()
OBJECT();
Notice that there's no need to use the curly brackets because both
ROTATE and TRANSLATE expect an object of some sort to follow.
Trygve
Den 28. august 2020 kl. 14.23.47 +02.00 skrev AndyY via Discuss
<discuss@lists.openscad.org <mailto:discuss@lists.openscad.org>>:
Actually I need to place some holes at a circle:
<http://forum.openscad.org/file/t2943/place_holes_on_circle.png>
I did with:
```
diameter = 34.0;
difference () {
cylinder(h=10, d=diameter + 10);
cylinder(h=10, d=6);
translate([0, diameter/2, 0]) {
cylinder(h=10, d=6);
}
rotate (a=120) {
translate([0, diameter/2, 0]) {
cylinder(h=10, d=6);
}
}
rotate (a=-120) {
translate([0, diameter/2, 0]) {
cylinder(h=10, d=6);
}
}
}
```
Which results in:
<http://forum.openscad.org/file/t2943/place_holes_on_circle_firsttry.png>
Is there a better way?
--
Sent from: http://forum.openscad.org/
_______________________________________________
OpenSCAD mailing list
Discuss@lists.openscad.org <mailto:Discuss@lists.openscad.org>
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
_______________________________________________
OpenSCAD mailing list
Discuss@lists.openscad.org <mailto:Discuss@lists.openscad.org>
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
--
Ron Wheeler
Artifact Software
438-345-3369
rwheeler@artifact-software.com
AndyY:
Nophead and Trygve gave some good hints for improvement, but your
original really wasn't all that bad.
What was it that was concerning you about your result?
The only thing I see to complain about in the render that you got is
that the punched-out circles are decagons, and the big circle is still
pretty obviously a polygon. (It's a 30-gon.)
$fa, $fs, and $fn control the number of sides used for a circle.
https://en.wikibooks.org/wiki/OpenSCAD_User_Manual/Other_Language_Features#$fa,$fs_and$fn
I'd try
$fs = 1;
$fa = 8;
to get a better approximation without going wild. Mostly, $fs will
control the small circles and $fa will control the large one.
The render tends to make circles look more polygonal than they really
end up. Let's do some math.
From the web page:
a_based=360/$fa;
s_based=r*2*PI/$fs;
n=($fn>0?($fn>=3?$fn:3):ceil(max(min(a_based,s_based),5)));
OpenSCAD "circle" radii are measured from the center to the vertices.
The distance from the center to the middle of an edge is r*cos(360/n/2).
For the default values ($fs=2, $fa=12):
Sides
Vertices
Diameter
Edges
Diameter
Error
Error
Percent
Outer
30
34
33.81
-0.19
-0.5%
Inner
10
6
5.71
-0.29
-4.9%
With $fs=1 and $fa=8:
Sides
Vertices
Diameter
Edges
Diameter
Error
Error
Percent
Outer
45
34
33.92
-0.08
-0.2%
Inner
19
6
5.92
-0.08
-1.4%
If you want to reproduce those numbers:
$fs = 1;
$fa = 8;
function v2e(r, n) = r * cos(360/n/2);
for (d=[34,6]) {
r = d/2;
a_based = 360/$fa;
s_based = r*2*PI/$fs;
n = ($fn>0?($fn>=3?$fn:3):ceil(max(min(a_based,s_based),5)));
edges = v2e(r, n);
error = edges-r;
percent = error / r;
echo(n=n, vertices=r*2, edges=edges*2, error=error*2, percent=percent*100);
}
Note that the *2 in the final echo is because the calculations are in
terms of radius and you specified diameter.
I have a bunch of for_ modules in my main library that provide a simplified
interface to repeated objects
module forN(r=10, N=4, offs=0, M=undef) for($i=[0:(M?M-1:N-1)])
rotate([0,0,offs+$i*360/N]) translate([r,0,0]) children();
module forN(r=10, N=4, offs=0, M=undef) rotN(r, N, offs, M) children();
module forX(dx = 10, N=4) for($x=[0:N-1]) T(-((N-1)/2-$x)*dx) children();
module forY(dy = 10, M=4) for($y=[0:M-1]) Ty(-((M-1)/2-$y)*dy) children();
module forZ(dz = 10, M=4) for($z=[0:M-1]) Tz(-((M-1)/2-$z)*dz) children();
module forXY(dx = 10, N=4, dy = 10, M=4) forX(dx, N) forY(dy, M) children();
with this your code gets:
diameter = 34.0;
linear_extrude(10)
difference() {
circle(d = diameter + 10);
circle(d = 6);
forN(diameter/2, 3) circle(d = 6);
}
a centered 3 by 4 pattern of objects gets as simple as:
forXY(10, 3, 15, 4) circle(3);
the $ provides access to the iteration variable:
forX(20, 5) text(str($x));
--
Sent from: http://forum.openscad.org/
Hi,
Referring to Andy'Y's original solution, I thought I'd have a look at
it. Bear in mind that I only discovered Openscad a month or so ago, I
found the sort of backwards progression a bit of a nuisance. From here,
I found AngelCad, and thought I'd attempt the 'flange' using that
scripting language, which for me, I can probably still read and
understand in a month or two's time.
double diameter = 34;
solid@ disc()
{
return cylinder(10,(diameter+10)/2);
}
solid@ hole()
{
return cylinder(10,3);
}
solid@ threeholes()
{
solid@ holer = translate(diameter/2,0,0)*hole();
return holer + rotate_z(120)*holer + rotate_z(-120)*holer;
}
solid@ all()
{
return disc()-hole()-threeholes();
}
void main()
{
shape@ obj = all();
obj.write_xcsg(GetInputFullPath(),secant_tolerance:-.01);
}
To me, that is quite a logical approach - make the disc, make a hole,
make the three holes positioned where you want, then drill 'em in the
disc. A straight forward sequence, that would be as you machined the
solid. By adjusting the secant tolerance, it regulates the number of
steps in forming a circle, for example.
Where's the naughty step?
Thank you very much for the help! I'm completly new in 3D CAD. Mostly I used
it for realized models or some printings. This one should be a holder for a
electro magnet.
Can someone give me a hint how I can format source code in this forum??? It
looks ugly in the normal format.
For me this is really a nice solution:
$fs = 1;
$fa = 8;
$fn = 64;
diameter = 34.0;
linear_extrude(10) {
difference() {
circle(d = diameter + 10);
for(i = [-1 : 1])
rotate(i * 120)
translate([0, diameter / 2])
circle(d = 6);
}
}
Thank you very much! I like it.
In addition to that I know the $fn var. But not the other ones. So I have to
read the wiki for further information concerning this two vars.
--
Sent from: http://forum.openscad.org/
The holes arround the circle are getting screws for holding the magnet. So if
I have the holes in a little bigger size it does not matter if there are
some errors of the position.
Concerning you post @JordanBrown: This is a very important post for me!
Thank you. I guess the error comes from the calcuation in the OpenSCAD
engine? Which means that this is the error of the exactly position of the
holes. As I wrote in the previous post I immediatelly need to check the vars
($fs/$fa) for further designs. If you have some more internal informations,
I'd like to know it...
--
Sent from: http://forum.openscad.org/
The code I posted was via gmail and I simply set the font to Fixed Width to
preserve the formatting.
On Fri, 28 Aug 2020 at 20:12, AndyY via Discuss discuss@lists.openscad.org
wrote:
The holes arround the circle are getting screws for holding the magnet. So
if
I have the holes in a little bigger size it does not matter if there are
some errors of the position.
Concerning you post @JordanBrown: This is a very important post for me!
Thank you. I guess the error comes from the calcuation in the OpenSCAD
engine? Which means that this is the error of the exactly position of the
holes. As I wrote in the previous post I immediatelly need to check the
vars
($fs/$fa) for further designs. If you have some more internal informations,
I'd like to know it...
--
Sent from: http://forum.openscad.org/
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
