"Ghost surfaces" in 2D?
When doing 2D operations, you get "ghost surfaces", similar to how you can
get zero thickness surfaces if you don't make the hole slightly bigger than
the object you pierce in 3D.
I get the reason you get them in 3D (although I think they should be
removed, it would allow me to clean out a big bunch of +1 and -1 from my
code), but in 2D, they make no sense at all. If I do, say, a square which I
diff out a circle from, I expect there to be a hole. As it works, the hole
is there, but depending on zoom level, it sometimes disappear or get
"ghosted" (could go either way). When exported, it's the expected result,
however.
Now, this isn't a biggie, but it's kind of annoying when you spend 30
minutes trying to figure out where a hole is going when it doesn't appear as
expected, and then when you accidentally zoom out, it suddenly appears.
I can do a projection to get rid of it, but that'll slow down an already
slow preview even more.
I suppose this is because 2D objects are actually treated as thin 3D
objects, but it's still annoying.
--
Sent from: http://forum.openscad.org/
I have never seen that happen in 2D, can you give an example?
On Tue, 4 Feb 2020 at 10:24, Troberg troberg.anders@gmail.com wrote:
When doing 2D operations, you get "ghost surfaces", similar to how you can
get zero thickness surfaces if you don't make the hole slightly bigger than
the object you pierce in 3D.
I get the reason you get them in 3D (although I think they should be
removed, it would allow me to clean out a big bunch of +1 and -1 from my
code), but in 2D, they make no sense at all. If I do, say, a square which I
diff out a circle from, I expect there to be a hole. As it works, the hole
is there, but depending on zoom level, it sometimes disappear or get
"ghosted" (could go either way). When exported, it's the expected result,
however.
Now, this isn't a biggie, but it's kind of annoying when you spend 30
minutes trying to figure out where a hole is going when it doesn't appear
as
expected, and then when you accidentally zoom out, it suddenly appears.
I can do a projection to get rid of it, but that'll slow down an already
slow preview even more.
I suppose this is because 2D objects are actually treated as thin 3D
objects, but it's still annoying.
--
Sent from: http://forum.openscad.org/
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
difference(){
circle(d=150);
circle(d=100);
}
Select top view, and orthogonal projection, then zoom out. At some zoom
levels, the hole will appear green, on some it'll disappear, and on most,
it'll be there.
--
Sent from: http://forum.openscad.org/
For what it is worth, there was no ghosting (following your view
settings) on my Kubuntu GNU/Linux OpenSCAD 2019.05 and also works fine
with 2015.03-2.
On 2/4/20 7:19 AM, Troberg wrote:
difference(){
circle(d=150);
circle(d=100);
}
I'm running Windows, same version.
--
Sent from: http://forum.openscad.org/
Yes, it happen in version 2019.10.25.ci3851 with enough zoom out. The hole
reappears with additional zom out, or render. With edges on, it clearly
absent. It is not a question of ghosting. It seems to be some kind of small
edge eliminations.
Em ter., 4 de fev. de 2020 às 13:34, Troberg troberg.anders@gmail.com
escreveu:
I'm running Windows, same version.
--
Sent from: http://forum.openscad.org/
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
The difference operation is fake: the edges of the hole are not highlighted
with edges on. It seems that the hole circle is just a mask and the
difference polygon is not really computed. Unions seem to be fake too and
some ghost edges may appear.
// linear_extrude(100)
union() {
translate([50,0,0]) circle(d=100);
difference(){
circle(d=150);
circle(d=100);
}
}

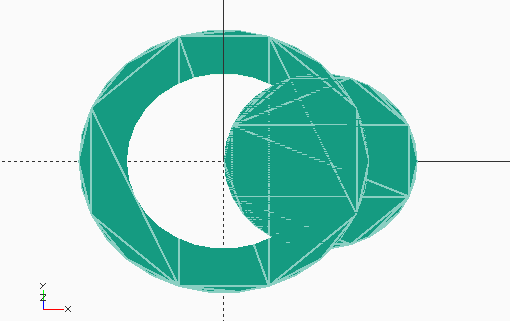

[image: ghostLinesPNG.PNG]
The polygon is really computed when extruded.
Em ter., 4 de fev. de 2020 às 14:03, Ronaldo Persiano rcmpersiano@gmail.com
escreveu:
Yes, it happen in version 2019.10.25.ci3851 with enough zoom out. The
hole reappears with additional zom out, or render. With edges on, it
clearly absent. It is not a question of ghosting. It seems to be some kind
of small edge eliminations.
Em ter., 4 de fev. de 2020 às 13:34, Troberg troberg.anders@gmail.com
escreveu:
I'm running Windows, same version.
--
Sent from: http://forum.openscad.org/
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
It only seems to be a problem in the orthogonal view.
I must admit I am surprised that 2D is faked in OpenCSG. I thought it was
always calculated and then drawn as a thin polyhedron but it appears that
is not the case. Adding render() fixes it and then the correct edges are
drawn.
On Tue, 4 Feb 2020 at 14:29, Ronaldo Persiano rcmpersiano@gmail.com wrote:
The difference operation is fake: the edges of the hole are not
highlighted with edges on. It seems that the hole circle is just a mask and
the difference polygon is not really computed. Unions seem to be fake too
and some ghost edges may appear.
// linear_extrude(100)
union() {
translate([50,0,0]) circle(d=100);
difference(){
circle(d=150);
circle(d=100);
}
}
[image: ghostLinesPNG.PNG]
The polygon is really computed when extruded.
Em ter., 4 de fev. de 2020 às 14:03, Ronaldo Persiano <
rcmpersiano@gmail.com> escreveu:
Yes, it happen in version 2019.10.25.ci3851 with enough zoom out. The
hole reappears with additional zom out, or render. With edges on, it
clearly absent. It is not a question of ghosting. It seems to be some kind
of small edge eliminations.
Em ter., 4 de fev. de 2020 às 13:34, Troberg troberg.anders@gmail.com
escreveu:
I'm running Windows, same version.
--
Sent from: http://forum.openscad.org/
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
nophead wrote
Adding render() fixes it and then the correct edges are
drawn.
I've had some other issues, where stuff has been drawn completely different
in different circumstances (drawing directly in a module works fine, but
when using that shape in a module call as to difference a hole in another
object resulted in some of the differences in the module being inverted),
and render() fixed it. I can't really replicate it simply, it's in a 16 000
line project, but I've seen it several times.
I'm starting to consider putting every 2D module with a union and a render
at the top...
--
Sent from: http://forum.openscad.org/
I probably never encounter problems because all my 2D stuff eventually gets
made into 3D in the preview because there are no 2D objects in real life.
My sheets are modelled in 2D for speed but always drawn with the correct
thickness in preview.
On Tue, 4 Feb 2020 at 17:17, Troberg troberg.anders@gmail.com wrote:
nophead wrote
Adding render() fixes it and then the correct edges are
drawn.
I've had some other issues, where stuff has been drawn completely different
in different circumstances (drawing directly in a module works fine, but
when using that shape in a module call as to difference a hole in another
object resulted in some of the differences in the module being inverted),
and render() fixed it. I can't really replicate it simply, it's in a 16 000
line project, but I've seen it several times.
I'm starting to consider putting every 2D module with a union and a render
at the top...
--
Sent from: http://forum.openscad.org/
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
