Conversion of .scad to .stl results in Blank output

U
user35b@gmail.com
Thu, Jan 6, 2022 3:00 PM

Please help. I cannot convert the above Openscad code to STL. On trying it, I received the above blank page with the notice/warning below it.

I read somewhere that it might be owing to the % I used, yet I don't know how to fix it. The keyboard dimension (top of source code) is the actual length for the artefact.

Here is the code in editable form - https://pastebin.mozilla.org/wjo2V2xj

Entire code and grahics can be downloaded from here - https://file.pizza/download/gt0tfawi

Main code here:

[code]

//Comment line 52 to hide the PSU

//Keyboard dimension: 14.1” x 7.79” x 1.49”

//! Project description in Markdown format before the first include.

$pp1_colour = "grey";          // Override any global defaults here if required, see NopSCADlib/global_defs.scad.

include <NopSCADlib/lib.scad>  // Includes all the vitamins and utilities in NopSCADlib but not the printed parts.

include <NopSCADlib/vitamins/d_connector.scad>

include <NopSCADlib/vitamins/psus.scad>

//Custom files; may not be needed now

//include <bottom.scad>

//! Assembly instructions in Markdown format in front of each module that makes an assembly.

module main_assembly()

assembly("main") {

difference(){

linear_extrude(height = 15){

//    translate([5,9,-2])

difference(){

    square(24, center = true);

    square(23.5, center = true);

}//close of inner difference



    }//close of linear extrude

translate([8, 0, 13])rotate([0, 90, 0])cube([11, 24, 18], center = true);

// polygon(points=[[0,0],[10,0],[0,10],[1,1],[8,1],[1,8]], paths=[[0,1,2],[3,4,5]],convexity=10);

//

// triangle_points =[[0,0],[10,0],[0,10],[1,1],[8,1],[1,8]];

// triangle_paths =[[0,1,2],[3,4,5]];

//translate([-10, 0, 7]) rotate([90, 0, 0]) linear_extrude(height = 24, center = true) polygon(triangle_points,triangle_paths,1);

b = 10;

h = 10;

w = 24;

triangle_points = [[0,0],[h,0],[0,b]];

triangle_paths = [[0,1,2]];

//Start with an extruded triangle

translate([0, 0, 16]) rotate([90, 90, 180])linear_extrude(height = w, center = true, twist = 0)polygon(points = triangle_points, paths = triangle_paths, convexity = 10);

}//close of difference

//scale([0.2,0.2,0.2])d_plug(DCONN9);

//Comment next line to hide the PSU

translate([-9, -7.7, 0]) rotate([0, 0, 90])scale([0.05,0.05,0.05])psu(PD_150_12);

}//close of assembly ("main")

if($preview){

main_assembly();

translate(\[0,0,-5\])bottom();

}

/\*

intersection(){

    translate(\[10,6,1\]){scale(0.5,0.5,0.5){

//        difference(){

//        sphere(8);

//    translate([0,10,0])sphere(8);

//    translate([0,-10,0])sphere(8);

//    }

        translate(\[0, 2, 0\])rotate(\[90,0,0\])cylinder(r = 1, h = 9, center = true);

}

}//close of intersection

}

//updating via http-svn

translate([10,36,1]){

}

        translate(\[0, -2, 0\])rotate(\[90,0,0\])cylinder(r = 1, h = 7, center = true);

*/

[/code]

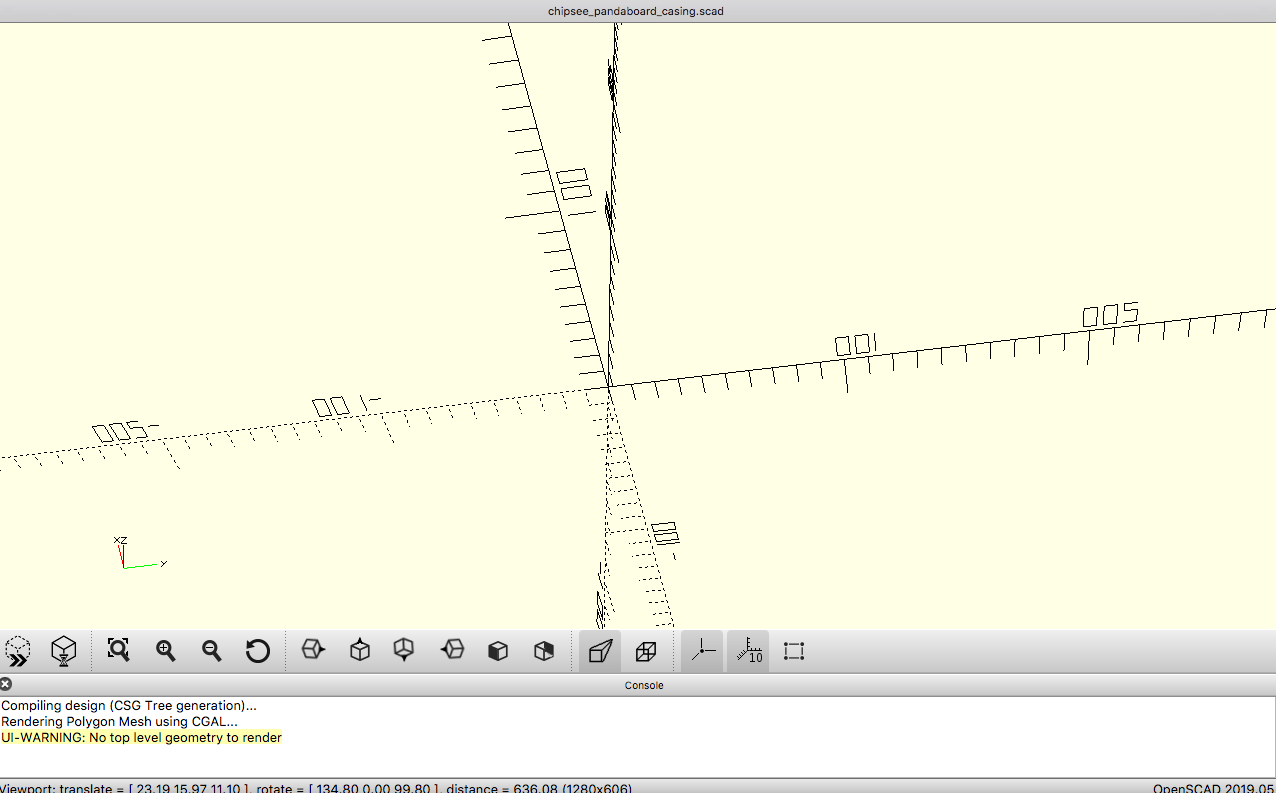

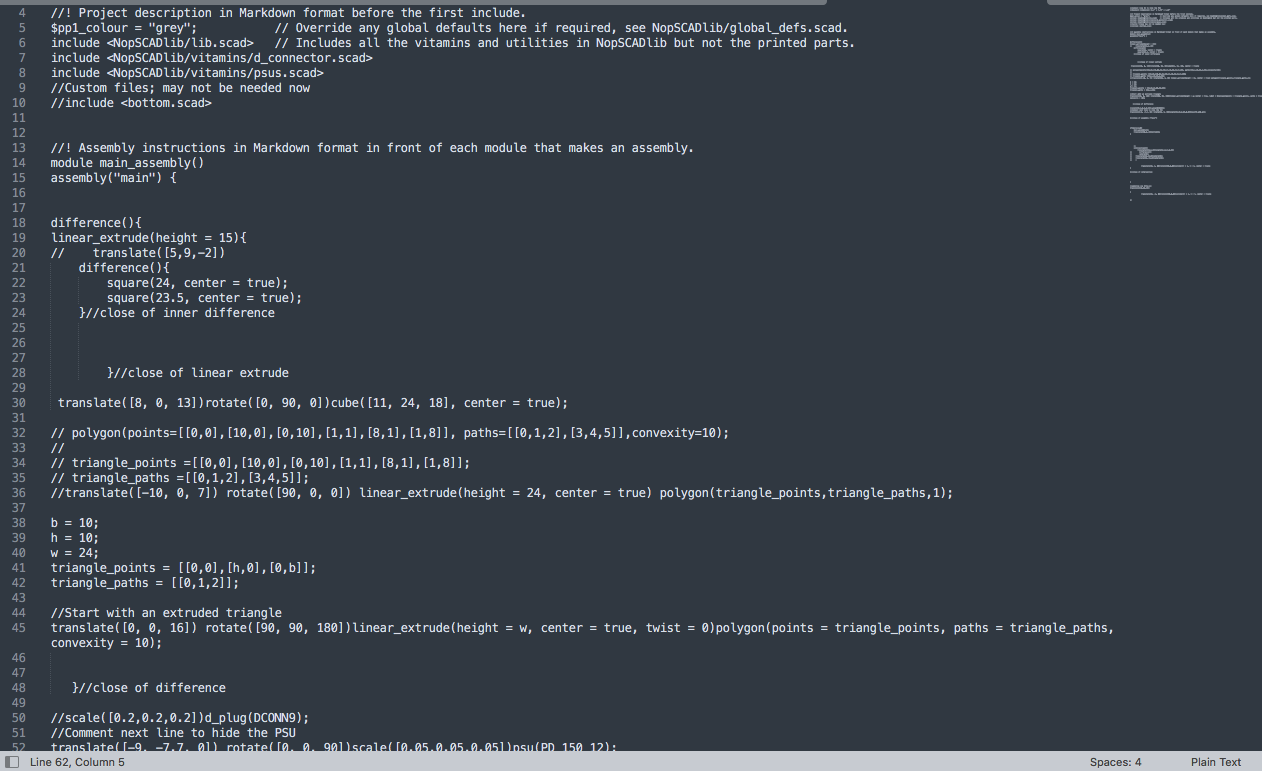

Error image, desired output and code screenshots are attached.

Kindly assist.

Thanks in advance.

Please help. I cannot convert the above Openscad code to STL. On trying it, I received the above blank page with the notice/warning below it. I read somewhere that it might be owing to the % I used, yet I don't know how to fix it. The keyboard dimension (top of source code) is the actual length for the artefact. Here is the code in editable form - <https://pastebin.mozilla.org/wjo2V2xj> Entire code and grahics can be downloaded from here - <https://file.pizza/download/gt0tfawi> Main code here: \[code\] //Comment line 52 to hide the PSU //Keyboard dimension: 14.1” x 7.79” x 1.49” //! Project description in Markdown format before the first include. $pp1_colour = "grey"; // Override any global defaults here if required, see NopSCADlib/global_defs.scad. include <NopSCADlib/lib.scad> // Includes all the vitamins and utilities in NopSCADlib but not the printed parts. include <NopSCADlib/vitamins/d_connector.scad> include <NopSCADlib/vitamins/psus.scad> //Custom files; may not be needed now //include <bottom.scad> //! Assembly instructions in Markdown format in front of each module that makes an assembly. module main_assembly() assembly("main") { difference(){ linear_extrude(height = 15){ // translate(\[5,9,-2\]) difference(){ square(24, center = true); square(23.5, center = true); }//close of inner difference }//close of linear extrude translate(\[8, 0, 13\])rotate(\[0, 90, 0\])cube(\[11, 24, 18\], center = true); // polygon(points=\[\[0,0\],\[10,0\],\[0,10\],\[1,1\],\[8,1\],\[1,8\]\], paths=\[\[0,1,2\],\[3,4,5\]\],convexity=10); // // triangle_points =\[\[0,0\],\[10,0\],\[0,10\],\[1,1\],\[8,1\],\[1,8\]\]; // triangle_paths =\[\[0,1,2\],\[3,4,5\]\]; //translate(\[-10, 0, 7\]) rotate(\[90, 0, 0\]) linear_extrude(height = 24, center = true) polygon(triangle_points,triangle_paths,1); b = 10; h = 10; w = 24; triangle_points = \[\[0,0\],\[h,0\],\[0,b\]\]; triangle_paths = \[\[0,1,2\]\]; //Start with an extruded triangle translate(\[0, 0, 16\]) rotate(\[90, 90, 180\])linear_extrude(height = w, center = true, twist = 0)polygon(points = triangle_points, paths = triangle_paths, convexity = 10); }//close of difference //scale(\[0.2,0.2,0.2\])d_plug(DCONN9); //Comment next line to hide the PSU translate(\[-9, -7.7, 0\]) rotate(\[0, 0, 90\])scale(\[0.05,0.05,0.05\])psu(PD_150_12); }//close of assembly ("main") if($preview){ main_assembly(); translate(\[0,0,-5\])bottom(); } /\* intersection(){ translate(\[10,6,1\]){scale(0.5,0.5,0.5){ // difference(){ // sphere(8); // translate(\[0,10,0\])sphere(8); // translate(\[0,-10,0\])sphere(8); // } translate(\[0, 2, 0\])rotate(\[90,0,0\])cylinder(r = 1, h = 9, center = true); } }//close of intersection } //updating via http-svn translate(\[10,36,1\]){ } translate(\[0, -2, 0\])rotate(\[90,0,0\])cylinder(r = 1, h = 7, center = true); \*/ \[/code\] Error image, desired output and code screenshots are attached. Kindly assist. Thanks in advance.
NH
nop head
Thu, Jan 6, 2022 4:27 PM

Line 60 is if($preview), so it only generates an assembly view with F5 and
nothing with F6.

Your main_assembly() has geometry in it, which is not how NopSCADlib works.
You put geometry in modules that make STLs and include those modules in
your assembly view. Then you normally export the STLs using the Python
framework but you could
add an else clause to the if($preview) to call one of your STL making
modules.

On Thu, 6 Jan 2022 at 15:19, user35b@gmail.com wrote:

Please help. I cannot convert the above Openscad code to STL. On trying
it, I received the above blank page with the notice/warning below it.

I read somewhere that it might be owing to the % I used, yet I don't know
how to fix it. The keyboard dimension (top of source code) is the actual
length for the artefact.

Here is the code in editable form - https://pastebin.mozilla.org/wjo2V2xj

Entire code and grahics can be downloaded from here -
https://file.pizza/download/gt0tfawi

Main code here:

[code]

//Comment line 52 to hide the PSU

//Keyboard dimension: 14.1” x 7.79” x 1.49”

//! Project description in Markdown format before the first include.

$pp1_colour = "grey"; // Override any global defaults here if required,
see NopSCADlib/global_defs.scad.

include <NopSCADlib/lib.scad> // Includes all the vitamins and utilities
in NopSCADlib but not the printed parts.

include <NopSCADlib/vitamins/d_connector.scad>

include <NopSCADlib/vitamins/psus.scad>

//Custom files; may not be needed now

//include <bottom.scad>

//! Assembly instructions in Markdown format in front of each module that
makes an assembly.

module main_assembly()

assembly("main") {

difference(){

linear_extrude(height = 15){

// translate([5,9,-2])

difference(){

square(24, center = true);

square(23.5, center = true);

}//close of inner difference

}//close of linear extrude

translate([8, 0, 13])rotate([0, 90, 0])cube([11, 24, 18], center = true);

// polygon(points=[[0,0],[10,0],[0,10],[1,1],[8,1],[1,8]],
paths=[[0,1,2],[3,4,5]],convexity=10);

//

// triangle_points =[[0,0],[10,0],[0,10],[1,1],[8,1],[1,8]];

// triangle_paths =[[0,1,2],[3,4,5]];

//translate([-10, 0, 7]) rotate([90, 0, 0]) linear_extrude(height = 24,
center = true) polygon(triangle_points,triangle_paths,1);

b = 10;

h = 10;

w = 24;

triangle_points = [[0,0],[h,0],[0,b]];

triangle_paths = [[0,1,2]];

//Start with an extruded triangle

translate([0, 0, 16]) rotate([90, 90, 180])linear_extrude(height = w,
center = true, twist = 0)polygon(points = triangle_points, paths =
triangle_paths, convexity = 10);

}//close of difference

//scale([0.2,0.2,0.2])d_plug(DCONN9);

//Comment next line to hide the PSU

translate([-9, -7.7, 0]) rotate([0, 0,
90])scale([0.05,0.05,0.05])psu(PD_150_12);

}//close of assembly ("main")

if($preview){

main_assembly();

translate([0,0,-5])bottom();

}

/*

intersection(){

translate([10,6,1]){scale(0.5,0.5,0.5){

// difference(){

// sphere(8);

// translate([0,10,0])sphere(8);

// translate([0,-10,0])sphere(8);

// }

translate([0, 2, 0])rotate([90,0,0])cylinder(r = 1, h = 9, center = true);

}

}//close of intersection

}

//updating via http-svn

translate([10,36,1]){

}

translate([0, -2, 0])rotate([90,0,0])cylinder(r = 1, h = 7, center = true);

*/

[/code]

Error image, desired output and code screenshots are attached.

Kindly assist.

Thanks in advance.
