On 1/9/2026 8:21 AM, Sanjeev Prabhakar via Discuss wrote:

Able to?  Sure.  Would it be easy?  No.  The big problem is that there's
no way in OpenSCAD to extract a location from a subassembly so as to
externally add dimensions.  The only options that I come up with are:

• Calculate the locations in advance and use them in both the
  subassembly and the dimension lines
• Do the calculations twice
• Have the subassembly itself add the dimension lines

That is... here's a module that draws a dimension line, optionally with
a label.

function topolar3(p) = [
norm(p),
atan2(p.y, p.x),
atan2(norm([p.x,p.y]), p.z)
];

module dim3(a, b, rot=0, h=10, r=0.5, label) {
p = topolar3(b-a);
cone_r = r2;
cone_h = r4;
translate(a) rotate([0,p[2],p[1]]) {
translate([0,0,cone_h]) cylinder(h=p[0]-cone_h2,r=r);
translate([0,0,p[0]-cone_h]) cylinder(h=cone_h, r1=cone_r, r2=0);
cylinder(h=cone_h, r1=0, r2=cone_r);
if (label) {
rotate([0,-90,0])
rotate([rot,0,0])
linear_extrude(height=r2, center=true)
translate([p[0]/2,r*1.2,0])
text(label, size=h, halign="center", valign="bottom");
}
}
}

dim3([0,0,0], [100,100,100], label="here to there");

Now we want to draw dimension lines for, say, a cylinder()l

cylinder(h=50, d=10);

You need to know the coordinates of the two endpoints for the dimension
lines, but cylinder() has no way to tell you.

You could just know how a cylinder is built, and duplicate the
calculations:

h = 50;
d = 10;
cylinder(h=h, d=d);
offset = 2;
dim3([-d/2-offset,0,0], [-d/2-offset, 0,h]);
dim3([-d/2,0,-offset], [d/2,0,-offset]);

Or you could define cylinder() yourself and include dimension lines:

module cylinder2(h, d, dims=false) {    // simplified
offset = 2;
r = d/2;
linear_extrude(h=h) circle(d=d);
dim3([-r-offset, 0, 0], [-r-offset, 0, h]);
dim3([-r, 0, -offset], [r, 0, -offset]);
}

cylinder2(h=50,d=15,dims=true);

... but that assumes that you know when you build the subassembly what
dimension lines you might want, and presents the same problems when you
combine multiple subassemblies and want a dimension line from a point in
one subassembly to a point in another.

cylinder(h=50, d=5);
rotate([0,90,0]) cylinder(h=25,d=3);
dim3([0,0,50+5], [25+5,0,0]);

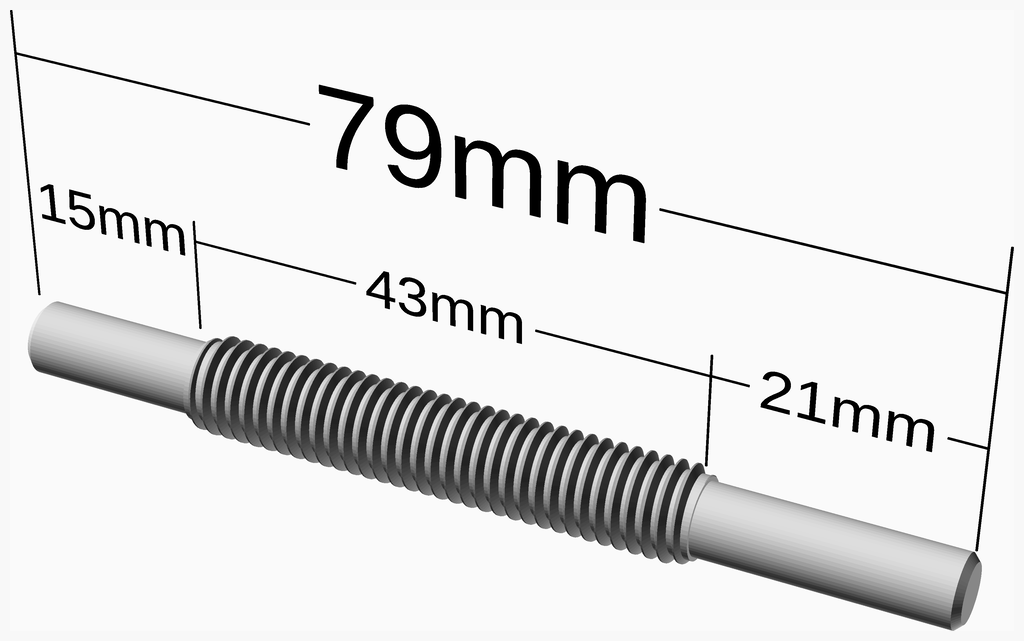

This is how I dimension:

[image: rod_assembly.png]

On Fri, 9 Jan 2026 at 20:11, Jordan Brown via Discuss <
discuss@lists.openscad.org> wrote:

Very nice!  Can you show what the code would look like to generate the
piece and the annotation?

Jon

On 1/9/2026 3:45 PM, nop head via Discuss wrote:

--
This email has been checked for viruses by AVG antivirus software.
www.avg.com

On 1/9/2026 12:45 PM, nop head via Discuss wrote:

Right, and that looks gorgeous, but you had to do that more or less "by
hand", right? That is, which direction the offset is for the line,
offset for the vertical lines from the measurement endpoints, et cetera.

And that only works from this angle; if you rotated that rod 90° the
labels wouldn't work.

My dimension lines look like so:

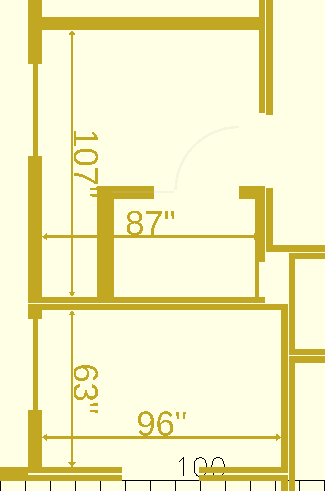

but I positioned those "by hand".

module dimv(p1, p2, z, max = inf, offset = 1) { //! Draw a vertical
dimension showing the x,y distance between two points
for(p = [p1, p2])
translate(p + [0, 0, offset])
cylinder(r = 0.1, h = z - p.z - offset);

mid = (p1 + p2) / 2;
d = norm(vec2(p1 - p2));
text = str(d, "mm");
tw = d - 2;
if(max < tw)
    for(side = [-1, 1])
        translate([mid.x, mid.y, 0] + [side * d / 2, 0, z - max /

len(text) / 1.75])
rotate([0, -side * 90, 0])
cylinder(r = 0.1, h = (d - max) / 2 - 1);

translate([mid.x, mid.y, z])
    rotate([90, 0, 0])
        resize([min(tw, max), 0], auto = true)
            linear_extrude(0.1)
                text(text, halign = "center", valign = "top");

}

//! 1. Turn down the ends of the studding to 5.96mm
module rod_assembly()
assembly("rod", big = true) {
if(exploded())
color("black") {
h = 15;
p0 = axle_pos + [0, 0, axle_d / 2];
p1 = studding_pos + [0, 0, studding_d / 2];
p2 = studding_pos + [-studding_length, 0, studding_d / 2];
p3 = axle_pos + [-axle_length, 0, axle_d / 2];

            max = p2.x - p3.x - 2;
            dimv(p0, p1, axle_pos.z + h, max);
            dimv(p1, p2, axle_pos.z + h, max);
            dimv(p2, p3, axle_pos.z + h, max);
            dimv(p0, p3, axle_pos.z + 2 * h, 2 * max);
        }

    translate(axle_pos)
        rotate([0, -90, 0])
            not_on_bom()
                rod(axle_d, axle_length, center = false);

    translate(studding_pos)
        rotate([0, -90, 0])
            let($show_threads = true)
                not_on_bom()
                    studding(studding_d, studding_length, false);
    hidden()
        studding(studding_d, axle_length, false);
}

On Fri, 9 Jan 2026 at 20:52, Jon Bondy jon@jonbondy.com wrote:

On 1/9/2026 3:17 PM, Jordan Brown via Discuss wrote:

I lay out my parts on an axis (usually X), and I use variables for major
measurements.  So, when I use my dimension() module it lays out on the X
axis, and I pass it the particular measurements into its start and end
parameters.  If I put the part module call and the dimension module call
in a module,e.g, dimensioned_siderod(), I can translate/rotate that to
my heart's content:

rotate([0,-10,45]) dimensioned_siderod();

does this:

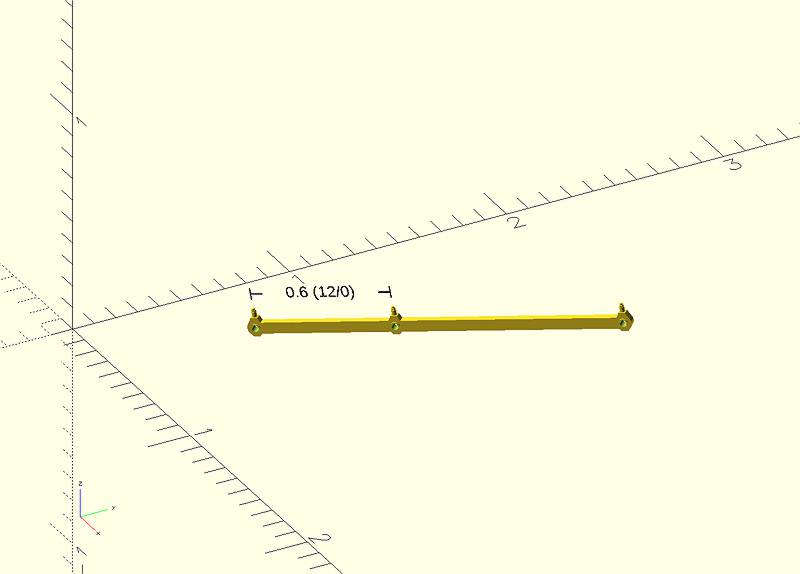

The numbers in parentheses are turns and ticks of the mill wheel to take
the tool from the left-center to the center-center, useful when
hand-milling the part.

If you have to do this manually it is very tedious.
You need to definitely mention which arc needs to be dimensioned or which
line etc.
With primitives it is very hard to do that and also it misses the point
when you do that manually because it may not show the correct values.

This can be done more usefully if:

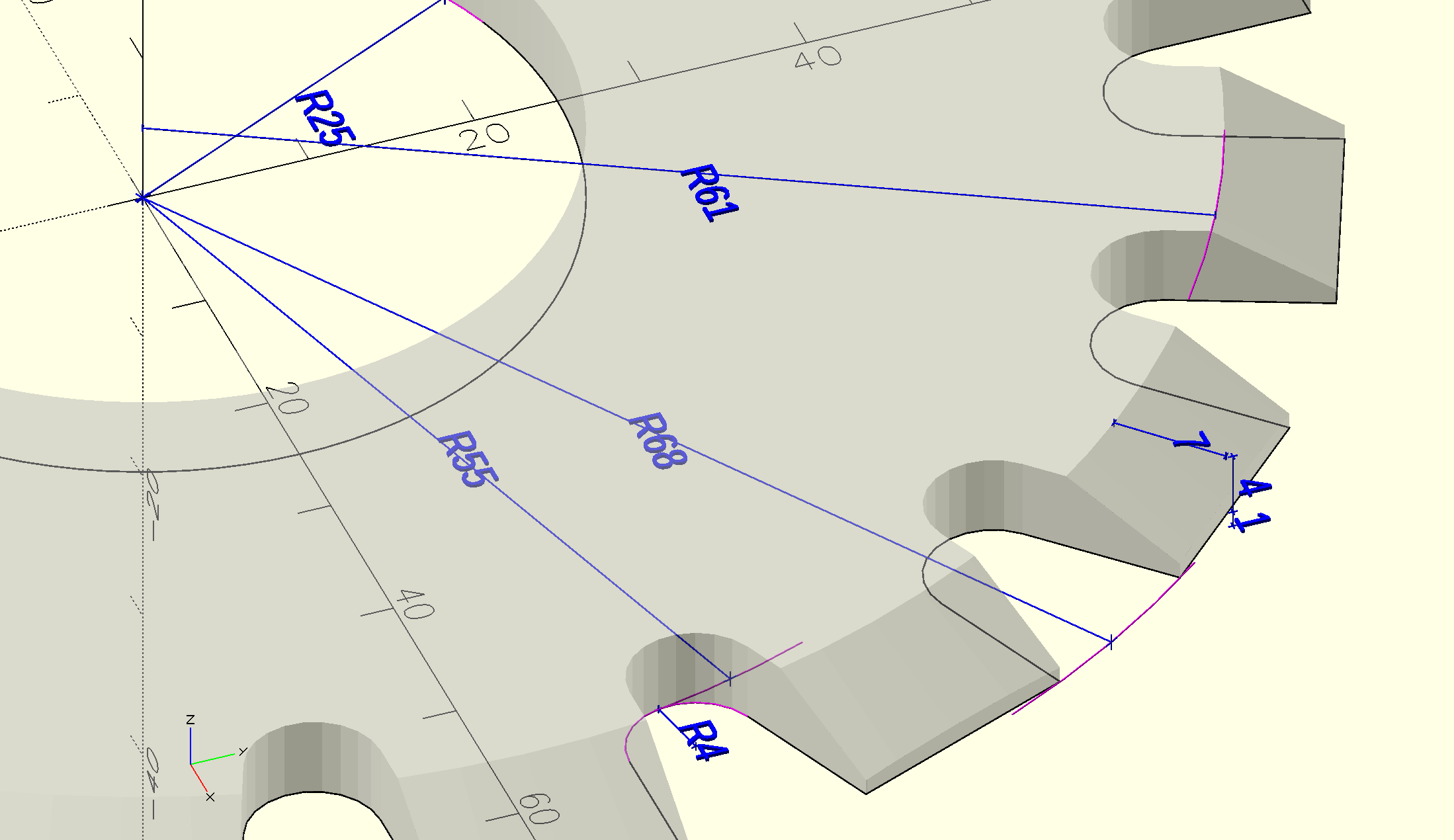

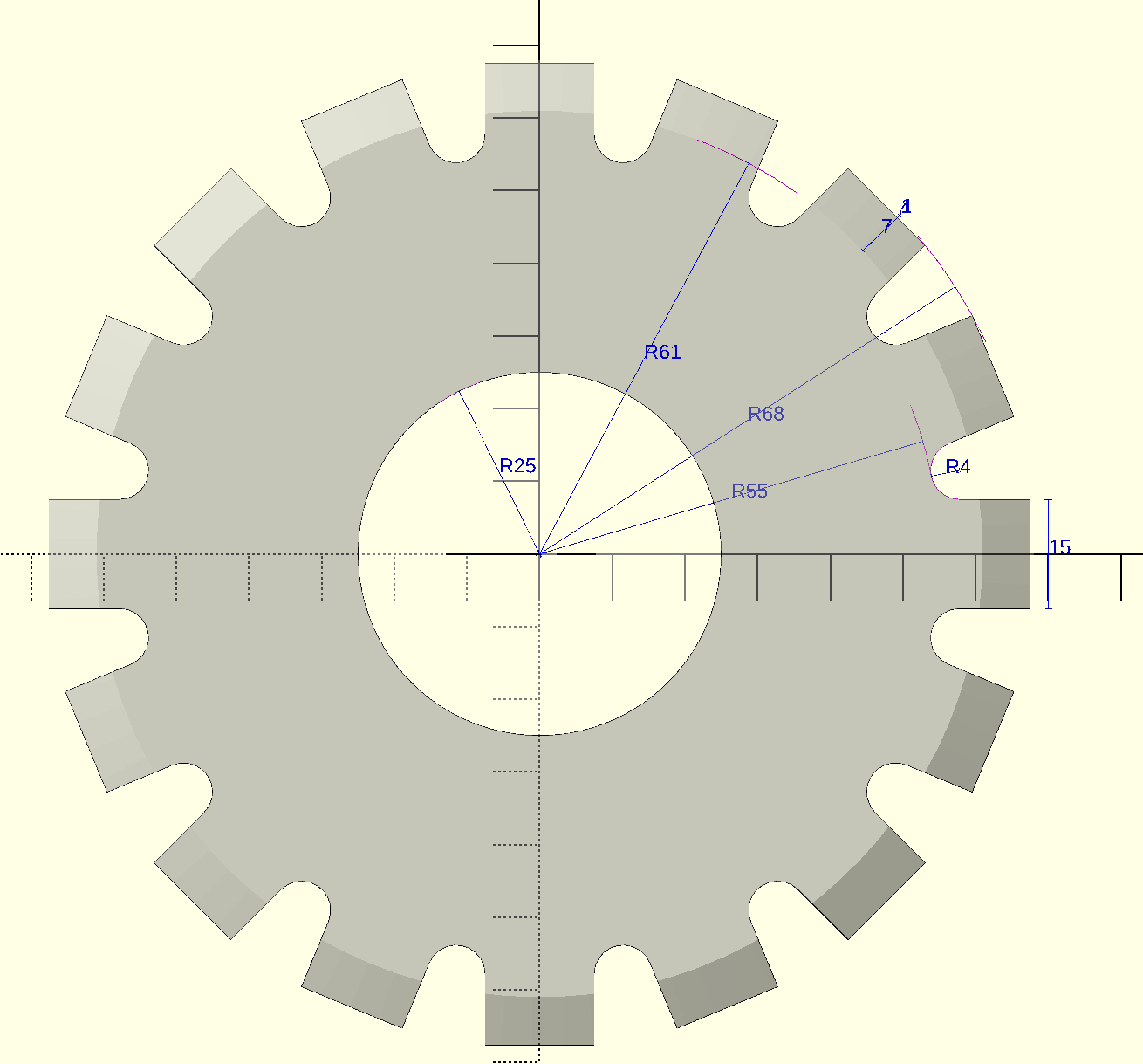

• you draw models with the points list
• there is a points tracing / numbering method available
• all calculations should be autonomous like it should auto calculate arc
  radius , angle between 2 lines, distance between 2 given points and display
  the results.
  and so on...

The python code for the example I shared is below for reference:

from openscad4 import *

c1,c2,c3=[circle(i,s=100) for i in [50/2,110/2,136/2]]
l1=[[-150,7.5],[150,7.5]]
l2=path_offset(l1,15)
p0,p1,p2,p3=s_int1([l1,l2]+seg(c3))
p4,p5,p6,p7=rot2d(22.5,[p0,p1,p2,p3])
p8=s_int1([[p0,p1],[p7,p6]])[0]
l3=corner_n_radius_list([p0,p8,p7],[0,4,0])
l4=a_([ rot2d(i,l3) for i in arange(0,360,22.5)]).reshape(-1,2).tolist()
txt1=dim_radial(l3[1:-1],.5,"blue",2)
path=cr2dt([[0,0],[0,1],[-7,4]])
sol=prism(c3,path)
sol1=translate([0,0,-.5],linear_extrude(l4,7))
sol2=translate([0,0,-.5],linear_extrude(c1,7))
txt2=dim_linear([p0,p3],-5,1,text_size=2)
txt3=dim_radial(c2[3:7],1,text_size=2)
txt4=dim_radial(c3[7:12],1,text_size=2)
txt5=dim_radial(c1[30:35],1,text_size=2)
txt6=dim_linear([sol[0][12],sol[1][12]],-1,.5,text_size=2)
txt7=dim_linear(point_vector(sol[1][12],[0,0,4]),-1,.5,text_size=2)
txt8=dim_linear(point_vector(sol[2][12],a_(line_as_unit_vector([[0,0,sol[2][
12][2]],sol[2][12]]))*7),1,.5,text_size=2)
txt9=dim_radial(sol[2][15:20],0.5,text_size=2)
