Transforming an Oval

BA
Brian Allen
Tue, Aug 2, 2022 11:46 PM

Hi,

I created an oval using:
inMm = 25.4;
fullW = 35.5 * inMm;
fullL = 54.5 * inMm;
resize([fullW, fullL, 1])
circle(d=fullW);

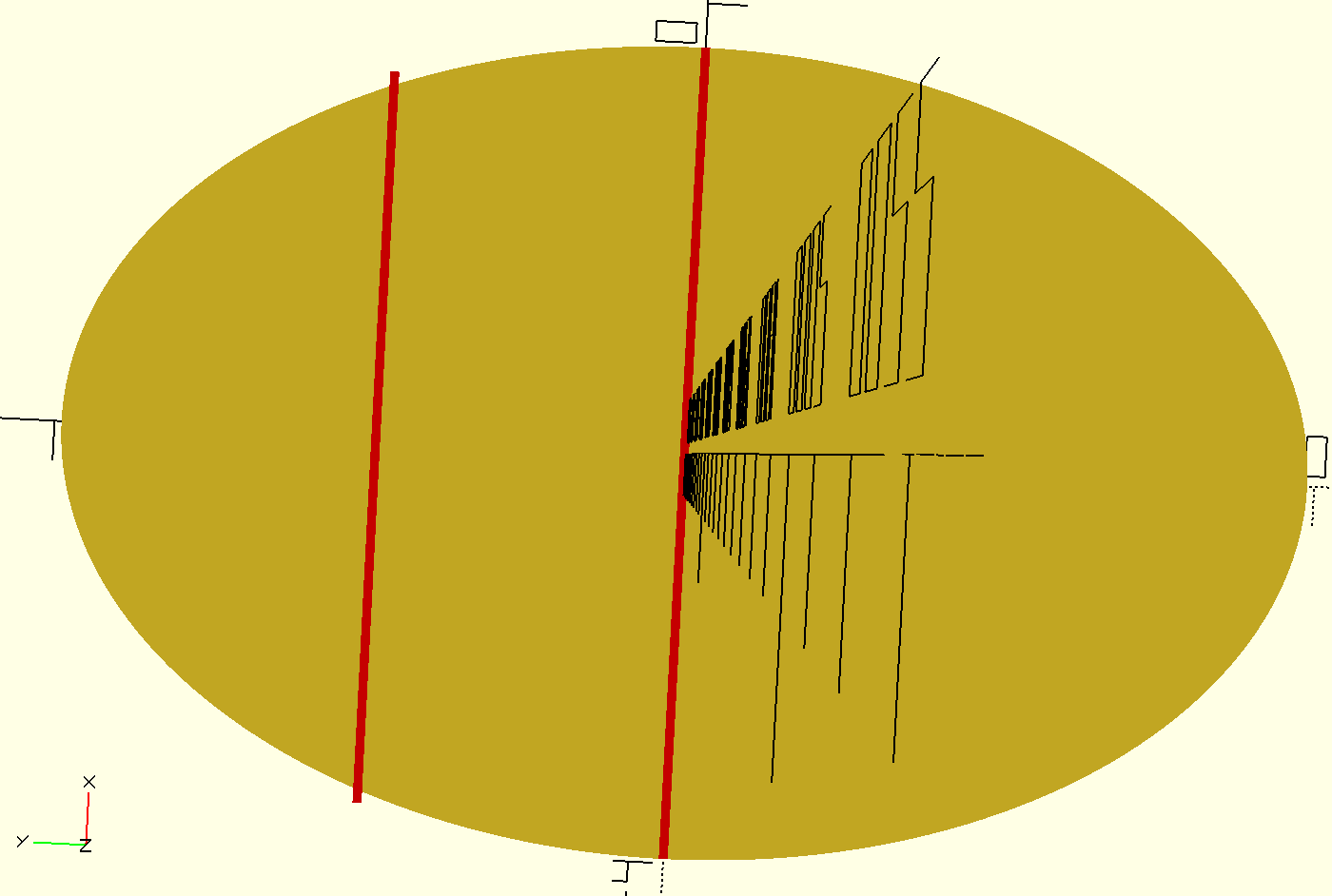

It's the right size in the middle (35.5" wide at 50% of the length), but 25% along the length it's not quite as wide as I need it (it's 31.5" and I need it about 32"). If you can see the attached image I'm trying to make the yellow oval match the red "sanity check" lines. I'm trying to match the size and shape of an existing oval in the real world.

Is there a way to stretch this in OpenSCAD? In a GUI vector graphics program I'd use a bézier curve and drag the handle to get 1/4 of it just right then mirror it in X and Y to get the oval I needed.

Any ideas?

Thanks,
Brian

Hi, I created an oval using: inMm = 25.4; fullW = 35.5 * inMm; fullL = 54.5 * inMm; resize([fullW, fullL, 1]) circle(d=fullW); It's the right size in the middle (35.5" wide at 50% of the length), but 25% along the length it's not quite as wide as I need it (it's 31.5" and I need it about 32"). If you can see the attached image I'm trying to make the yellow oval match the red "sanity check" lines. I'm trying to match the size and shape of an existing oval in the real world. Is there a way to stretch this in OpenSCAD? In a GUI vector graphics program I'd use a bézier curve and drag the handle to get 1/4 of it just right then mirror it in X and Y to get the oval I needed. Any ideas? Thanks, Brian
JB
Jordan Brown
Wed, Aug 3, 2022 12:04 AM

On 8/2/2022 4:46 PM, Brian Allen wrote:

I created an oval using:
inMm = 25.4;
fullW = 35.5 * inMm;
fullL = 54.5 * inMm;
resize([fullW, fullL, 1])
circle(d=fullW);

Tip:  use scale() rather than resize(); it previews faster in
complicated cases.

It's the right size in the middle (35.5" wide at 50% of the length), but 25% along the length it's not quite as wide as I need it (it's 31.5" and I need it about 32"). If you can see the attached image I'm trying to make the yellow oval match the red "sanity check" lines. I'm trying to match the size and shape of an existing oval in the real world.

You're taking a circle and stretching it; the result of that stretching
is an ellipse.

I'm not 100% sure - maybe one of the real math wizards can chime in -
but I think the shape you are asking for would not be an ellipse.

I believe that an ellipse is fully defined by its major (long) and minor
(short) axis dimensions; the other parts of the curve mathematically
flow from those two measurements.

You can make something else, but you can't make it using this technique.

Is there a way to stretch this in OpenSCAD? In a GUI vector graphics program I'd use a bézier curve and drag the handle to get 1/4 of it just right then mirror it in X and Y to get the oval I needed.

You can use a Bézier function.

Using BOSL2:  https://github.com/revarbat/BOSL2/wiki/Topics#bezier-curves

DIY, here's a function that I cobbled together some years ago:

// Bezier functions from https://www.thingiverse.com/thing:8443
// but that yielded either single points or a raft of triangles;
// this yields a vector of points that you can then concatenate
// with other pieces to form a single polygon.
// If we were really clever, I think it would be possible to
// automatically space the output points based on how linear
// the curve is at that point.  But right now I'm not that clever.
function BEZ03(u) = pow((1-u), 3);
function BEZ13(u) = 3*u*(pow((1-u),2));
function BEZ23(u) = 3*(pow(u,2))*(1-u);
function BEZ33(u) = pow(u,3);

function PointAlongBez4(p0, p1, p2, p3, u) = [
	BEZ03(u)*p0[0]+BEZ13(u)*p1[0]+BEZ23(u)*p2[0]+BEZ33(u)*p3[0],
	BEZ03(u)*p0[1]+BEZ13(u)*p1[1]+BEZ23(u)*p2[1]+BEZ33(u)*p3[1]];

// p0 - start point
// p1 - control point 1, line departs p0 headed this way
// p2 - control point 2, line arrives at p3 from this way
// p3 - end point
// segs - number of segments
function bez(p0, p1, p2, p3, segs) = [
    for (i = [0:segs]) PointAlongBez4(p0, p1, p2, p3, i/segs)
];

It is that final function bez() that I actually call, e.g.

polygon(bez([0,0], [0,4], [5,1], [7,0], 20));

often concatenating the results of several bez() calls together.

Note that the four coordinates correspond to the coordinates of the
control points in a GUI drawing program:  the start point, control point
associated with the start, the control point associated with the end,
and the end point.  I have sometimes created OpenSCAD objects by tracing
an object in a drawing program and then reading off the coordinates of
the various control points.

Note that Bézier functions are not the only mathematical curves.  (For
instance, they cannot exactly match an arc of a circle.)  I'm sure there
are numerous other functions that also produce curves.

On 8/2/2022 4:46 PM, Brian Allen wrote: > I created an oval using: > inMm = 25.4; > fullW = 35.5 * inMm; > fullL = 54.5 * inMm; > resize([fullW, fullL, 1]) > circle(d=fullW); Tip:  use scale() rather than resize(); it previews faster in complicated cases. > It's the right size in the middle (35.5" wide at 50% of the length), but 25% along the length it's not quite as wide as I need it (it's 31.5" and I need it about 32"). If you can see the attached image I'm trying to make the yellow oval match the red "sanity check" lines. I'm trying to match the size and shape of an existing oval in the real world. You're taking a circle and stretching it; the result of that stretching is an ellipse. I'm not 100% sure - maybe one of the real math wizards can chime in - but I think the shape you are asking for would not be an ellipse. I believe that an ellipse is fully defined by its major (long) and minor (short) axis dimensions; the other parts of the curve mathematically flow from those two measurements. You can make something else, but you can't make it using this technique. > Is there a way to stretch this in OpenSCAD? In a GUI vector graphics program I'd use a bézier curve and drag the handle to get 1/4 of it just right then mirror it in X and Y to get the oval I needed. You can use a Bézier function. Using BOSL2:  https://github.com/revarbat/BOSL2/wiki/Topics#bezier-curves DIY, here's a function that I cobbled together some years ago: // Bezier functions from https://www.thingiverse.com/thing:8443 // but that yielded either single points or a raft of triangles; // this yields a vector of points that you can then concatenate // with other pieces to form a single polygon. // If we were really clever, I think it would be possible to // automatically space the output points based on how linear // the curve is at that point. But right now I'm not that clever. function BEZ03(u) = pow((1-u), 3); function BEZ13(u) = 3*u*(pow((1-u),2)); function BEZ23(u) = 3*(pow(u,2))*(1-u); function BEZ33(u) = pow(u,3); function PointAlongBez4(p0, p1, p2, p3, u) = [ BEZ03(u)*p0[0]+BEZ13(u)*p1[0]+BEZ23(u)*p2[0]+BEZ33(u)*p3[0], BEZ03(u)*p0[1]+BEZ13(u)*p1[1]+BEZ23(u)*p2[1]+BEZ33(u)*p3[1]]; // p0 - start point // p1 - control point 1, line departs p0 headed this way // p2 - control point 2, line arrives at p3 from this way // p3 - end point // segs - number of segments function bez(p0, p1, p2, p3, segs) = [ for (i = [0:segs]) PointAlongBez4(p0, p1, p2, p3, i/segs) ]; It is that final function bez() that I actually call, e.g. polygon(bez([0,0], [0,4], [5,1], [7,0], 20)); often concatenating the results of several bez() calls together. Note that the four coordinates correspond to the coordinates of the control points in a GUI drawing program:  the start point, control point associated with the start, the control point associated with the end, and the end point.  I have sometimes created OpenSCAD objects by tracing an object in a drawing program and then reading off the coordinates of the various control points. Note that Bézier functions are not the only mathematical curves.  (For instance, they cannot exactly match an arc of a circle.)  I'm sure there are numerous other functions that also produce curves.
JB
Jordan Brown
Wed, Aug 3, 2022 12:25 AM

More generally, if you can define a function that returns the values
around your curve, you can use list comprehension to generate a list of
points that you can then feed to polygon().

For instance, here's a sequence that will generate a unit circle:

// Define f to be a function that accepts a value between 0 and 1
// and returns a corresponding coordinate.
function f(i) = let(a = i*360) [ cos(a), sin(a) ];

points = [ for (i = [0:0.01:1]) f(i) ];
polygon(points);

Here's a sequence that will generate a race track:

// Define f to be a function that accepts a value between 0 and 1
// and returns a corresponding coordinate.
function f(i) =
    i < 0.125
    ? let(a = i*2*360) [ cos(a) + 0.5, sin(a) ]
    : i < 0.375
    ? [ (0.25 - i)*4, 1 ]
    : i < 0.625
    ? let(a = (i-0.25)*2*360)  [ cos(a) - 0.5, sin(a) ]
    : i < 0.875
    ? [ (i - 0.75)*4, -1 ]
    : let(a = (i-1)*2*360)  [ cos(a) + 0.5, sin(a) ];

points = [ for (i = [0:0.01:1]) f(i) ];
polygon(points);

Not that there aren't easier ways to do both of those (circle, hull of
two circles), but the technique is general:  it will work for any shape
that you can represent as a function of [0..1].

More generally, if you can define a function that returns the values around your curve, you can use list comprehension to generate a list of points that you can then feed to polygon(). For instance, here's a sequence that will generate a unit circle: // Define f to be a function that accepts a value between 0 and 1 // and returns a corresponding coordinate. function f(i) = let(a = i*360) [ cos(a), sin(a) ]; points = [ for (i = [0:0.01:1]) f(i) ]; polygon(points); Here's a sequence that will generate a race track: // Define f to be a function that accepts a value between 0 and 1 // and returns a corresponding coordinate. function f(i) = i < 0.125 ? let(a = i*2*360) [ cos(a) + 0.5, sin(a) ] : i < 0.375 ? [ (0.25 - i)*4, 1 ] : i < 0.625 ? let(a = (i-0.25)*2*360) [ cos(a) - 0.5, sin(a) ] : i < 0.875 ? [ (i - 0.75)*4, -1 ] : let(a = (i-1)*2*360) [ cos(a) + 0.5, sin(a) ]; points = [ for (i = [0:0.01:1]) f(i) ]; polygon(points); Not that there aren't easier ways to do both of those (circle, hull of two circles), but the technique is general:  it will work for any shape that you can represent as a function of [0..1].
MM
Michael Marx
Wed, Aug 3, 2022 12:45 AM

Or old school.

Scan the shape to PNG, load it via surface(). Or DXF/SVG via import().

Or

Plot your points on graph paper, for the top half of the curve.

Put the values in an array, calculate the negative side, make a polygon.


From: Jordan Brown [mailto:openscad@jordan.maileater.net]
Sent: Wed, 3 Aug 2022 10:26
To: OpenSCAD general discussion; Brian Allen
Subject: [OpenSCAD] Re: Transforming an Oval

More generally, if you can define a function that returns the values around your curve, you can use list comprehension to generate a list of points that you can then feed to polygon().

For instance, here's a sequence that will generate a unit circle:

// Define f to be a function that accepts a value between 0 and 1
// and returns a corresponding coordinate.
function f(i) = let(a = i*360) [ cos(a), sin(a) ];

points = [ for (i = [0:0.01:1]) f(i) ];
polygon(points);

Here's a sequence that will generate a race track:

// Define f to be a function that accepts a value between 0 and 1
// and returns a corresponding coordinate.
function f(i) =
i < 0.125
? let(a = i2360) [ cos(a) + 0.5, sin(a) ]
: i < 0.375
? [ (0.25 - i)*4, 1 ]
: i < 0.625
? let(a = (i-0.25)2360)  [ cos(a) - 0.5, sin(a) ]
: i < 0.875
? [ (i - 0.75)*4, -1 ]
: let(a = (i-1)2360)  [ cos(a) + 0.5, sin(a) ];

points = [ for (i = [0:0.01:1]) f(i) ];
polygon(points);

Not that there aren't easier ways to do both of those (circle, hull of two circles), but the technique is general:  it will work for any shape that you can represent as a function of [0..1].

--
This email has been checked for viruses by AVG.
https://www.avg.com

Or old school. Scan the shape to PNG, load it via surface(). Or DXF/SVG via import(). Or Plot your points on graph paper, for the top half of the curve. Put the values in an array, calculate the negative side, make a polygon. _____ From: Jordan Brown [mailto:openscad@jordan.maileater.net] Sent: Wed, 3 Aug 2022 10:26 To: OpenSCAD general discussion; Brian Allen Subject: [OpenSCAD] Re: Transforming an Oval More generally, if you can define a function that returns the values around your curve, you can use list comprehension to generate a list of points that you can then feed to polygon(). For instance, here's a sequence that will generate a unit circle: // Define f to be a function that accepts a value between 0 and 1 // and returns a corresponding coordinate. function f(i) = let(a = i*360) [ cos(a), sin(a) ]; points = [ for (i = [0:0.01:1]) f(i) ]; polygon(points); Here's a sequence that will generate a race track: // Define f to be a function that accepts a value between 0 and 1 // and returns a corresponding coordinate. function f(i) = i < 0.125 ? let(a = i*2*360) [ cos(a) + 0.5, sin(a) ] : i < 0.375 ? [ (0.25 - i)*4, 1 ] : i < 0.625 ? let(a = (i-0.25)*2*360) [ cos(a) - 0.5, sin(a) ] : i < 0.875 ? [ (i - 0.75)*4, -1 ] : let(a = (i-1)*2*360) [ cos(a) + 0.5, sin(a) ]; points = [ for (i = [0:0.01:1]) f(i) ]; polygon(points); Not that there aren't easier ways to do both of those (circle, hull of two circles), but the technique is general: it will work for any shape that you can represent as a function of [0..1]. -- This email has been checked for viruses by AVG. https://www.avg.com
BA
Brian Allen
Wed, Aug 3, 2022 1:19 AM

Thank you both. I really appreciate it. One of those solutions will work for my needs, I'm sure.

Brian

On Tue, Aug 2, 2022, at 6:45 PM, Michael Marx wrote:

Or old school.

Scan the shape to PNG, load it via surface(). Or DXF/SVG via import().
Or
Plot your points on graph paper, for the top half of the curve.
Put the values in an array, calculate the negative side, make a polygon.

From: Jordan Brown [mailto:openscad@jordan.maileater.net]
Sent: Wed, 3 Aug 2022 10:26
To: OpenSCAD general discussion; Brian Allen
Subject: [OpenSCAD] Re: Transforming an Oval

More generally, if you can define a function that returns the values around your curve, you can use list comprehension to generate a list of points that you can then feed to polygon().

For instance, here's a sequence that will generate a unit circle:
// Define f to be a function that accepts a value between 0 and 1
// and returns a corresponding coordinate.
function f(i) = let(a = i*360) [ cos(a), sin(a) ];

points = [ for (i = [0:0.01:1]) f(i) ];
polygon(points);
Here's a sequence that will generate a race track:
// Define f to be a function that accepts a value between 0 and 1
// and returns a corresponding coordinate.
function f(i) =
i < 0.125
? let(a = i2360) [ cos(a) + 0.5, sin(a) ]
: i < 0.375
? [ (0.25 - i)*4, 1 ]
: i < 0.625
? let(a = (i-0.25)2360)  [ cos(a) - 0.5, sin(a) ]
: i < 0.875
? [ (i - 0.75)*4, -1 ]
: let(a = (i-1)2360)  [ cos(a) + 0.5, sin(a) ];

points = [ for (i = [0:0.01:1]) f(i) ];
polygon(points);
Not that there aren't easier ways to do both of those (circle, hull of two circles), but the technique is general:  it will work for any shape that you can represent as a function of [0..1].


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

Thank you both. I really appreciate it. One of those solutions will work for my needs, I'm sure. Brian On Tue, Aug 2, 2022, at 6:45 PM, Michael Marx wrote: > Or old school. > > Scan the shape to PNG, load it via surface(). Or DXF/SVG via import(). > Or > Plot your points on graph paper, for the top half of the curve. > Put the values in an array, calculate the negative side, make a polygon. > > > **From:** Jordan Brown [mailto:openscad@jordan.maileater.net] > **Sent:** Wed, 3 Aug 2022 10:26 > **To:** OpenSCAD general discussion; Brian Allen > **Subject:** [OpenSCAD] Re: Transforming an Oval > > More generally, if you can define a function that returns the values around your curve, you can use list comprehension to generate a list of points that you can then feed to polygon(). > > For instance, here's a sequence that will generate a unit circle: > // Define f to be a function that accepts a value between 0 and 1 > // and returns a corresponding coordinate. > function f(i) = let(a = i*360) [ cos(a), sin(a) ]; > > points = [ for (i = [0:0.01:1]) f(i) ]; > polygon(points); > Here's a sequence that will generate a race track: > // Define f to be a function that accepts a value between 0 and 1 > // and returns a corresponding coordinate. > function f(i) = > i < 0.125 > ? let(a = i*2*360) [ cos(a) + 0.5, sin(a) ] > : i < 0.375 > ? [ (0.25 - i)*4, 1 ] > : i < 0.625 > ? let(a = (i-0.25)*2*360) [ cos(a) - 0.5, sin(a) ] > : i < 0.875 > ? [ (i - 0.75)*4, -1 ] > : let(a = (i-1)*2*360) [ cos(a) + 0.5, sin(a) ]; > > points = [ for (i = [0:0.01:1]) f(i) ]; > polygon(points); > Not that there aren't easier ways to do both of those (circle, hull of two circles), but the technique is general: it will work for any shape that you can represent as a function of [0..1]. > > > <http://www.avg.com/email-signature?utm_medium=email&utm_source=link&utm_campaign=sig-email&utm_content=emailclient> > Virus-free. www.avg.com <http://www.avg.com/email-signature?utm_medium=email&utm_source=link&utm_campaign=sig-email&utm_content=emailclient> <https://www.fastmail.com/mail/Inbox/compose?u=00a140e7#DAB4FAD8-2DD7-40BB-A1B8-4E2AA1F9FDF2> > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org >
