Bezier stretch
On Sunday, April 19, 2026 at 07:43:38 AM EDT, Caddiy via Discuss discuss@lists.openscad.org wrote:
The problem, though, is that I want to know how to get the length of a bezier here and now,
so I can get on with the project.
7 % stretch is significant.
As I understand it, you want to know the beginning and endpoints of a specified distance along the central portion of a path which may or may not be the actual begin/endpoints.
So, you need to:
- determine the actual length based on a specified path with a begin/end point
- compare this length to the desired length
- based on that difference either return the begin/end points (if the same) or, remove the difference from the beginning and ending portions of the path and return the begin/end points which are determined by applying the desired length to the path
As noted, this is a quite complex calculation --- a video which describes the complexity well is:
https://www.youtube.com/watch?v=jvPPXbo87ds
If you arrive at an understanding of the concepts and mathematics in that video, it should be possible to apply that calculus in OpenSCAD using the techniques from the afore-mentioned book:
https://www.goodreads.com/book/show/41392892-programming-with-openscad
It might be that there is some facility in Python which would allow calculating this more readily.
One approach might be to determine the half-way point of the path and from there, determine where the begin/end points are.
William
I would say that the easiest way to solve this problem is to transform the
bezier into a path of actual points with bezpath_curve(). Now you can
compute its length with BOSL2 path_length(). Then you can use path_cut()
to find the section of the path that has the desired length. It's
actually not particularly difficult and doesn't require knowledge of
advanced concepts.
On Sun, Apr 19, 2026 at 8:51 AM William F. Adams via Discuss <
discuss@lists.openscad.org> wrote:
On Sunday, April 19, 2026 at 07:43:38 AM EDT, Caddiy via Discuss <
discuss@lists.openscad.org> wrote:
The problem, though, is that I want to know how to get the length of a
bezier here and now,
so I can get on with the project.
7 % stretch is significant.
As I understand it, you want to know the beginning and endpoints of a
specified distance along the central portion of a path which may or may not
be the actual begin/endpoints.
So, you need to:
- determine the actual length based on a specified path with a begin/end
point - compare this length to the desired length
- based on that difference either return the begin/end points (if the
same) or, remove the difference from the beginning and ending portions of
the path and return the begin/end points which are determined by applying
the desired length to the path
As noted, this is a quite complex calculation --- a video which describes
the complexity well is:
https://www.youtube.com/watch?v=jvPPXbo87ds
If you arrive at an understanding of the concepts and mathematics in that
video, it should be possible to apply that calculus in OpenSCAD using the
techniques from the afore-mentioned book:
https://www.goodreads.com/book/show/41392892-programming-with-openscad
It might be that there is some facility in Python which would allow
calculating this more readily.
One approach might be to determine the half-way point of the path and from
there, determine where the begin/end points are.
William
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
On 4/19/2026 6:24 AM, Adrian Mariano via Discuss wrote:
I would say that the easiest way to solve this problem is to transform
the bezier into a path of actual points with bezpath_curve(). Now you
can compute its length with BOSL2 path_length(). Then you can use
path_cut() to find the section of the path that has the desired
length. It's actually not particularly difficult and doesn't require
knowledge of advanced concepts.
But... does that do what the OP wants?
The problem seems intuitively simple:
- Start with a straight line segment.
- Bend it into a Bézier S curve:
o Maintain the Bézier property that the ends merge smoothly into
the original line.
o Pull the endpoints (along the original line) in so that the
length stays the same as the original segment.
As I understood it, the OP didn't want some piece of a Bézier S curve
where the ends are pointing in some random direction; the ends need to
point along the original line.
Thinking of it in physical reality...
Have a long piece of (bendable) PVC pipe, connected at both ends to
(unbendable) iron pipe.
Put the iron pipes in a track that allows them to slide lengthwise, but
not turn.
Grab the PVC pipe in the middle, and twist it, bending the PVC pipe into
an S curve.
The length of the PVC pipe stays the same, but the iron pipes get pulled
toward the center.
But the fact that it's intuitively simple doesn't necessarily mean that
it's mathematically simple...
Jordan Brown wrote:
Thinking of it in physical reality...
Have a long piece of (bendable) PVC pipe, connected at both ends to
(unbendable) iron pipe.
Put the iron pipes in a track that allows them to slide lengthwise, but
not turn.
Grab the PVC pipe in the middle, and twist it, bending the PVC pipe into
an S curve.
The length of the PVC pipe stays the same, but the iron pipes get pulled
toward the center.
That comes closest.
One end of the bezier is rigidly fixed to the triangle that rocks from side to side (x-direction), the other to a piston or plunger (not shown) that can slide back and forth in a cylinder.
But the fact that it's intuitively simple doesn't necessarily mean that
it's mathematically simple...
The outer end of the bezier has a sinusoidal correction, not mathematically perfect, but close as dammit.
Next I need to consider the rocking motion of the triangle in the z-direction, then combine the two.
Maybe this comes closer[image: Screenshot 2026-04-20 at 8.18.59 AM.png]
On Mon, 20 Apr 2026 at 04:51, Caddiy via Discuss discuss@lists.openscad.org
wrote:
Jordan Brown wrote:
Thinking of it in physical reality...
Have a long piece of (bendable) PVC pipe, connected at both ends to
(unbendable) iron pipe. Put the iron pipes in a track that allows them to
slide lengthwise, but not turn. Grab the PVC pipe in the middle, and twist
it, bending the PVC pipe into an S curve.
The length of the PVC pipe stays the same, but the iron pipes get pulled
toward the center.
That comes closest.
One end of the bezier is rigidly fixed to the triangle that rocks from
side to side (x-direction), the other to a piston or plunger (not shown)
that can slide back and forth in a cylinder.
But the fact that it's intuitively simple doesn't necessarily mean that
it's mathematically simple...
The outer end of the bezier has a sinusoidal correction, not
mathematically perfect, but close as dammit.
Next I need to consider the rocking motion of the triangle in the
z-direction, then combine the two.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
Sanjeev Prabhakar wrote:

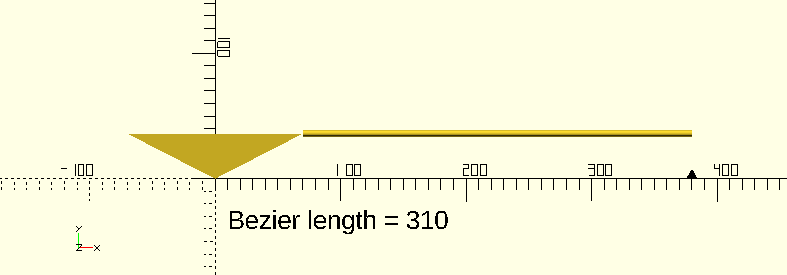

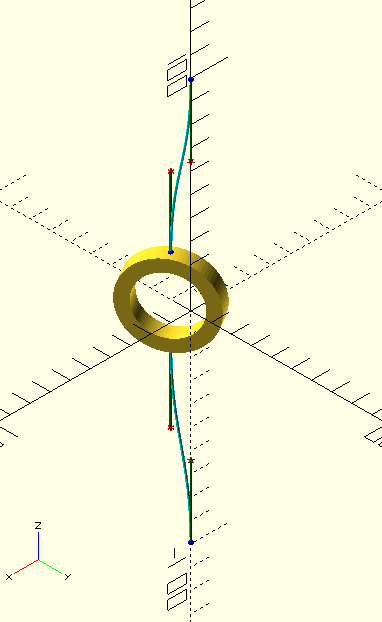

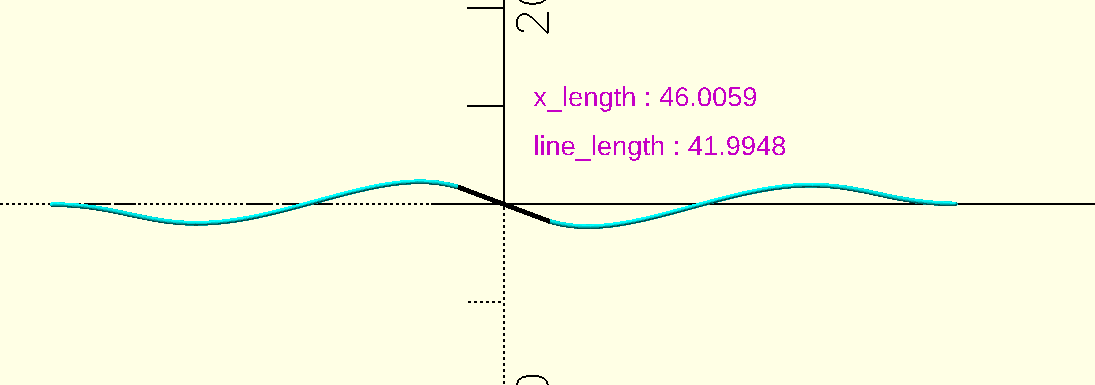

Maybe this comes closer[image: Screenshot 2026-04-20 at 8.18.59 AM.png]
How do you get all those numbers? Could be useful for complex 3D surfaces.
Nice constant-length bezier, but the code is beyond me!
It would be nice to be able to get the difference between the actual length of the bezier, and what it should be, and feed that as a correction back into the bezier. But I think it would make the computer go round and round in ever-decreasing circles.
However, it could be done with two identical beziers, a “real” one and a “dummy”. The dummy calculates the correction and that is fed not back into the dummy but into the real bezier, using a function or whatever. I’m just wondering whether both beziers can be obtained from a single module, or whether the dummy would have to be cut and pasted from the real one. Is that mathematically permissible?
I’ll try it out tomorrow.
The "code" is unreadable. It is not a useful example of how to use
OpenSCAD.
On 4/19/2026 10:50 PM, Sanjeev Prabhakar via Discuss wrote:
Maybe this comes closerScreenshot 2026-04-20 at 8.18.59 AM.png
On Mon, 20 Apr 2026 at 04:51, Caddiy via Discuss
discuss@lists.openscad.org wrote:
Jordan Brown wrote:
Thinking of it in physical reality...
Have a long piece of (bendable) PVC pipe, connected at both
ends to (unbendable) iron pipe. Put the iron pipes in a track
that allows them to slide lengthwise, but not turn. Grab the
PVC pipe in the middle, and twist it, bending the PVC pipe
into an S curve.
The length of the PVC pipe stays the same, but the iron pipes
get pulled toward the center.
That comes closest.
One end of the bezier is rigidly fixed to the triangle that rocks
from side to side (x-direction), the other to a piston or plunger
(not shown) that can slide back and forth in a cylinder.
But the fact that it's intuitively simple doesn't necessarily
mean that it's mathematically simple...
The outer end of the bezier has a sinusoidal correction, not
mathematically perfect, but close as dammit.
Next I need to consider the rocking motion of the triangle in the
z-direction, then combine the two.
