bottle with cut design

SP
Sanjeev Prabhakar
Tue, Sep 19, 2023 12:34 AM

Very tough to design in pure openscad
link to download:
https://github.com/sprabhakar2006/openSCAD/blob/main/bottle%20with%20cut%20design.scad

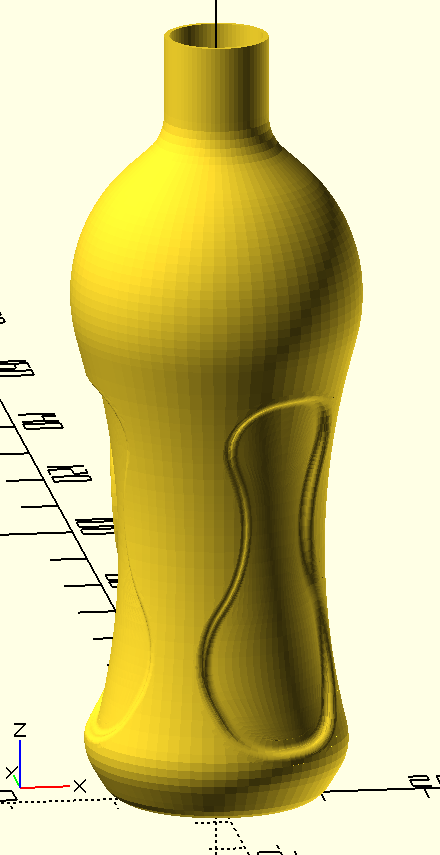

[image: Screenshot 2023-09-19 at 5.56.51 AM.png]

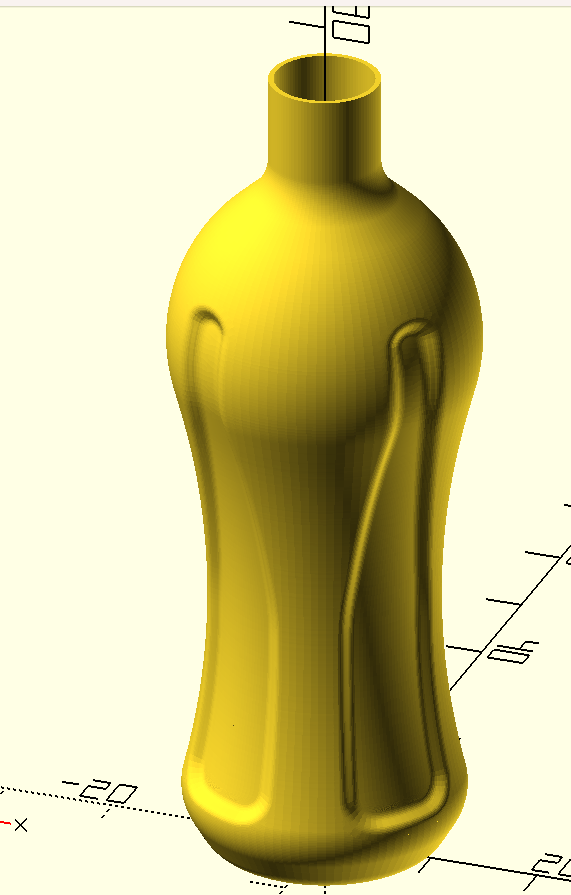

[image: Screenshot 2023-09-19 at 6.00.32 AM.png]

Very tough to design in pure openscad link to download: https://github.com/sprabhakar2006/openSCAD/blob/main/bottle%20with%20cut%20design.scad [image: Screenshot 2023-09-19 at 5.56.51 AM.png] [image: Screenshot 2023-09-19 at 6.00.32 AM.png]
AM
Adrian Mariano
Tue, Sep 19, 2023 12:42 AM

I did cutouts in pure OpenSCAD, but only for simple cylinders.  See
https://github.com/BelfrySCAD/BOSL2/wiki/rounding.scad#module-bent_cutout_mask

On Mon, Sep 18, 2023 at 8:35 PM Sanjeev Prabhakar sprabhakar2006@gmail.com
wrote:

Very tough to design in pure openscad
link to download:

https://github.com/sprabhakar2006/openSCAD/blob/main/bottle%20with%20cut%20design.scad

[image: Screenshot 2023-09-19 at 5.56.51 AM.png]

[image: Screenshot 2023-09-19 at 6.00.32 AM.png]


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

I did cutouts in pure OpenSCAD, but only for simple cylinders. See https://github.com/BelfrySCAD/BOSL2/wiki/rounding.scad#module-bent_cutout_mask On Mon, Sep 18, 2023 at 8:35 PM Sanjeev Prabhakar <sprabhakar2006@gmail.com> wrote: > Very tough to design in pure openscad > link to download: > > https://github.com/sprabhakar2006/openSCAD/blob/main/bottle%20with%20cut%20design.scad > > [image: Screenshot 2023-09-19 at 5.56.51 AM.png] > > [image: Screenshot 2023-09-19 at 6.00.32 AM.png] > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org >
SP
Sanjeev Prabhakar
Tue, Sep 19, 2023 3:14 AM

Hi Adrian,
Thanks for sharing, but this is quite different.
I will explain the process I followed once I get some free time.
I am sure this would be useful to many here

On Tue, 19 Sept, 2023, 7:31 am Adrian Mariano, avm4@cornell.edu wrote:

I did cutouts in pure OpenSCAD, but only for simple cylinders.  See
https://github.com/BelfrySCAD/BOSL2/wiki/rounding.scad#module-bent_cutout_mask

On Mon, Sep 18, 2023 at 8:35 PM Sanjeev Prabhakar <
sprabhakar2006@gmail.com> wrote:

Very tough to design in pure openscad
link to download:

https://github.com/sprabhakar2006/openSCAD/blob/main/bottle%20with%20cut%20design.scad

[image: Screenshot 2023-09-19 at 5.56.51 AM.png]

[image: Screenshot 2023-09-19 at 6.00.32 AM.png]


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

Hi Adrian, Thanks for sharing, but this is quite different. I will explain the process I followed once I get some free time. I am sure this would be useful to many here On Tue, 19 Sept, 2023, 7:31 am Adrian Mariano, <avm4@cornell.edu> wrote: > I did cutouts in pure OpenSCAD, but only for simple cylinders. See > https://github.com/BelfrySCAD/BOSL2/wiki/rounding.scad#module-bent_cutout_mask > > > On Mon, Sep 18, 2023 at 8:35 PM Sanjeev Prabhakar < > sprabhakar2006@gmail.com> wrote: > >> Very tough to design in pure openscad >> link to download: >> >> https://github.com/sprabhakar2006/openSCAD/blob/main/bottle%20with%20cut%20design.scad >> >> [image: Screenshot 2023-09-19 at 5.56.51 AM.png] >> >> [image: Screenshot 2023-09-19 at 6.00.32 AM.png] >> _______________________________________________ >> OpenSCAD mailing list >> To unsubscribe send an email to discuss-leave@lists.openscad.org >> > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org >
P
pproj@posteo.de
Tue, Sep 19, 2023 10:44 PM

i have got somebody asking a question regarding  the Constructive
library here: https://github.com/solidboredom/constructive/issues/5

if it can be dual licensed under OHL-S (v2). It is now under GPL2 (just
because i have known it and its principles for very many years)

Now i wonder, what would it be a suitable License for the Constructive Lib?

I feel the lib  is much more an extension to the Openscad Language
itself, like list comprehentions to python, or LINQ to c#, rather than a
library in usual sense. It is just all written in openscad, so it can be
imported as a library. and technically it is one.The Lib does provide
few ready-made Parts, like some metric screws, but its focus is not
that, but rather on enabling the user to express more with less code and
make it flexible enough to create reasonably complex designs.

So how to license it, so it will stay compatible with Openscad's
licensing and enable most people to use it?

I would like to encourage people to use it, because i personally think
it makes so much sense. to not hamper peoples use of it in their
hardware by the license.

The only thing i might not like (i am not even sure), if somebody
derives code from it, closing it. But actually i do not mean the Parts
themselves or their designs. they IMHO do not have to be open.

what are you opinions on this?

is OHL-S (v2) a good solution, does it negate GPL principles in our
case? is it compatible with Openscads license?

Your Opinions are very appreciated.

pproj

i have got somebody asking a question regarding  the Constructive library here: https://github.com/solidboredom/constructive/issues/5 if it can be dual licensed under OHL-S (v2). It is now under GPL2 (just because i have known it and its principles for very many years) Now i wonder, what would it be a suitable License for the Constructive Lib? I feel the lib  is much more an extension to the Openscad Language itself, like list comprehentions to python, or LINQ to c#, rather than a library in usual sense. It is just all written in openscad, so it can be imported as a library. and technically it is one.The Lib does provide few ready-made Parts, like some metric screws, but its focus is not that, but rather on enabling the user to express more with less code and make it flexible enough to create reasonably complex designs. So how to license it, so it will stay compatible with Openscad's licensing and enable most people to use it? I would like to encourage people to use it, because i personally think it makes so much sense. to not hamper peoples use of it in their hardware by the license. The only thing i might not like (i am not even sure), if somebody derives code from it, closing it. But actually i do not mean the Parts themselves or their designs. they IMHO do not have to be open. what are you opinions on this? is OHL-S (v2) a good solution, does it negate GPL principles in our case? is it compatible with Openscads license? Your Opinions are very appreciated. pproj
SP
Sanjeev Prabhakar
Wed, Sep 20, 2023 2:01 AM

here is another version:

https://github.com/sprabhakar2006/openSCAD/blob/main/bottle%20with%20cut%20design_1.scad

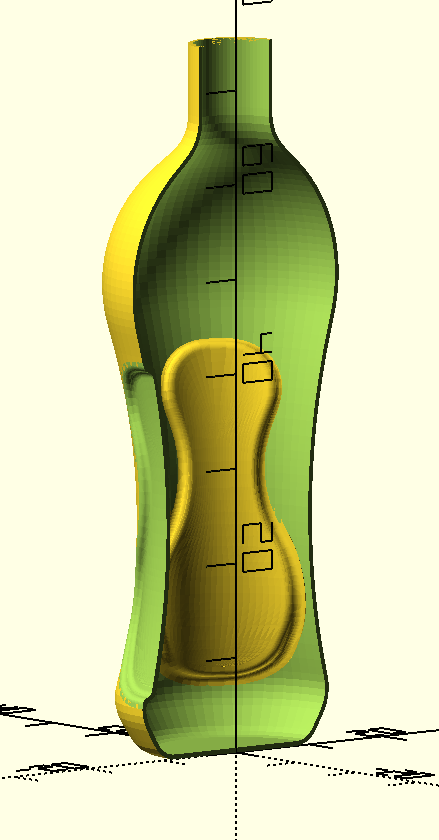

[image: Screenshot 2023-09-20 at 7.26.34 AM.png]

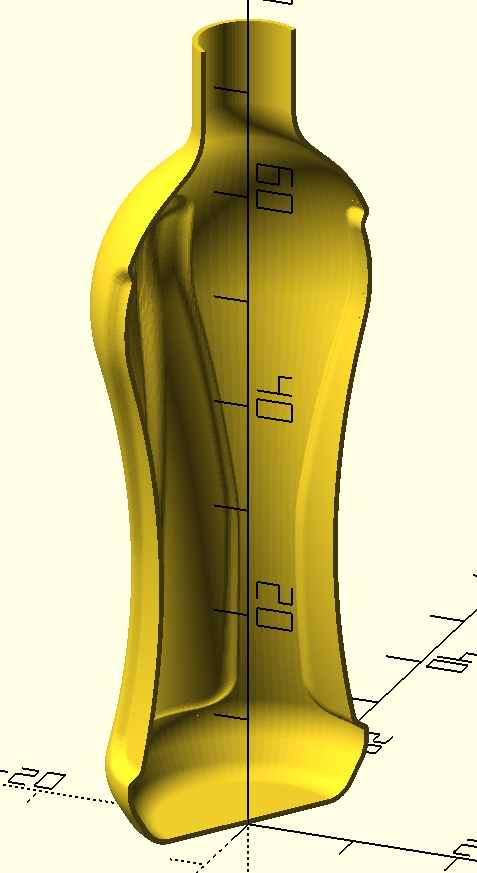

[image: Screenshot 2023-09-20 at 7.25.11 AM.png]
