polyhedron difference renders ok but bad preview
Hi,
I'm intersecting two polyedrons (I double checked their faces
definiftions), both taken singularly are previewed and rendered ok, but

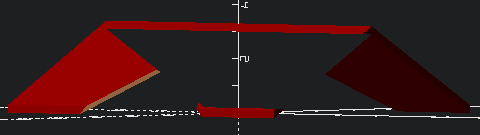

when I difference them the preview fails from certain angles, while the
render is ok.
Am I missing something or could be a bug?
$vpr = [85, 0, 50];
//-------------------------------------
module single_roof(dim, sp)
{
// P2 P8 p2 +-------------+ p3 P9 P3
// \ | Y+ | //
// \ p1 +-------------+ p4 ->X //
// P1 //P7 | Y- | P10\ P4
// // p0 +-------------+ p5 \
// P0 P6 P11 P5
p0 = [-dim.x/2, -dim.y/2, 0];
p1 = [p0.x, 0, dim.z];
p2 = [p0.x, dim.y/2, p0.z];
p3 = [dim.x/2, p2.y, p0.z];
p4 = [p3.x, p1.y, p1.z];
p5 = [p3.x, p0.y, p0.z];
p6 = [p0.x, p0.y, p0.z+sp];
p7 = [p1.x, p1.y, p1.z+sp];
p8 = [p2.x, p2.y, p2.z+sp];
p9 = [p3.x, p3.y, p3.z+sp];
p10 = [p4.x, p4.y, p4.z+sp];
p11 = [p5.x, p5.y, p5.z+sp];
points = [p0, p1, p2, p3, p4, p5,
p6, p7, p8, p9, p10, p11];
// faces are defined by points indices (CW)
faces =
[
[ 0, 5, 4, 1 ], // Under Y-
[ 6, 7,10,11 ], // Over Y-
[ 1, 4, 3, 2 ], // Under Y+
[ 7, 8, 9,10 ], // Over Y+
[ 5,11,10, 4 ], // Side Y- X+
[ 4,10, 9, 3 ], // Side Y+ X+
[ 1, 7, 6, 0 ], // Side Y- X-
[ 2, 8, 7, 1 ], // Side Y+ X-
[ 0, 6,11, 5 ], // Side Y-
[ 3, 9, 8, 2 ] // Side Y+
];
polyhedron(points, faces);
}
//-------------------------------------
module single_roof_vol(dim)
{
dz = 0.001;
// p2 +-------------+ p3
// | Y+ |
// p1 +-------------+ p4 ->X
// | Y- |
// p0 +-------------+ p5
p0 = [-dim.x/2, -dim.y/2, 0-dz];
p1 = [p0.x, 0, dim.z-dz];
p2 = [p0.x, dim.y/2, p0.z];
p3 = [dim.x/2, p2.y, p0.z];
p4 = [p3.x, p1.y, p1.z];
p5 = [p3.x, p0.y, p0.z];
points = [p0, p1, p2, p3, p4, p5];
faces =
[
[ 0, 5, 3, 2 ], // Under
[ 0, 1, 4, 5 ], // Over Y+
[ 1, 2, 3, 4 ], // Over Y-
[ 5, 4, 3 ], // Front X+
[ 2, 1, 0 ] // Front X-
];
polyhedron(points, faces);
}
// Intersection
difference()
{
color("DarkRed") single_roof([13,11,3], 0.3);
rotate([0,0,90]) single_roof_vol([12,6,3]);
}
MG wrote
Am I missing something or could be a bug?
convexity
Integer. The convexity parameter specifies the maximum number
of faces a ray intersecting the object might penetrate. This parameter is
needed only for correct display of the object in OpenCSG preview mode. It
has no effect on the polyhedron rendering. For display problems, setting
it to 10 should work fine for most cases.
OpenSCAD Admin - email* me if you need anything, or if I've done something stupid...
- on the Forum, click on my MichaelAtOz label, there is a link to email me.
Unless specifically shown otherwise above, my contribution is in the Public Domain; to the extent possible under law, I have waived all copyright and related or neighbouring rights to this work. Obviously inclusion of works of previous authors is not included in the above.
--
Sent from: http://forum.openscad.org/
Ehm, missed that, thanks a lot!
