I'm having a problem using difference() with an object I created with
linear_extrude(). The extruded shape is different and wrong when it is used
in difference() than when it isn't used in difference(). The example code
extrudes a rectangle with twist. When it is extruded by itself, the shape is
correct. When the extruded shape is subtracted from a cube using
difference(), the shape is incorrect. The sides are jagged and the top is
too narrow in the middle. I'm using OpenSCAD 2019.05 on Windows 10.
Example images: top_view.JPG
http://forum.openscad.org/file/t1635/top_view.JPG side_view.JPG
http://forum.openscad.org/file/t1635/side_view.JPG
Example code:
/*
Problem: the extruded shape is different when it is used
in difference() than when it isn't used in difference()
*/
difference() {
translate([-10, -10, 0])
cube([20, 20, 20]);
extrude_it();
}
translate([21, 0, 0])
extrude_it();
module extrude_it() {
linear_extrude(21, twist=45, slices=10, convexity=3)
square([1, 30], center=true);
}
--
Sent from: http://forum.openscad.org/
I'm having a problem using difference() with an object I created with
linear_extrude(). The extruded shape is different and wrong when it is used
in difference() than when it isn't used in difference(). The example code
extrudes a rectangle with twist. When it is extruded by itself, the shape is
correct. When the extruded shape is subtracted from a cube using
difference(), the shape is incorrect. The sides are jagged and the top is
too narrow in the middle. I'm using OpenSCAD 2019.05 on Windows 10.
Example images: top_view.JPG
<http://forum.openscad.org/file/t1635/top_view.JPG> side_view.JPG
<http://forum.openscad.org/file/t1635/side_view.JPG>
Example code:
/*
Problem: the extruded shape is different when it is used
in difference() than when it isn't used in difference()
*/
difference() {
translate([-10, -10, 0])
cube([20, 20, 20]);
extrude_it();
}
translate([21, 0, 0])
extrude_it();
module extrude_it() {
linear_extrude(21, twist=45, slices=10, convexity=3)
square([1, 30], center=true);
}
--
Sent from: http://forum.openscad.org/
NH
nop head
Tue, Aug 18, 2020 3:10 PM

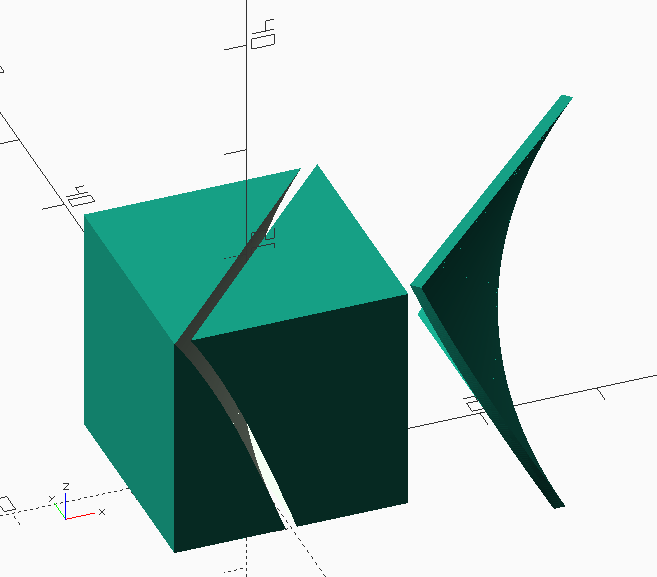

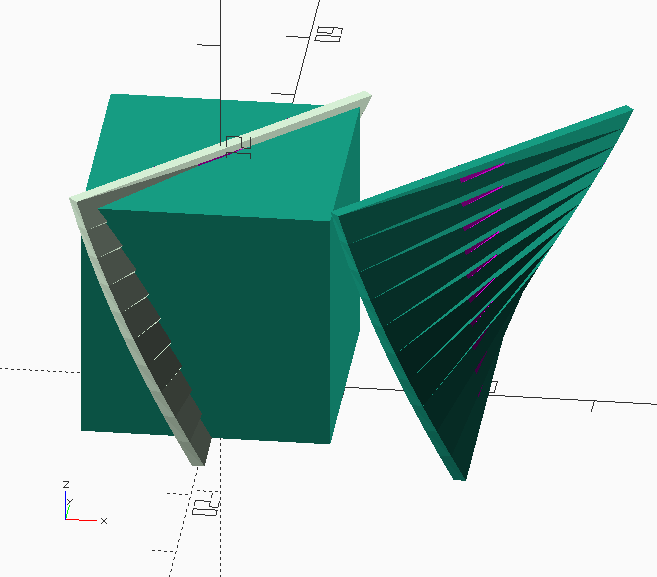

If you look at the thrown together view you will see this.
[image: image.png]
The section is so twisted compared to the number of slices it
self intersects and the purple bits are inside out. If you increase the
slices to 100 it looks OK.
[image: image.png]
On Tue, 18 Aug 2020 at 16:00, jamcultur nyponen@gmail.com wrote:
I'm having a problem using difference() with an object I created with
linear_extrude(). The extruded shape is different and wrong when it is used
in difference() than when it isn't used in difference(). The example code
extrudes a rectangle with twist. When it is extruded by itself, the shape
is
correct. When the extruded shape is subtracted from a cube using
difference(), the shape is incorrect. The sides are jagged and the top is
too narrow in the middle. I'm using OpenSCAD 2019.05 on Windows 10.
Example images: top_view.JPG
http://forum.openscad.org/file/t1635/top_view.JPG side_view.JPG
http://forum.openscad.org/file/t1635/side_view.JPG
Example code:
/*
Problem: the extruded shape is different when it is used
in difference() than when it isn't used in difference()
*/
difference() {
translate([-10, -10, 0])
cube([20, 20, 20]);
extrude_it();
}
translate([21, 0, 0])
extrude_it();
module extrude_it() {
linear_extrude(21, twist=45, slices=10, convexity=3)
square([1, 30], center=true);
}
--
Sent from: http://forum.openscad.org/
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
If you look at the thrown together view you will see this.
[image: image.png]
The section is so twisted compared to the number of slices it
self intersects and the purple bits are inside out. If you increase the
slices to 100 it looks OK.
[image: image.png]
On Tue, 18 Aug 2020 at 16:00, jamcultur <nyponen@gmail.com> wrote:
> I'm having a problem using difference() with an object I created with
> linear_extrude(). The extruded shape is different and wrong when it is used
> in difference() than when it isn't used in difference(). The example code
> extrudes a rectangle with twist. When it is extruded by itself, the shape
> is
> correct. When the extruded shape is subtracted from a cube using
> difference(), the shape is incorrect. The sides are jagged and the top is
> too narrow in the middle. I'm using OpenSCAD 2019.05 on Windows 10.
> Example images: top_view.JPG
> <http://forum.openscad.org/file/t1635/top_view.JPG> side_view.JPG
> <http://forum.openscad.org/file/t1635/side_view.JPG>
> Example code:
>
> /*
> Problem: the extruded shape is different when it is used
> in difference() than when it isn't used in difference()
> */
>
> difference() {
> translate([-10, -10, 0])
> cube([20, 20, 20]);
> extrude_it();
> }
> translate([21, 0, 0])
> extrude_it();
>
>
> module extrude_it() {
> linear_extrude(21, twist=45, slices=10, convexity=3)
> square([1, 30], center=true);
> }
>
>
>
> --
> Sent from: http://forum.openscad.org/
>
> _______________________________________________
> OpenSCAD mailing list
> Discuss@lists.openscad.org
> http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
>
J
jamcultur
Tue, Aug 18, 2020 3:35 PM
I tried increasing slices to 100 and 200. There are no inside out bits, but
the edges are still jagged which they shouldn't be. You can see it when you
zoom in.
--
Sent from: http://forum.openscad.org/
I tried increasing slices to 100 and 200. There are no inside out bits, but
the edges are still jagged which they shouldn't be. You can see it when you
zoom in.
--
Sent from: http://forum.openscad.org/
NH
nop head
Tue, Aug 18, 2020 4:04 PM
Well everything is jagged in OpenSCAD, there are no curves. The twisted
shape has facets made of two triangles at an angle, that give it a rippled
surface. If you zoom you can see the ripples and that gives the jagged edge
when subtracted.
There is nothing wrong with difference().
On Tue, 18 Aug 2020 at 16:35, jamcultur nyponen@gmail.com wrote:
Well everything is jagged in OpenSCAD, there are no curves. The twisted
shape has facets made of two triangles at an angle, that give it a rippled
surface. If you zoom you can see the ripples and that gives the jagged edge
when subtracted.
There is nothing wrong with difference().
On Tue, 18 Aug 2020 at 16:35, jamcultur <nyponen@gmail.com> wrote:
> I tried increasing slices to 100 and 200. There are no inside out bits, but
> the edges are still jagged which they shouldn't be. You can see it when you
> zoom in.
>
>
>
> --
> Sent from: http://forum.openscad.org/
>
> _______________________________________________
> OpenSCAD mailing list
> Discuss@lists.openscad.org
> http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
>
J
jamcultur
Tue, Aug 18, 2020 7:25 PM
When I extrude the shape outside of difference(), the shape is correct. When
I extrude the shape inside of difference() the shape is different and
incorrect. It has zig-zag edges, unlike the shape outside of difference().
--
Sent from: http://forum.openscad.org/
When I extrude the shape outside of difference(), the shape is correct. When
I extrude the shape inside of difference() the shape is different and
incorrect. It has zig-zag edges, unlike the shape outside of difference().
--
Sent from: http://forum.openscad.org/
NH
nop head
Tue, Aug 18, 2020 7:59 PM

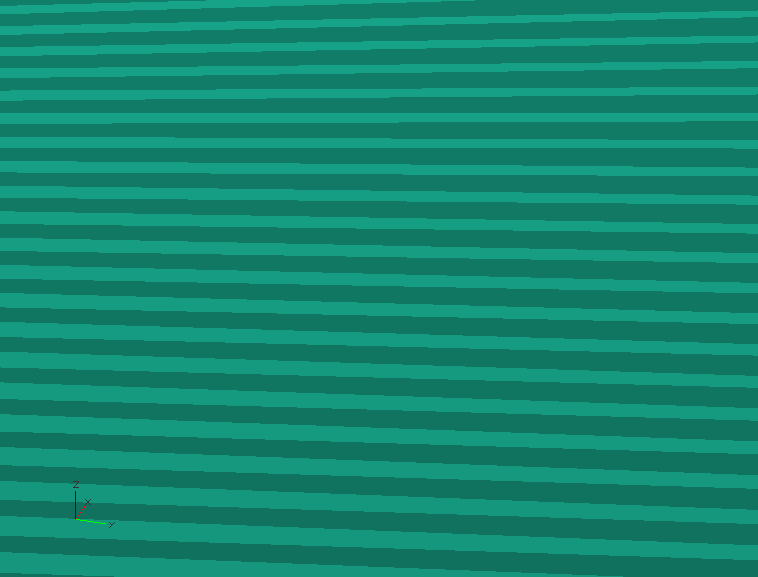

The shape does have z-zag edges. This is what it looks like away from the
edges when zoomed in.
[image: image.png]
The shape is larger than the block so it cuts away from its edges, where it
is smoother.
On Tue, 18 Aug 2020 at 20:26, jamcultur nyponen@gmail.com wrote:
The shape does have z-zag edges. This is what it looks like away from the
edges when zoomed in.
[image: image.png]
The shape is larger than the block so it cuts away from its edges, where it
is smoother.
On Tue, 18 Aug 2020 at 20:26, jamcultur <nyponen@gmail.com> wrote:
> When I extrude the shape outside of difference(), the shape is correct.
> When
> I extrude the shape inside of difference() the shape is different and
> incorrect. It has zig-zag edges, unlike the shape outside of difference().
>
>
>
> --
> Sent from: http://forum.openscad.org/
>
> _______________________________________________
> OpenSCAD mailing list
> Discuss@lists.openscad.org
> http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
>
SL
Steve Lelievre
Tue, Aug 18, 2020 8:00 PM
Hi,
As a test, try changing your difference command to an intersection. Then
look at the edges of your curved shape. That will help you see what is
going on.
A workaround for the situation is to increase the number of extrusion
layers until the zigzags are so small that they don't matter.
Cheers,
Steve
On 2020-08-18 12:25 p.m., jamcultur wrote:
Hi,
As a test, try changing your difference command to an intersection. Then
look at the edges of your curved shape. That will help you see what is
going on.
A workaround for the situation is to increase the number of extrusion
layers until the zigzags are so small that they don't matter.
Cheers,
Steve
On 2020-08-18 12:25 p.m., jamcultur wrote:
> When I extrude the shape outside of difference(), the shape is correct. When
> I extrude the shape inside of difference() the shape is different and
> incorrect. It has zig-zag edges, unlike the shape outside of difference().
>
>
>
> --
> Sent from: http://forum.openscad.org/
>
> _______________________________________________
> OpenSCAD mailing list
> Discuss@lists.openscad.org
> http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
