Parts that need to be adjustable by turning need one or more curved slots for a fixing screw.

for(i=[1 : 1 : 5])

rotate([0, 0, i*360/5])

polygon([

for(i=[-10 : 1 : 10])

[12*sin(i), 12*cos(i)],

for(i=[-90-10 : 1 : 90-10])

[11*sin(10)+1*cos(i), 11*cos(10)+1*sin(i)],

for(i=[10 : -1 : -10])

[10*sin(i), 10*cos(i)],

for(i=[90+10 : -1 : -90+10])

[-11*sin(10)-1*cos(i), 11*cos(10)-1*sin(i)],

]);

Amazing, what you can do with polymers!

Parts that need to be adjustable by turning need one or more curved slots for a fixing screw. `for(i=[1 : 1 : 5])` `rotate([0, 0, i*360/5])` `polygon([` `for(i=[-10 : 1 : 10])` `[12*sin(i), 12*cos(i)],` `for(i=[-90-10 : 1 : 90-10])` `[11*sin(10)+1*cos(i), 11*cos(10)+1*sin(i)],` `for(i=[10 : -1 : -10])` `[10*sin(i), 10*cos(i)],` `for(i=[90+10 : -1 : -90+10])` `[-11*sin(10)-1*cos(i), 11*cos(10)-1*sin(i)],` `]);` Amazing, what you can do with polymers!

RW

Raymond West

Tue, Feb 3, 2026 8:12 PM

Now make it parametric ;-}

On 03/02/2026 18:11, Caddiy via Discuss wrote:

Parts that need to be adjustable by turning need one or more curved
slots for a fixing screw.

|for(i=[1 : 1 : 5])|

|rotate([0, 0, i*360/5])|

|polygon([|

|for(i=[-10 : 1 : 10])|

|[12sin(i), 12cos(i)],|

|for(i=[-90-10 : 1 : 90-10])|

|[11sin(10)+1cos(i), 11cos(10)+1sin(i)],|

|for(i=[10 : -1 : -10])|

|[10sin(i), 10cos(i)],|

|for(i=[90+10 : -1 : -90+10])|

|[-11sin(10)-1cos(i), 11cos(10)-1sin(i)],|

|]);|

Amazing, what you can do with polymers!

OpenSCAD mailing list
To unsubscribe send an email todiscuss-leave@lists.openscad.org

Now make it parametric ;-} On 03/02/2026 18:11, Caddiy via Discuss wrote: > > Parts that need to be adjustable by turning need one or more curved > slots for a fixing screw. > > |for(i=[1 : 1 : 5])| > > |rotate([0, 0, i*360/5])| > > |polygon([| > > |for(i=[-10 : 1 : 10])| > > |[12*sin(i), 12*cos(i)],| > > |for(i=[-90-10 : 1 : 90-10])| > > |[11*sin(10)+1*cos(i), 11*cos(10)+1*sin(i)],| > > |for(i=[10 : -1 : -10])| > > |[10*sin(i), 10*cos(i)],| > > |for(i=[90+10 : -1 : -90+10])| > > |[-11*sin(10)-1*cos(i), 11*cos(10)-1*sin(i)],| > > |]);| > > Amazing, what you can do with polymers! > > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email todiscuss-leave@lists.openscad.org

M

mikeonenine@web.de

Tue, Feb 3, 2026 10:13 PM

I have a parametric version in my personal library, but I don’t want to spoil your fun!

M

mikeonenine@web.de

Tue, Feb 3, 2026 11:25 PM

Of course, in the (unlikely) event that anyone should have an urgent need for the parametric version, I would be happy to oblige.

But most people on this forum are way ahead of me in terms of maths, programming and stuff, and would presumably have no trouble working it out for themselves - if they really wanted to.

Of course, in the (unlikely) event that anyone should have an urgent need for the parametric version, I would be happy to oblige. But most people on this forum are way ahead of me in terms of maths, programming and stuff, and would presumably have no trouble working it out for themselves - if they really wanted to.

DM

Douglas Miller

Thu, Feb 5, 2026 4:22 AM

This seems to be a considerably simpler method of generating curved slots:

$fn = 150;
theta = 30;
slotWidth = 3;
radius = 20;

projection()
rotate_extrude(angle=theta) translate([radius,0])
square([slotWidth,1],true);
for(n=[0,theta]) rotate(n) translate([radius,0]) circle(d=slotWidth);

On 2/3/2026 1:11 PM, mikeonenine@web.de wrote:

Parts that need to be adjustable by turning need one or more curved
slots for a fixing screw.

|for(i=[1 : 1 : 5])|

|rotate([0, 0, i*360/5])|

|polygon([|

|for(i=[-10 : 1 : 10])|

|[12sin(i), 12cos(i)],|

|for(i=[-90-10 : 1 : 90-10])|

|[11sin(10)+1cos(i), 11cos(10)+1sin(i)],|

|for(i=[10 : -1 : -10])|

|[10sin(i), 10cos(i)],|

|for(i=[90+10 : -1 : -90+10])|

|[-11sin(10)-1cos(i), 11cos(10)-1sin(i)],|

|]);|

Amazing, what you can do with polymers!

This seems to be a considerably simpler method of generating curved slots: $fn = 150; theta = 30; slotWidth = 3; radius = 20; projection() rotate_extrude(angle=theta) translate([radius,0]) square([slotWidth,1],true); for(n=[0,theta]) rotate(n) translate([radius,0]) circle(d=slotWidth); On 2/3/2026 1:11 PM, mikeonenine@web.de wrote: > > Parts that need to be adjustable by turning need one or more curved > slots for a fixing screw. > > |for(i=[1 : 1 : 5])| > > |rotate([0, 0, i*360/5])| > > |polygon([| > > |for(i=[-10 : 1 : 10])| > > |[12*sin(i), 12*cos(i)],| > > |for(i=[-90-10 : 1 : 90-10])| > > |[11*sin(10)+1*cos(i), 11*cos(10)+1*sin(i)],| > > |for(i=[10 : -1 : -10])| > > |[10*sin(i), 10*cos(i)],| > > |for(i=[90+10 : -1 : -90+10])| > > |[-11*sin(10)-1*cos(i), 11*cos(10)-1*sin(i)],| > > |]);| > > Amazing, what you can do with polymers! >

M

mikeonenine@web.de

Thu, Feb 5, 2026 5:08 AM

Douglas Miller wrote:

This seems to be a considerably simpler method of generating curved slots:

$fn = 150;
theta = 30;
slotWidth = 3;
radius = 20;

projection()
rotate_extrude(angle=theta) translate([radius,0])
square([slotWidth,1],true);
for(n=[0,theta]) rotate(n) translate([radius,0]) circle(d=slotWidth);

Yes, that’s the easy way.

But what does projection() do?

theta = 30;

slotWidth = 3;

radius = 20;

rotate([0, 0, -theta/2])

rotate_extrude(angle=theta, $fn = 150)

translate([radius,0])

square([slotWidth, 1], true);

for(n=[-theta/2, theta/2])

rotate(n)

translate([radius, 0])

circle(d=slotWidth);

Douglas Miller wrote: > This seems to be a considerably simpler method of generating curved slots: > > $fn = 150; > theta = 30; > slotWidth = 3; > radius = 20; > > projection() > rotate_extrude(angle=theta) translate(\[radius,0\]) > square(\[slotWidth,1\],true); > for(n=\[0,theta\]) rotate(n) translate(\[radius,0\]) circle(d=slotWidth); Yes, that’s the easy way. But what does projection() do? `theta = 30;` `slotWidth = 3;` `radius = 20;` `rotate([0, 0, -theta/2])` `rotate_extrude(angle=theta, $fn = 150) ` `translate([radius,0])` `square([slotWidth, 1], true);` `for(n=[-theta/2, theta/2]) ` `rotate(n) ` `translate([radius, 0]) ` `circle(d=slotWidth);`

MM

Michael Möller

Thu, Feb 5, 2026 10:17 AM

Projection is the opposite of extrude, ie turn a 3D shape into a 2D.

The 2D square is rotate_ extruded to a 3D shape, flattened to a 2D shape to
be joined with the circles.

Elegant/Simpler is a matter of opinion ;-)

M²

tors. 5. feb. 2026, 06.09 skrev Caddiy via Discuss <
discuss@lists.openscad.org>:

Douglas Miller wrote:

This seems to be a considerably simpler method of generating curved slots:

$fn = 150; theta = 30; slotWidth = 3; radius = 20;

projection() rotate_extrude(angle=theta) translate([radius,0])
square([slotWidth,1],true); for(n=[0,theta]) rotate(n)
translate([radius,0]) circle(d=slotWidth);

Yes, that’s the easy way.

But what does projection() do?

theta = 30;

slotWidth = 3;

radius = 20;

rotate([0, 0, -theta/2])

rotate_extrude(angle=theta, $fn = 150)

translate([radius,0])

square([slotWidth, 1], true);

for(n=[-theta/2, theta/2])

rotate(n)

translate([radius, 0])

circle(d=slotWidth);

OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

Projection is the opposite of extrude, ie turn a 3D shape into a 2D. The 2D square is rotate_ extruded to a 3D shape, flattened to a 2D shape to be joined with the circles. Elegant/Simpler is a matter of opinion ;-) M² tors. 5. feb. 2026, 06.09 skrev Caddiy via Discuss < discuss@lists.openscad.org>: > Douglas Miller wrote: > > This seems to be a considerably simpler method of generating curved slots: > > $fn = 150; theta = 30; slotWidth = 3; radius = 20; > > projection() rotate_extrude(angle=theta) translate([radius,0]) > square([slotWidth,1],true); for(n=[0,theta]) rotate(n) > translate([radius,0]) circle(d=slotWidth); > > Yes, that’s the easy way. > > But what does projection() do? > > theta = 30; > > slotWidth = 3; > > radius = 20; > > rotate([0, 0, -theta/2]) > > rotate_extrude(angle=theta, $fn = 150) > > translate([radius,0]) > > square([slotWidth, 1], true); > > for(n=[-theta/2, theta/2]) > > rotate(n) > > translate([radius, 0]) > > circle(d=slotWidth); > > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org

DP

Dan Perry

Thu, Feb 5, 2026 10:52 AM

Here's another way, for BOSL2 users:

zrot_copies(n=5)
stroke(arc(angle=30, start=-15, r=gear_rad), width=3);

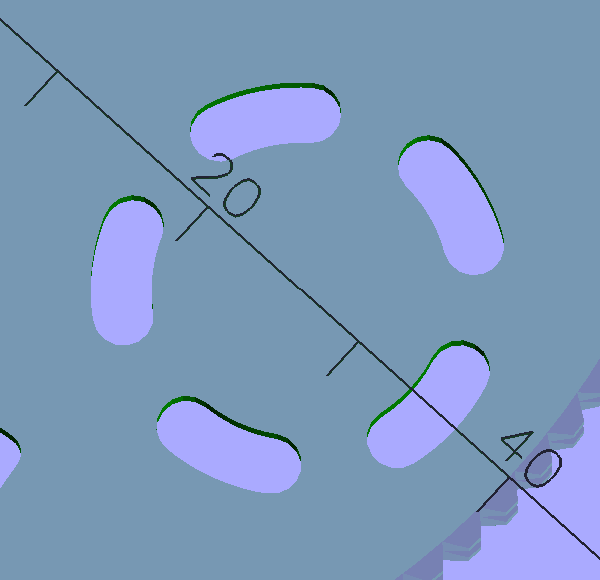

[image: image.png]
