Fileting 3D parts is still a an enigma for me.
I'd like to obtain this (using minkowsky)
http://forum.openscad.org/file/n20610/guitar_rest_fillet.jpg

The minkowsky transformation takes ages to render and screws up dimensions.

How can I obtain the fileted part seen in top pic. without using minkowsky ?

Here is the code :

//offset_3d() {
difference() {
cube([50, 50, 35], center = true);
union() {
translate([31,0,0])
cube([75, 65, 29.8], center = true);
translate([-35, 0, 0])
cylinder(h= 60, r1= 25, r2=25, center = true, $fn=20);
translate([-14,-26,0])
cylinder (h=30, d=12, center= true, $fn=100);
translate([-14,26,0])
cylinder (h=30, d=12, center= true, $fn=50);

   }
}

//}

module offset_3d(r=1.5) {
for(k=[0:$children-1]) minkowski() {
children(k);
sphere(r=r,$fn=8);
}
}
//* * * * * * * * * * * * * *

Thanks in advance for any input.
Dan

--
View this message in context: http://forum.openscad.org/Fileting-again-tp20610.html
Sent from the OpenSCAD mailing list archive at Nabble.com.

If I understood correctly, what it is, you want this should do the trick:

module offset_3d(r=1.5, size=60)
{
difference()
{
children();
difference()
{
children();
minkowski()
{
difference()
{
cube(size,center=true);
children();
}
sphere(r,$fn=8);
}
}
}
}

--
View this message in context: http://forum.openscad.org/Filleting-again-tp20610p20638.html
Sent from the OpenSCAD mailing list archive at Nabble.com.

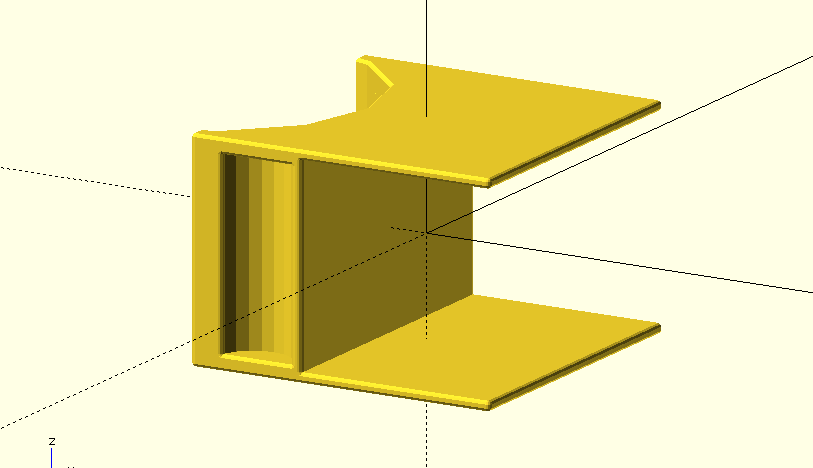

In the following code, it is used a general offset_3d module that accepts
both positive and negative offsets.
To apply the filleting we proceed like in the 2D case: first offset the
model by -r then offset it by r so that the object general dimensions are
preserved. Note that I have chosen r=0.7 instead of r=1 in your example;
the thickness of the two horizontal flaps is (35-31.8)/2 = 1.6 so the
maximum offset radius should be 0.8 otherwise some parts of your object
will vanish with the negative offset. Try it to see.

render()
//offset_3d(-0.7)
//offset_3d(0.7)
offset_3d(0.7)
offset_3d(-0.7) stressless_model()

module stressless_model()
difference() {
cube([50, 50, 35], center = true);
union() {
translate([31,0,0])
cube([75, 65, 31.8], center = true);
translate([-35, 0, 0])
cylinder(h= 60, r1= 25, r2=25, center = true);
translate([-14,-26,0])
cylinder (h=30, d=12, center= true, $fn=20);
translate([-14,26,0])
cylinder (h=30, d=12, center= true, $fn=20);
}
}

module offset_3d(r=1, size=1e12) {
n = $fn==undef ? 12: $fn;
if(r==0) children();
else
if( r>0 )
minkowski(){
children();
sphere(r, $fn=n);
}
else {
size2 = size*[1,1,1];
size1 = size2*0.99;
difference(){
cube(size2, center=true);
minkowski(){
difference(){
cube(size1, center=true);
children();
}
sphere(-r, $fn=n);;
}
}
}
}

​This filleting is applied only on "convex edges" (the edges whose outer
dihedral angle https://en.wikipedia.org/wiki/Dihedral_angle is greater
than 180 degrees). To fillet the other edges the offset operation order
should be inverted. To fillet all edges 4 offset_3d() operations should be
applied in sequence (uncomment the two commented lines to see it - be very
patient).

Each offset_3d() operation involves a minkowski and increases the number of
vertices of the model. So, the next offset_3d() will take even longer time.
My rather old notebook spent more than 7 min to render the code above.
