### color extends beyond the given object

BE
Bob Ewart
Thu, Nov 10, 2022 8:46 PM

I am trying to do a 2 color print with the second color being a section
through the middle of the first.

In this example the main object is a cube(20) and the section is rotated
and is larger than the main object.  The first color is the difference
between the main object and the overlay, the second is the intersection
of the two.

When I color the second part with green and combining the two I was
expecting to see the two parts in different colors.  What I got is:

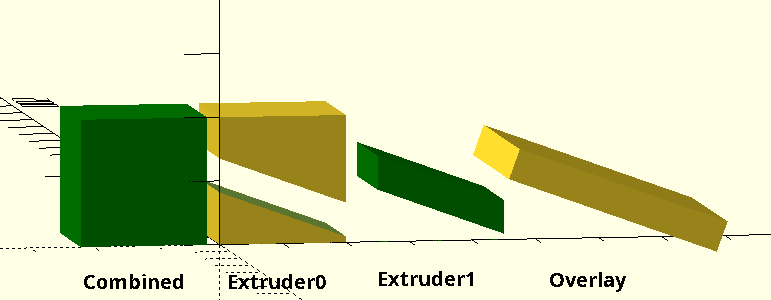

The image on the left should be a natural color cube with the green
section through the middle.

--

Bob

I am trying to do a 2 color print with the second color being a section through the middle of the first. In this example the main object is a cube(20) and the section is rotated and is larger than the main object.  The first color is the difference between the main object and the overlay, the second is the intersection of the two. When I color the second part with green and combining the two I was expecting to see the two parts in different colors.  What I got is: The image on the left should be a natural color cube with the green section through the middle. -- Bob
RW
Raymond West
Thu, Nov 10, 2022 10:49 PM

when you combine two coloured objects, to make a single object, it takes
the colour of the last object in the list, afaik. If you want to see
separate colours, then make the insert a bit smaller, say, so it does
not touch the cube to make a single object.

translate([-22,0,0]) {
//color("red")
extruder0();
//color("red")
color("green")
//  scale([0.99,0.99,0.99])
extruder1();
color("red")
extruder0();
}

remove the comments, move the parts around, see what happens.

On 10/11/2022 20:46, Bob Ewart wrote:

I am trying to do a 2 color print with the second color being a
section through the middle of the first.

In this example the main object is a cube(20) and the section is
rotated and is larger than the main object.  The first color is the
difference between the main object and the overlay, the second is the
intersection of the two.

When I color the second part with green and combining the two I was
expecting to see the two parts in different colors.  What I got is:

The image on the left should be a natural color cube with the green
section through the middle.

--
Bob
