How make this flat instead of a cylinder

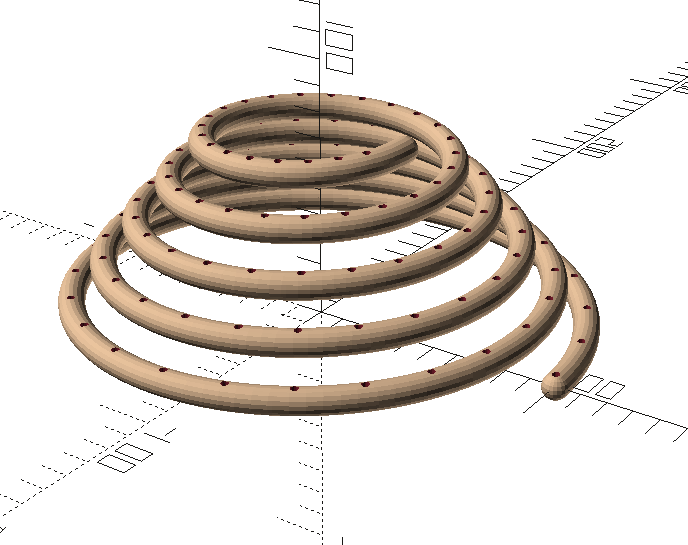

I used an AI system to create this, it is for the most part exactly what I what but instead of it being a sphere going around and up I want it to be a flat bar the same size as the sphere. Any easy way of doing this?
Here is the code it generated, I modified this a little bit.
// Parametersnum_points=500;initial_diameter = 200; // base diameterheight = 75; // Total height (3 rounds × 25mm per round)diameter_decrease = 25; // 25mm decrease per roundnum_holes = 120;spiral_thickness = 10; // Thickness of the spiral pathhole_diameter = 3; // 3mm holes
// Function to calculate points along the spiralfunction spiral_points(steps) = [ for(i = [0:steps-1]) let( angle = i * 360 * 5 / steps, // 5 complete rotations radius = (initial_diameter - (angle/360) * diameter_decrease) / 2, z = (height * angle) / (360 * 5) ) [ radius * cos(angle), radius * sin(angle), z ]];
// Function to create points for a hole at a given position and normalfunction rotate_points(points, normal, center) = let( angle = atan2(normal[1], normal[0]), elevation = atan2(normal[2], sqrt(normal[0] * normal[0] + normal[1] * normal[1])) ) [ for(p = points) let( rotated = [[1, 0, 0], [0, cos(elevation), -sin(elevation)], [0, sin(elevation), cos(elevation)]] * [[cos(angle), -sin(angle), 0], [sin(angle), cos(angle), 0], [0, 0, 1]] * p ) [ rotated[0] + center[0], rotated[1] + center[1], rotated[2] + center[2] ] ];
// Create the main spiralmodule spiral() { points = spiral_points(num_points); // Generate 500 points along the spiral // Create the spiral path for(i = [0:len(points)-2]) { hull() { translate(points[i]) sphere(d=spiral_thickness, $fn=20); translate(points[i+1]) sphere(d=spiral_thickness, $fn=20); } }}
// Create holes along the spiralmodule holes() { points = spiral_points(num_holes); for(i = [0:len(points)-2]) { // Calculate direction vector for hole orientation vector = points[i+1] - points[i]; length = norm(vector); normal = vector / length; // Create hole translate(points[i]) { // Create a cylinder oriented along the normal vector hole_points = rotate_points( [for(z = [-15:15]) [0, 0, z]], normal, [0, 0, 0] ); hull() { for(p = hole_points) { translate(p) sphere(d=hole_diameter, $fn=16); } } } }}
// Final modeldifference() { spiral(); holes();}
I didn't try out your code, but it looks like you should replace sphere()
twice in module spiral() with cube(). To be closer to a perfect flat bar,
you would need to x-rotate (or possibly y-rotate) the cube() by the value
of angle in module spiral_points().
Dan
On Sun, Jan 12, 2025 at 9:34 PM Trevor Orr via Discuss <
discuss@lists.openscad.org> wrote:
I used an AI system to create this, it is for the most part exactly what I
what but instead of it being a sphere going around and up I want it to be a
flat bar the same size as the sphere. Any easy way of doing this?
Here is the code it generated, I modified this a little bit.
// Parameters
num_points=500;
initial_diameter = 200; // base diameter
height = 75; // Total height (3 rounds × 25mm per round)
diameter_decrease = 25; // 25mm decrease per round
num_holes = 120;
spiral_thickness = 10; // Thickness of the spiral path
hole_diameter = 3; // 3mm holes
// Function to calculate points along the spiral
function spiral_points(steps) = [
for(i = [0:steps-1])
let(
angle = i * 360 * 5 / steps, // 5 complete rotations
radius = (initial_diameter - (angle/360) * diameter_decrease) / 2,
z = (height * angle) / (360 * 5)
)
[
radius * cos(angle),
radius * sin(angle),
z
]
];
// Function to create points for a hole at a given position and normal
function rotate_points(points, normal, center) =
let(
angle = atan2(normal[1], normal[0]),
elevation = atan2(normal[2], sqrt(normal[0] * normal[0] +
normal[1] * normal[1]))
)
[
for(p = points)
let(
rotated =
[[1, 0, 0], [0, cos(elevation), -sin(elevation)], [0,
sin(elevation), cos(elevation)]] *
[[cos(angle), -sin(angle), 0], [sin(angle), cos(angle),
0], [0, 0, 1]] *
p
)
[
rotated[0] + center[0],
rotated[1] + center[1],
rotated[2] + center[2]
]
];
// Create the main spiral
module spiral() {
points = spiral_points(num_points); // Generate 500 points along the
spiral
// Create the spiral path
for(i = [0:len(points)-2]) {
hull() {
translate(points[i])
sphere(d=spiral_thickness, $fn=20);
translate(points[i+1])
sphere(d=spiral_thickness, $fn=20);
}
}
}
// Create holes along the spiral
module holes() {
points = spiral_points(num_holes);
for(i = [0:len(points)-2]) {
// Calculate direction vector for hole orientation
vector = points[i+1] - points[i];
length = norm(vector);
normal = vector / length;
// Create hole
translate(points[i]) {
// Create a cylinder oriented along the normal vector
hole_points = rotate_points(
[for(z = [-15:15]) [0, 0, z]],
normal,
[0, 0, 0]
);
hull() {
for(p = hole_points) {
translate(p)
sphere(d=hole_diameter, $fn=16);
}
}
}
}
}
// Final model
difference() {
spiral();
holes();
}
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
I tried cube() and it was close and probably rotating it like you mentioned would fix it.
On Sunday, January 12, 2025 at 01:55:07 PM PST, Dan Perry via Discuss <discuss@lists.openscad.org> wrote:
I didn't try out your code, but it looks like you should replace sphere() twice in module spiral() with cube(). To be closer to a perfect flat bar, you would need to x-rotate (or possibly y-rotate) the cube() by the value of angle in module spiral_points().Dan
On Sun, Jan 12, 2025 at 9:34 PM Trevor Orr via Discuss discuss@lists.openscad.org wrote:
I used an AI system to create this, it is for the most part exactly what I what but instead of it being a sphere going around and up I want it to be a flat bar the same size as the sphere. Any easy way of doing this?
Here is the code it generated, I modified this a little bit.
// Parametersnum_points=500;initial_diameter = 200; // base diameterheight = 75; // Total height (3 rounds × 25mm per round)diameter_decrease = 25; // 25mm decrease per roundnum_holes = 120;spiral_thickness = 10; // Thickness of the spiral pathhole_diameter = 3; // 3mm holes
// Function to calculate points along the spiralfunction spiral_points(steps) = [ for(i = [0:steps-1]) let( angle = i * 360 * 5 / steps, // 5 complete rotations radius = (initial_diameter - (angle/360) * diameter_decrease) / 2, z = (height * angle) / (360 * 5) ) [ radius * cos(angle), radius * sin(angle), z ]];
// Function to create points for a hole at a given position and normalfunction rotate_points(points, normal, center) = let( angle = atan2(normal[1], normal[0]), elevation = atan2(normal[2], sqrt(normal[0] * normal[0] + normal[1] * normal[1])) ) [ for(p = points) let( rotated = [[1, 0, 0], [0, cos(elevation), -sin(elevation)], [0, sin(elevation), cos(elevation)]] * [[cos(angle), -sin(angle), 0], [sin(angle), cos(angle), 0], [0, 0, 1]] * p ) [ rotated[0] + center[0], rotated[1] + center[1], rotated[2] + center[2] ] ];
// Create the main spiralmodule spiral() { points = spiral_points(num_points); // Generate 500 points along the spiral // Create the spiral path for(i = [0:len(points)-2]) { hull() { translate(points[i]) sphere(d=spiral_thickness, $fn=20); translate(points[i+1]) sphere(d=spiral_thickness, $fn=20); } }}
// Create holes along the spiralmodule holes() { points = spiral_points(num_holes); for(i = [0:len(points)-2]) { // Calculate direction vector for hole orientation vector = points[i+1] - points[i]; length = norm(vector); normal = vector / length; // Create hole translate(points[i]) { // Create a cylinder oriented along the normal vector hole_points = rotate_points( [for(z = [-15:15]) [0, 0, z]], normal, [0, 0, 0] ); hull() { for(p = hole_points) { translate(p) sphere(d=hole_diameter, $fn=16); } } } }}
// Final modeldifference() { spiral(); holes();}
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
My first thought it to change the two spheres to cube(5,true), in module
spiral, which sort of works, if it a rectangular cross section that you
want for the 'wire' instead of round. but there are oddities with the
smoothness of the spiral curve. I haven't looked into it further.
On 12/01/2025 21:34, Trevor Orr via Discuss wrote:
I used an AI system to create this, it is for the most part exactly
what I what but instead of it being a sphere going around and up I
want it to be a flat bar the same size as the sphere. Any easy way of
doing this?
Here is the code it generated, I modified this a little bit.
// Parameters
num_points=500;
initial_diameter = 200; // base diameter
height = 75; // Total height (3 rounds × 25mm per round)
diameter_decrease = 25; // 25mm decrease per round
num_holes = 120;
spiral_thickness = 10; // Thickness of the spiral path
hole_diameter = 3; // 3mm holes
// Function to calculate points along the spiral
function spiral_points(steps) = [
for(i = [0:steps-1])
let(
angle = i * 360 * 5 / steps, // 5 complete rotations
radius = (initial_diameter - (angle/360) * diameter_decrease) / 2,
z = (height * angle) / (360 * 5)
)
[
radius * cos(angle),
radius * sin(angle),
z
]
];
// Function to create points for a hole at a given position and normal
function rotate_points(points, normal, center) =
let(
angle = atan2(normal[1], normal[0]),
elevation = atan2(normal[2], sqrt(normal[0] * normal[0] +
normal[1] * normal[1]))
)
[
for(p = points)
let(
rotated =
[[1, 0, 0], [0, cos(elevation), -sin(elevation)], [0,
sin(elevation), cos(elevation)]] *
[[cos(angle), -sin(angle), 0], [sin(angle),
cos(angle), 0], [0, 0, 1]] *
p
)
[
rotated[0] + center[0],
rotated[1] + center[1],
rotated[2] + center[2]
]
];
// Create the main spiral
module spiral() {
points = spiral_points(num_points); // Generate 500 points along
the spiral
// Create the spiral path
for(i = [0:len(points)-2]) {
hull() {
translate(points[i])
sphere(d=spiral_thickness, $fn=20);
translate(points[i+1])
sphere(d=spiral_thickness, $fn=20);
}
}
}
// Create holes along the spiral
module holes() {
points = spiral_points(num_holes);
for(i = [0:len(points)-2]) {
// Calculate direction vector for hole orientation
vector = points[i+1] - points[i];
length = norm(vector);
normal = vector / length;
// Create hole
translate(points[i]) {
// Create a cylinder oriented along the normal vector
hole_points = rotate_points(
[for(z = [-15:15]) [0, 0, z]],
normal,
[0, 0, 0]
);
hull() {
for(p = hole_points) {
translate(p)
sphere(d=hole_diameter, $fn=16);
}
}
}
}
}
// Final model
difference() {
spiral();
holes();
}
OpenSCAD mailing list
To unsubscribe send an email todiscuss-leave@lists.openscad.org

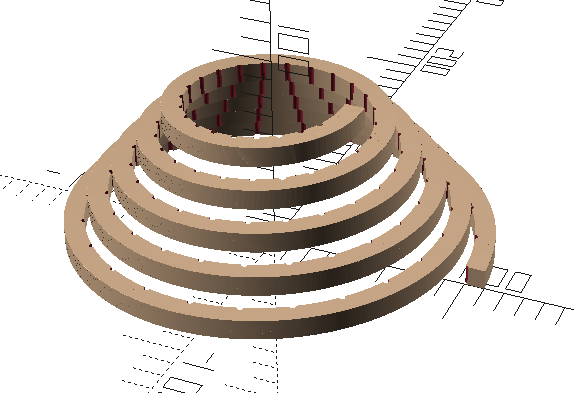

Rotating the cube was the trick to make it work I had to rotate it on the Z axis. Doing that somehow messed up the hole placement so I will have to fix that part now.
// Create the main spiralmodule spiral() { points = spiral_points(num_points); // Generate 500 points along the spiral // Create the spiral path for(i = [0:len(points)-2]) { angle = i * 360 * 5 / len(points); hull() { translate(points[i]) //sphere(d=spiral_thickness, $fn=20); rotate([0, 0, angle]) cube([spiral_thickness, 1, spiral_thickness]); translate(points[i+1]) //sphere(d=spiral_thickness, $fn=20); rotate([0, 0, angle]) cube([spiral_thickness, 1, spiral_thickness]); } }}
On Sunday, January 12, 2025 at 02:16:06 PM PST, Raymond West via Discuss <discuss@lists.openscad.org> wrote:
My first thought it to change the two spheres to cube(5,true), in module spiral, which sort of works, if it a rectangular cross section that you want for the 'wire' instead of round. but there are oddities with the smoothness of the spiral curve. I haven't looked into it further.
On 12/01/2025 21:34, Trevor Orr via Discuss wrote:
I used an AI system to create this, it is for the most part exactly what I what but instead of it being a sphere going around and up I want it to be a flat bar the same size as the sphere. Any easy way of doing this?
Here is the code it generated, I modified this a little bit.
// Parameters num_points=500; initial_diameter = 200; // base diameter height = 75; // Total height (3 rounds × 25mm per round) diameter_decrease = 25; // 25mm decrease per round num_holes = 120; spiral_thickness = 10; // Thickness of the spiral path hole_diameter = 3; // 3mm holes
// Function to calculate points along the spiral function spiral_points(steps) = [ for(i = [0:steps-1]) let( angle = i * 360 * 5 / steps, // 5 complete rotations radius = (initial_diameter - (angle/360) * diameter_decrease) / 2, z = (height * angle) / (360 * 5) ) [ radius * cos(angle), radius * sin(angle), z ] ];
// Function to create points for a hole at a given position and normal function rotate_points(points, normal, center) = let( angle = atan2(normal[1], normal[0]), elevation = atan2(normal[2], sqrt(normal[0] * normal[0] + normal[1] * normal[1])) ) [ for(p = points) let( rotated = [[1, 0, 0], [0, cos(elevation), -sin(elevation)], [0, sin(elevation), cos(elevation)]] * [[cos(angle), -sin(angle), 0], [sin(angle), cos(angle), 0], [0, 0, 1]] * p ) [ rotated[0] + center[0], rotated[1] + center[1], rotated[2] + center[2] ] ];
// Create the main spiral module spiral() { points = spiral_points(num_points); // Generate 500 points along the spiral // Create the spiral path for(i = [0:len(points)-2]) { hull() { translate(points[i]) sphere(d=spiral_thickness, $fn=20); translate(points[i+1]) sphere(d=spiral_thickness, $fn=20); } } }
// Create holes along the spiral module holes() { points = spiral_points(num_holes); for(i = [0:len(points)-2]) { // Calculate direction vector for hole orientation vector = points[i+1] - points[i]; length = norm(vector); normal = vector / length; // Create hole translate(points[i]) { // Create a cylinder oriented along the normal vector hole_points = rotate_points( [for(z = [-15:15]) [0, 0, z]], normal, [0, 0, 0] ); hull() { for(p = hole_points) { translate(p) sphere(d=hole_diameter, $fn=16); } } } } }
// Final model difference() { spiral(); holes(); }
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
My method for drawing springs, threads, and similar spirals, is to make
a profile in 2d, extrude it, say 0.5mm, then rotate it, and translate it
in x, the overall radius, then within in a for loop, rotate it and
translate in z a small amount. The hull will smooth it out, but I've
never bothered with that. As this 'spring' is tapered, then also alter
the translate value within the loop.
On 12/01/2025 22:27, Trevor Orr via Discuss wrote:
Rotating the cube was the trick to make it work I had to rotate it on
the Z axis. Doing that somehow messed up the hole placement so I will
have to fix that part now.
// Create the main spiral
module spiral() {
points = spiral_points(num_points); // Generate 500 points along
the spiral
// Create the spiral path
for(i = [0:len(points)-2]) {
angle = i * 360 * 5 / len(points);
hull() {
translate(points[i])
//sphere(d=spiral_thickness, $fn=20);
rotate([0, 0, angle])
cube([spiral_thickness, 1, spiral_thickness]);
translate(points[i+1])
//sphere(d=spiral_thickness, $fn=20);
rotate([0, 0, angle])
cube([spiral_thickness, 1, spiral_thickness]);
}
}
}
On Sunday, January 12, 2025 at 02:16:06 PM PST, Raymond West via
Discuss discuss@lists.openscad.org wrote:
My first thought it to change the two spheres to cube(5,true), in
module spiral, which sort of works, if it a rectangular cross section
that you want for the 'wire' instead of round. but there are oddities
with the smoothness of the spiral curve. I haven't looked into it further.
On 12/01/2025 21:34, Trevor Orr via Discuss wrote:
I used an AI system to create this, it is for the most part exactly
what I what but instead of it being a sphere going around and up I
want it to be a flat bar the same size as the sphere. Any easy way of
doing this?
Here is the code it generated, I modified this a little bit.
// Parameters
num_points=500;
initial_diameter = 200; // base diameter
height = 75; // Total height (3 rounds × 25mm per round)
diameter_decrease = 25; // 25mm decrease per round
num_holes = 120;
spiral_thickness = 10; // Thickness of the spiral path
hole_diameter = 3; // 3mm holes
// Function to calculate points along the spiral
function spiral_points(steps) = [
for(i = [0:steps-1])
let(
angle = i * 360 * 5 / steps, // 5 complete rotations
radius = (initial_diameter - (angle/360) * diameter_decrease) / 2,
z = (height * angle) / (360 * 5)
)
[
radius * cos(angle),
radius * sin(angle),
z
]
];
// Function to create points for a hole at a given position and normal
function rotate_points(points, normal, center) =
let(
angle = atan2(normal[1], normal[0]),
elevation = atan2(normal[2], sqrt(normal[0] * normal[0] +
normal[1] * normal[1]))
)
[
for(p = points)
let(
rotated =
[[1, 0, 0], [0, cos(elevation), -sin(elevation)], [0,
sin(elevation), cos(elevation)]] *
[[cos(angle), -sin(angle), 0], [sin(angle),
cos(angle), 0], [0, 0, 1]] *
p
)
[
rotated[0] + center[0],
rotated[1] + center[1],
rotated[2] + center[2]
]
];
// Create the main spiral
module spiral() {
points = spiral_points(num_points); // Generate 500 points along
the spiral
// Create the spiral path
for(i = [0:len(points)-2]) {
hull() {
translate(points[i])
sphere(d=spiral_thickness, $fn=20);
translate(points[i+1])
sphere(d=spiral_thickness, $fn=20);
}
}
}
// Create holes along the spiral
module holes() {
points = spiral_points(num_holes);
for(i = [0:len(points)-2]) {
// Calculate direction vector for hole orientation
vector = points[i+1] - points[i];
length = norm(vector);
normal = vector / length;
// Create hole
translate(points[i]) {
// Create a cylinder oriented along the normal vector
hole_points = rotate_points(
[for(z = [-15:15]) [0, 0, z]],
normal,
[0, 0, 0]
);
hull() {
for(p = hole_points) {
translate(p)
sphere(d=hole_diameter, $fn=16);
}
}
}
}
}
// Final model
difference() {
spiral();
holes();
}
OpenSCAD mailing list
To unsubscribe send an email todiscuss-leave@lists.openscad.org mailto:discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email todiscuss-leave@lists.openscad.org
That sounds to like it would work better because I could put the holes in
it before the extrude.
On January 12, 2025 2:54:59 PM Raymond West via Discuss
discuss@lists.openscad.org wrote:
My method for drawing springs, threads, and similar spirals, is to make a
profile in 2d, extrude it, say 0.5mm, then rotate it, and translate it in
x, the overall radius, then within in a for loop, rotate it and translate
in z a small amount. The hull will smooth it out, but I've never bothered
with that. As this 'spring' is tapered, then also alter the translate value
within the loop.
On 12/01/2025 22:27, Trevor Orr via Discuss wrote:
Rotating the cube was the trick to make it work I had to rotate it on the Z
axis. Doing that somehow messed up the hole placement so I will have to
fix that part now.
// Create the main spiral
module spiral() {
points = spiral_points(num_points); // Generate 500 points along the spiral
// Create the spiral path
for(i = [0:len(points)-2]) {
angle = i * 360 * 5 / len(points);
hull() {
translate(points[i])
//sphere(d=spiral_thickness, $fn=20);
rotate([0, 0, angle])
cube([spiral_thickness, 1, spiral_thickness]);
translate(points[i+1])
//sphere(d=spiral_thickness, $fn=20);
rotate([0, 0, angle])
cube([spiral_thickness, 1, spiral_thickness]);
}
}
}
On Sunday, January 12, 2025 at 02:16:06 PM PST, Raymond West via Discuss
discuss@lists.openscad.org wrote:
My first thought it to change the two spheres to cube(5,true), in module
spiral, which sort of works, if it a rectangular cross section that you
want for the 'wire' instead of round. but there are oddities with the
smoothness of the spiral curve. I haven't looked into it further.
On 12/01/2025 21:34, Trevor Orr via Discuss wrote:
I used an AI system to create this, it is for the most part exactly what I
what but instead of it being a sphere going around and up I want it to be a
flat bar the same size as the sphere. Any easy way of doing this?
Here is the code it generated, I modified this a little bit.
// Parameters
num_points=500;
initial_diameter = 200; // base diameter
height = 75; // Total height (3 rounds × 25mm per round)
diameter_decrease = 25; // 25mm decrease per round
num_holes = 120;
spiral_thickness = 10; // Thickness of the spiral path
hole_diameter = 3; // 3mm holes
// Function to calculate points along the spiral
function spiral_points(steps) = [
for(i = [0:steps-1])
let(
angle = i * 360 * 5 / steps, // 5 complete rotations
radius = (initial_diameter - (angle/360) * diameter_decrease) / 2,
z = (height * angle) / (360 * 5)
)
[
radius * cos(angle),
radius * sin(angle),
z
]
];
// Function to create points for a hole at a given position and normal
function rotate_points(points, normal, center) =
let(
angle = atan2(normal[1], normal[0]),
elevation = atan2(normal[2], sqrt(normal[0] * normal[0] + normal[1] *
normal[1]))
)
[
for(p = points)
let(
rotated =
[[1, 0, 0], [0, cos(elevation), -sin(elevation)], [0, sin(elevation),
cos(elevation)]] *
[[cos(angle), -sin(angle), 0], [sin(angle), cos(angle), 0], [0, 0, 1]] *
p
)
[
rotated[0] + center[0],
rotated[1] + center[1],
rotated[2] + center[2]
]
];
// Create the main spiral
module spiral() {
points = spiral_points(num_points); // Generate 500 points along the spiral
// Create the spiral path
for(i = [0:len(points)-2]) {
hull() {
translate(points[i])
sphere(d=spiral_thickness, $fn=20);
translate(points[i+1])
sphere(d=spiral_thickness, $fn=20);
}
}
}
// Create holes along the spiral
module holes() {
points = spiral_points(num_holes);
for(i = [0:len(points)-2]) {
// Calculate direction vector for hole orientation
vector = points[i+1] - points[i];
length = norm(vector);
normal = vector / length;
// Create hole
translate(points[i]) {
// Create a cylinder oriented along the normal vector
hole_points = rotate_points(
[for(z = [-15:15]) [0, 0, z]],
normal,
[0, 0, 0]
);
hull() {
for(p = hole_points) {
translate(p)
sphere(d=hole_diameter, $fn=16);
}
}
}
}
}
// Final model
difference() {
spiral();
holes();
}
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
