two bugs
If you compile the following code with F5 you will get a part of a mold
that I am designing. You will have to revise the "import" code so that
it can see the STL that I have attached.

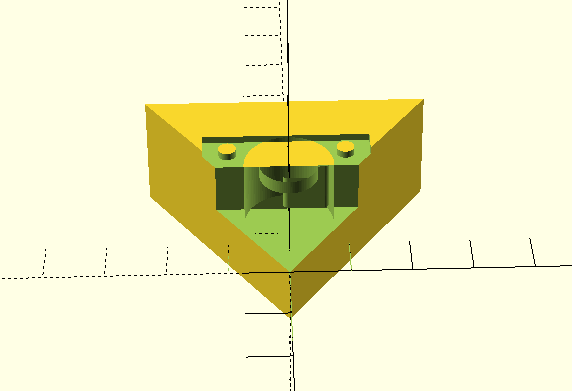

Bug 1: if you align the visualization as shown in the screen shot, there
is a "ghost" that is sometimes visible. This can be confusing and
distracting: is it really there or not?
Bug 2: if you now compile with F6, the mold disappears and a triangular
solid appears. The "difference" has vanished. So, the mold is
effectively useless.
Jon
===
th = 10;
rch = 0.1;
maxX = 47.1/2;
maxY = 28.3/2;
minX = -maxX;
minY = -maxY;
maxXth = maxX + th;
maxYth = maxY + th;
minXth = minX - th;
minYth = minY - th;
module Lock() {
translate([minX, minY, 0])
import ("d:/stl files/enigma lock for mold.stl");
}
BotM1();
module P1() {
polygon(points=[[0, 0], [minXth, minYth], [minXth, maxYth]],
paths=[[0, 1, 2]]);
}
module BotM1() {
difference() {
translate([0, 0, -th])
linear_extrude(10.3 + th - rch)
P1();
Lock();
}
}
On May 14, 2015, at 11:40 AM, jon jon@jonbondy.com wrote:
Bug 1: if you align the visualization as shown in the screen shot, there is a "ghost" that is sometimes visible. This can be confusing and distracting: is it really there or not?
Add ‘convexity=3’ as a parameter to import(). This is to tell OpenSCAD that your imported geometry is has high depth complexity.
Bug 2: if you now compile with F6, the mold disappears and a triangular solid appears. The "difference" has vanished. So, the mold is effectively useless.
This is because your imported STL has degenerate features not supported by OpenSCAD. Typically, this means you have “zero area triangles” - triangles where we can’t deduce a normal vector. Our geometry engine (CGAL) doesn’t support this. It’s a known issue and pretty annoying indeed.
See https://github.com/openscad/openscad/issues/945 and https://github.com/openscad/openscad/issues/1042
-Marius
The first problem is fixed by setting convexity in the import.
The second problem is:
ERROR: CGAL error in CGAL_Nef_polyhedron3(): CGAL ERROR: assertion
violation! Expr: pe_prev->is_border() ||
!internal::Plane_constructor::get_plane(pe_prev->facet(),pe_prev->facet()->plane()).is_degenerate()
File:
/data/OpenSCAD/libraries-mingw32-master/mxe/usr/i686-w64-mingw32.static/include/CGAL/Nef_3/polyhedron_3_to_nef_3.h
Line: 293
On 14 May 2015 at 16:40, jon jon@jonbondy.com wrote:
If you compile the following code with F5 you will get a part of a mold
that I am designing. You will have to revise the "import" code so that it
can see the STL that I have attached.
Bug 1: if you align the visualization as shown in the screen shot, there
is a "ghost" that is sometimes visible. This can be confusing and
distracting: is it really there or not?
Bug 2: if you now compile with F6, the mold disappears and a triangular
solid appears. The "difference" has vanished. So, the mold is effectively
useless.
Jon
===
th = 10;
rch = 0.1;
maxX = 47.1/2;
maxY = 28.3/2;
minX = -maxX;
minY = -maxY;
maxXth = maxX + th;
maxYth = maxY + th;
minXth = minX - th;
minYth = minY - th;
module Lock() {
translate([minX, minY, 0])
import ("d:/stl files/enigma lock for mold.stl");
}
BotM1();
module P1() {
polygon(points=[[0, 0], [minXth, minYth], [minXth, maxYth]],
paths=[[0, 1, 2]]);
}
module BotM1() {
difference() {
translate([0, 0, -th])
linear_extrude(10.3 + th - rch)
P1();
Lock();
}
}
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
Thanks (and to nop head).
The STL was created by SketchUp. Is there some way to "fix" the STL?
NetFabb Basic claims the STL is OK.
Jon
On 5/14/2015 12:21 PM, Marius Kintel wrote:
On May 14, 2015, at 11:40 AM, jon jon@jonbondy.com wrote:
Bug 1: if you align the visualization as shown in the screen shot, there is a "ghost" that is sometimes visible. This can be confusing and distracting: is it really there or not?
Add ‘convexity=3’ as a parameter to import(). This is to tell OpenSCAD that your imported geometry is has high depth complexity.
Bug 2: if you now compile with F6, the mold disappears and a triangular solid appears. The "difference" has vanished. So, the mold is effectively useless.
This is because your imported STL has degenerate features not supported by OpenSCAD. Typically, this means you have “zero area triangles” - triangles where we can’t deduce a normal vector. Our geometry engine (CGAL) doesn’t support this. It’s a known issue and pretty annoying indeed.
See https://github.com/openscad/openscad/issues/945 and https://github.com/openscad/openscad/issues/1042
-Marius
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
No virus found in this message.
Checked by AVG - www.avg.com
Version: 2015.0.5863 / Virus Database: 4342/9775 - Release Date: 05/14/15
On 05/14/2015 06:35 PM, jon wrote:
The STL was created by SketchUp. Is there some way to "fix" the STL? NetFabb Basic claims the STL is OK.
You could try meshlab:
ciao,
Torsten.
I gave up and re-invented the STL in OpenSCAD. The lesson? Never use
anything other than OpenSCAD!
On 5/14/2015 12:50 PM, Torsten Paul wrote:
On 05/14/2015 06:35 PM, jon wrote:
The STL was created by SketchUp. Is there some way to "fix" the STL?
NetFabb Basic claims the STL is OK.
You could try meshlab:
ciao,
Torsten.
Hi all,
New to OpenSCAD, fantastic tool! However I miss a modulo operator, or
have I missed it ? :)
Regards
/Robert
On Fri, May 15, 2015 at 08:07:03AM +0200, Robert Bielik wrote:
Hi all,
New to OpenSCAD, fantastic tool! However I miss a modulo operator, or have I
missed it ? :)
You mean arithmetic modulo? That's %.
--
Kind regards,
Loong Jin
Be warned that if you are looking for the modulus function as it is
normally defined in mathematics
(eg, as defined here: http://mathworld.wolfram.com/Mod.html)
then a % m is only equal to a mod m when the arguments are non-negative.
0 % 3 == 0 0 mod 3 == 0
1 % 3 == 1 1 mod 3 == 1
2 % 3 == 2 2 mod 3 == 2
3 % 3 == 0 3 mod 3 == 0
If the first argument is negative, you won't get the expected result.
-1 % 3 == -1 -1 mod 3 == 2
You can define the mod function like this (with correct behaviour for
negative arguments):
function mod(a,m) = a - m*floor(a/m);
