Wild idea: Attachment nodes
This will be a familiar concept to everyone who has played Kerbal Space
Program.
The idea is to have an object type that is "attachment node", which has a
name, a position and an orientation. This could then be used to connect to
an attachment node on another object.
So, for example (pseudo-ish code...):
That would make a thispart and a thatpart, and place thatpart so that
thisconnector lines up with thatconnector.
It's not an everyday thing, but once you have complex constructions with
many parts, especially if they are moving, it could help a lot. I'm
currently doing a construction where things swing around, and getting all
the trigonometry right in multiple steps of swinging does not make for neat
code.
Another example would be, say, a hinge with screw holes. Each screw hole
would be an attachment node, and each screw would have an attachment node.
That way, when you use the hinge (which might reside in an included file),
you don't need to know exaclty where the screw holes are, you just need the
name of the attachment nodes.
Another example is that you often stack parts in some way. This would make
for less
translate([-widthbase/2-widthedge-widthfeet,0,heightbase+heightpart1+heightpart2+heightpart3]),
as it would allow using previous parts as a position reference.
I realize that the syntax, as written in the example, wouldn't work with
multiple nodes, but I think it's enough to illustrate the idea.
--
Sent from: http://forum.openscad.org/
The pseudocode for your example is missing from your post.
However, the idea sounds almost identical to Piotr's Oct 15 post, "Wish:
named transformable points".
In your version, an "attachment node" has an orientation, which is missing
from Piotr's proposal.
You should read the "Named transformable points" thread, because Nophead
explains how to write attachable modules in OpenSCAD, without the need for
language extensions.
http://forum.openscad.org/Wish-named-transformable-points-td22375.html
On 8 November 2017 at 06:17, Troberg troberg.anders@gmail.com wrote:
This will be a familiar concept to everyone who has played Kerbal Space
Program.
The idea is to have an object type that is "attachment node", which has a
name, a position and an orientation. This could then be used to connect to
an attachment node on another object.
So, for example (pseudo-ish code...):
That would make a thispart and a thatpart, and place thatpart so that
thisconnector lines up with thatconnector.
It's not an everyday thing, but once you have complex constructions with
many parts, especially if they are moving, it could help a lot. I'm
currently doing a construction where things swing around, and getting all
the trigonometry right in multiple steps of swinging does not make for neat
code.
Another example would be, say, a hinge with screw holes. Each screw hole
would be an attachment node, and each screw would have an attachment node.
That way, when you use the hinge (which might reside in an included file),
you don't need to know exaclty where the screw holes are, you just need the
name of the attachment nodes.
Another example is that you often stack parts in some way. This would make
for less
translate([-widthbase/2-widthedge-widthfeet,0,heightbase+heightpart1+
heightpart2+heightpart3]),
as it would allow using previous parts as a position reference.
I realize that the syntax, as written in the example, wouldn't work with
multiple nodes, but I think it's enough to illustrate the idea.
--
Sent from: http://forum.openscad.org/
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
I'll check that.
Don't know what happened to the code. I included it with the raw text tag.
If the other thread isn't what I was looking for, I'll rewrite the code.
--
Sent from: http://forum.openscad.org/
This seems to be a common request but it isn't needed the way I use
OpenSCAD.
That way, when you use the hinge (which might reside in an included file),
you don't need to know exaclty where the screw holes are, you just need the
name of the attachment nodes.

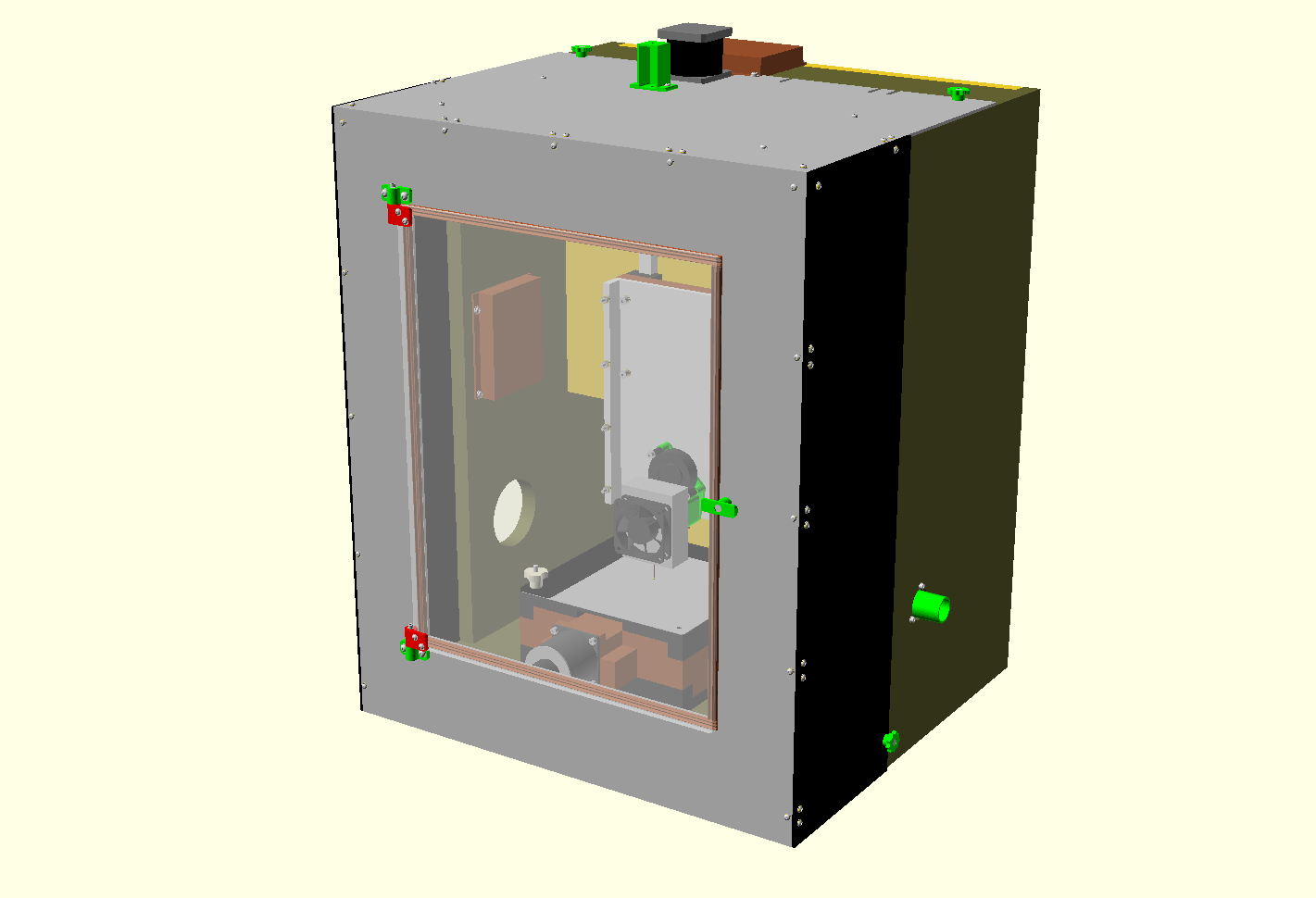

I do exactly what you want using modules. Here is a hanged door where the
hinge code lives in another file.
module door() {
render_sheet(PMMA6) difference() {
sheet(PMMA6, door_width, door_height, 3);
for(z =[-1, 1])
translate([-door_width / 2, z * door_height / 2])
door_hinge_hole_positions(z)
drill(screw_pilot_hole(door_hinge_screw()));
}
}
module door_assembly() {
for(z =[-1, 1])
translate([-door_width / 2, -depth / 2 - sheet_thickness(DiBond),
door_z + z * door_height / 2])
door_hinge_assembly(z > 0, sheet_thickness(DiBond));
translate([0, -depth / 2 - sheet_thickness(DiBond) +
door_hinge_pin_y(), door_z])
rotate([90, 0, 0])
door();
}
door_hinge_hole_positions(z) is a module that positions its children at the
hinge hole positions. It looks like this
module door_hinge_hole_positions(dir = 0) {
hole_pitch = width - 10;
for(side = [-1, 1])
translate([width / 2 + side * hole_pitch / 2, -dir * width / 2
-side * hole_pitch / 2])
children();
}
It is defined in the hinge file and used to drill the holes in the printed
plastic hinges and place the screws. It is used in the file that makes the
door to drill the holes in the Acrylic part. There is no need for named
connection points. I just use a module to represent them.
So it meets your objective by allowing the screw positions to be
represented with a name and referenced from another module.
All my connectivity between parts is handled like this.
On 8 November 2017 at 15:35, Troberg troberg.anders@gmail.com wrote:
I'll check that.
Don't know what happened to the code. I included it with the raw text tag.
If the other thread isn't what I was looking for, I'll rewrite the code.
--
Sent from: http://forum.openscad.org/
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
raw doesn't make it to the mailing-list. 'integration' issues...
I must get around to removing it from the drop-down...
Nophead, re the door etc, do you use OpenSCAD output to do your drilling
with a eg CNC?
Admin - PM me if you need anything, or if I've done something stupid...
Unless specifically shown otherwise above, my contribution is in the Public Domain; to the extent possible under law, I have waived all copyright and related or neighbouring rights to this work. Obviously inclusion of works of previous authors is not included in the above.
The TPP is no simple “trade agreement.” Fight it! http://www.ourfairdeal.org/ time is running out!
Sent from: http://forum.openscad.org/
MichaelAtOz wrote
raw doesn't make it to the mailing-list. 'integration' issues...
I must get around to removing it from the drop-down...
http://forum.openscad.org/file/t359/nabble_raw.png
Interim 'fix'
Admin - PM me if you need anything, or if I've done something stupid...
Unless specifically shown otherwise above, my contribution is in the Public Domain; to the extent possible under law, I have waived all copyright and related or neighbouring rights to this work. Obviously inclusion of works of previous authors is not included in the above.
The TPP is no simple “trade agreement.” Fight it! http://www.ourfairdeal.org/ time is running out!
Sent from: http://forum.openscad.org/
Yes I project the door to 2D and export it as a DXF and can use my CNC
router to drill the holes. If I ever receive the Glowforge I ordered two
years ago I will be able to laser cut them. That actual door was made many
years ago by hand for another machine. I modelled it retrospectively and
transplanted it onto HydraRaptor.
On 9 November 2017 at 05:48, MichaelAtOz oz.at.michael@gmail.com wrote:
MichaelAtOz wrote
raw doesn't make it to the mailing-list. 'integration' issues...
I must get around to removing it from the drop-down...
http://forum.openscad.org/file/t359/nabble_raw.png
Interim 'fix'
Admin - PM me if you need anything, or if I've done something stupid...
Unless specifically shown otherwise above, my contribution is in the
Public Domain; to the extent possible under law, I have waived all
copyright and related or neighbouring rights to this work. Obviously
inclusion of works of previous authors is not included in the above.
The TPP is no simple “trade agreement.” Fight it!
http://www.ourfairdeal.org/ time is running out!
Sent from: http://forum.openscad.org/
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
take a look at
https://github.com/OskarLinde/scad-utils/blob/master/transformations.scad
https://github.com/OskarLinde/scad-utils/blob/master/linalg.scad
It provides all the operations needed to create matrices that can be used
with multmatrix to do actual object transformations and further mathematical
operations as well.
eg. translation_part(M) returns only translation, but not rotation applied.
(from the top of my head,might not work)
M = translation([10, 10, 0]) rotation(axis = [45, 45, 0])
difference() {
multmatrix(M) cube([5, 5, 5], center = true);
multmatrix(translation_part(M)) cylinder(r = 1, h = 6, center = true)
}
would give a rotated cube, but the hole will always be in Z direction, the
same as
translate(...) difference() {
rotate(..) cube([5, 5, 5], center = true);
cylinder(r = 1, h = 6, center = true)
}
A more advanced example is connecting two coordinate systems. Below the
transformation of some_part is defined by M and the hole will be in the
center of some_part at Z = 5 in the direction of Z.
difference() {
multmatrix(M) some_part();
T = translation_part(M);
translate(T[0], T[1], 5]) cylinder(r = 1, h = 6)
}
In other words, it gives you all possible degrees of freedom when connecting
two coordinate systems.
--
Sent from: http://forum.openscad.org/
