Quite a long code.
Can you paste a picture of what you are trying to draw.
Regards
Sanjeev
On Sat, 7 May 2022, 16:31 Jan Öhman via Discuss, discuss@lists.openscad.org
wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
Thank you!
Begins to understand how it works. (It was not easy...)
but my solution was not good ...
Here are 2 files that do not work to render (F6)
= = product 1= = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
= =
include <BOSL2/std.scad>
fn = 150;
placering="left";
// placering="right"
box(0, 0, 0, placering, "#C0C0C0", fn); // (X, Y, Z, left/right, colorName)
// Monteringsplattan
// mountingPlate(0, 0, 0, placering);
// LED belysning
// LEDlampa(0, 0, 0, placering);
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
// - - - - m o d u l e r - - - - - - - - - - - - - - - - - -
---================
//====== box
---===
module box(posX=0, posY=0, posZ=0, mountSide="left", colorName="#00FF00",
fn=24)
{
side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case
worked
color(colorName)
translate([posX, posY, posZ])
mirror([side, 0, 0])
difference()
{
union()
{
// Skapa konturer på bottenplattan - x, y, r, angles, [grader], början
// Rotation medurs - vänster lamphållare (bakant saknas)
points1 = circSect( 140, 0, 0, [0, 0], "right", 1, fn); // böj nere
till höger
points2 = circSect( 60, 5, 5, [0, 5], "bottom", 1, fn); //
brytpunkt längst ned
points3 = circSect( 10, 13, 10, [0, 90], "bottom", 1, fn); // böj nere
till vänster
points4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // böj uppe
till vänster
points5 = circSect( 140, 80, 5, [0, 1], "top", 1, fn); // böj uppe
till höger
edge = concat(points1, points2, points3, points4, points5);
path = path3d(reverse(edge));
section = wall();
path_sweep( section, path, closed=false);
// Skapa bakkant lite högre och smalare i topp
bottom1 = concat(points5, points1);
polygon(bottom1);
path1 = path3d(reverse(bottom1));
section1 = wall1(); // lite högre bakvägg wall(b=4, f=8, h=15, t=3.5)
path_sweep( section1, path1, closed=false);
// fyll upp bottenplattansbaksida
linear_extrude(4) // Bottomplate - fill up
polygon(concat(points1, points2, points3, points4, points5));
// skapa Utskjutande del under (tänk spegelvänt)
pt1 = circSect( 19.5, 85, 0, [0, 50], "top", 1, fn); // Uppe till
höger - moturs
pt2 = circSect( 39, 1.35, .1, [-5, 90], "right", 1, fn); // Nere till
höger
pt3 = circSect( 10, 13.05, 10, [0, 90], "bottom", 1, fn); // Nere
till vänster
pt4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // Uppe till
vänster
translate([0, 0, -2])
linear_extrude(2.1)
polygon(concat(pt1, pt2, pt3, pt4));
// utgången för kabeln på baksidan (diam 10mm) - pekar lite nedåt
cableExit(65, 35, 0, 15, "cyan", $fn=100);
}
// skapa ett borrhål i bakkant
translate([132,60,15])
{ rotate([0, 90, 0])
{ cylinder(h=10, d=2, $fn=100);
cylinder(h=4, d=9, $fn=100);
}
}
// skapa en borrmarkering i bakkant
translate([139,25,15])
{ rotate([0, 90, 0])
cylinder(h=2, d1=1, d2=2.5, $fn=100);
}
// ingravera årtalet på baksidan
translate([10, 80, -0.5])
{ mirror([side, 0, 0])
{ rotate([0, 180, 0])
{ linear_extrude(3)
text("2022", size=12, direction="ttb", font="Comic Sans
MS:style=Bold");
}
}
}
/*
// Markera skruvhål på bakkant
borr=3;
bredd=140;
hojd=8;
avstNed=20;
translate([bredd, avstNed, hojd])
{ rotate([0,90,0])
cylinder(h=2, d1=0.5, d2=borr, center=true, $fn=50);
}
*/
// borrhål
mountingHole(20, 36, 0, 7, 90.1, 15); // posX, posY, posZ, diam, dist,
deep, $fn=50
}
}
//======== Slut box
---=============================
---================
//====== cableExit
---==============================
module cableExit(posX, posY, posZ, angle, colorName)
{ diamHole = 7;
diamHolder = 9.8;
hight = 12;
topRad = diamHolder/2;
topDiam = diamHolder/2-topRad/2;
bowRad = 7;
offs1 = 0.1;
color(colorName)
translate([posX, posY, posZ])
{ rotate([180, 0, 180-angle])
{ difference()
{ hull()
{ cylinder(h=hight, d=diamHolder, center=false);
translate([0, 0, hight]) // rundad topp
rotate_extrude(angle=360, convexity=2)
translate([topDiam, 0, 0]) // yttre diam topp
circle(d=topRad); // radie topp
}
inpHight = 2; // ett värde som styr var utgångshålet hamnar
translate([0, 0, -offs1])
cylinder(h=inpHight+offs1, d=diamHole, center=false); //
Bottenhål
translate([-bowRad, 0, inpHight-offs1]) // böjen
{ rotate([90, 0, 0])
rotate_extrude(angle=90, convexity=10)
translate([bowRad, 0, 0]) // ställ in radien på kabelböjen
circle(d=diamHole);
}
}
}
}
}
//====== slut cableExit
---=========================
---================
//====== mountingHole
---===========================
module mountingHole(posX=0, posY=0, posZ=0, diam=7, dist=90, deep=5,
$fn=50)
{ // diam = 6; // [mm]
// dist = 90; // [mm]
// deep = 12; // [mm]
translate([posX, posY, posZ])
{ translate([0, 0, -10])
cylinder(h=deep, d=diam); // fästhål 1
//cableHold1(dist/2, 0, .2, "#D5D5D5"); // Kabelgenomföring
translate([dist/2, 0, 0])
{ hull()
{ cylinder(h=5, d=6); // fästhål 1
sphere(d=7.5);
}
}
translate([dist, 0, -10])
cylinder(h=deep, d=diam); // fästhål 2
}
}
//====== slut mountingHole
---======================
---================
//====== LEDlampa
---===============================
// module LEDlampa(posX=8, posY=10, posZ=0)
module LEDlampa(posX=0, posY=0, posZ=0, mountSide="left")
{ side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case
worked
xpos = mountSide == "left" ? 121
: mountSide == "right" ? -10
: assert(false,"invalid moutSide value"); // message if no case
worked
/*
ypos = mountSide == "left" ? 10.5
: mountSide == "right" ? 10.5
: assert(false,"invalid moutSide value"); // message if no case
worked
zpos = mountSide == "left" ? 5
: mountSide == "right" ? 5
: assert(false,"invalid moutSide value"); // message if no case
worked
*/
// echo(xpos,ypos,zpos);
// translate([xpos, ypos, zpos])
translate([xpos, 10.5, 5])
mirror([1, 0, 0])
translate([posX, posY, posZ])
{ LEDbottom();
translate([0, 0, 11])
LEDglas();
}
}
//====== Slut LEDlampa
---==========================
---================
//====== LEDglas
---================================
module LEDglas()
{
// Variabler botten
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mm
cornRad = 10; // Radien i alla hörn
wideCorn = 48; // Bredd i kanterna
diamHole = 6; // håldiameter i mm
colorBot = "gray";
colorTop = "orange";
// Variabler top
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mm
p1tx = 10; // the start value
p1ty = 49.25;
p2tx = 55.5; // the middle value
p2ty = 50.5;
p3tx = 101; // the end value
p3ty = p1ty;
p4tx = 101; // the start value
p4ty = 1.25;
p5tx = 55.5; // the middle value
p5ty = 0.0;
p6tx = 10; // the end value
p6ty = p4ty;
// Ger ovalt glas
points1 = 3points_arc([p1tx,p1ty], [p2tx,p2ty], [p3tx,p3ty], fn=100);
points2 = 3points_arc([p4tx,p4ty], [p5tx,p5ty], [p6tx,p6ty], fn=100);
color("orange")
linear_extrude(height=cornHigh+.1)
difference()
{ polygon(concat(points1, points2));
translate([length-10 , wideMid / 2, -.2])
circle(d=6);
translate([10 , wideMid / 2, -.2])
circle(d=6);
}
// Top
color(colorTop)
difference()
{ hull()
{ // hörn1
translate([cornRad, wideMid - ((wideMid-wideCorn)/2) - cornRad, 0])
// [10,39]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn2
translate([cornRad, cornRad + ((wideMid-wideCorn)/2), 0])
// [10,12]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn3
translate([length - cornRad, wideMid - ((wideMid-wideCorn)/2) -
cornRad, 0]) // [101 ,39]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn4
translate([length - cornRad, cornRad + ((wideMid-wideCorn)/2), 0])
//
cylinder(h=cornHigh, d=cornRad2, center=false);
}
union()
{ // Monteringshål 1 & 2
translate([length-10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=highTop+.5, center=false);
translate([10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=highTop+.5, center=false);
}
}
}
//======== Slut LEDglas
---=========================
---================
//====== LEDbottom
---==============================
module LEDbottom()
{ p1x = 10; // the start value
p1y = 49.25;
p2x = 55.5; // the middle value
p2y = 50.5;
p3x = 101; // the end value
p3y = p1y;
p4x = 101; // the start value
p4y = 1.25;
p5x = 55.5; // the middle value
p5y = 0.0;
p6x = 10; // the end value
p6y = p4y;
// Variabler botten för borrhålen
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mm
diamHole = 6; // håldiameter i mm
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mm
// offs1 = 0.1;
heightHole = 15; //mm
height = 11; //mm
points1 = circSect( 10, 11.25, 10, [0, 90], "bottom", 1, fn); // Hörn
nere till vänster
points2 = circSect( 10, 39.25, 10, [0, 90], "left", 1, fn); // Hörn
uppe till vänster
points3 = 3points_arc([p1x,p1y], [p2x,p2y], [p3x,p3y], fn);
points4 = circSect( 101, 39.25, 10, [0, 90], "top", 1, fn); // Hörn
uppe till höger
points5 = circSect( 101, 11.25, 10, [0, 90], "right", 1, fn); // Hörn
nere till höger
points6 = 3points_arc([p4x,p4y], [p5x,p5y], [p6x,p6y], fn);
// The base plate for the LED lamp
difference()
{ color("gray", 0.5)
linear_extrude(height=height)
polygon(concat(points1, points2, points3, points4, points5,
points6));
// union()
{ // Monteringshål 1 & 2
translate([length-10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
translate([10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
}
}
}
//======== Slut LEDbottom
---=======================
---================
//====== circleSect
---=============================
// Create rounded corners 2D
// https://openhome.cc/eGossip/OpenSCAD/SectorArc.html
// ange .: x, y, radien,
// [från, till] vinkel,
// var vinkeln startar, (left, bottom, right, top)
// vilken rotation (-1=medsol, 1=motsols)
function circSect(x=0, y=0, radius=10, angles=[0,270], startRef="bottom",
rotate=1, fn=24) =
let(
startAngel = (startRef == "left") ? 0
: (startRef == "bottom") ? 90
: (startRef == "right") ? 180
: (startRef == "top") ? 270
: startRef, // valfri vinkel
// : assert(false,"invalid moutSide value"); // Error
message if no case worked
//: undef,
r = radius,
//r = radius / cos(180 / fn),
step = 360 / fn,
// points = [[x, y],
points = [
for(a = [angles[0]-startAngel : step : angles[1]-startAngel])
[-rotate * r * cos(a)+x, r * sin(a)+y]]
) points;
//======== Slut circleSect
---======================
---================
//====== 3points_arc
---============================
// Create an arc with three points 2D
function 3points_arc(p0, p1, p2, fn=10) =
// an alternative expression for D
// D = 2 * ( (p1-p0).x * (p2-p0).y - (p1-p0).y * (p2-p0).x )
let( D = 2 * cross(p1-p0, (p2-p0)) )
assert( abs(D)>1e-9, "The 3 points should not be collinear." )
let(
Ux = ( (p2-p0).y*(p1-p0)(p1-p0) - (p1-p0).y(p2-p0)(p2-p0) )/D,
Uy = ( (p1-p0).x(p2-p0)(p2-p0) - (p2-p0).x(p1-p0)(p1-p0) )/D,
radius = norm([Ux,Uy]),
center = [Ux,Uy] + p0,
ang0 = atan2( (p0-center).y, (p0-center).x ),
ang2 = atan2( (p2-center).y, (p2-center).x ),
// the points are in a cw winding iff D<0
// the angular difference between vectors p2-center and p0-center
// measured from p0-center; dang is positive iff D is negative
dang = D<0 ? ang2<ang0 ? ang2-ang0 : ang2-ang0-360
: ang2>ang0 ? ang2-ang0 : ang2-ang0+360
)
[ for(i=[0:fn-1])
let( ang = ang0 + idang/(fn-1) )
center + radius*[cos(ang),sin(ang)] ];
//======== Slut 3points_arc
---=====================
---================
//====== Wall som ett "L"
---=======================
// Normal vägghöjd
function wall() =
let(
b = 4, // botten - tjocklek
f = 8, // Foten
h = 15, // Höjd
t = 3.5, // Top
x = (b+(t/2) - (h - ( (-h / (f-t)) *t) )) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ])
)
union([points, top, sqr, diff]);
//======== Slut Wall
---============================
---================
//====== Wall1 som ett "L"
---======================
// En högre vägg
function wall1() =
let(
b = 4, // botten - tjocklek
f = 7, // Foten
h = 25, // Höjd
t = 3, // Top
x = (b+(t/2) - (h - ((-h / (f-t)) *t))) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ])
)
union([points, top, sqr, diff]);
//======== Slut Wall1
---===========================
---================
//====== Plåt på släp
---===========================
module mountingPlate(posX=0, posY=0, posZ=0, mountSide="left",
colorName="#C0C0C0", $fn=50)
{ // Hörnpositionerna
posX1 = 120;
posY1 = 0;
posX2 = posX1;
posY2 = -200;
posX3 = 120 - 75;
posY3 = -200;
posX4 = 0;
posY4 = 0;
thick=2; // tjocklek
side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case
worked
xpos = mountSide == "left" ? 20
: mountSide == "right" ? -20
: assert(false,"invalid moutSide value"); // message if no case
worked
/*
ypos = mountSide == "left" ? 85
: mountSide == "right" ? 85
: assert(false,"invalid moutSide value"); // message if no case
worked
zpos = mountSide == "left" ? -thick
: mountSide == "right" ? -thick
: assert(false,"invalid moutSide value"); // message if no case
worked
*/
color(colorName)
{ translate([posX, posY, posZ])
translate([xpos, 85, -thick])
{ mirror([side, 0, 0])
{ linear_extrude(thick)
hull()
{ translate([posX1, posY1, 0])
square(0.1, center = true);
translate([posX2, posY2, 0])
square(0.1, center = true);
translate([posX3, posY3, 0])
square(0.1, center = true);
translate([posX4, posY4, 0])
square(0.1, center = true);
}
}
}
}
}
= = END product 1= = = = = = = = = = = = = = = = = = = = = = = = = = = =
= =
= = product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
= =
$fn=100;
//$fn=15;
//switch();
//cableHolder4(); //Switchboxen
// cableHolder3(0, 0, 0, 33.5, 23.5, 1.5, 2);
// showCables();
module cableHolder4(fn=24);
{ // idé från
// - https://www.thingiverse.com/thing:6400/files
// -
https://ihrchive.wordpress.com/2011/02/14/openscad-tip-round-1-of-3-basic-rounding/
// mått på Switch
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
spaceHold = 10.0; // utrymmet bakom switch
holdRadie = 2; // radie i hörnen
thick = 2;
offset1=0.5; // öka toleransen
// innermått
holeW = widthHold + offset1;
holeH = heightHold + offset1;
holeD = depthHold + spaceHold+offset1;
// yttermått
pad = 0.1; // Padding to maintain manifold
box_l = holeW + thick*2; // Bredden på switchen
box_w = holeD + thick; // Djupet på switchen
box_h = holeH + thick; // Height
round_r = holdRadie; // Radius of round
smooth = 45; // Number of facets of rounding cylinder
difference()
{ union() // Detta utförs i två steg.
{ difference() // utför fasningar och kabelmarkeringar
{ mainBox(box_l, box_w, box_h, spaceHold+thick, round_r, thick,
smooth, pad);
// fasning vänster (underkant)
translate([box_l/2-0.85, spaceHold-4.3, thick-offset1]) //
sidled, fram/bak , upp/ned
rotate([0,180,45])
cylinder(h=thick, d1=holeW1.414-thick-thick, d2=holeW1.414,
$fn=4);
// fasning höger (underkant)
translate([box_l/2-3.65, spaceHold-4.3, thick-offset1]) // sidled,
fram/bak , upp/ned
rotate([0,180,45])
cylinder(h=thick, d1=holeW1.414-thick-thick, d2=holeW1.414,
$fn=4);
// kabelgenomföringar
rotate([90, 180, 90]) // Markering ena sidan (vänster under)
ovalCableHole(spaceHold/2-offset1, -1.75, -1.2);
rotate([90, 180, 180]) // Markering bakkant (vänster under)
ovalCableHole(spaceHold/2-1.55, -1.75, -spaceHold-0.85);
rotate([90, 180, 180]) // Markering bakkant (höger under)
ovalCableHole(widthHold-spaceHold/2-offset1, -1.75,
-spaceHold-0.85);
rotate([90, -180, 90]) // Markering ena sidan (höger under)
ovalCableHole(3.75, -1.75, widthHold-0.1);
}
} // Slut union - kropp
translate([-offset1/2, -spaceHold+pad, -pad]) // hålet där switchen
ska placeras
cube([holeW, holeD+pad, holeH+pad], center=false);
translate([4, 12, 0])
cylinder(h=15,d=3.2);
translate([4, 12, 17.7])
sphere(r=6);
translate([29.6, 12, 0])
cylinder(h=15,d=3.2);
translate([29.6, 12, 17.7])
sphere(r=6);
/* // Hål genom lock bak - om så önskas
translate([box_l/2-thick, -6, offset1/2])
cylinder(h=box_h+thick*4+offset1, d=3.2, $fn=100); // hål genom
lock bak
translate([box_l/2-thick, -6, 17.7])
sphere(r=6); // kona hålet bak
*/
} // Slut difference() - box
difference()
{ union()
{ translate([29.6, 12, heightHold-offset1*2])
cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv1
translate([4, 12, heightHold-offset1*2])
cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv2
translate([holeW/2, -spaceHold+thick+1, holeH/2])
rotate([180,0,0])
backHole();
} // union - slut
translate([4, 12, 0]) // Hålen i stödhylsorna
cylinder(h=15,d=3.2);
translate([29.6, 12, 0]) // Hålen i stödhylsorna
cylinder(h=15,d=3.2);
translate([box_l/2-thick, -6, -offset1]) // hål i stödhylsa bak
cylinder(h=box_h+offset1, d=3.2, $fn=100);
// Sänk stödhylsan
translate([ widthHold/2-7, -spaceHold-offset1, -thick+offset1]) //
hål i stödhylsa bak
cube([15, 8, 3]);
// kabelmarkering
// translate([0, 0, 0]) // hål i stödhylsa bak
}
/*
translate([4, 12, 0])
#cylinder(h=15,d=3.2);
//translate([4, 13.5, 17.3])
//#sphere(r=6);
translate([29.6, 12, 0])
#cylinder(h=15,d=3.2);
//translate([29.6, 13.5, 17.3])
//#sphere(r=6);
*/
}
module backHole()
{ wallH = 10.5;
wide1 = 12; // endast runt cylindern
wide2 = 35; // hela väggen
deep1 = 4;
height1 = 10.5;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;
//rundadFot();
// Rundad stäcka mellan t.ex. vägg och tak -bakkant
translate([wide2/2, diam1/2-cornRad1/2, -height1/2])
{ rotate([90, 0, -90])
{ linear_extrude(wide2)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka1 (vänster) mellan t.ex. vägg och tak
translate([-wide2/2+0.15, deep1/2+cornRad1/2, -height1/2])
rotate([90, 0, 0])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
// rundad stäcka2 mellan t.ex. vägg och tak
translate([wide2/2-0.65, deep1/2+cornRad1/2, -height1/2])
rotate([0, -90, 90])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
// Skapa stödfot - bak
difference()
{ union()
{ //själva cylindern
translate([0, 1, 0])
{ cylinder(h=height1, d=diam1, center=true);
translate([0, diam1/2, 0])
cube([diam1,diam1-1,height1], center=true);
}
// Rundad fot under cylinder ovan
translate([0, 1, -height1/2])
{ rotate_extrude()
{ translate([diam1/2, 0, 0])
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad rakstäcka1 - cylinderfot - mellan t.ex. vägg och tak
translate([diam1/2, diam1, -height1/2])
{ rotate([90, 0, 0])
{ linear_extrude(diam1)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad rakstäcka2 - cylinderfot - mellan t.ex. vägg och tak
translate([-diam1/2, diam1, -height1/2])
{ rotate([0, -90, 90])
{ linear_extrude(diam1)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
//väggen bakom cylindern som ska rundas
translate([0, diam1/2-cornRad1, 0])
cube([wide1, cornRad1, height1], center=true);
}
// Avrunda hörn1 bak
translate([-wide1/2, cornRad1/2, cornRad1])
{ hull()
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
{ translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
}
}
// Avrunda hörn2 bak
translate([wide1/2, cornRad1/2, cornRad1])
{ hull()
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
{ translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
}
}
// Plocka bort rundad fot bak samt det som sticker ut
translate([-wide1/2, diam1/2-cornRad1/2, -height1/2-opt1])
cube([wide1, diam1/2+cornRad1, height1+opt1*2], center=false);
}
}
module ovalCableHole(posX, posY, posZ)
{ // Hål 5.5 x 3.5 mm
pan = 0.1;
cableHi = 1.5;
translate([posX, posY, posZ])
{ color("white")
{ translate([0, 0, -pan])
{ cylinder(h=cableHi, d=3.5);
//#translate([0, 0, 0]) cylinder(h=10, d=1);
//translate([0, 0, -1]) cylinder(h=1, d1=0, d2=1);
//translate([0, 0, 0]) sphere(d=1); // Inre kulan
//translate([0, 0, 1.5]) sphere(d=1); // Inre kulan
translate([0, 0, -1]) sphere(d=0.8); // yttre kulan
translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan
}
translate([2, 0, -pan])
{ cylinder(h=cableHi, d=3.5);
// #translate([0, 0, -cableHi*2]) cylinder(h=10, d=0.5);
//translate([0, 0, 0]) sphere(d=1); // Inre kulan
//translate([0, 0, 1.5]) sphere(d=1); // Inre kulan
translate([0, 0, -1]) sphere(d=0.8); // yttre kulan
translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan
}
translate([-3.5/2, 0, -pan])
cube([5.5, 3.5/2, cableHi]);
translate([-0.25, -1.74, -pan])
cube([2.5, 1.75, cableHi]);
}
}
}
module rundadFot()
{
// specifika värden för skruvdistansen bak
wallH = 10.5;
wide1 = 12; // endast runt cylindern
wide2 = 34; // hela väggen
deep1 = 4;
height1 = 10;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;
color("magenta")
{ translate([0, 0, wallH])
{ difference()
{ union()
{ // Bakgavel
translate([wide2/2, opt1, height1/2])
{ rotate([90, 180, 0])
cube([wide2, height1, opt1]);
}
// Golv
translate([wide2/2, -height1+opt1, -height1/2])
rotate([0, 180, 0])
cube([wide2, height1, opt1]);
//väggen bakom cylindern som kan rundas
translate([0, -cornRad1/2, 0])
cube([wide1, cornRad1, height1], center=true);
//själva cylindern
translate([0, -cornRad1/2, 0])
cylinder(h=height1, d=diam1, center=true);
// Rundad fot under cylinder ovan
translate([0, -cornRad1/2, -height1/2])
{ rotate_extrude()
{ translate([diam1/2, 0, 0])
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad stäcka mellan t.ex. vägg och tak -bakkant
translate([wide2/2, 0, -height1/2])
{ rotate([90, 0, -90])
{ linear_extrude(wide2)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka mellan t.ex. vägg och tak -sida1
translate([-wide2/2, 0, -height1/2])
{ rotate([90, 0, 0])
{ linear_extrude(10)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka mellan t.ex. vägg och tak -sida2
translate([wide2/2, -10, -height1/2])
{ rotate([90, 0, 180])
{ linear_extrude(10)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
} // Avsluta union = = = = = = = = = = = = = = = = = = = =
// Avrunda hörn1 bak
translate([-wide1/2+opt1*1.3, -deep1/2, cornRad1])
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
// Avrunda hörn2 bak
translate([wide1/2-opt1*1.3, -deep1/2, cornRad1])
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
// Plocka bort rundad fot bak samt det som sticker ut
translate([-wide1/2, 0, -height1/2-opt1])
cube([wide1, diam1/2+cornRad1, height1+opt1*2], center=false);
}
}
}
}
module mainBox(box_l, box_w, box_h, spaceHold, round_r, thick, smooth, pad)
{ translate([box_l/2-thick-offset1/2, box_w/2-spaceHold, box_h/2])
{
// To fix the corners cut the main cube with smaller cubes with
spheres removed
difference()
{ cube([box_l, box_w, box_h], center = true);
// Kant1 - liggande
translate([0, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([0,-round_r-pad,round_r+pad])
cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 - liggande
translate([0, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([0,round_r+pad,round_r+pad])
cube([box_l+2pad, round_r2+pad, round_r2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// Kant3 - liggande
translate([0, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([0,-round_r-pad,-round_r-pad])
cube([box_l+2pad, round_r2+pad, round_r2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 - liggande
translate([0, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([0,round_r+pad,-round_r-pad])
cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// ----
// Kant1 - stående
translate([-box_l/2+round_r, box_w/2-round_r, 0])
{ difference()
{ translate([-round_r-pad,round_r+pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 - stående
translate([box_l/2-round_r, box_w/2-round_r, 0])
{ difference()
{ translate([round_r+pad,round_r+pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant3 - stående
translate([-box_l/2+round_r, -box_w/2+round_r, 0])
{ difference()
{ translate([-round_r-pad,-round_r-pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 - stående
translate([box_l/2-round_r, -box_w/2+round_r, 0])
{ difference()
{ translate([round_r+pad,-round_r-pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// ----
// Kant1 liggande (andra hållet)
translate([-box_l/2+round_r, 0, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, 0, round_r+pad])
cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 liggande (andra hållet)
translate([box_l/2-round_r, 0, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, 0, round_r+pad])
cube([round_r2+pad, box_w+2pad, round_r2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// Kant3 liggande (andra hållet)
translate([-box_l/2+round_r, 0, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, 0, -round_r-pad])
cube([round_r2+pad, box_w+2pad, round_r2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 liggande (andra hållet)
translate([box_l/2-round_r, 0, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, 0, -round_r-pad])
cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// ----
// Hörn1 (övre)
translate([box_l/2-round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (övre)
translate([-box_l/2+round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (övre)
translate([box_l/2-round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (övre)
translate([-box_l/2+round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
/*
// Hörn1 (undre)
translate([box_l/2-round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (undre)
translate([-box_l/2+round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (undre)
translate([box_l/2-round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (undre)
translate([-box_l/2+round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
*/
}
}
}
//
module cableHolder3(posX, posY, posZ, length, width, height, radius)
{ // Skapa toppen över switchen
// mått på Switchen
fn = 96; // upplösning (endast bågen?)
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
holdRadie = 1.5; // radie i hörnen
thick = 1.5; // tjocklek
translate([0,-thick,0])
{
difference(0, 0, 0)
{ hull()
{ difference()
{ translate([thick, 0, heightHold]) // vänster kant
{ rotate([-90, 0, 0])
{ cylinder(h=depthHold, d=thick2);
translate([0, 0, depthHold])
sphere(d=thick2); // längst fram
}
}
translate([0, -0.1, heightHold]) // plocka bort underdelen
rotate([-90, 0, 0])
cube([thick*2, thick+.1, depthHold+thick+.1]);
}
difference()
{ translate([widthHold-thick, 0, heightHold]) // höger kant
{ rotate([-90, 0, 0])
{ cylinder(h=depthHold, d=thick*2);
translate([0, 0, depthHold])
sphere(d=thick*2); // längst fram
}
}
translate([widthHold-thick*2, -0.1, heightHold]) // plocka bort
underdelen
{ rotate([-90, 0, 0])
cube([thick*2, thick+.1, depthHold+thick+.1]);
}
}
}
// öppna hålen för monteringsskruvarna uppe på plattan
translate([4, 13.5, 0])
cylinder(h=15,d=3.2);
translate([4, 13.5, 17.3])
sphere(r=6);
translate([29.6, 13.5, 0])
cylinder(h=15,d=3.2);
translate([29.6, 13.5, 17.3])
sphere(r=6);
}
// halvbåge 1 bak
translate([thick, 0, heightHold/2+thick/2])
rotate([0, 90, 180])
rotate_extrude(angle = 180, convexity=20, $fn=64)
translate([heightHold/2-thick/2, 0, 0])
circle(d=thick*2);
translate([thick, 0, heightHold])
sphere(d=thick*2); // övre kulan
translate([thick, 0, thick])
sphere(d=thick*2); // undre kulan
// halvbåge 2 bak
translate([widthHold-thick, 0, heightHold/2+thick/2])
rotate([0, 90, 180])
rotate_extrude(angle = 180, convexity=20, $fn=64)
translate([heightHold/2-thick/2, 0, 0])
circle(d=thick*2);
translate([widthHold-thick, 0, heightHold])
sphere(d=thick*2); // övre kulan
translate([widthHold-thick, 0, thick])
sphere(d=thick*2); // undre kulan
// en cylinder tvärsöver längst upp
translate([thick, 0, heightHold])
{ rotate([0,90,0])
cylinder(h=widthHold-thick*2, r=thick);
}
}
// Halvbågen (kabelhållaren) på baksidan switchen
translate([widthHold-thick, -thick, heightHold/2+thick/2])
{ rotate([0,90,180])
linear_extrude(widthHold-thick2)
arc(heightHold/2-thick/2, [0, 180], thick, fn); //radius, angles,
width, fn)
}
// en cylinder tvärsöver längst ned
translate([thick, -thick, thick])
{ rotate([0,90,0])
cylinder(h=widthHold-thick2, r=thick);
}
}
module switch(posX=0, posY=0, posZ=0)
{ buttRadie = 1.5;
height = 10.5;
width = 33.5;
depth = 23.5;
h1x = buttRadie;
h1y = buttRadie;
h2x = width-buttRadie;
h2y = buttRadie;
h3x = width-buttRadie;
h3y = depth-buttRadie;
h4x = buttRadie;
h4y = depth-buttRadie;
translate([posX, posY, posZ])
{ difference()
{ color("#F9F9F3")
// tryck-knappen
union()
{ translate([width/2, depth+6-0.1, height/2])
{ rotate([90, 0, 0])
{ translate([0,0,6])
circle(d=6.8); // skuggan runt knapp
cylinder(h=6, d=6);
sphere(d=6);
}
}
hull() // Switchkropp
{ translate([h1x, h1y])
cylinder(h=height, r=1.5);
translate([h2x, h2y])
cylinder(h=height, r=1.5);
translate([h3x, h3y])
cylinder(h=height, r=1.5);
translate([h4x, h4y])
cylinder(h=height, r=1.5);
}
}
// Skruvhålen för switchen
hole( 4, 12, 0, "#FFD700", height);
hole(29.6, 12, 0, "#FFD700", height);
// hole( 4, 12, 0, "#FFD700", 50);
// hole(29.6, 12, 0, "#FFD700", 50);
// hål för kablar bak
color("gray")
{ translate([9.5, 16, height/2])
{ rotate([90, 0, 0])
cylinder(h=16.5, d=4);
}
translate([24.5, 16, height/2])
{ rotate([90, 0, 0])
cylinder(h=16.5, d=4);
}
}
// hål för kabelskruvar
color("white")
{ translate([29.5, 17.1, height/2])
{ rotate([0, 90, 0])
cylinder(h=4.1, d=4.5);
}
translate([-0.1, 17.1, height/2])
{ rotate([0, 90, 0])
cylinder(h=4.1, d=4.5);
}
}
}
// Kabelskruvar
cableScrew(3, 17, height/2, 90);
cableScrew(31, 17, height/2, -90);
}
}
// Skruven som håller fast kabeln i switchen
module cableScrew(posX=0, posY=0, posZ=0, angle=0)
{ color("#FFD700") // mässing
translate([posX, posY, posZ])
{ rotate([0, 0, angle])
{ difference()
{ // skruvskalle
translate([0, 0, 0])
rotate([90, 0, 0])
cylinder(h=2, d1=4, d2=3.5);
// stjärnan i skruven
translate([0, 1.85, -.25])
rotate([0, 0, 0])
cylinder(h=0.5, d=5);
translate([-0.25, -.6, 2.25])
rotate([0, 90, 0])
cube([4.5, 2, 0.5]);
}
}
}
}
// borrhål
module hole(posX=0, posY=0, posZ=0, colorName="yellow", height)
{ diamHole1 = 3;
highHole1 = height;
diamHole2 = 6;
highHole2 = 2.5;
offs=0.1;
color(colorName)
{
translate([posX, posY, posZ])
{ translate([0, 0, 0])
cylinder(h=highHole1, d=diamHole1);
translate([0, 0, -offs])
cylinder(h=highHole2, d=diamHole2);
translate([0, 0, height-highHole2+offs])
cylinder(h=highHole2, d=diamHole2);
}
}
}
module showCables()
{ translate([-25,8,24])
rotate([80,177,90])
cable(10,10,0,"brun");
translate([-43,8,15])
rotate([90,180,90])
cable(10,10,0,"blå");
}
module cable(posX=0, posY=0, posZ=0, colorName="blå", radius=1.26,
width=0.62, thick=50, fn=24)
{ // default 1.5mm2
// radius = inner radie
// width = bredd/tjocklek på cirkeln (inte höjd)
// thick = höjd på cirken/ röret
// pin=
colCupper = "#D7715A";
colGreen = "#07DA63";
colYellow = "#FFCC00";
if (colorName=="gröngul")
{ translate([posX, posY, posZ])
{ color(colGreen)
linear_extrude(thick)
arc(radius, [0, 60], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [60, 180], width, fn);
color(colGreen)
linear_extrude(thick)
arc(radius, [180, 240], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [240, 360], width, fn);
color(colCupper)
linear_extrude(10, center=true, convexity=10, $fn=100)
circle(d=1.24);
}
}
else // vanliga kablar 1.5mm2
{
cableColor = colorName == "blå" ? "#1870D5"
: colorName == "brun" ? "#9C6137"
: colorName == "svart" ? "#000000"
: assert(false,"invalid color value"); // message if no
case worked
// : nodef
translate([posX, posY, posZ])
{ //el kabel - ena änden rak - andra böjd
color(colCupper) //kopparstump tråd rakkabel
linear_extrude(10, center=true, convexity=10, $fn=100)
circle(d=1.24);
color(cableColor)
{ cylinder(h=thick, r=radius);
translate([-radius*2, 0, thick]) // kabelböj
rotate([90, 0, 0])
rotate_extrude(angle=90, convexity=20)
translate([2.5, 0, 0])
circle(r=1.26);
translate([-radius*2, 0, thick+radius*2])
rotate([0, -90, 0])
cylinder(h=5, r=radius);
}
translate([-10, 0, thick+radius*2])
{ rotate([0, -90, 0])
{ color(colCupper)
{ linear_extrude(5, center=true, convexity=10, $fn=100)
circle(d=1.24);
}
}
}
}
}
}
---====
module arc(radius, angles, width = 1, fn = 24) {
difference() {
sector(radius + width, angles, fn); // ytterradie
sector(radius, angles, fn); // innerradie (plockar bort
invändigt
}
}
module sector(radius, angles, fn = 24) {
r = radius / cos(180 / fn);
step = -360 / fn;
points = concat([[0, 0]],
[for(a = [angles[0] : step : angles[1] - 360])
[r * cos(a), r * sin(a)]
],
[[r * cos(angles[1]), r * sin(angles[1])]]
);
difference() {
circle(radius, $fn = fn);
polygon(points);
}
}
= = END product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = = =
= =
Den fredag 6 maj 2022 14:06:55 CEST, Michael Möller <
private2michael@gmail.com> skrev:
OpenSCAD code - is a description of your model in terms of a few
cylinder/cubes added and cut out
difference() {
cylinder(d=5,h=10);
translate([0,10,0]) cube([4,6,2]) ;
}
STL file is a list of triangles which make the same outer shell as your
model. OpenSCAD makes this complicated transform from shapes to triangles.
solid OpenSCAD_Model
facet normal 0.92388 0.382682 0
outer loop
vertex 2.5 0 3
vertex 1.76777 1.76777 0
vertex 1.76777 1.76777 3
endloop
endfacet
facet normal 0.92388 0.382682 0
outer loop
vertex 1.76777 1.76777 0
vertex 2.5 0 3
vertex 2.5 0 0
endloop
endfacet
: (and so on for 300 lines) There is a binary/compressed version, but
the description is still just triangles.
Gcode is what a 3D printer understands - it is the exact list of moves
that the head has to do with how much plastic to squeeze to trace the
outline of your shape, layer, by layer. It will optionally create moves for
filling the inside or support for overhangs. Such a program is called a
SLICER and the printer will come with one.
G92 E0 ; reset extrusion distance
G1 Z2.330 F6600.000 ; lift Z
G1 X-0.000 Y1.505 F6600.000 ; move to first perimeter point
G1 Z0.330 F6600.000 ; restore layer Z
G1 E3.00000 F2400.00000 ; unretract extruder 0
G1 F1500
G1 X-1.064 Y1.064 E3.09259 ; perimeter
G1 X-1.505 Y0.000 E3.18517 ; perimeter
: (many similar lines)
G1 X1.515 Y1.515 E4.65860 ; perimeter
G1 X0.055 Y2.120 E4.78559 ; perimeter
G1 X-0.000 Y2.143 F6600.000 ; move inwards before travel
G1 X0.384 Y0.843 F6600.000 ; move to first infill point
G1 F1500
G1 X0.843 Y0.384 E4.84815 ; infill
G1 X1.097 Y-0.229 E4.91215 ; infill
:
(and so on for thousands of lines)
The 3MF still basically deals in triangles, and attributes (surface,
infill material, picture, ticket info ... ) which probably are not used by
your slicer/printer.
On Fri, 6 May 2022 at 12:37, Jan Öhman via Discuss <
discuss@lists.openscad.org> wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
Hi!
Thought to create some objects in openSCAD, to print later.
I do not have my own 3D printer (yet).
One I talked to, wanted to get the drawings in .STL or .3MF. (I don't know
the difference).
If I had my own printer, have I been able to print directly from openSCAD?
(Without some export?)
In the openSCAD, no errors or problems occur.
but
The drawings I tested to export from openSCAD have given one or another
error message.
One message .:
WARNING: Object may not be a valid 2-manifold and may need repair!
Another message .:
WARNING: No top level geometry to render
What to do?
---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
Jan Öhman wrote it failed in Render/F6, but works in Preview/F5 - in so
many words. I tried and got the following
First model

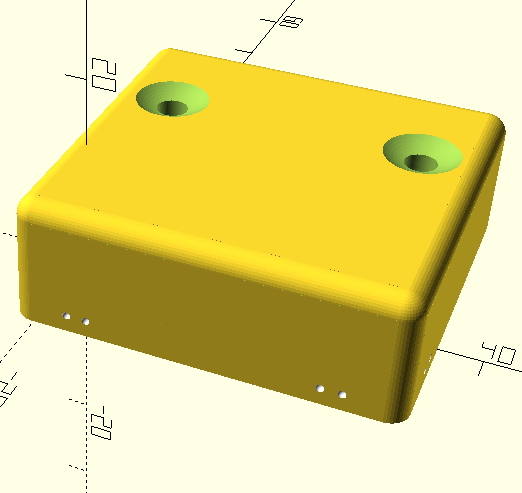

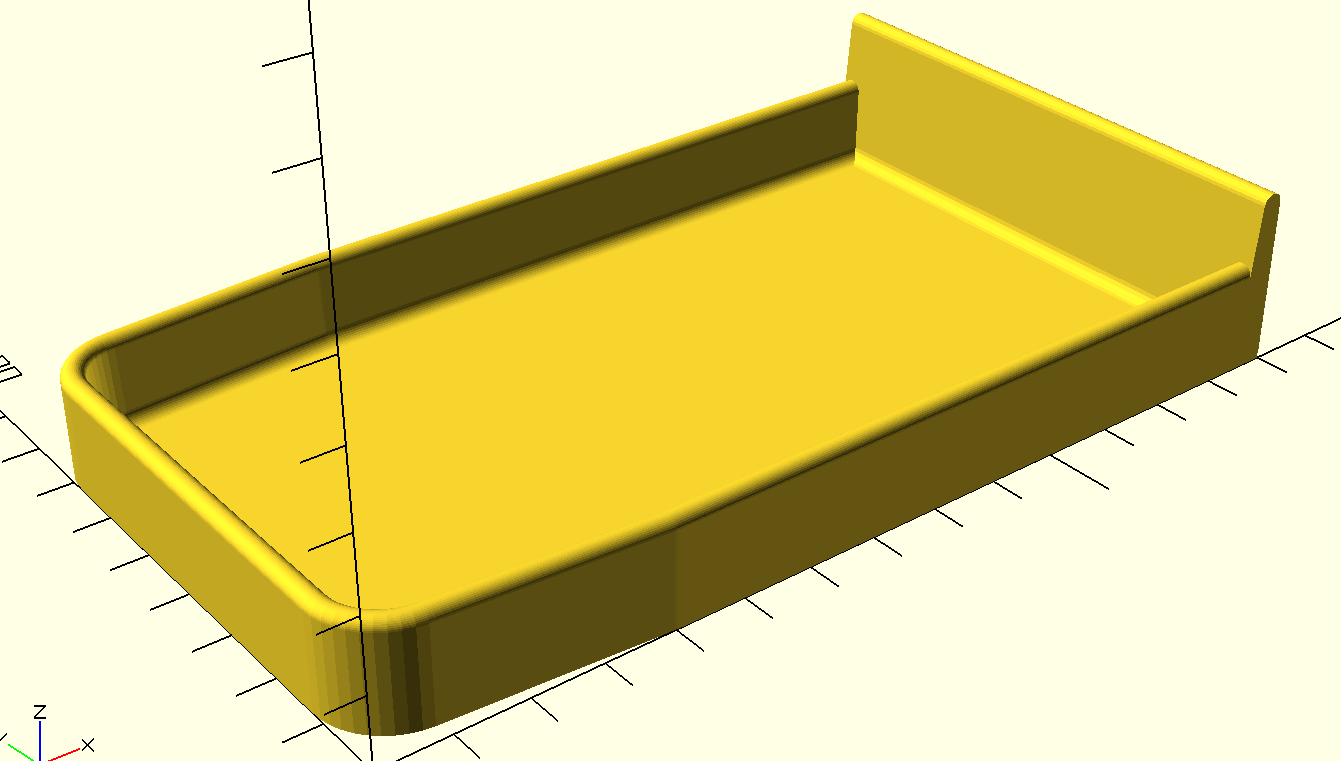

[image: image.png]
F6 Error: WARNING: Ignoring 2D child object for 3D operation in file , line
53
ERROR: CGAL error in CGALUtils::applyUnion3D: CGAL ERROR: assertion
violation! Expr: G.mark(v1,0)==G.mark(v2,0)&& G.mark(v1,1)==G.mark(v2,1)
File:
/mxe/usr/x86_64-w64-mingw32.static.posix/include/CGAL/Nef_S2/SM_overlayer.h
Line: 303
Which I think is pretty selfexplantory: Passed a 2D shape to something that
expected a 3D shape - but you have to read the whole code to find it ...
which I think Jan is more qualified to do :-)
2nd part

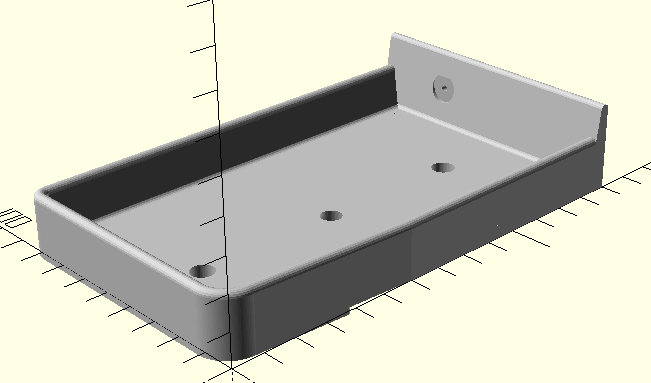

[image: image.png]
... which is one of those where zooming or rotating the model in preview
takes >5 second

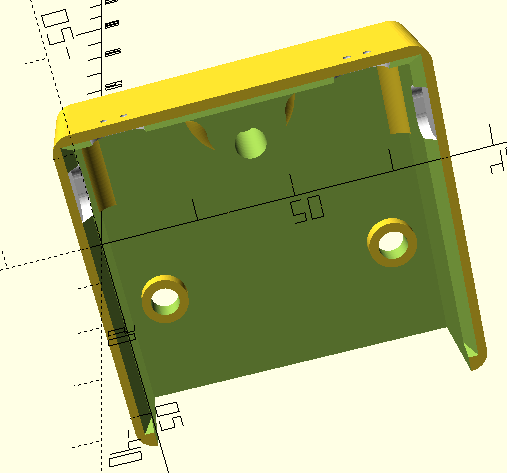

[image: image.png]
And I didn't bother waiting for the F6 error ... ;-)
Of course, we do not know if the above shapes I got are the ones that Jan
wants - there are also sections of code commented out.
(From the comments it seems these are to be nice and alternative covers for
wall outlet/switches.)
On Sat, 7 May 2022 at 18:26, Sanjeev Prabhakar sprabhakar2006@gmail.com
wrote:
Quite a long code.
Can you paste a picture of what you are trying to draw.
Regards
Sanjeev
On Sat, 7 May 2022, 16:31 Jan Öhman via Discuss, <
discuss@lists.openscad.org> wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
Thank you!
Begins to understand how it works. (It was not easy...)
but my solution was not good ...
Here are 2 files that do not work to render (F6)
= = product 1= = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
= =
include <BOSL2/std.scad>
fn = 150;
placering="left";
// placering="right"
box(0, 0, 0, placering, "#C0C0C0", fn); // (X, Y, Z, left/right,
colorName)
// Monteringsplattan
// mountingPlate(0, 0, 0, placering);
// LED belysning
// LEDlampa(0, 0, 0, placering);
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
// - - - - m o d u l e r - - - - - - - - - - - - - - - - - -
---================
//====== box
---===
module box(posX=0, posY=0, posZ=0, mountSide="left", colorName="#00FF00",
fn=24)
{
side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case
worked
color(colorName)
translate([posX, posY, posZ])
mirror([side, 0, 0])
difference()
{
union()
{
// Skapa konturer på bottenplattan - x, y, r, angles, [grader], början
// Rotation medurs - vänster lamphållare (bakant saknas)
points1 = circSect( 140, 0, 0, [0, 0], "right", 1, fn); // böj
nere till höger
points2 = circSect( 60, 5, 5, [0, 5], "bottom", 1, fn); //
brytpunkt längst ned
points3 = circSect( 10, 13, 10, [0, 90], "bottom", 1, fn); // böj
nere till vänster
points4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // böj
uppe till vänster
points5 = circSect( 140, 80, 5, [0, 1], "top", 1, fn); // böj
uppe till höger
edge = concat(points1, points2, points3, points4, points5);
path = path3d(reverse(edge));
section = wall();
path_sweep( section, path, closed=false);
// Skapa bakkant lite högre och smalare i topp
bottom1 = concat(points5, points1);
polygon(bottom1);
path1 = path3d(reverse(bottom1));
section1 = wall1(); // lite högre bakvägg wall(b=4, f=8, h=15, t=3.5)
path_sweep( section1, path1, closed=false);
// fyll upp bottenplattansbaksida
linear_extrude(4) // Bottomplate - fill up
polygon(concat(points1, points2, points3, points4, points5));
// skapa Utskjutande del under (tänk spegelvänt)
pt1 = circSect( 19.5, 85, 0, [0, 50], "top", 1, fn); // Uppe till
höger - moturs
pt2 = circSect( 39, 1.35, .1, [-5, 90], "right", 1, fn); // Nere
till höger
pt3 = circSect( 10, 13.05, 10, [0, 90], "bottom", 1, fn); // Nere
till vänster
pt4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // Uppe till
vänster
translate([0, 0, -2])
linear_extrude(2.1)
polygon(concat(pt1, pt2, pt3, pt4));
// utgången för kabeln på baksidan (diam 10mm) - pekar lite nedåt
cableExit(65, 35, 0, 15, "cyan", $fn=100);
}
// skapa ett borrhål i bakkant
translate([132,60,15])
{ rotate([0, 90, 0])
{ cylinder(h=10, d=2, $fn=100);
cylinder(h=4, d=9, $fn=100);
}
}
// skapa en borrmarkering i bakkant
translate([139,25,15])
{ rotate([0, 90, 0])
cylinder(h=2, d1=1, d2=2.5, $fn=100);
}
// ingravera årtalet på baksidan
translate([10, 80, -0.5])
{ mirror([side, 0, 0])
{ rotate([0, 180, 0])
{ linear_extrude(3)
text("2022", size=12, direction="ttb", font="Comic Sans
MS:style=Bold");
}
}
}
/*
// Markera skruvhål på bakkant
borr=3;
bredd=140;
hojd=8;
avstNed=20;
translate([bredd, avstNed, hojd])
{ rotate([0,90,0])
cylinder(h=2, d1=0.5, d2=borr, center=true, $fn=50);
}
*/
// borrhål
mountingHole(20, 36, 0, 7, 90.1, 15); // posX, posY, posZ, diam, dist,
deep, $fn=50
}
}
//======== Slut box
---=============================
---================
//====== cableExit
---==============================
module cableExit(posX, posY, posZ, angle, colorName)
{ diamHole = 7;
diamHolder = 9.8;
hight = 12;
topRad = diamHolder/2;
topDiam = diamHolder/2-topRad/2;
bowRad = 7;
offs1 = 0.1;
color(colorName)
translate([posX, posY, posZ])
{ rotate([180, 0, 180-angle])
{ difference()
{ hull()
{ cylinder(h=hight, d=diamHolder, center=false);
translate([0, 0, hight]) // rundad topp
rotate_extrude(angle=360, convexity=2)
translate([topDiam, 0, 0]) // yttre diam topp
circle(d=topRad); // radie topp
}
inpHight = 2; // ett värde som styr var utgångshålet hamnar
translate([0, 0, -offs1])
cylinder(h=inpHight+offs1, d=diamHole, center=false); //
Bottenhål
translate([-bowRad, 0, inpHight-offs1]) // böjen
{ rotate([90, 0, 0])
rotate_extrude(angle=90, convexity=10)
translate([bowRad, 0, 0]) // ställ in radien på kabelböjen
circle(d=diamHole);
}
}
}
}
}
//====== slut cableExit
---=========================
---================
//====== mountingHole
---===========================
module mountingHole(posX=0, posY=0, posZ=0, diam=7, dist=90, deep=5,
$fn=50)
{ // diam = 6; // [mm]
// dist = 90; // [mm]
// deep = 12; // [mm]
translate([posX, posY, posZ])
{ translate([0, 0, -10])
cylinder(h=deep, d=diam); // fästhål 1
//cableHold1(dist/2, 0, .2, "#D5D5D5"); // Kabelgenomföring
translate([dist/2, 0, 0])
{ hull()
{ cylinder(h=5, d=6); // fästhål 1
sphere(d=7.5);
}
}
translate([dist, 0, -10])
cylinder(h=deep, d=diam); // fästhål 2
}
}
//====== slut mountingHole
---======================
---================
//====== LEDlampa
---===============================
// module LEDlampa(posX=8, posY=10, posZ=0)
module LEDlampa(posX=0, posY=0, posZ=0, mountSide="left")
{ side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case
worked
xpos = mountSide == "left" ? 121
: mountSide == "right" ? -10
: assert(false,"invalid moutSide value"); // message if no case
worked
/*
ypos = mountSide == "left" ? 10.5
: mountSide == "right" ? 10.5
: assert(false,"invalid moutSide value"); // message if no case
worked
zpos = mountSide == "left" ? 5
: mountSide == "right" ? 5
: assert(false,"invalid moutSide value"); // message if no case
worked
*/
// echo(xpos,ypos,zpos);
// translate([xpos, ypos, zpos])
translate([xpos, 10.5, 5])
mirror([1, 0, 0])
translate([posX, posY, posZ])
{ LEDbottom();
translate([0, 0, 11])
LEDglas();
}
}
//====== Slut LEDlampa
---==========================
---================
//====== LEDglas
---================================
module LEDglas()
{
// Variabler botten
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mm
cornRad = 10; // Radien i alla hörn
wideCorn = 48; // Bredd i kanterna
diamHole = 6; // håldiameter i mm
colorBot = "gray";
colorTop = "orange";
// Variabler top
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mm
p1tx = 10; // the start value
p1ty = 49.25;
p2tx = 55.5; // the middle value
p2ty = 50.5;
p3tx = 101; // the end value
p3ty = p1ty;
p4tx = 101; // the start value
p4ty = 1.25;
p5tx = 55.5; // the middle value
p5ty = 0.0;
p6tx = 10; // the end value
p6ty = p4ty;
// Ger ovalt glas
points1 = 3points_arc([p1tx,p1ty], [p2tx,p2ty], [p3tx,p3ty], fn=100);
points2 = 3points_arc([p4tx,p4ty], [p5tx,p5ty], [p6tx,p6ty], fn=100);
color("orange")
linear_extrude(height=cornHigh+.1)
difference()
{ polygon(concat(points1, points2));
translate([length-10 , wideMid / 2, -.2])
circle(d=6);
translate([10 , wideMid / 2, -.2])
circle(d=6);
}
// Top
color(colorTop)
difference()
{ hull()
{ // hörn1
translate([cornRad, wideMid - ((wideMid-wideCorn)/2) - cornRad, 0])
// [10,39]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn2
translate([cornRad, cornRad + ((wideMid-wideCorn)/2), 0])
// [10,12]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn3
translate([length - cornRad, wideMid - ((wideMid-wideCorn)/2) -
cornRad, 0]) // [101 ,39]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn4
translate([length - cornRad, cornRad + ((wideMid-wideCorn)/2), 0])
//
cylinder(h=cornHigh, d=cornRad2, center=false);
}
union()
{ // Monteringshål 1 & 2
translate([length-10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=highTop+.5, center=false);
translate([10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=highTop+.5, center=false);
}
}
}
//======== Slut LEDglas
---=========================
---================
//====== LEDbottom
---==============================
module LEDbottom()
{ p1x = 10; // the start value
p1y = 49.25;
p2x = 55.5; // the middle value
p2y = 50.5;
p3x = 101; // the end value
p3y = p1y;
p4x = 101; // the start value
p4y = 1.25;
p5x = 55.5; // the middle value
p5y = 0.0;
p6x = 10; // the end value
p6y = p4y;
// Variabler botten för borrhålen
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mm
diamHole = 6; // håldiameter i mm
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mm
// offs1 = 0.1;
heightHole = 15; //mm
height = 11; //mm
points1 = circSect( 10, 11.25, 10, [0, 90], "bottom", 1, fn); // Hörn
nere till vänster
points2 = circSect( 10, 39.25, 10, [0, 90], "left", 1, fn); // Hörn
uppe till vänster
points3 = 3points_arc([p1x,p1y], [p2x,p2y], [p3x,p3y], fn);
points4 = circSect( 101, 39.25, 10, [0, 90], "top", 1, fn); // Hörn
uppe till höger
points5 = circSect( 101, 11.25, 10, [0, 90], "right", 1, fn); // Hörn
nere till höger
points6 = 3points_arc([p4x,p4y], [p5x,p5y], [p6x,p6y], fn);
// The base plate for the LED lamp
difference()
{ color("gray", 0.5)
linear_extrude(height=height)
polygon(concat(points1, points2, points3, points4, points5,
points6));
// union()
{ // Monteringshål 1 & 2
translate([length-10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
translate([10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
}
}
}
//======== Slut LEDbottom
---=======================
---================
//====== circleSect
---=============================
// Create rounded corners 2D
// https://openhome.cc/eGossip/OpenSCAD/SectorArc.html
// ange .: x, y, radien,
// [från, till] vinkel,
// var vinkeln startar, (left, bottom, right, top)
// vilken rotation (-1=medsol, 1=motsols)
function circSect(x=0, y=0, radius=10, angles=[0,270], startRef="bottom",
rotate=1, fn=24) =
let(
startAngel = (startRef == "left") ? 0
: (startRef == "bottom") ? 90
: (startRef == "right") ? 180
: (startRef == "top") ? 270
: startRef, // valfri vinkel
// : assert(false,"invalid moutSide value"); // Error
message if no case worked
//: undef,
r = radius,
//r = radius / cos(180 / fn),
step = 360 / fn,
// points = [[x, y],
points = [
for(a = [angles[0]-startAngel : step : angles[1]-startAngel])
[-rotate * r * cos(a)+x, r * sin(a)+y]]
) points;
//======== Slut circleSect
---======================
---================
//====== 3points_arc
---============================
// Create an arc with three points 2D
function 3points_arc(p0, p1, p2, fn=10) =
// an alternative expression for D
// D = 2 * ( (p1-p0).x * (p2-p0).y - (p1-p0).y * (p2-p0).x )
let( D = 2 * cross(p1-p0, (p2-p0)) )
assert( abs(D)>1e-9, "The 3 points should not be collinear." )
let(
Ux = ( (p2-p0).y*(p1-p0)(p1-p0) - (p1-p0).y(p2-p0)(p2-p0)
)/D,
Uy = ( (p1-p0).x(p2-p0)(p2-p0) - (p2-p0).x(p1-p0)(p1-p0)
)/D,
radius = norm([Ux,Uy]),
center = [Ux,Uy] + p0,
ang0 = atan2( (p0-center).y, (p0-center).x ),
ang2 = atan2( (p2-center).y, (p2-center).x ),
// the points are in a cw winding iff D<0
// the angular difference between vectors p2-center and p0-center
// measured from p0-center; dang is positive iff D is negative
dang = D<0 ? ang2<ang0 ? ang2-ang0 : ang2-ang0-360
: ang2>ang0 ? ang2-ang0 : ang2-ang0+360
)
[ for(i=[0:fn-1])
let( ang = ang0 + idang/(fn-1) )
center + radius*[cos(ang),sin(ang)] ];
//======== Slut 3points_arc
---=====================
---================
//====== Wall som ett "L"
---=======================
// Normal vägghöjd
function wall() =
let(
b = 4, // botten - tjocklek
f = 8, // Foten
h = 15, // Höjd
t = 3.5, // Top
x = (b+(t/2) - (h - ( (-h / (f-t)) *t) )) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ])
)
union([points, top, sqr, diff]);
//======== Slut Wall
---============================
---================
//====== Wall1 som ett "L"
---======================
// En högre vägg
function wall1() =
let(
b = 4, // botten - tjocklek
f = 7, // Foten
h = 25, // Höjd
t = 3, // Top
x = (b+(t/2) - (h - ((-h / (f-t)) *t))) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ])
)
union([points, top, sqr, diff]);
//======== Slut Wall1
---===========================
---================
//====== Plåt på släp
---===========================
module mountingPlate(posX=0, posY=0, posZ=0, mountSide="left",
colorName="#C0C0C0", $fn=50)
{ // Hörnpositionerna
posX1 = 120;
posY1 = 0;
posX2 = posX1;
posY2 = -200;
posX3 = 120 - 75;
posY3 = -200;
posX4 = 0;
posY4 = 0;
thick=2; // tjocklek
side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case
worked
xpos = mountSide == "left" ? 20
: mountSide == "right" ? -20
: assert(false,"invalid moutSide value"); // message if no case
worked
/*
ypos = mountSide == "left" ? 85
: mountSide == "right" ? 85
: assert(false,"invalid moutSide value"); // message if no case
worked
zpos = mountSide == "left" ? -thick
: mountSide == "right" ? -thick
: assert(false,"invalid moutSide value"); // message if no case
worked
*/
color(colorName)
{ translate([posX, posY, posZ])
translate([xpos, 85, -thick])
{ mirror([side, 0, 0])
{ linear_extrude(thick)
hull()
{ translate([posX1, posY1, 0])
square(0.1, center = true);
translate([posX2, posY2, 0])
square(0.1, center = true);
translate([posX3, posY3, 0])
square(0.1, center = true);
translate([posX4, posY4, 0])
square(0.1, center = true);
}
}
}
}
}
= = END product 1= = = = = = = = = = = = = = = = = = = = = = = = = = = =
= =
= = product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
= =
$fn=100;
//$fn=15;
//switch();
//cableHolder4(); //Switchboxen
// cableHolder3(0, 0, 0, 33.5, 23.5, 1.5, 2);
// showCables();
module cableHolder4(fn=24);
{ // idé från
// - https://www.thingiverse.com/thing:6400/files
// -
https://ihrchive.wordpress.com/2011/02/14/openscad-tip-round-1-of-3-basic-rounding/
// mått på Switch
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
spaceHold = 10.0; // utrymmet bakom switch
holdRadie = 2; // radie i hörnen
thick = 2;
offset1=0.5; // öka toleransen
// innermått
holeW = widthHold + offset1;
holeH = heightHold + offset1;
holeD = depthHold + spaceHold+offset1;
// yttermått
pad = 0.1; // Padding to maintain manifold
box_l = holeW + thick*2; // Bredden på switchen
box_w = holeD + thick; // Djupet på switchen
box_h = holeH + thick; // Height
round_r = holdRadie; // Radius of round
smooth = 45; // Number of facets of rounding cylinder
difference()
{ union() // Detta utförs i två steg.
{ difference() // utför fasningar och kabelmarkeringar
{ mainBox(box_l, box_w, box_h, spaceHold+thick, round_r, thick,
smooth, pad);
// fasning vänster (underkant)
translate([box_l/2-0.85, spaceHold-4.3, thick-offset1]) //
sidled, fram/bak , upp/ned
rotate([0,180,45])
cylinder(h=thick, d1=holeW1.414-thick-thick, d2=holeW1.414,
$fn=4);
// fasning höger (underkant)
translate([box_l/2-3.65, spaceHold-4.3, thick-offset1]) //
sidled, fram/bak , upp/ned
rotate([0,180,45])
cylinder(h=thick, d1=holeW1.414-thick-thick, d2=holeW1.414,
$fn=4);
// kabelgenomföringar
rotate([90, 180, 90]) // Markering ena sidan (vänster under)
ovalCableHole(spaceHold/2-offset1, -1.75, -1.2);
rotate([90, 180, 180]) // Markering bakkant (vänster under)
ovalCableHole(spaceHold/2-1.55, -1.75, -spaceHold-0.85);
rotate([90, 180, 180]) // Markering bakkant (höger under)
ovalCableHole(widthHold-spaceHold/2-offset1, -1.75,
-spaceHold-0.85);
rotate([90, -180, 90]) // Markering ena sidan (höger under)
ovalCableHole(3.75, -1.75, widthHold-0.1);
}
} // Slut union - kropp
translate([-offset1/2, -spaceHold+pad, -pad]) // hålet där switchen
ska placeras
cube([holeW, holeD+pad, holeH+pad], center=false);
translate([4, 12, 0])
cylinder(h=15,d=3.2);
translate([4, 12, 17.7])
sphere(r=6);
translate([29.6, 12, 0])
cylinder(h=15,d=3.2);
translate([29.6, 12, 17.7])
sphere(r=6);
/* // Hål genom lock bak - om så önskas
translate([box_l/2-thick, -6, offset1/2])
cylinder(h=box_h+thick*4+offset1, d=3.2, $fn=100); // hål genom
lock bak
translate([box_l/2-thick, -6, 17.7])
sphere(r=6); // kona hålet bak
*/
} // Slut difference() - box
difference()
{ union()
{ translate([29.6, 12, heightHold-offset1*2])
cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv1
translate([4, 12, heightHold-offset1*2])
cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv2
translate([holeW/2, -spaceHold+thick+1, holeH/2])
rotate([180,0,0])
backHole();
} // union - slut
translate([4, 12, 0]) // Hålen i stödhylsorna
cylinder(h=15,d=3.2);
translate([29.6, 12, 0]) // Hålen i stödhylsorna
cylinder(h=15,d=3.2);
translate([box_l/2-thick, -6, -offset1]) // hål i stödhylsa bak
cylinder(h=box_h+offset1, d=3.2, $fn=100);
// Sänk stödhylsan
translate([ widthHold/2-7, -spaceHold-offset1, -thick+offset1]) //
hål i stödhylsa bak
cube([15, 8, 3]);
// kabelmarkering
// translate([0, 0, 0]) // hål i stödhylsa bak
}
/*
translate([4, 12, 0])
#cylinder(h=15,d=3.2);
//translate([4, 13.5, 17.3])
//#sphere(r=6);
translate([29.6, 12, 0])
#cylinder(h=15,d=3.2);
//translate([29.6, 13.5, 17.3])
//#sphere(r=6);
*/
}
module backHole()
{ wallH = 10.5;
wide1 = 12; // endast runt cylindern
wide2 = 35; // hela väggen
deep1 = 4;
height1 = 10.5;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;
//rundadFot();
// Rundad stäcka mellan t.ex. vägg och tak -bakkant
translate([wide2/2, diam1/2-cornRad1/2, -height1/2])
{ rotate([90, 0, -90])
{ linear_extrude(wide2)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka1 (vänster) mellan t.ex. vägg och tak
translate([-wide2/2+0.15, deep1/2+cornRad1/2, -height1/2])
rotate([90, 0, 0])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
// rundad stäcka2 mellan t.ex. vägg och tak
translate([wide2/2-0.65, deep1/2+cornRad1/2, -height1/2])
rotate([0, -90, 90])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
// Skapa stödfot - bak
difference()
{ union()
{ //själva cylindern
translate([0, 1, 0])
{ cylinder(h=height1, d=diam1, center=true);
translate([0, diam1/2, 0])
cube([diam1,diam1-1,height1], center=true);
}
// Rundad fot under cylinder ovan
translate([0, 1, -height1/2])
{ rotate_extrude()
{ translate([diam1/2, 0, 0])
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad rakstäcka1 - cylinderfot - mellan t.ex. vägg och tak
translate([diam1/2, diam1, -height1/2])
{ rotate([90, 0, 0])
{ linear_extrude(diam1)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad rakstäcka2 - cylinderfot - mellan t.ex. vägg och tak
translate([-diam1/2, diam1, -height1/2])
{ rotate([0, -90, 90])
{ linear_extrude(diam1)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
//väggen bakom cylindern som ska rundas
translate([0, diam1/2-cornRad1, 0])
cube([wide1, cornRad1, height1], center=true);
}
// Avrunda hörn1 bak
translate([-wide1/2, cornRad1/2, cornRad1])
{ hull()
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
{ translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
}
}
// Avrunda hörn2 bak
translate([wide1/2, cornRad1/2, cornRad1])
{ hull()
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
{ translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
}
}
// Plocka bort rundad fot bak samt det som sticker ut
translate([-wide1/2, diam1/2-cornRad1/2, -height1/2-opt1])
cube([wide1, diam1/2+cornRad1, height1+opt1*2], center=false);
}
}
module ovalCableHole(posX, posY, posZ)
{ // Hål 5.5 x 3.5 mm
pan = 0.1;
cableHi = 1.5;
translate([posX, posY, posZ])
{ color("white")
{ translate([0, 0, -pan])
{ cylinder(h=cableHi, d=3.5);
//#translate([0, 0, 0]) cylinder(h=10, d=1);
//translate([0, 0, -1]) cylinder(h=1, d1=0, d2=1);
//translate([0, 0, 0]) sphere(d=1); // Inre kulan
//translate([0, 0, 1.5]) sphere(d=1); // Inre kulan
translate([0, 0, -1]) sphere(d=0.8); // yttre kulan
translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan
}
translate([2, 0, -pan])
{ cylinder(h=cableHi, d=3.5);
// #translate([0, 0, -cableHi*2]) cylinder(h=10, d=0.5);
//translate([0, 0, 0]) sphere(d=1); // Inre kulan
//translate([0, 0, 1.5]) sphere(d=1); // Inre kulan
translate([0, 0, -1]) sphere(d=0.8); // yttre kulan
translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan
}
translate([-3.5/2, 0, -pan])
cube([5.5, 3.5/2, cableHi]);
translate([-0.25, -1.74, -pan])
cube([2.5, 1.75, cableHi]);
}
}
}
module rundadFot()
{
// specifika värden för skruvdistansen bak
wallH = 10.5;
wide1 = 12; // endast runt cylindern
wide2 = 34; // hela väggen
deep1 = 4;
height1 = 10;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;
color("magenta")
{ translate([0, 0, wallH])
{ difference()
{ union()
{ // Bakgavel
translate([wide2/2, opt1, height1/2])
{ rotate([90, 180, 0])
cube([wide2, height1, opt1]);
}
// Golv
translate([wide2/2, -height1+opt1, -height1/2])
rotate([0, 180, 0])
cube([wide2, height1, opt1]);
//väggen bakom cylindern som kan rundas
translate([0, -cornRad1/2, 0])
cube([wide1, cornRad1, height1], center=true);
//själva cylindern
translate([0, -cornRad1/2, 0])
cylinder(h=height1, d=diam1, center=true);
// Rundad fot under cylinder ovan
translate([0, -cornRad1/2, -height1/2])
{ rotate_extrude()
{ translate([diam1/2, 0, 0])
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad stäcka mellan t.ex. vägg och tak -bakkant
translate([wide2/2, 0, -height1/2])
{ rotate([90, 0, -90])
{ linear_extrude(wide2)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka mellan t.ex. vägg och tak -sida1
translate([-wide2/2, 0, -height1/2])
{ rotate([90, 0, 0])
{ linear_extrude(10)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka mellan t.ex. vägg och tak -sida2
translate([wide2/2, -10, -height1/2])
{ rotate([90, 0, 180])
{ linear_extrude(10)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
} // Avsluta union = = = = = = = = = = = = = = = = = = = =
// Avrunda hörn1 bak
translate([-wide1/2+opt1*1.3, -deep1/2, cornRad1])
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
// Avrunda hörn2 bak
translate([wide1/2-opt1*1.3, -deep1/2, cornRad1])
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
// Plocka bort rundad fot bak samt det som sticker ut
translate([-wide1/2, 0, -height1/2-opt1])
cube([wide1, diam1/2+cornRad1, height1+opt1*2], center=false);
}
}
}
}
module mainBox(box_l, box_w, box_h, spaceHold, round_r, thick, smooth,
pad)
{ translate([box_l/2-thick-offset1/2, box_w/2-spaceHold, box_h/2])
{
// To fix the corners cut the main cube with smaller cubes with
spheres removed
difference()
{ cube([box_l, box_w, box_h], center = true);
// Kant1 - liggande
translate([0, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([0,-round_r-pad,round_r+pad])
cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 - liggande
translate([0, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([0,round_r+pad,round_r+pad])
cube([box_l+2pad, round_r2+pad, round_r2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// Kant3 - liggande
translate([0, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([0,-round_r-pad,-round_r-pad])
cube([box_l+2pad, round_r2+pad, round_r2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 - liggande
translate([0, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([0,round_r+pad,-round_r-pad])
cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// ----
// Kant1 - stående
translate([-box_l/2+round_r, box_w/2-round_r, 0])
{ difference()
{ translate([-round_r-pad,round_r+pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 - stående
translate([box_l/2-round_r, box_w/2-round_r, 0])
{ difference()
{ translate([round_r+pad,round_r+pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant3 - stående
translate([-box_l/2+round_r, -box_w/2+round_r, 0])
{ difference()
{ translate([-round_r-pad,-round_r-pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 - stående
translate([box_l/2-round_r, -box_w/2+round_r, 0])
{ difference()
{ translate([round_r+pad,-round_r-pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// ----
// Kant1 liggande (andra hållet)
translate([-box_l/2+round_r, 0, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, 0, round_r+pad])
cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 liggande (andra hållet)
translate([box_l/2-round_r, 0, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, 0, round_r+pad])
cube([round_r2+pad, box_w+2pad, round_r2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// Kant3 liggande (andra hållet)
translate([-box_l/2+round_r, 0, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, 0, -round_r-pad])
cube([round_r2+pad, box_w+2pad, round_r2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 liggande (andra hållet)
translate([box_l/2-round_r, 0, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, 0, -round_r-pad])
cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// ----
// Hörn1 (övre)
translate([box_l/2-round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (övre)
translate([-box_l/2+round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (övre)
translate([box_l/2-round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (övre)
translate([-box_l/2+round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
/*
// Hörn1 (undre)
translate([box_l/2-round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (undre)
translate([-box_l/2+round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (undre)
translate([box_l/2-round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (undre)
translate([-box_l/2+round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
*/
}
}
}
//
module cableHolder3(posX, posY, posZ, length, width, height, radius)
{ // Skapa toppen över switchen
// mått på Switchen
fn = 96; // upplösning (endast bågen?)
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
holdRadie = 1.5; // radie i hörnen
thick = 1.5; // tjocklek
translate([0,-thick,0])
{
difference(0, 0, 0)
{ hull()
{ difference()
{ translate([thick, 0, heightHold]) // vänster kant
{ rotate([-90, 0, 0])
{ cylinder(h=depthHold, d=thick2);
translate([0, 0, depthHold])
sphere(d=thick2); // längst fram
}
}
translate([0, -0.1, heightHold]) // plocka bort underdelen
rotate([-90, 0, 0])
cube([thick*2, thick+.1, depthHold+thick+.1]);
}
difference()
{ translate([widthHold-thick, 0, heightHold]) // höger kant
{ rotate([-90, 0, 0])
{ cylinder(h=depthHold, d=thick*2);
translate([0, 0, depthHold])
sphere(d=thick*2); // längst fram
}
}
translate([widthHold-thick*2, -0.1, heightHold]) // plocka bort
underdelen
{ rotate([-90, 0, 0])
cube([thick*2, thick+.1, depthHold+thick+.1]);
}
}
}
// öppna hålen för monteringsskruvarna uppe på plattan
translate([4, 13.5, 0])
cylinder(h=15,d=3.2);
translate([4, 13.5, 17.3])
sphere(r=6);
translate([29.6, 13.5, 0])
cylinder(h=15,d=3.2);
translate([29.6, 13.5, 17.3])
sphere(r=6);
}
// halvbåge 1 bak
translate([thick, 0, heightHold/2+thick/2])
rotate([0, 90, 180])
rotate_extrude(angle = 180, convexity=20, $fn=64)
translate([heightHold/2-thick/2, 0, 0])
circle(d=thick*2);
translate([thick, 0, heightHold])
sphere(d=thick*2); // övre kulan
translate([thick, 0, thick])
sphere(d=thick*2); // undre kulan
// halvbåge 2 bak
translate([widthHold-thick, 0, heightHold/2+thick/2])
rotate([0, 90, 180])
rotate_extrude(angle = 180, convexity=20, $fn=64)
translate([heightHold/2-thick/2, 0, 0])
circle(d=thick*2);
translate([widthHold-thick, 0, heightHold])
sphere(d=thick*2); // övre kulan
translate([widthHold-thick, 0, thick])
sphere(d=thick*2); // undre kulan
// en cylinder tvärsöver längst upp
translate([thick, 0, heightHold])
{ rotate([0,90,0])
cylinder(h=widthHold-thick*2, r=thick);
}
}
// Halvbågen (kabelhållaren) på baksidan switchen
translate([widthHold-thick, -thick, heightHold/2+thick/2])
{ rotate([0,90,180])
linear_extrude(widthHold-thick2)
arc(heightHold/2-thick/2, [0, 180], thick, fn); //radius, angles,
width, fn)
}
// en cylinder tvärsöver längst ned
translate([thick, -thick, thick])
{ rotate([0,90,0])
cylinder(h=widthHold-thick2, r=thick);
}
}
module switch(posX=0, posY=0, posZ=0)
{ buttRadie = 1.5;
height = 10.5;
width = 33.5;
depth = 23.5;
h1x = buttRadie;
h1y = buttRadie;
h2x = width-buttRadie;
h2y = buttRadie;
h3x = width-buttRadie;
h3y = depth-buttRadie;
h4x = buttRadie;
h4y = depth-buttRadie;
translate([posX, posY, posZ])
{ difference()
{ color("#F9F9F3")
// tryck-knappen
union()
{ translate([width/2, depth+6-0.1, height/2])
{ rotate([90, 0, 0])
{ translate([0,0,6])
circle(d=6.8); // skuggan runt knapp
cylinder(h=6, d=6);
sphere(d=6);
}
}
hull() // Switchkropp
{ translate([h1x, h1y])
cylinder(h=height, r=1.5);
translate([h2x, h2y])
cylinder(h=height, r=1.5);
translate([h3x, h3y])
cylinder(h=height, r=1.5);
translate([h4x, h4y])
cylinder(h=height, r=1.5);
}
}
// Skruvhålen för switchen
hole( 4, 12, 0, "#FFD700", height);
hole(29.6, 12, 0, "#FFD700", height);
// hole( 4, 12, 0, "#FFD700", 50);
// hole(29.6, 12, 0, "#FFD700", 50);
// hål för kablar bak
color("gray")
{ translate([9.5, 16, height/2])
{ rotate([90, 0, 0])
cylinder(h=16.5, d=4);
}
translate([24.5, 16, height/2])
{ rotate([90, 0, 0])
cylinder(h=16.5, d=4);
}
}
// hål för kabelskruvar
color("white")
{ translate([29.5, 17.1, height/2])
{ rotate([0, 90, 0])
cylinder(h=4.1, d=4.5);
}
translate([-0.1, 17.1, height/2])
{ rotate([0, 90, 0])
cylinder(h=4.1, d=4.5);
}
}
}
// Kabelskruvar
cableScrew(3, 17, height/2, 90);
cableScrew(31, 17, height/2, -90);
}
}
// Skruven som håller fast kabeln i switchen
module cableScrew(posX=0, posY=0, posZ=0, angle=0)
{ color("#FFD700") // mässing
translate([posX, posY, posZ])
{ rotate([0, 0, angle])
{ difference()
{ // skruvskalle
translate([0, 0, 0])
rotate([90, 0, 0])
cylinder(h=2, d1=4, d2=3.5);
// stjärnan i skruven
translate([0, 1.85, -.25])
rotate([0, 0, 0])
cylinder(h=0.5, d=5);
translate([-0.25, -.6, 2.25])
rotate([0, 90, 0])
cube([4.5, 2, 0.5]);
}
}
}
}
// borrhål
module hole(posX=0, posY=0, posZ=0, colorName="yellow", height)
{ diamHole1 = 3;
highHole1 = height;
diamHole2 = 6;
highHole2 = 2.5;
offs=0.1;
color(colorName)
{
translate([posX, posY, posZ])
{ translate([0, 0, 0])
cylinder(h=highHole1, d=diamHole1);
translate([0, 0, -offs])
cylinder(h=highHole2, d=diamHole2);
translate([0, 0, height-highHole2+offs])
cylinder(h=highHole2, d=diamHole2);
}
}
}
module showCables()
{ translate([-25,8,24])
rotate([80,177,90])
cable(10,10,0,"brun");
translate([-43,8,15])
rotate([90,180,90])
cable(10,10,0,"blå");
}
module cable(posX=0, posY=0, posZ=0, colorName="blå", radius=1.26,
width=0.62, thick=50, fn=24)
{ // default 1.5mm2
// radius = inner radie
// width = bredd/tjocklek på cirkeln (inte höjd)
// thick = höjd på cirken/ röret
// pin=
colCupper = "#D7715A";
colGreen = "#07DA63";
colYellow = "#FFCC00";
if (colorName=="gröngul")
{ translate([posX, posY, posZ])
{ color(colGreen)
linear_extrude(thick)
arc(radius, [0, 60], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [60, 180], width, fn);
color(colGreen)
linear_extrude(thick)
arc(radius, [180, 240], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [240, 360], width, fn);
color(colCupper)
linear_extrude(10, center=true, convexity=10, $fn=100)
circle(d=1.24);
}
}
else // vanliga kablar 1.5mm2
{
cableColor = colorName == "blå" ? "#1870D5"
: colorName == "brun" ? "#9C6137"
: colorName == "svart" ? "#000000"
: assert(false,"invalid color value"); // message if no
case worked
// : nodef
translate([posX, posY, posZ])
{ //el kabel - ena änden rak - andra böjd
color(colCupper) //kopparstump tråd rakkabel
linear_extrude(10, center=true, convexity=10, $fn=100)
circle(d=1.24);
color(cableColor)
{ cylinder(h=thick, r=radius);
translate([-radius*2, 0, thick]) // kabelböj
rotate([90, 0, 0])
rotate_extrude(angle=90, convexity=20)
translate([2.5, 0, 0])
circle(r=1.26);
translate([-radius*2, 0, thick+radius*2])
rotate([0, -90, 0])
cylinder(h=5, r=radius);
}
translate([-10, 0, thick+radius*2])
{ rotate([0, -90, 0])
{ color(colCupper)
{ linear_extrude(5, center=true, convexity=10, $fn=100)
circle(d=1.24);
}
}
}
}
}
}
---====
module arc(radius, angles, width = 1, fn = 24) {
difference() {
sector(radius + width, angles, fn); // ytterradie
sector(radius, angles, fn); // innerradie (plockar bort
invändigt
}
}
module sector(radius, angles, fn = 24) {
r = radius / cos(180 / fn);
step = -360 / fn;
points = concat([[0, 0]],
[for(a = [angles[0] : step : angles[1] - 360])
[r * cos(a), r * sin(a)]
],
[[r * cos(angles[1]), r * sin(angles[1])]]
);
difference() {
circle(radius, $fn = fn);
polygon(points);
}
}
= = END product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = = =
= =
Den fredag 6 maj 2022 14:06:55 CEST, Michael Möller <
private2michael@gmail.com> skrev:
OpenSCAD code - is a description of your model in terms of a few
cylinder/cubes added and cut out
difference() {
cylinder(d=5,h=10);
translate([0,10,0]) cube([4,6,2]) ;
}
STL file is a list of triangles which make the same outer shell as your
model. OpenSCAD makes this complicated transform from shapes to triangles.
solid OpenSCAD_Model
facet normal 0.92388 0.382682 0
outer loop
vertex 2.5 0 3
vertex 1.76777 1.76777 0
vertex 1.76777 1.76777 3
endloop
endfacet
facet normal 0.92388 0.382682 0
outer loop
vertex 1.76777 1.76777 0
vertex 2.5 0 3
vertex 2.5 0 0
endloop
endfacet
: (and so on for 300 lines) There is a binary/compressed version, but
the description is still just triangles.
Gcode is what a 3D printer understands - it is the exact list of moves
that the head has to do with how much plastic to squeeze to trace the
outline of your shape, layer, by layer. It will optionally create moves for
filling the inside or support for overhangs. Such a program is called a
SLICER and the printer will come with one.
G92 E0 ; reset extrusion distance
G1 Z2.330 F6600.000 ; lift Z
G1 X-0.000 Y1.505 F6600.000 ; move to first perimeter point
G1 Z0.330 F6600.000 ; restore layer Z
G1 E3.00000 F2400.00000 ; unretract extruder 0
G1 F1500
G1 X-1.064 Y1.064 E3.09259 ; perimeter
G1 X-1.505 Y0.000 E3.18517 ; perimeter
: (many similar lines)
G1 X1.515 Y1.515 E4.65860 ; perimeter
G1 X0.055 Y2.120 E4.78559 ; perimeter
G1 X-0.000 Y2.143 F6600.000 ; move inwards before travel
G1 X0.384 Y0.843 F6600.000 ; move to first infill point
G1 F1500
G1 X0.843 Y0.384 E4.84815 ; infill
G1 X1.097 Y-0.229 E4.91215 ; infill
:
(and so on for thousands of lines)
The 3MF still basically deals in triangles, and attributes (surface,
infill material, picture, ticket info ... ) which probably are not used by
your slicer/printer.
On Fri, 6 May 2022 at 12:37, Jan Öhman via Discuss <
discuss@lists.openscad.org> wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
Hi!
Thought to create some objects in openSCAD, to print later.
I do not have my own 3D printer (yet).
One I talked to, wanted to get the drawings in .STL or .3MF. (I don't
know the difference).
If I had my own printer, have I been able to print directly from openSCAD?
(Without some export?)
In the openSCAD, no errors or problems occur.
but
The drawings I tested to export from openSCAD have given one or another
error message.
One message .:
WARNING: Object may not be a valid 2-manifold and may need repair!
Another message .:
WARNING: No top level geometry to render
What to do?
---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
I already gave a full explanation of what's wrong and how to fix the
first program. It has a 2d polygon (easily found as there is one lone
polygon call) that needs to be removed or linear_extruded as
appropriate. And it makes use of path_sweep in a manner that produces
a self-intersecting polyhedron. This issue is explained in the manual
page for path_sweep. This can be fixed either by switching to
path_extrude2d() or by changing the corner radius to eliminate the
self-intersections. Or changing to a profile that can actually be
rounded at the desired radius.
https://github.com/revarbat/BOSL2/wiki/skin.scad#functionmodule-path_sweep
On Sat, May 7, 2022 at 12:57 PM Michael Möller
private2michael@gmail.com wrote:
Jan Öhman wrote it failed in Render/F6, but works in Preview/F5 - in so many words. I tried and got the following
First model
F6 Error: WARNING: Ignoring 2D child object for 3D operation in file , line 53
ERROR: CGAL error in CGALUtils::applyUnion3D: CGAL ERROR: assertion violation! Expr: G.mark(v1,0)==G.mark(v2,0)&& G.mark(v1,1)==G.mark(v2,1) File: /mxe/usr/x86_64-w64-mingw32.static.posix/include/CGAL/Nef_S2/SM_overlayer.h Line: 303
Which I think is pretty selfexplantory: Passed a 2D shape to something that expected a 3D shape - but you have to read the whole code to find it ... which I think Jan is more qualified to do :-)
2nd part
... which is one of those where zooming or rotating the model in preview takes >5 second
And I didn't bother waiting for the F6 error ... ;-)
Of course, we do not know if the above shapes I got are the ones that Jan wants - there are also sections of code commented out.
(From the comments it seems these are to be nice and alternative covers for wall outlet/switches.)
On Sat, 7 May 2022 at 18:26, Sanjeev Prabhakar sprabhakar2006@gmail.com wrote:
Quite a long code.
Can you paste a picture of what you are trying to draw.
Regards
SanjeevOn Sat, 7 May 2022, 16:31 Jan Öhman via Discuss, discuss@lists.openscad.org wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
Thank you!
Begins to understand how it works. (It was not easy...)but my solution was not good ...
Here are 2 files that do not work to render (F6)
= = product 1= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
- . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . -
include <BOSL2/std.scad>
fn = 150;placering="left";
// placering="right"box(0, 0, 0, placering, "#C0C0C0", fn); // (X, Y, Z, left/right, colorName)
// Monteringsplattan
// mountingPlate(0, 0, 0, placering);// LED belysning
// LEDlampa(0, 0, 0, placering);// - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
// - - - - m o d u l e r - - - - - - - - - - - - - - - - - -//
---================
//====== box
---===
module box(posX=0, posY=0, posZ=0, mountSide="left", colorName="#00FF00", fn=24)
{
side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case workedcolor(colorName)
translate([posX, posY, posZ])
mirror([side, 0, 0])
difference()
{
union()
{
// Skapa konturer på bottenplattan - x, y, r, angles, [grader], början
// Rotation medurs - vänster lamphållare (bakant saknas)
points1 = circSect( 140, 0, 0, [0, 0], "right", 1, fn); // böj nere till höger
points2 = circSect( 60, 5, 5, [0, 5], "bottom", 1, fn); // brytpunkt längst ned
points3 = circSect( 10, 13, 10, [0, 90], "bottom", 1, fn); // böj nere till vänster
points4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // böj uppe till vänster
points5 = circSect( 140, 80, 5, [0, 1], "top", 1, fn); // böj uppe till höger
edge = concat(points1, points2, points3, points4, points5);
path = path3d(reverse(edge));
section = wall();
path_sweep( section, path, closed=false);// Skapa bakkant lite högre och smalare i topp
bottom1 = concat(points5, points1);
polygon(bottom1);
path1 = path3d(reverse(bottom1));
section1 = wall1(); // lite högre bakvägg wall(b=4, f=8, h=15, t=3.5)
path_sweep( section1, path1, closed=false);// fyll upp bottenplattansbaksida
linear_extrude(4) // Bottomplate - fill up
polygon(concat(points1, points2, points3, points4, points5));// skapa Utskjutande del under (tänk spegelvänt)
pt1 = circSect( 19.5, 85, 0, [0, 50], "top", 1, fn); // Uppe till höger - moturs
pt2 = circSect( 39, 1.35, .1, [-5, 90], "right", 1, fn); // Nere till höger
pt3 = circSect( 10, 13.05, 10, [0, 90], "bottom", 1, fn); // Nere till vänster
pt4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // Uppe till vänster
translate([0, 0, -2])
linear_extrude(2.1)
polygon(concat(pt1, pt2, pt3, pt4));// utgången för kabeln på baksidan (diam 10mm) - pekar lite nedåt
cableExit(65, 35, 0, 15, "cyan", $fn=100);
}// skapa ett borrhål i bakkant
translate([132,60,15])
{ rotate([0, 90, 0])
{ cylinder(h=10, d=2, $fn=100);
cylinder(h=4, d=9, $fn=100);
}
}// skapa en borrmarkering i bakkant
translate([139,25,15])
{ rotate([0, 90, 0])
cylinder(h=2, d1=1, d2=2.5, $fn=100);
}// ingravera årtalet på baksidan
translate([10, 80, -0.5])
{ mirror([side, 0, 0])
{ rotate([0, 180, 0])
{ linear_extrude(3)
text("2022", size=12, direction="ttb", font="Comic Sans MS:style=Bold");
}
}
}/*
// Markera skruvhål på bakkant
borr=3;
bredd=140;
hojd=8;
avstNed=20;
translate([bredd, avstNed, hojd])
{ rotate([0,90,0])
cylinder(h=2, d1=0.5, d2=borr, center=true, $fn=50);
}
*/// borrhål
mountingHole(20, 36, 0, 7, 90.1, 15); // posX, posY, posZ, diam, dist, deep, $fn=50}
}
//======== Slut box
---=============================//
---================
//====== cableExit
---==============================
module cableExit(posX, posY, posZ, angle, colorName)
{ diamHole = 7;
diamHolder = 9.8;
hight = 12;
topRad = diamHolder/2;
topDiam = diamHolder/2-topRad/2;
bowRad = 7;
offs1 = 0.1;color(colorName)
translate([posX, posY, posZ])
{ rotate([180, 0, 180-angle])
{ difference()
{ hull()
{ cylinder(h=hight, d=diamHolder, center=false);
translate([0, 0, hight]) // rundad topp
rotate_extrude(angle=360, convexity=2)
translate([topDiam, 0, 0]) // yttre diam topp
circle(d=topRad); // radie topp
}inpHight = 2; // ett värde som styr var utgångshålet hamnar translate([0, 0, -offs1]) cylinder(h=inpHight+offs1, d=diamHole, center=false); // Bottenhål translate([-bowRad, 0, inpHight-offs1]) // böjen { rotate([90, 0, 0]) rotate_extrude(angle=90, convexity=10) translate([bowRad, 0, 0]) // ställ in radien på kabelböjen circle(d=diamHole); } } }
}
}
//====== slut cableExit
---=========================//
---================
//====== mountingHole
---===========================
module mountingHole(posX=0, posY=0, posZ=0, diam=7, dist=90, deep=5, $fn=50)
{ // diam = 6; // [mm]
// dist = 90; // [mm]
// deep = 12; // [mm]translate([posX, posY, posZ])
{ translate([0, 0, -10])
cylinder(h=deep, d=diam); // fästhål 1//cableHold1(dist/2, 0, .2, "#D5D5D5"); // Kabelgenomföring translate([dist/2, 0, 0]) { hull() { cylinder(h=5, d=6); // fästhål 1 sphere(d=7.5); } } translate([dist, 0, -10]) cylinder(h=deep, d=diam); // fästhål 2
}
}
//====== slut mountingHole
---======================//
---================
//====== LEDlampa
---===============================
// module LEDlampa(posX=8, posY=10, posZ=0)
module LEDlampa(posX=0, posY=0, posZ=0, mountSide="left")
{ side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case workedxpos = mountSide == "left" ? 121
: mountSide == "right" ? -10
: assert(false,"invalid moutSide value"); // message if no case worked
/*
ypos = mountSide == "left" ? 10.5
: mountSide == "right" ? 10.5
: assert(false,"invalid moutSide value"); // message if no case workedzpos = mountSide == "left" ? 5
: mountSide == "right" ? 5
: assert(false,"invalid moutSide value"); // message if no case worked
*/
// echo(xpos,ypos,zpos);
// translate([xpos, ypos, zpos])
translate([xpos, 10.5, 5])
mirror([1, 0, 0])
translate([posX, posY, posZ])
{ LEDbottom();
translate([0, 0, 11])
LEDglas();
}
}
//====== Slut LEDlampa
---==========================//
---================
//====== LEDglas
---================================
module LEDglas()
{
// Variabler botten
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mmcornRad = 10; // Radien i alla hörn
wideCorn = 48; // Bredd i kanternadiamHole = 6; // håldiameter i mm
colorBot = "gray";
colorTop = "orange";// Variabler top
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mmp1tx = 10; // the start value
p1ty = 49.25;
p2tx = 55.5; // the middle value
p2ty = 50.5;
p3tx = 101; // the end value
p3ty = p1ty;p4tx = 101; // the start value
p4ty = 1.25;
p5tx = 55.5; // the middle value
p5ty = 0.0;
p6tx = 10; // the end value
p6ty = p4ty;
// Ger ovalt glas
points1 = 3points_arc([p1tx,p1ty], [p2tx,p2ty], [p3tx,p3ty], fn=100);
points2 = 3points_arc([p4tx,p4ty], [p5tx,p5ty], [p6tx,p6ty], fn=100);color("orange")
linear_extrude(height=cornHigh+.1)
difference()
{ polygon(concat(points1, points2));translate([length-10 , wideMid / 2, -.2]) circle(d=6); translate([10 , wideMid / 2, -.2]) circle(d=6);
}
// Top
color(colorTop)
difference()
{ hull()
{ // hörn1
translate([cornRad, wideMid - ((wideMid-wideCorn)/2) - cornRad, 0]) // [10,39]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn2
translate([cornRad, cornRad + ((wideMid-wideCorn)/2), 0]) // [10,12]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn3
translate([length - cornRad, wideMid - ((wideMid-wideCorn)/2) - cornRad, 0]) // [101 ,39]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn4
translate([length - cornRad, cornRad + ((wideMid-wideCorn)/2), 0]) //
cylinder(h=cornHigh, d=cornRad2, center=false);
}union() { // Monteringshål 1 & 2 translate([length-10 , wideMid / 2, -.2]) cylinder(d=diamHole, h=highTop+.5, center=false); translate([10 , wideMid / 2, -.2]) cylinder(d=diamHole, h=highTop+.5, center=false); }
}
}
//======== Slut LEDglas
---=========================//
---================
//====== LEDbottom
---==============================
module LEDbottom()
{ p1x = 10; // the start value
p1y = 49.25;
p2x = 55.5; // the middle value
p2y = 50.5;
p3x = 101; // the end value
p3y = p1y;p4x = 101; // the start value
p4y = 1.25;
p5x = 55.5; // the middle value
p5y = 0.0;
p6x = 10; // the end value
p6y = p4y;// Variabler botten för borrhålen
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mm
diamHole = 6; // håldiameter i mm
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mm
// offs1 = 0.1;
heightHole = 15; //mm
height = 11; //mmpoints1 = circSect( 10, 11.25, 10, [0, 90], "bottom", 1, fn); // Hörn nere till vänster
points2 = circSect( 10, 39.25, 10, [0, 90], "left", 1, fn); // Hörn uppe till vänster
points3 = 3points_arc([p1x,p1y], [p2x,p2y], [p3x,p3y], fn);
points4 = circSect( 101, 39.25, 10, [0, 90], "top", 1, fn); // Hörn uppe till höger
points5 = circSect( 101, 11.25, 10, [0, 90], "right", 1, fn); // Hörn nere till höger
points6 = 3points_arc([p4x,p4y], [p5x,p5y], [p6x,p6y], fn);// The base plate for the LED lamp
difference()
{ color("gray", 0.5)
linear_extrude(height=height)
polygon(concat(points1, points2, points3, points4, points5, points6));// union()
{ // Monteringshål 1 & 2
translate([length-10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
translate([10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
}
}
}
//======== Slut LEDbottom
---=======================//
---================
//====== circleSect
---=============================
// Create rounded corners 2D
// https://openhome.cc/eGossip/OpenSCAD/SectorArc.html
// ange .: x, y, radien,
// [från, till] vinkel,
// var vinkeln startar, (left, bottom, right, top)
// vilken rotation (-1=medsol, 1=motsols)
function circSect(x=0, y=0, radius=10, angles=[0,270], startRef="bottom", rotate=1, fn=24) =
let(
startAngel = (startRef == "left") ? 0
: (startRef == "bottom") ? 90
: (startRef == "right") ? 180
: (startRef == "top") ? 270
: startRef, // valfri vinkel
// : assert(false,"invalid moutSide value"); // Error message if no case worked
//: undef,
r = radius,
//r = radius / cos(180 / fn),
step = 360 / fn,
// points = [[x, y],
points = [
for(a = [angles[0]-startAngel : step : angles[1]-startAngel])
[-rotate * r * cos(a)+x, r * sin(a)+y]]
) points;
//======== Slut circleSect
---======================//
---================
//====== 3points_arc
---============================
// Create an arc with three points 2D
function 3points_arc(p0, p1, p2, fn=10) =
// an alternative expression for D
// D = 2 * ( (p1-p0).x * (p2-p0).y - (p1-p0).y * (p2-p0).x )
let( D = 2 * cross(p1-p0, (p2-p0)) )
assert( abs(D)>1e-9, "The 3 points should not be collinear." )
let(
Ux = ( (p2-p0).y*(p1-p0)(p1-p0) - (p1-p0).y(p2-p0)(p2-p0) )/D,
Uy = ( (p1-p0).x(p2-p0)(p2-p0) - (p2-p0).x(p1-p0)(p1-p0) )/D,
radius = norm([Ux,Uy]),
center = [Ux,Uy] + p0,
ang0 = atan2( (p0-center).y, (p0-center).x ),
ang2 = atan2( (p2-center).y, (p2-center).x ),
// the points are in a cw winding iff D<0
// the angular difference between vectors p2-center and p0-center
// measured from p0-center; dang is positive iff D is negative
dang = D<0 ? ang2<ang0 ? ang2-ang0 : ang2-ang0-360
: ang2>ang0 ? ang2-ang0 : ang2-ang0+360
)
[ for(i=[0:fn-1])
let( ang = ang0 + idang/(fn-1) )
center + radius*[cos(ang),sin(ang)] ];
//======== Slut 3points_arc
---=====================//
---================
//====== Wall som ett "L"
---=======================
// Normal vägghöjd
function wall() =
let(
b = 4, // botten - tjocklek
f = 8, // Foten
h = 15, // Höjd
t = 3.5, // Top
x = (b+(t/2) - (h - ( (-h / (f-t)) *t) )) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ])
)
union([points, top, sqr, diff]);
//======== Slut Wall
---============================//
---================
//====== Wall1 som ett "L"
---======================
// En högre vägg
function wall1() =
let(
b = 4, // botten - tjocklek
f = 7, // Foten
h = 25, // Höjd
t = 3, // Top
x = (b+(t/2) - (h - ((-h / (f-t)) *t))) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ])
)
union([points, top, sqr, diff]);
//======== Slut Wall1
---===========================//
---================
//====== Plåt på släp
---===========================
module mountingPlate(posX=0, posY=0, posZ=0, mountSide="left", colorName="#C0C0C0", $fn=50)
{ // Hörnpositionerna
posX1 = 120;
posY1 = 0;
posX2 = posX1;
posY2 = -200;
posX3 = 120 - 75;
posY3 = -200;
posX4 = 0;
posY4 = 0;
thick=2; // tjocklekside = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case workedxpos = mountSide == "left" ? 20
: mountSide == "right" ? -20
: assert(false,"invalid moutSide value"); // message if no case worked
/*
ypos = mountSide == "left" ? 85
: mountSide == "right" ? 85
: assert(false,"invalid moutSide value"); // message if no case workedzpos = mountSide == "left" ? -thick
: mountSide == "right" ? -thick
: assert(false,"invalid moutSide value"); // message if no case worked
*/
color(colorName)
{ translate([posX, posY, posZ])
translate([xpos, 85, -thick])
{ mirror([side, 0, 0])
{ linear_extrude(thick)
hull()
{ translate([posX1, posY1, 0])
square(0.1, center = true);
translate([posX2, posY2, 0])
square(0.1, center = true);
translate([posX3, posY3, 0])
square(0.1, center = true);
translate([posX4, posY4, 0])
square(0.1, center = true);
}
}
}
}
}
= = END product 1= = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
- . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . -
= = product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
- . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . -
$fn=100;
//$fn=15;//switch();
//cableHolder4(); //Switchboxen// cableHolder3(0, 0, 0, 33.5, 23.5, 1.5, 2);
// showCables();module cableHolder4(fn=24);
{ // idé från
// - https://www.thingiverse.com/thing:6400/files
// - https://ihrchive.wordpress.com/2011/02/14/openscad-tip-round-1-of-3-basic-rounding/// mått på Switch
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
spaceHold = 10.0; // utrymmet bakom switch
holdRadie = 2; // radie i hörnen
thick = 2;
offset1=0.5; // öka toleransen// innermått
holeW = widthHold + offset1;
holeH = heightHold + offset1;
holeD = depthHold + spaceHold+offset1;// yttermått
pad = 0.1; // Padding to maintain manifold
box_l = holeW + thick*2; // Bredden på switchen
box_w = holeD + thick; // Djupet på switchen
box_h = holeH + thick; // Height
round_r = holdRadie; // Radius of round
smooth = 45; // Number of facets of rounding cylinderdifference()
{ union() // Detta utförs i två steg.
{ difference() // utför fasningar och kabelmarkeringar
{ mainBox(box_l, box_w, box_h, spaceHold+thick, round_r, thick, smooth, pad);// fasning vänster (underkant) translate([box_l/2-0.85, spaceHold-4.3, thick-offset1]) // sidled, fram/bak , upp/ned rotate([0,180,45]) cylinder(h=thick, d1=holeW*1.414-thick-thick, d2=holeW*1.414, $fn=4); // fasning höger (underkant) translate([box_l/2-3.65, spaceHold-4.3, thick-offset1]) // sidled, fram/bak , upp/ned rotate([0,180,45]) cylinder(h=thick, d1=holeW*1.414-thick-thick, d2=holeW*1.414, $fn=4); // kabelgenomföringar rotate([90, 180, 90]) // Markering ena sidan (vänster under) ovalCableHole(spaceHold/2-offset1, -1.75, -1.2); rotate([90, 180, 180]) // Markering bakkant (vänster under) ovalCableHole(spaceHold/2-1.55, -1.75, -spaceHold-0.85); rotate([90, 180, 180]) // Markering bakkant (höger under) ovalCableHole(widthHold-spaceHold/2-offset1, -1.75, -spaceHold-0.85); rotate([90, -180, 90]) // Markering ena sidan (höger under) ovalCableHole(3.75, -1.75, widthHold-0.1); } } // Slut union - kropp translate([-offset1/2, -spaceHold+pad, -pad]) // hålet där switchen ska placeras cube([holeW, holeD+pad, holeH+pad], center=false); translate([4, 12, 0]) cylinder(h=15,d=3.2); translate([4, 12, 17.7]) sphere(r=6); translate([29.6, 12, 0]) cylinder(h=15,d=3.2); translate([29.6, 12, 17.7]) sphere(r=6); /* // Hål genom lock bak - om så önskas translate([box_l/2-thick, -6, offset1/2]) cylinder(h=box_h+thick*4+offset1, d=3.2, $fn=100); // hål genom lock bak translate([box_l/2-thick, -6, 17.7]) sphere(r=6); // kona hålet bak */
} // Slut difference() - box
difference() { union() { translate([29.6, 12, heightHold-offset1*2]) cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv1 translate([4, 12, heightHold-offset1*2]) cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv2 translate([holeW/2, -spaceHold+thick+1, holeH/2]) rotate([180,0,0]) backHole(); } // union - slut translate([4, 12, 0]) // Hålen i stödhylsorna cylinder(h=15,d=3.2); translate([29.6, 12, 0]) // Hålen i stödhylsorna cylinder(h=15,d=3.2); translate([box_l/2-thick, -6, -offset1]) // hål i stödhylsa bak cylinder(h=box_h+offset1, d=3.2, $fn=100); // Sänk stödhylsan translate([ widthHold/2-7, -spaceHold-offset1, -thick+offset1]) // hål i stödhylsa bak cube([15, 8, 3]); // kabelmarkering // translate([0, 0, 0]) // hål i stödhylsa bak }
/*
translate([4, 12, 0])
#cylinder(h=15,d=3.2);
//translate([4, 13.5, 17.3])
//#sphere(r=6);translate([29.6, 12, 0]) #cylinder(h=15,d=3.2); //translate([29.6, 13.5, 17.3]) //#sphere(r=6);
*/
}
module backHole()
{ wallH = 10.5;wide1 = 12; // endast runt cylindern
wide2 = 35; // hela väggen
deep1 = 4;
height1 = 10.5;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;//rundadFot();
// Rundad stäcka mellan t.ex. vägg och tak -bakkant
translate([wide2/2, diam1/2-cornRad1/2, -height1/2])
{ rotate([90, 0, -90])
{ linear_extrude(wide2)
{ difference()
{ square([cornRad1, cornRad1]);translate([cornRad1, cornRad1]) circle(r=cornRad1); } } }
}
// rundad stäcka1 (vänster) mellan t.ex. vägg och tak
translate([-wide2/2+0.15, deep1/2+cornRad1/2, -height1/2])
rotate([90, 0, 0])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);translate([cornRad1, cornRad1]) circle(r=cornRad1); } }
}
// rundad stäcka2 mellan t.ex. vägg och tak
translate([wide2/2-0.65, deep1/2+cornRad1/2, -height1/2])
rotate([0, -90, 90])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);translate([cornRad1, cornRad1]) circle(r=cornRad1); } }
}
// Skapa stödfot - bak
difference()
{ union()
{ //själva cylindern
translate([0, 1, 0])
{ cylinder(h=height1, d=diam1, center=true);
translate([0, diam1/2, 0])
cube([diam1,diam1-1,height1], center=true);
}// Rundad fot under cylinder ovan translate([0, 1, -height1/2]) { rotate_extrude() { translate([diam1/2, 0, 0]) { difference() { square([cornRad1, cornRad1]); translate([cornRad1, cornRad1]) circle(r=cornRad1); } } } } // Rundad rakstäcka1 - cylinderfot - mellan t.ex. vägg och tak translate([diam1/2, diam1, -height1/2]) { rotate([90, 0, 0]) { linear_extrude(diam1) { difference() { square([cornRad1, cornRad1]); translate([cornRad1, cornRad1]) circle(r=cornRad1); } } } } // Rundad rakstäcka2 - cylinderfot - mellan t.ex. vägg och tak translate([-diam1/2, diam1, -height1/2]) { rotate([0, -90, 90]) { linear_extrude(diam1) { difference() { square([cornRad1, cornRad1]); translate([cornRad1, cornRad1]) circle(r=cornRad1); } } } } //väggen bakom cylindern som ska rundas translate([0, diam1/2-cornRad1, 0]) cube([wide1, cornRad1, height1], center=true); } // Avrunda hörn1 bak translate([-wide1/2, cornRad1/2, cornRad1]) { hull() { cylinder(h=height1+opt1, r=cornRad1, center=true); { translate([0, 0, -height1/2]) sphere(r=cornRad1); } } } // Avrunda hörn2 bak translate([wide1/2, cornRad1/2, cornRad1]) { hull() { cylinder(h=height1+opt1, r=cornRad1, center=true); { translate([0, 0, -height1/2]) sphere(r=cornRad1); } } } // Plocka bort rundad fot bak samt det som sticker ut translate([-wide1/2, diam1/2-cornRad1/2, -height1/2-opt1]) cube([wide1, diam1/2+cornRad1, height1+opt1*2], center=false);
}
}module ovalCableHole(posX, posY, posZ)
{ // Hål 5.5 x 3.5 mm
pan = 0.1;
cableHi = 1.5;translate([posX, posY, posZ])
{ color("white")
{ translate([0, 0, -pan])
{ cylinder(h=cableHi, d=3.5);
//#translate([0, 0, 0]) cylinder(h=10, d=1);
//translate([0, 0, -1]) cylinder(h=1, d1=0, d2=1);
//translate([0, 0, 0]) sphere(d=1); // Inre kulan
//translate([0, 0, 1.5]) sphere(d=1); // Inre kulantranslate([0, 0, -1]) sphere(d=0.8); // yttre kulan translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan } translate([2, 0, -pan]) { cylinder(h=cableHi, d=3.5); // #translate([0, 0, -cableHi*2]) cylinder(h=10, d=0.5); //translate([0, 0, 0]) sphere(d=1); // Inre kulan //translate([0, 0, 1.5]) sphere(d=1); // Inre kulan translate([0, 0, -1]) sphere(d=0.8); // yttre kulan translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan } translate([-3.5/2, 0, -pan]) cube([5.5, 3.5/2, cableHi]); translate([-0.25, -1.74, -pan]) cube([2.5, 1.75, cableHi]); }
}
}module rundadFot()
{
// specifika värden för skruvdistansen bak
wallH = 10.5;wide1 = 12; // endast runt cylindern
wide2 = 34; // hela väggen
deep1 = 4;
height1 = 10;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;color("magenta")
{ translate([0, 0, wallH])
{ difference()
{ union()
{ // Bakgavel
translate([wide2/2, opt1, height1/2])
{ rotate([90, 180, 0])
cube([wide2, height1, opt1]);
}// Golv translate([wide2/2, -height1+opt1, -height1/2]) rotate([0, 180, 0]) cube([wide2, height1, opt1]); //väggen bakom cylindern som kan rundas translate([0, -cornRad1/2, 0]) cube([wide1, cornRad1, height1], center=true); //själva cylindern translate([0, -cornRad1/2, 0]) cylinder(h=height1, d=diam1, center=true); // Rundad fot under cylinder ovan translate([0, -cornRad1/2, -height1/2]) { rotate_extrude() { translate([diam1/2, 0, 0]) { difference() { square([cornRad1, cornRad1]); translate([cornRad1, cornRad1]) circle(r=cornRad1); } } } } // Rundad stäcka mellan t.ex. vägg och tak -bakkant translate([wide2/2, 0, -height1/2]) { rotate([90, 0, -90]) { linear_extrude(wide2) { difference() { square([cornRad1, cornRad1]); translate([cornRad1, cornRad1]) circle(r=cornRad1); } } } } // rundad stäcka mellan t.ex. vägg och tak -sida1 translate([-wide2/2, 0, -height1/2]) { rotate([90, 0, 0]) { linear_extrude(10) { difference() { square([cornRad1, cornRad1]); translate([cornRad1, cornRad1]) circle(r=cornRad1); } } } } // rundad stäcka mellan t.ex. vägg och tak -sida2 translate([wide2/2, -10, -height1/2]) { rotate([90, 0, 180]) { linear_extrude(10) { difference() { square([cornRad1, cornRad1]); translate([cornRad1, cornRad1]) circle(r=cornRad1); } } } } } // Avsluta union = = = = = = = = = = = = = = = = = = = = // Avrunda hörn1 bak translate([-wide1/2+opt1*1.3, -deep1/2, cornRad1]) { cylinder(h=height1+opt1, r=cornRad1, center=true); translate([0, 0, -height1/2]) sphere(r=cornRad1); } // Avrunda hörn2 bak translate([wide1/2-opt1*1.3, -deep1/2, cornRad1]) { cylinder(h=height1+opt1, r=cornRad1, center=true); translate([0, 0, -height1/2]) sphere(r=cornRad1); } // Plocka bort rundad fot bak samt det som sticker ut translate([-wide1/2, 0, -height1/2-opt1]) cube([wide1, diam1/2+cornRad1, height1+opt1*2], center=false); } }
}
}module mainBox(box_l, box_w, box_h, spaceHold, round_r, thick, smooth, pad)
{ translate([box_l/2-thick-offset1/2, box_w/2-spaceHold, box_h/2])
{
// To fix the corners cut the main cube with smaller cubes with spheres removed
difference()
{ cube([box_l, box_w, box_h], center = true);// Kant1 - liggande translate([0, -box_w/2+round_r, box_h/2-round_r]) { difference() { translate([0,-round_r-pad,round_r+pad]) cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center = true); rotate(a=[0,90,0]) cylinder(box_l+4*pad,round_r,round_r,center=true,$fn=smooth); } } // Kant2 - liggande translate([0, box_w/2-round_r, box_h/2-round_r]) { difference() { translate([0,round_r+pad,round_r+pad]) cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center = true); rotate(a=[0,90,0]) cylinder(box_l+4*pad,round_r,round_r,center=true,$fn=smooth); } } /* // Kant3 - liggande translate([0, -box_w/2+round_r, -box_h/2+round_r]) { difference() { translate([0,-round_r-pad,-round_r-pad]) cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center = true); rotate(a=[0,90,0]) cylinder(box_l+4*pad,round_r,round_r,center=true,$fn=smooth); } } // Kant4 - liggande translate([0, box_w/2-round_r, -box_h/2+round_r]) { difference() { translate([0,round_r+pad,-round_r-pad]) cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center = true); rotate(a=[0,90,0]) cylinder(box_l+4*pad,round_r,round_r,center=true,$fn=smooth); } } */ // ---- // Kant1 - stående translate([-box_l/2+round_r, box_w/2-round_r, 0]) { difference() { translate([-round_r-pad,round_r+pad,0]) cube([round_r*2+pad, round_r*2+pad, box_h+2*pad], center = true); cylinder(box_h+4*pad,round_r,round_r,center=true,$fn=smooth); } } // Kant2 - stående translate([box_l/2-round_r, box_w/2-round_r, 0]) { difference() { translate([round_r+pad,round_r+pad,0]) cube([round_r*2+pad, round_r*2+pad, box_h+2*pad], center = true); cylinder(box_h+4*pad,round_r,round_r,center=true,$fn=smooth); } } // Kant3 - stående translate([-box_l/2+round_r, -box_w/2+round_r, 0]) { difference() { translate([-round_r-pad,-round_r-pad,0]) cube([round_r*2+pad, round_r*2+pad, box_h+2*pad], center = true); cylinder(box_h+4*pad,round_r,round_r,center=true,$fn=smooth); } } // Kant4 - stående translate([box_l/2-round_r, -box_w/2+round_r, 0]) { difference() { translate([round_r+pad,-round_r-pad,0]) cube([round_r*2+pad, round_r*2+pad, box_h+2*pad], center = true); cylinder(box_h+4*pad,round_r,round_r,center=true,$fn=smooth); } } // ---- // Kant1 liggande (andra hållet) translate([-box_l/2+round_r, 0, box_h/2-round_r]) { difference() { translate([-round_r-pad, 0, round_r+pad]) cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center = true); rotate(a=[0,90,90]) cylinder(box_w+4*pad,round_r,round_r,center=true,$fn=smooth); } } // Kant2 liggande (andra hållet) translate([box_l/2-round_r, 0, box_h/2-round_r]) { difference() { translate([round_r+pad, 0, round_r+pad]) cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center = true); rotate(a=[0,90,90]) cylinder(box_w+4*pad,round_r,round_r,center=true,$fn=smooth); } } /* // Kant3 liggande (andra hållet) translate([-box_l/2+round_r, 0, -box_h/2+round_r]) { difference() { translate([-round_r-pad, 0, -round_r-pad]) cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center = true); rotate(a=[0,90,90]) cylinder(box_w+4*pad,round_r,round_r,center=true,$fn=smooth); } } // Kant4 liggande (andra hållet) translate([box_l/2-round_r, 0, -box_h/2+round_r]) { difference() { translate([round_r+pad, 0, -round_r-pad]) cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center = true); rotate(a=[0,90,90]) cylinder(box_w+4*pad,round_r,round_r,center=true,$fn=smooth); } }
/
// ----
// Hörn1 (övre)
translate([box_l/2-round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (övre)
translate([-box_l/2+round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (övre)
translate([box_l/2-round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (övre)
translate([-box_l/2+round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
/
// Hörn1 (undre)
translate([box_l/2-round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (undre)
translate([-box_l/2+round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (undre)
translate([box_l/2-round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (undre)
translate([-box_l/2+round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
*/
}
}
}
//module cableHolder3(posX, posY, posZ, length, width, height, radius)
{ // Skapa toppen över switchen
// mått på Switchen
fn = 96; // upplösning (endast bågen?)
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
holdRadie = 1.5; // radie i hörnen
thick = 1.5; // tjocklektranslate([0,-thick,0])
{
difference(0, 0, 0)
{ hull()
{ difference()
{ translate([thick, 0, heightHold]) // vänster kant
{ rotate([-90, 0, 0])
{ cylinder(h=depthHold, d=thick2);
translate([0, 0, depthHold])
sphere(d=thick2); // längst fram
}
}
translate([0, -0.1, heightHold]) // plocka bort underdelen
rotate([-90, 0, 0])
cube([thick*2, thick+.1, depthHold+thick+.1]);
}difference() { translate([widthHold-thick, 0, heightHold]) // höger kant { rotate([-90, 0, 0]) { cylinder(h=depthHold, d=thick*2); translate([0, 0, depthHold]) sphere(d=thick*2); // längst fram } } translate([widthHold-thick*2, -0.1, heightHold]) // plocka bort underdelen { rotate([-90, 0, 0]) cube([thick*2, thick+.1, depthHold+thick+.1]); } } } // öppna hålen för monteringsskruvarna uppe på plattan translate([4, 13.5, 0]) cylinder(h=15,d=3.2); translate([4, 13.5, 17.3]) sphere(r=6); translate([29.6, 13.5, 0]) cylinder(h=15,d=3.2); translate([29.6, 13.5, 17.3]) sphere(r=6); } // halvbåge 1 bak translate([thick, 0, heightHold/2+thick/2]) rotate([0, 90, 180]) rotate_extrude(angle = 180, convexity=20, $fn=64) translate([heightHold/2-thick/2, 0, 0]) circle(d=thick*2); translate([thick, 0, heightHold]) sphere(d=thick*2); // övre kulan translate([thick, 0, thick]) sphere(d=thick*2); // undre kulan // halvbåge 2 bak translate([widthHold-thick, 0, heightHold/2+thick/2]) rotate([0, 90, 180]) rotate_extrude(angle = 180, convexity=20, $fn=64) translate([heightHold/2-thick/2, 0, 0]) circle(d=thick*2); translate([widthHold-thick, 0, heightHold]) sphere(d=thick*2); // övre kulan translate([widthHold-thick, 0, thick]) sphere(d=thick*2); // undre kulan // en cylinder tvärsöver längst upp translate([thick, 0, heightHold]) { rotate([0,90,0]) cylinder(h=widthHold-thick*2, r=thick); }
}
// Halvbågen (kabelhållaren) på baksidan switchen
translate([widthHold-thick, -thick, heightHold/2+thick/2])
{ rotate([0,90,180])
linear_extrude(widthHold-thick2)
arc(heightHold/2-thick/2, [0, 180], thick, fn); //radius, angles, width, fn)
}
// en cylinder tvärsöver längst ned
translate([thick, -thick, thick])
{ rotate([0,90,0])
cylinder(h=widthHold-thick2, r=thick);
}
}module switch(posX=0, posY=0, posZ=0)
{ buttRadie = 1.5;
height = 10.5;
width = 33.5;
depth = 23.5;
h1x = buttRadie;
h1y = buttRadie;
h2x = width-buttRadie;
h2y = buttRadie;
h3x = width-buttRadie;
h3y = depth-buttRadie;
h4x = buttRadie;
h4y = depth-buttRadie;translate([posX, posY, posZ])
{ difference()
{ color("#F9F9F3")
// tryck-knappen
union()
{ translate([width/2, depth+6-0.1, height/2])
{ rotate([90, 0, 0])
{ translate([0,0,6])
circle(d=6.8); // skuggan runt knapp
cylinder(h=6, d=6);
sphere(d=6);
}
}hull() // Switchkropp { translate([h1x, h1y]) cylinder(h=height, r=1.5); translate([h2x, h2y]) cylinder(h=height, r=1.5); translate([h3x, h3y]) cylinder(h=height, r=1.5); translate([h4x, h4y]) cylinder(h=height, r=1.5); } } // Skruvhålen för switchen hole( 4, 12, 0, "#FFD700", height); hole(29.6, 12, 0, "#FFD700", height); // hole( 4, 12, 0, "#FFD700", 50); // hole(29.6, 12, 0, "#FFD700", 50); // hål för kablar bak color("gray") { translate([9.5, 16, height/2]) { rotate([90, 0, 0]) cylinder(h=16.5, d=4); } translate([24.5, 16, height/2]) { rotate([90, 0, 0]) cylinder(h=16.5, d=4); } } // hål för kabelskruvar color("white") { translate([29.5, 17.1, height/2]) { rotate([0, 90, 0]) cylinder(h=4.1, d=4.5); } translate([-0.1, 17.1, height/2]) { rotate([0, 90, 0]) cylinder(h=4.1, d=4.5); } } } // Kabelskruvar cableScrew(3, 17, height/2, 90); cableScrew(31, 17, height/2, -90);
}
}// Skruven som håller fast kabeln i switchen
module cableScrew(posX=0, posY=0, posZ=0, angle=0)
{ color("#FFD700") // mässing
translate([posX, posY, posZ])
{ rotate([0, 0, angle])
{ difference()
{ // skruvskalle
translate([0, 0, 0])
rotate([90, 0, 0])
cylinder(h=2, d1=4, d2=3.5);// stjärnan i skruven translate([0, 1.85, -.25]) rotate([0, 0, 0]) cylinder(h=0.5, d=5); translate([-0.25, -.6, 2.25]) rotate([0, 90, 0]) cube([4.5, 2, 0.5]); } }
}
}// borrhål
module hole(posX=0, posY=0, posZ=0, colorName="yellow", height)
{ diamHole1 = 3;
highHole1 = height;
diamHole2 = 6;
highHole2 = 2.5;
offs=0.1;color(colorName)
{
translate([posX, posY, posZ])
{ translate([0, 0, 0])
cylinder(h=highHole1, d=diamHole1);
translate([0, 0, -offs])
cylinder(h=highHole2, d=diamHole2);
translate([0, 0, height-highHole2+offs])
cylinder(h=highHole2, d=diamHole2);
}
}
}module showCables()
{ translate([-25,8,24])
rotate([80,177,90])
cable(10,10,0,"brun");
translate([-43,8,15])
rotate([90,180,90])
cable(10,10,0,"blå");
}module cable(posX=0, posY=0, posZ=0, colorName="blå", radius=1.26, width=0.62, thick=50, fn=24)
{ // default 1.5mm2
// radius = inner radie
// width = bredd/tjocklek på cirkeln (inte höjd)
// thick = höjd på cirken/ röret
// pin=colCupper = "#D7715A";
colGreen = "#07DA63";
colYellow = "#FFCC00";if (colorName=="gröngul")
{ translate([posX, posY, posZ])
{ color(colGreen)
linear_extrude(thick)
arc(radius, [0, 60], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [60, 180], width, fn);
color(colGreen)
linear_extrude(thick)
arc(radius, [180, 240], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [240, 360], width, fn);color(colCupper) linear_extrude(10, center=true, convexity=10, $fn=100) circle(d=1.24); }
}
else // vanliga kablar 1.5mm2
{
cableColor = colorName == "blå" ? "#1870D5"
: colorName == "brun" ? "#9C6137"
: colorName == "svart" ? "#000000"
: assert(false,"invalid color value"); // message if no case worked
// : nodeftranslate([posX, posY, posZ]) { //el kabel - ena änden rak - andra böjd color(colCupper) //kopparstump tråd rakkabel linear_extrude(10, center=true, convexity=10, $fn=100) circle(d=1.24); color(cableColor) { cylinder(h=thick, r=radius); translate([-radius*2, 0, thick]) // kabelböj rotate([90, 0, 0]) rotate_extrude(angle=90, convexity=20) translate([2.5, 0, 0]) circle(r=1.26); translate([-radius*2, 0, thick+radius*2]) rotate([0, -90, 0]) cylinder(h=5, r=radius); } translate([-10, 0, thick+radius*2]) { rotate([0, -90, 0]) { color(colCupper) { linear_extrude(5, center=true, convexity=10, $fn=100) circle(d=1.24); } } } }
}
}//
---====
module arc(radius, angles, width = 1, fn = 24) {
difference() {
sector(radius + width, angles, fn); // ytterradie
sector(radius, angles, fn); // innerradie (plockar bort invändigt
}
}module sector(radius, angles, fn = 24) {
r = radius / cos(180 / fn);
step = -360 / fn;points = concat([[0, 0]], [for(a = [angles[0] : step : angles[1] - 360]) [r * cos(a), r * sin(a)] ], [[r * cos(angles[1]), r * sin(angles[1])]] ); difference() { circle(radius, $fn = fn); polygon(points); }
}
= = END product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
- . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . -
Den fredag 6 maj 2022 14:06:55 CEST, Michael Möller private2michael@gmail.com skrev:
OpenSCAD code - is a description of your model in terms of a few cylinder/cubes added and cut out
difference() {
cylinder(d=5,h=10);
translate([0,10,0]) cube([4,6,2]) ;
}STL file is a list of triangles which make the same outer shell as your model. OpenSCAD makes this complicated transform from shapes to triangles.
solid OpenSCAD_Model
facet normal 0.92388 0.382682 0
outer loop
vertex 2.5 0 3
vertex 1.76777 1.76777 0
vertex 1.76777 1.76777 3
endloop
endfacet
facet normal 0.92388 0.382682 0
outer loop
vertex 1.76777 1.76777 0
vertex 2.5 0 3
vertex 2.5 0 0
endloop
endfacet
: (and so on for 300 lines) There is a binary/compressed version, but the description is still just triangles.Gcode is what a 3D printer understands - it is the exact list of moves that the head has to do with how much plastic to squeeze to trace the outline of your shape, layer, by layer. It will optionally create moves for filling the inside or support for overhangs. Such a program is called a SLICER and the printer will come with one.
G92 E0 ; reset extrusion distance
G1 Z2.330 F6600.000 ; lift Z
G1 X-0.000 Y1.505 F6600.000 ; move to first perimeter point
G1 Z0.330 F6600.000 ; restore layer Z
G1 E3.00000 F2400.00000 ; unretract extruder 0
G1 F1500
G1 X-1.064 Y1.064 E3.09259 ; perimeter
G1 X-1.505 Y0.000 E3.18517 ; perimeter
: (many similar lines)
G1 X1.515 Y1.515 E4.65860 ; perimeter
G1 X0.055 Y2.120 E4.78559 ; perimeter
G1 X-0.000 Y2.143 F6600.000 ; move inwards before travel
G1 X0.384 Y0.843 F6600.000 ; move to first infill point
G1 F1500
G1 X0.843 Y0.384 E4.84815 ; infill
G1 X1.097 Y-0.229 E4.91215 ; infill
:
(and so on for thousands of lines)The 3MF still basically deals in triangles, and attributes (surface, infill material, picture, ticket info ... ) which probably are not used by your slicer/printer.
On Fri, 6 May 2022 at 12:37, Jan Öhman via Discuss discuss@lists.openscad.org wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
Hi!Thought to create some objects in openSCAD, to print later.
I do not have my own 3D printer (yet).One I talked to, wanted to get the drawings in .STL or .3MF. (I don't know the difference).
If I had my own printer, have I been able to print directly from openSCAD?
(Without some export?)In the openSCAD, no errors or problems occur.
but
The drawings I tested to export from openSCAD have given one or another error message.
One message .:
WARNING: Object may not be a valid 2-manifold and may need repair!Another message .:
WARNING: No top level geometry to renderWhat to do?
---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
Alright,
I have written a few functions, which can do similar shapes.
But again there is a learning curve. I feel BOSL is a very extensive work
(I have not used it though, except few interactions with Adrian)
you can refer to the m39.scad file in
https://github.com/sprabhakar2006/openSCAD
It is a kind of similar application.
Regards
Sanjeev
On Sat, 7 May 2022 at 22:27, Michael Möller private2michael@gmail.com
wrote:
Jan Öhman wrote it failed in Render/F6, but works in Preview/F5 - in so
many words. I tried and got the following
First model
[image: image.png]
F6 Error: WARNING: Ignoring 2D child object for 3D operation in file ,
line 53
ERROR: CGAL error in CGALUtils::applyUnion3D: CGAL ERROR: assertion
violation! Expr: G.mark(v1,0)==G.mark(v2,0)&& G.mark(v1,1)==G.mark(v2,1)
File:
/mxe/usr/x86_64-w64-mingw32.static.posix/include/CGAL/Nef_S2/SM_overlayer.h
Line: 303
Which I think is pretty selfexplantory: Passed a 2D shape to something
that expected a 3D shape - but you have to read the whole code to find it
... which I think Jan is more qualified to do :-)
2nd part
[image: image.png]
... which is one of those where zooming or rotating the model in preview
takes >5 second
[image: image.png]
And I didn't bother waiting for the F6 error ... ;-)
Of course, we do not know if the above shapes I got are the ones that Jan
wants - there are also sections of code commented out.
(From the comments it seems these are to be nice and alternative covers
for wall outlet/switches.)
On Sat, 7 May 2022 at 18:26, Sanjeev Prabhakar sprabhakar2006@gmail.com
wrote:
Quite a long code.
Can you paste a picture of what you are trying to draw.
Regards
Sanjeev
On Sat, 7 May 2022, 16:31 Jan Öhman via Discuss, <
discuss@lists.openscad.org> wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
Thank you!
Begins to understand how it works. (It was not easy...)
but my solution was not good ...
Here are 2 files that do not work to render (F6)
= = product 1= = = = = = = = = = = = = = = = = = = = = = = = = = = = =
= = =
include <BOSL2/std.scad>
fn = 150;
placering="left";
// placering="right"
box(0, 0, 0, placering, "#C0C0C0", fn); // (X, Y, Z, left/right,
colorName)
// Monteringsplattan
// mountingPlate(0, 0, 0, placering);
// LED belysning
// LEDlampa(0, 0, 0, placering);
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
// - - - - m o d u l e r - - - - - - - - - - - - - - - - - -
---================
//====== box
---===
module box(posX=0, posY=0, posZ=0, mountSide="left",
colorName="#00FF00", fn=24)
{
side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case
worked
color(colorName)
translate([posX, posY, posZ])
mirror([side, 0, 0])
difference()
{
union()
{
// Skapa konturer på bottenplattan - x, y, r, angles, [grader], början
// Rotation medurs - vänster lamphållare (bakant saknas)
points1 = circSect( 140, 0, 0, [0, 0], "right", 1, fn); // böj
nere till höger
points2 = circSect( 60, 5, 5, [0, 5], "bottom", 1, fn); //
brytpunkt längst ned
points3 = circSect( 10, 13, 10, [0, 90], "bottom", 1, fn); // böj
nere till vänster
points4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // böj
uppe till vänster
points5 = circSect( 140, 80, 5, [0, 1], "top", 1, fn); // böj
uppe till höger
edge = concat(points1, points2, points3, points4, points5);
path = path3d(reverse(edge));
section = wall();
path_sweep( section, path, closed=false);
// Skapa bakkant lite högre och smalare i topp
bottom1 = concat(points5, points1);
polygon(bottom1);
path1 = path3d(reverse(bottom1));
section1 = wall1(); // lite högre bakvägg wall(b=4, f=8, h=15, t=3.5)
path_sweep( section1, path1, closed=false);
// fyll upp bottenplattansbaksida
linear_extrude(4) // Bottomplate - fill up
polygon(concat(points1, points2, points3, points4, points5));
// skapa Utskjutande del under (tänk spegelvänt)
pt1 = circSect( 19.5, 85, 0, [0, 50], "top", 1, fn); // Uppe till
höger - moturs
pt2 = circSect( 39, 1.35, .1, [-5, 90], "right", 1, fn); // Nere
till höger
pt3 = circSect( 10, 13.05, 10, [0, 90], "bottom", 1, fn); // Nere
till vänster
pt4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // Uppe till
vänster
translate([0, 0, -2])
linear_extrude(2.1)
polygon(concat(pt1, pt2, pt3, pt4));
// utgången för kabeln på baksidan (diam 10mm) - pekar lite nedåt
cableExit(65, 35, 0, 15, "cyan", $fn=100);
}
// skapa ett borrhål i bakkant
translate([132,60,15])
{ rotate([0, 90, 0])
{ cylinder(h=10, d=2, $fn=100);
cylinder(h=4, d=9, $fn=100);
}
}
// skapa en borrmarkering i bakkant
translate([139,25,15])
{ rotate([0, 90, 0])
cylinder(h=2, d1=1, d2=2.5, $fn=100);
}
// ingravera årtalet på baksidan
translate([10, 80, -0.5])
{ mirror([side, 0, 0])
{ rotate([0, 180, 0])
{ linear_extrude(3)
text("2022", size=12, direction="ttb", font="Comic Sans
MS:style=Bold");
}
}
}
/*
// Markera skruvhål på bakkant
borr=3;
bredd=140;
hojd=8;
avstNed=20;
translate([bredd, avstNed, hojd])
{ rotate([0,90,0])
cylinder(h=2, d1=0.5, d2=borr, center=true, $fn=50);
}
*/
// borrhål
mountingHole(20, 36, 0, 7, 90.1, 15); // posX, posY, posZ, diam, dist,
deep, $fn=50
}
}
//======== Slut box
---=============================
---================
//====== cableExit
---==============================
module cableExit(posX, posY, posZ, angle, colorName)
{ diamHole = 7;
diamHolder = 9.8;
hight = 12;
topRad = diamHolder/2;
topDiam = diamHolder/2-topRad/2;
bowRad = 7;
offs1 = 0.1;
color(colorName)
translate([posX, posY, posZ])
{ rotate([180, 0, 180-angle])
{ difference()
{ hull()
{ cylinder(h=hight, d=diamHolder, center=false);
translate([0, 0, hight]) // rundad topp
rotate_extrude(angle=360, convexity=2)
translate([topDiam, 0, 0]) // yttre diam topp
circle(d=topRad); // radie topp
}
inpHight = 2; // ett värde som styr var utgångshålet hamnar
translate([0, 0, -offs1])
cylinder(h=inpHight+offs1, d=diamHole, center=false); //
Bottenhål
translate([-bowRad, 0, inpHight-offs1]) // böjen
{ rotate([90, 0, 0])
rotate_extrude(angle=90, convexity=10)
translate([bowRad, 0, 0]) // ställ in radien på kabelböjen
circle(d=diamHole);
}
}
}
}
}
//====== slut cableExit
---=========================
---================
//====== mountingHole
---===========================
module mountingHole(posX=0, posY=0, posZ=0, diam=7, dist=90, deep=5,
$fn=50)
{ // diam = 6; // [mm]
// dist = 90; // [mm]
// deep = 12; // [mm]
translate([posX, posY, posZ])
{ translate([0, 0, -10])
cylinder(h=deep, d=diam); // fästhål 1
//cableHold1(dist/2, 0, .2, "#D5D5D5"); // Kabelgenomföring
translate([dist/2, 0, 0])
{ hull()
{ cylinder(h=5, d=6); // fästhål 1
sphere(d=7.5);
}
}
translate([dist, 0, -10])
cylinder(h=deep, d=diam); // fästhål 2
}
}
//====== slut mountingHole
---======================
---================
//====== LEDlampa
---===============================
// module LEDlampa(posX=8, posY=10, posZ=0)
module LEDlampa(posX=0, posY=0, posZ=0, mountSide="left")
{ side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case
worked
xpos = mountSide == "left" ? 121
: mountSide == "right" ? -10
: assert(false,"invalid moutSide value"); // message if no case
worked
/*
ypos = mountSide == "left" ? 10.5
: mountSide == "right" ? 10.5
: assert(false,"invalid moutSide value"); // message if no case
worked
zpos = mountSide == "left" ? 5
: mountSide == "right" ? 5
: assert(false,"invalid moutSide value"); // message if no case
worked
*/
// echo(xpos,ypos,zpos);
// translate([xpos, ypos, zpos])
translate([xpos, 10.5, 5])
mirror([1, 0, 0])
translate([posX, posY, posZ])
{ LEDbottom();
translate([0, 0, 11])
LEDglas();
}
}
//====== Slut LEDlampa
---==========================
---================
//====== LEDglas
---================================
module LEDglas()
{
// Variabler botten
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mm
cornRad = 10; // Radien i alla hörn
wideCorn = 48; // Bredd i kanterna
diamHole = 6; // håldiameter i mm
colorBot = "gray";
colorTop = "orange";
// Variabler top
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mm
p1tx = 10; // the start value
p1ty = 49.25;
p2tx = 55.5; // the middle value
p2ty = 50.5;
p3tx = 101; // the end value
p3ty = p1ty;
p4tx = 101; // the start value
p4ty = 1.25;
p5tx = 55.5; // the middle value
p5ty = 0.0;
p6tx = 10; // the end value
p6ty = p4ty;
// Ger ovalt glas
points1 = 3points_arc([p1tx,p1ty], [p2tx,p2ty], [p3tx,p3ty], fn=100);
points2 = 3points_arc([p4tx,p4ty], [p5tx,p5ty], [p6tx,p6ty], fn=100);
color("orange")
linear_extrude(height=cornHigh+.1)
difference()
{ polygon(concat(points1, points2));
translate([length-10 , wideMid / 2, -.2])
circle(d=6);
translate([10 , wideMid / 2, -.2])
circle(d=6);
}
// Top
color(colorTop)
difference()
{ hull()
{ // hörn1
translate([cornRad, wideMid - ((wideMid-wideCorn)/2) - cornRad,
0]) // [10,39]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn2
translate([cornRad, cornRad + ((wideMid-wideCorn)/2), 0])
// [10,12]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn3
translate([length - cornRad, wideMid - ((wideMid-wideCorn)/2) -
cornRad, 0]) // [101 ,39]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn4
translate([length - cornRad, cornRad + ((wideMid-wideCorn)/2),
0]) //
cylinder(h=cornHigh, d=cornRad2, center=false);
}
union()
{ // Monteringshål 1 & 2
translate([length-10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=highTop+.5, center=false);
translate([10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=highTop+.5, center=false);
}
}
}
//======== Slut LEDglas
---=========================
---================
//====== LEDbottom
---==============================
module LEDbottom()
{ p1x = 10; // the start value
p1y = 49.25;
p2x = 55.5; // the middle value
p2y = 50.5;
p3x = 101; // the end value
p3y = p1y;
p4x = 101; // the start value
p4y = 1.25;
p5x = 55.5; // the middle value
p5y = 0.0;
p6x = 10; // the end value
p6y = p4y;
// Variabler botten för borrhålen
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mm
diamHole = 6; // håldiameter i mm
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mm
// offs1 = 0.1;
heightHole = 15; //mm
height = 11; //mm
points1 = circSect( 10, 11.25, 10, [0, 90], "bottom", 1, fn); //
Hörn nere till vänster
points2 = circSect( 10, 39.25, 10, [0, 90], "left", 1, fn); //
Hörn uppe till vänster
points3 = 3points_arc([p1x,p1y], [p2x,p2y], [p3x,p3y], fn);
points4 = circSect( 101, 39.25, 10, [0, 90], "top", 1, fn); //
Hörn uppe till höger
points5 = circSect( 101, 11.25, 10, [0, 90], "right", 1, fn); //
Hörn nere till höger
points6 = 3points_arc([p4x,p4y], [p5x,p5y], [p6x,p6y], fn);
// The base plate for the LED lamp
difference()
{ color("gray", 0.5)
linear_extrude(height=height)
polygon(concat(points1, points2, points3, points4, points5,
points6));
// union()
{ // Monteringshål 1 & 2
translate([length-10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
translate([10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
}
}
}
//======== Slut LEDbottom
---=======================
---================
//====== circleSect
---=============================
// Create rounded corners 2D
// https://openhome.cc/eGossip/OpenSCAD/SectorArc.html
// ange .: x, y, radien,
// [från, till] vinkel,
// var vinkeln startar, (left, bottom, right, top)
// vilken rotation (-1=medsol, 1=motsols)
function circSect(x=0, y=0, radius=10, angles=[0,270],
startRef="bottom", rotate=1, fn=24) =
let(
startAngel = (startRef == "left") ? 0
: (startRef == "bottom") ? 90
: (startRef == "right") ? 180
: (startRef == "top") ? 270
: startRef, // valfri vinkel
// : assert(false,"invalid moutSide value"); // Error
message if no case worked
//: undef,
r = radius,
//r = radius / cos(180 / fn),
step = 360 / fn,
// points = [[x, y],
points = [
for(a = [angles[0]-startAngel : step : angles[1]-startAngel])
[-rotate * r * cos(a)+x, r * sin(a)+y]]
) points;
//======== Slut circleSect
---======================
---================
//====== 3points_arc
---============================
// Create an arc with three points 2D
function 3points_arc(p0, p1, p2, fn=10) =
// an alternative expression for D
// D = 2 * ( (p1-p0).x * (p2-p0).y - (p1-p0).y * (p2-p0).x )
let( D = 2 * cross(p1-p0, (p2-p0)) )
assert( abs(D)>1e-9, "The 3 points should not be collinear." )
let(
Ux = ( (p2-p0).y*(p1-p0)(p1-p0) - (p1-p0).y(p2-p0)(p2-p0)
)/D,
Uy = ( (p1-p0).x(p2-p0)(p2-p0) - (p2-p0).x(p1-p0)(p1-p0)
)/D,
radius = norm([Ux,Uy]),
center = [Ux,Uy] + p0,
ang0 = atan2( (p0-center).y, (p0-center).x ),
ang2 = atan2( (p2-center).y, (p2-center).x ),
// the points are in a cw winding iff D<0
// the angular difference between vectors p2-center and p0-center
// measured from p0-center; dang is positive iff D is negative
dang = D<0 ? ang2<ang0 ? ang2-ang0 : ang2-ang0-360
: ang2>ang0 ? ang2-ang0 : ang2-ang0+360
)
[ for(i=[0:fn-1])
let( ang = ang0 + idang/(fn-1) )
center + radius*[cos(ang),sin(ang)] ];
//======== Slut 3points_arc
---=====================
---================
//====== Wall som ett "L"
---=======================
// Normal vägghöjd
function wall() =
let(
b = 4, // botten - tjocklek
f = 8, // Foten
h = 15, // Höjd
t = 3.5, // Top
x = (b+(t/2) - (h - ( (-h / (f-t)) *t) )) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ])
)
union([points, top, sqr, diff]);
//======== Slut Wall
---============================
---================
//====== Wall1 som ett "L"
---======================
// En högre vägg
function wall1() =
let(
b = 4, // botten - tjocklek
f = 7, // Foten
h = 25, // Höjd
t = 3, // Top
x = (b+(t/2) - (h - ((-h / (f-t)) *t))) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ])
)
union([points, top, sqr, diff]);
//======== Slut Wall1
---===========================
---================
//====== Plåt på släp
---===========================
module mountingPlate(posX=0, posY=0, posZ=0, mountSide="left",
colorName="#C0C0C0", $fn=50)
{ // Hörnpositionerna
posX1 = 120;
posY1 = 0;
posX2 = posX1;
posY2 = -200;
posX3 = 120 - 75;
posY3 = -200;
posX4 = 0;
posY4 = 0;
thick=2; // tjocklek
side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case
worked
xpos = mountSide == "left" ? 20
: mountSide == "right" ? -20
: assert(false,"invalid moutSide value"); // message if no case
worked
/*
ypos = mountSide == "left" ? 85
: mountSide == "right" ? 85
: assert(false,"invalid moutSide value"); // message if no case
worked
zpos = mountSide == "left" ? -thick
: mountSide == "right" ? -thick
: assert(false,"invalid moutSide value"); // message if no case
worked
*/
color(colorName)
{ translate([posX, posY, posZ])
translate([xpos, 85, -thick])
{ mirror([side, 0, 0])
{ linear_extrude(thick)
hull()
{ translate([posX1, posY1, 0])
square(0.1, center = true);
translate([posX2, posY2, 0])
square(0.1, center = true);
translate([posX3, posY3, 0])
square(0.1, center = true);
translate([posX4, posY4, 0])
square(0.1, center = true);
}
}
}
}
}
= = END product 1= = = = = = = = = = = = = = = = = = = = = = = = = = =
= = =
= = product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
= = =
$fn=100;
//$fn=15;
//switch();
//cableHolder4(); //Switchboxen
// cableHolder3(0, 0, 0, 33.5, 23.5, 1.5, 2);
// showCables();
module cableHolder4(fn=24);
{ // idé från
// - https://www.thingiverse.com/thing:6400/files
// -
https://ihrchive.wordpress.com/2011/02/14/openscad-tip-round-1-of-3-basic-rounding/
// mått på Switch
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
spaceHold = 10.0; // utrymmet bakom switch
holdRadie = 2; // radie i hörnen
thick = 2;
offset1=0.5; // öka toleransen
// innermått
holeW = widthHold + offset1;
holeH = heightHold + offset1;
holeD = depthHold + spaceHold+offset1;
// yttermått
pad = 0.1; // Padding to maintain manifold
box_l = holeW + thick*2; // Bredden på switchen
box_w = holeD + thick; // Djupet på switchen
box_h = holeH + thick; // Height
round_r = holdRadie; // Radius of round
smooth = 45; // Number of facets of rounding cylinder
difference()
{ union() // Detta utförs i två steg.
{ difference() // utför fasningar och kabelmarkeringar
{ mainBox(box_l, box_w, box_h, spaceHold+thick, round_r, thick,
smooth, pad);
// fasning vänster (underkant)
translate([box_l/2-0.85, spaceHold-4.3, thick-offset1]) //
sidled, fram/bak , upp/ned
rotate([0,180,45])
cylinder(h=thick, d1=holeW1.414-thick-thick,
d2=holeW1.414, $fn=4);
// fasning höger (underkant)
translate([box_l/2-3.65, spaceHold-4.3, thick-offset1]) //
sidled, fram/bak , upp/ned
rotate([0,180,45])
cylinder(h=thick, d1=holeW1.414-thick-thick,
d2=holeW1.414, $fn=4);
// kabelgenomföringar
rotate([90, 180, 90]) // Markering ena sidan (vänster under)
ovalCableHole(spaceHold/2-offset1, -1.75, -1.2);
rotate([90, 180, 180]) // Markering bakkant (vänster under)
ovalCableHole(spaceHold/2-1.55, -1.75, -spaceHold-0.85);
rotate([90, 180, 180]) // Markering bakkant (höger under)
ovalCableHole(widthHold-spaceHold/2-offset1, -1.75,
-spaceHold-0.85);
rotate([90, -180, 90]) // Markering ena sidan (höger under)
ovalCableHole(3.75, -1.75, widthHold-0.1);
}
} // Slut union - kropp
translate([-offset1/2, -spaceHold+pad, -pad]) // hålet där switchen
ska placeras
cube([holeW, holeD+pad, holeH+pad], center=false);
translate([4, 12, 0])
cylinder(h=15,d=3.2);
translate([4, 12, 17.7])
sphere(r=6);
translate([29.6, 12, 0])
cylinder(h=15,d=3.2);
translate([29.6, 12, 17.7])
sphere(r=6);
/* // Hål genom lock bak - om så önskas
translate([box_l/2-thick, -6, offset1/2])
cylinder(h=box_h+thick*4+offset1, d=3.2, $fn=100); // hål genom
lock bak
translate([box_l/2-thick, -6, 17.7])
sphere(r=6); // kona hålet bak
*/
} // Slut difference() - box
difference()
{ union()
{ translate([29.6, 12, heightHold-offset1*2])
cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv1
translate([4, 12, heightHold-offset1*2])
cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv2
translate([holeW/2, -spaceHold+thick+1, holeH/2])
rotate([180,0,0])
backHole();
} // union - slut
translate([4, 12, 0]) // Hålen i stödhylsorna
cylinder(h=15,d=3.2);
translate([29.6, 12, 0]) // Hålen i stödhylsorna
cylinder(h=15,d=3.2);
translate([box_l/2-thick, -6, -offset1]) // hål i stödhylsa bak
cylinder(h=box_h+offset1, d=3.2, $fn=100);
// Sänk stödhylsan
translate([ widthHold/2-7, -spaceHold-offset1, -thick+offset1])
// hål i stödhylsa bak
cube([15, 8, 3]);
// kabelmarkering
// translate([0, 0, 0]) // hål i stödhylsa bak
}
/*
translate([4, 12, 0])
#cylinder(h=15,d=3.2);
//translate([4, 13.5, 17.3])
//#sphere(r=6);
translate([29.6, 12, 0])
#cylinder(h=15,d=3.2);
//translate([29.6, 13.5, 17.3])
//#sphere(r=6);
*/
}
module backHole()
{ wallH = 10.5;
wide1 = 12; // endast runt cylindern
wide2 = 35; // hela väggen
deep1 = 4;
height1 = 10.5;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;
//rundadFot();
// Rundad stäcka mellan t.ex. vägg och tak -bakkant
translate([wide2/2, diam1/2-cornRad1/2, -height1/2])
{ rotate([90, 0, -90])
{ linear_extrude(wide2)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka1 (vänster) mellan t.ex. vägg och tak
translate([-wide2/2+0.15, deep1/2+cornRad1/2, -height1/2])
rotate([90, 0, 0])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
// rundad stäcka2 mellan t.ex. vägg och tak
translate([wide2/2-0.65, deep1/2+cornRad1/2, -height1/2])
rotate([0, -90, 90])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
// Skapa stödfot - bak
difference()
{ union()
{ //själva cylindern
translate([0, 1, 0])
{ cylinder(h=height1, d=diam1, center=true);
translate([0, diam1/2, 0])
cube([diam1,diam1-1,height1], center=true);
}
// Rundad fot under cylinder ovan
translate([0, 1, -height1/2])
{ rotate_extrude()
{ translate([diam1/2, 0, 0])
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad rakstäcka1 - cylinderfot - mellan t.ex. vägg och tak
translate([diam1/2, diam1, -height1/2])
{ rotate([90, 0, 0])
{ linear_extrude(diam1)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad rakstäcka2 - cylinderfot - mellan t.ex. vägg och tak
translate([-diam1/2, diam1, -height1/2])
{ rotate([0, -90, 90])
{ linear_extrude(diam1)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
//väggen bakom cylindern som ska rundas
translate([0, diam1/2-cornRad1, 0])
cube([wide1, cornRad1, height1], center=true);
}
// Avrunda hörn1 bak
translate([-wide1/2, cornRad1/2, cornRad1])
{ hull()
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
{ translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
}
}
// Avrunda hörn2 bak
translate([wide1/2, cornRad1/2, cornRad1])
{ hull()
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
{ translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
}
}
// Plocka bort rundad fot bak samt det som sticker ut
translate([-wide1/2, diam1/2-cornRad1/2, -height1/2-opt1])
cube([wide1, diam1/2+cornRad1, height1+opt1*2], center=false);
}
}
module ovalCableHole(posX, posY, posZ)
{ // Hål 5.5 x 3.5 mm
pan = 0.1;
cableHi = 1.5;
translate([posX, posY, posZ])
{ color("white")
{ translate([0, 0, -pan])
{ cylinder(h=cableHi, d=3.5);
//#translate([0, 0, 0]) cylinder(h=10, d=1);
//translate([0, 0, -1]) cylinder(h=1, d1=0, d2=1);
//translate([0, 0, 0]) sphere(d=1); // Inre kulan
//translate([0, 0, 1.5]) sphere(d=1); // Inre kulan
translate([0, 0, -1]) sphere(d=0.8); // yttre kulan
translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan
}
translate([2, 0, -pan])
{ cylinder(h=cableHi, d=3.5);
// #translate([0, 0, -cableHi*2]) cylinder(h=10, d=0.5);
//translate([0, 0, 0]) sphere(d=1); // Inre kulan
//translate([0, 0, 1.5]) sphere(d=1); // Inre kulan
translate([0, 0, -1]) sphere(d=0.8); // yttre kulan
translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan
}
translate([-3.5/2, 0, -pan])
cube([5.5, 3.5/2, cableHi]);
translate([-0.25, -1.74, -pan])
cube([2.5, 1.75, cableHi]);
}
}
}
module rundadFot()
{
// specifika värden för skruvdistansen bak
wallH = 10.5;
wide1 = 12; // endast runt cylindern
wide2 = 34; // hela väggen
deep1 = 4;
height1 = 10;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;
color("magenta")
{ translate([0, 0, wallH])
{ difference()
{ union()
{ // Bakgavel
translate([wide2/2, opt1, height1/2])
{ rotate([90, 180, 0])
cube([wide2, height1, opt1]);
}
// Golv
translate([wide2/2, -height1+opt1, -height1/2])
rotate([0, 180, 0])
cube([wide2, height1, opt1]);
//väggen bakom cylindern som kan rundas
translate([0, -cornRad1/2, 0])
cube([wide1, cornRad1, height1], center=true);
//själva cylindern
translate([0, -cornRad1/2, 0])
cylinder(h=height1, d=diam1, center=true);
// Rundad fot under cylinder ovan
translate([0, -cornRad1/2, -height1/2])
{ rotate_extrude()
{ translate([diam1/2, 0, 0])
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad stäcka mellan t.ex. vägg och tak -bakkant
translate([wide2/2, 0, -height1/2])
{ rotate([90, 0, -90])
{ linear_extrude(wide2)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka mellan t.ex. vägg och tak -sida1
translate([-wide2/2, 0, -height1/2])
{ rotate([90, 0, 0])
{ linear_extrude(10)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka mellan t.ex. vägg och tak -sida2
translate([wide2/2, -10, -height1/2])
{ rotate([90, 0, 180])
{ linear_extrude(10)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
} // Avsluta union = = = = = = = = = = = = = = = = = = = =
// Avrunda hörn1 bak
translate([-wide1/2+opt1*1.3, -deep1/2, cornRad1])
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
// Avrunda hörn2 bak
translate([wide1/2-opt1*1.3, -deep1/2, cornRad1])
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
// Plocka bort rundad fot bak samt det som sticker ut
translate([-wide1/2, 0, -height1/2-opt1])
cube([wide1, diam1/2+cornRad1, height1+opt1*2], center=false);
}
}
}
}
module mainBox(box_l, box_w, box_h, spaceHold, round_r, thick, smooth,
pad)
{ translate([box_l/2-thick-offset1/2, box_w/2-spaceHold, box_h/2])
{
// To fix the corners cut the main cube with smaller cubes with
spheres removed
difference()
{ cube([box_l, box_w, box_h], center = true);
// Kant1 - liggande
translate([0, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([0,-round_r-pad,round_r+pad])
cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 - liggande
translate([0, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([0,round_r+pad,round_r+pad])
cube([box_l+2pad, round_r2+pad, round_r2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// Kant3 - liggande
translate([0, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([0,-round_r-pad,-round_r-pad])
cube([box_l+2pad, round_r2+pad, round_r2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 - liggande
translate([0, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([0,round_r+pad,-round_r-pad])
cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// ----
// Kant1 - stående
translate([-box_l/2+round_r, box_w/2-round_r, 0])
{ difference()
{ translate([-round_r-pad,round_r+pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 - stående
translate([box_l/2-round_r, box_w/2-round_r, 0])
{ difference()
{ translate([round_r+pad,round_r+pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant3 - stående
translate([-box_l/2+round_r, -box_w/2+round_r, 0])
{ difference()
{ translate([-round_r-pad,-round_r-pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 - stående
translate([box_l/2-round_r, -box_w/2+round_r, 0])
{ difference()
{ translate([round_r+pad,-round_r-pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// ----
// Kant1 liggande (andra hållet)
translate([-box_l/2+round_r, 0, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, 0, round_r+pad])
cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 liggande (andra hållet)
translate([box_l/2-round_r, 0, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, 0, round_r+pad])
cube([round_r2+pad, box_w+2pad, round_r2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// Kant3 liggande (andra hållet)
translate([-box_l/2+round_r, 0, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, 0, -round_r-pad])
cube([round_r2+pad, box_w+2pad, round_r2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 liggande (andra hållet)
translate([box_l/2-round_r, 0, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, 0, -round_r-pad])
cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// ----
// Hörn1 (övre)
translate([box_l/2-round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (övre)
translate([-box_l/2+round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (övre)
translate([box_l/2-round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (övre)
translate([-box_l/2+round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
/*
// Hörn1 (undre)
translate([box_l/2-round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (undre)
translate([-box_l/2+round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (undre)
translate([box_l/2-round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (undre)
translate([-box_l/2+round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
*/
}
}
}
//
module cableHolder3(posX, posY, posZ, length, width, height, radius)
{ // Skapa toppen över switchen
// mått på Switchen
fn = 96; // upplösning (endast bågen?)
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
holdRadie = 1.5; // radie i hörnen
thick = 1.5; // tjocklek
translate([0,-thick,0])
{
difference(0, 0, 0)
{ hull()
{ difference()
{ translate([thick, 0, heightHold]) // vänster kant
{ rotate([-90, 0, 0])
{ cylinder(h=depthHold, d=thick2);
translate([0, 0, depthHold])
sphere(d=thick2); // längst fram
}
}
translate([0, -0.1, heightHold]) // plocka bort underdelen
rotate([-90, 0, 0])
cube([thick*2, thick+.1, depthHold+thick+.1]);
}
difference()
{ translate([widthHold-thick, 0, heightHold]) // höger kant
{ rotate([-90, 0, 0])
{ cylinder(h=depthHold, d=thick*2);
translate([0, 0, depthHold])
sphere(d=thick*2); // längst fram
}
}
translate([widthHold-thick*2, -0.1, heightHold]) // plocka
bort underdelen
{ rotate([-90, 0, 0])
cube([thick*2, thick+.1, depthHold+thick+.1]);
}
}
}
// öppna hålen för monteringsskruvarna uppe på plattan
translate([4, 13.5, 0])
cylinder(h=15,d=3.2);
translate([4, 13.5, 17.3])
sphere(r=6);
translate([29.6, 13.5, 0])
cylinder(h=15,d=3.2);
translate([29.6, 13.5, 17.3])
sphere(r=6);
}
// halvbåge 1 bak
translate([thick, 0, heightHold/2+thick/2])
rotate([0, 90, 180])
rotate_extrude(angle = 180, convexity=20, $fn=64)
translate([heightHold/2-thick/2, 0, 0])
circle(d=thick*2);
translate([thick, 0, heightHold])
sphere(d=thick*2); // övre kulan
translate([thick, 0, thick])
sphere(d=thick*2); // undre kulan
// halvbåge 2 bak
translate([widthHold-thick, 0, heightHold/2+thick/2])
rotate([0, 90, 180])
rotate_extrude(angle = 180, convexity=20, $fn=64)
translate([heightHold/2-thick/2, 0, 0])
circle(d=thick*2);
translate([widthHold-thick, 0, heightHold])
sphere(d=thick*2); // övre kulan
translate([widthHold-thick, 0, thick])
sphere(d=thick*2); // undre kulan
// en cylinder tvärsöver längst upp
translate([thick, 0, heightHold])
{ rotate([0,90,0])
cylinder(h=widthHold-thick*2, r=thick);
}
}
// Halvbågen (kabelhållaren) på baksidan switchen
translate([widthHold-thick, -thick, heightHold/2+thick/2])
{ rotate([0,90,180])
linear_extrude(widthHold-thick2)
arc(heightHold/2-thick/2, [0, 180], thick, fn); //radius,
angles, width, fn)
}
// en cylinder tvärsöver längst ned
translate([thick, -thick, thick])
{ rotate([0,90,0])
cylinder(h=widthHold-thick2, r=thick);
}
}
module switch(posX=0, posY=0, posZ=0)
{ buttRadie = 1.5;
height = 10.5;
width = 33.5;
depth = 23.5;
h1x = buttRadie;
h1y = buttRadie;
h2x = width-buttRadie;
h2y = buttRadie;
h3x = width-buttRadie;
h3y = depth-buttRadie;
h4x = buttRadie;
h4y = depth-buttRadie;
translate([posX, posY, posZ])
{ difference()
{ color("#F9F9F3")
// tryck-knappen
union()
{ translate([width/2, depth+6-0.1, height/2])
{ rotate([90, 0, 0])
{ translate([0,0,6])
circle(d=6.8); // skuggan runt knapp
cylinder(h=6, d=6);
sphere(d=6);
}
}
hull() // Switchkropp
{ translate([h1x, h1y])
cylinder(h=height, r=1.5);
translate([h2x, h2y])
cylinder(h=height, r=1.5);
translate([h3x, h3y])
cylinder(h=height, r=1.5);
translate([h4x, h4y])
cylinder(h=height, r=1.5);
}
}
// Skruvhålen för switchen
hole( 4, 12, 0, "#FFD700", height);
hole(29.6, 12, 0, "#FFD700", height);
// hole( 4, 12, 0, "#FFD700", 50);
// hole(29.6, 12, 0, "#FFD700", 50);
// hål för kablar bak
color("gray")
{ translate([9.5, 16, height/2])
{ rotate([90, 0, 0])
cylinder(h=16.5, d=4);
}
translate([24.5, 16, height/2])
{ rotate([90, 0, 0])
cylinder(h=16.5, d=4);
}
}
// hål för kabelskruvar
color("white")
{ translate([29.5, 17.1, height/2])
{ rotate([0, 90, 0])
cylinder(h=4.1, d=4.5);
}
translate([-0.1, 17.1, height/2])
{ rotate([0, 90, 0])
cylinder(h=4.1, d=4.5);
}
}
}
// Kabelskruvar
cableScrew(3, 17, height/2, 90);
cableScrew(31, 17, height/2, -90);
}
}
// Skruven som håller fast kabeln i switchen
module cableScrew(posX=0, posY=0, posZ=0, angle=0)
{ color("#FFD700") // mässing
translate([posX, posY, posZ])
{ rotate([0, 0, angle])
{ difference()
{ // skruvskalle
translate([0, 0, 0])
rotate([90, 0, 0])
cylinder(h=2, d1=4, d2=3.5);
// stjärnan i skruven
translate([0, 1.85, -.25])
rotate([0, 0, 0])
cylinder(h=0.5, d=5);
translate([-0.25, -.6, 2.25])
rotate([0, 90, 0])
cube([4.5, 2, 0.5]);
}
}
}
}
// borrhål
module hole(posX=0, posY=0, posZ=0, colorName="yellow", height)
{ diamHole1 = 3;
highHole1 = height;
diamHole2 = 6;
highHole2 = 2.5;
offs=0.1;
color(colorName)
{
translate([posX, posY, posZ])
{ translate([0, 0, 0])
cylinder(h=highHole1, d=diamHole1);
translate([0, 0, -offs])
cylinder(h=highHole2, d=diamHole2);
translate([0, 0, height-highHole2+offs])
cylinder(h=highHole2, d=diamHole2);
}
}
}
module showCables()
{ translate([-25,8,24])
rotate([80,177,90])
cable(10,10,0,"brun");
translate([-43,8,15])
rotate([90,180,90])
cable(10,10,0,"blå");
}
module cable(posX=0, posY=0, posZ=0, colorName="blå", radius=1.26,
width=0.62, thick=50, fn=24)
{ // default 1.5mm2
// radius = inner radie
// width = bredd/tjocklek på cirkeln (inte höjd)
// thick = höjd på cirken/ röret
// pin=
colCupper = "#D7715A";
colGreen = "#07DA63";
colYellow = "#FFCC00";
if (colorName=="gröngul")
{ translate([posX, posY, posZ])
{ color(colGreen)
linear_extrude(thick)
arc(radius, [0, 60], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [60, 180], width, fn);
color(colGreen)
linear_extrude(thick)
arc(radius, [180, 240], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [240, 360], width, fn);
color(colCupper)
linear_extrude(10, center=true, convexity=10, $fn=100)
circle(d=1.24);
}
}
else // vanliga kablar 1.5mm2
{
cableColor = colorName == "blå" ? "#1870D5"
: colorName == "brun" ? "#9C6137"
: colorName == "svart" ? "#000000"
: assert(false,"invalid color value"); // message if no
case worked
// : nodef
translate([posX, posY, posZ])
{ //el kabel - ena änden rak - andra böjd
color(colCupper) //kopparstump tråd rakkabel
linear_extrude(10, center=true, convexity=10, $fn=100)
circle(d=1.24);
color(cableColor)
{ cylinder(h=thick, r=radius);
translate([-radius*2, 0, thick]) // kabelböj
rotate([90, 0, 0])
rotate_extrude(angle=90, convexity=20)
translate([2.5, 0, 0])
circle(r=1.26);
translate([-radius*2, 0, thick+radius*2])
rotate([0, -90, 0])
cylinder(h=5, r=radius);
}
translate([-10, 0, thick+radius*2])
{ rotate([0, -90, 0])
{ color(colCupper)
{ linear_extrude(5, center=true, convexity=10, $fn=100)
circle(d=1.24);
}
}
}
}
}
}
---====
module arc(radius, angles, width = 1, fn = 24) {
difference() {
sector(radius + width, angles, fn); // ytterradie
sector(radius, angles, fn); // innerradie (plockar bort
invändigt
}
}
module sector(radius, angles, fn = 24) {
r = radius / cos(180 / fn);
step = -360 / fn;
points = concat([[0, 0]],
[for(a = [angles[0] : step : angles[1] - 360])
[r * cos(a), r * sin(a)]
],
[[r * cos(angles[1]), r * sin(angles[1])]]
);
difference() {
circle(radius, $fn = fn);
polygon(points);
}
}
= = END product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = =
= = =
Den fredag 6 maj 2022 14:06:55 CEST, Michael Möller <
private2michael@gmail.com> skrev:
OpenSCAD code - is a description of your model in terms of a few
cylinder/cubes added and cut out
difference() {
cylinder(d=5,h=10);
translate([0,10,0]) cube([4,6,2]) ;
}
STL file is a list of triangles which make the same outer shell as your
model. OpenSCAD makes this complicated transform from shapes to triangles.
solid OpenSCAD_Model
facet normal 0.92388 0.382682 0
outer loop
vertex 2.5 0 3
vertex 1.76777 1.76777 0
vertex 1.76777 1.76777 3
endloop
endfacet
facet normal 0.92388 0.382682 0
outer loop
vertex 1.76777 1.76777 0
vertex 2.5 0 3
vertex 2.5 0 0
endloop
endfacet
: (and so on for 300 lines) There is a binary/compressed version, but
the description is still just triangles.
Gcode is what a 3D printer understands - it is the exact list of moves
that the head has to do with how much plastic to squeeze to trace the
outline of your shape, layer, by layer. It will optionally create moves for
filling the inside or support for overhangs. Such a program is called a
SLICER and the printer will come with one.
G92 E0 ; reset extrusion distance
G1 Z2.330 F6600.000 ; lift Z
G1 X-0.000 Y1.505 F6600.000 ; move to first perimeter point
G1 Z0.330 F6600.000 ; restore layer Z
G1 E3.00000 F2400.00000 ; unretract extruder 0
G1 F1500
G1 X-1.064 Y1.064 E3.09259 ; perimeter
G1 X-1.505 Y0.000 E3.18517 ; perimeter
: (many similar lines)
G1 X1.515 Y1.515 E4.65860 ; perimeter
G1 X0.055 Y2.120 E4.78559 ; perimeter
G1 X-0.000 Y2.143 F6600.000 ; move inwards before travel
G1 X0.384 Y0.843 F6600.000 ; move to first infill point
G1 F1500
G1 X0.843 Y0.384 E4.84815 ; infill
G1 X1.097 Y-0.229 E4.91215 ; infill
:
(and so on for thousands of lines)
The 3MF still basically deals in triangles, and attributes (surface,
infill material, picture, ticket info ... ) which probably are not used by
your slicer/printer.
On Fri, 6 May 2022 at 12:37, Jan Öhman via Discuss <
discuss@lists.openscad.org> wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
Hi!
Thought to create some objects in openSCAD, to print later.
I do not have my own 3D printer (yet).
One I talked to, wanted to get the drawings in .STL or .3MF. (I don't
know the difference).
If I had my own printer, have I been able to print directly from
openSCAD?
(Without some export?)
In the openSCAD, no errors or problems occur.
but
The drawings I tested to export from openSCAD have given one or another
error message.
One message .:
WARNING: Object may not be a valid 2-manifold and may need repair!
Another message .:
WARNING: No top level geometry to render
What to do?
---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
Indeed you did Adrian, I was curious what that long code was going to
produce.
Michael, fra mobilen
lør. 7. maj 2022 19.06 skrev Adrian Mariano avm4@cornell.edu:
I already gave a full explanation of what's wrong and how to fix the
first program. It has a 2d polygon (easily found as there is one lone
polygon call) that needs to be removed or linear_extruded as
appropriate. And it makes use of path_sweep in a manner that produces
a self-intersecting polyhedron. This issue is explained in the manual
page for path_sweep. This can be fixed either by switching to
path_extrude2d() or by changing the corner radius to eliminate the
self-intersections. Or changing to a profile that can actually be
rounded at the desired radius.
https://github.com/revarbat/BOSL2/wiki/skin.scad#functionmodule-path_sweep
On Sat, May 7, 2022 at 12:57 PM Michael Möller
private2michael@gmail.com wrote:
Jan Öhman wrote it failed in Render/F6, but works in Preview/F5 - in so
many words. I tried and got the following
First model
F6 Error: WARNING: Ignoring 2D child object for 3D operation in file ,
line 53
ERROR: CGAL error in CGALUtils::applyUnion3D: CGAL ERROR: assertion
violation! Expr: G.mark(v1,0)==G.mark(v2,0)&& G.mark(v1,1)==G.mark(v2,1)
File:
/mxe/usr/x86_64-w64-mingw32.static.posix/include/CGAL/Nef_S2/SM_overlayer.h
Line: 303
Which I think is pretty selfexplantory: Passed a 2D shape to something
that expected a 3D shape - but you have to read the whole code to find it
... which I think Jan is more qualified to do :-)
2nd part
... which is one of those where zooming or rotating the model in preview
takes >5 second
And I didn't bother waiting for the F6 error ... ;-)
Of course, we do not know if the above shapes I got are the ones that
Jan wants - there are also sections of code commented out.
(From the comments it seems these are to be nice and alternative covers
for wall outlet/switches.)
On Sat, 7 May 2022 at 18:26, Sanjeev Prabhakar sprabhakar2006@gmail.com
wrote:
Quite a long code.
Can you paste a picture of what you are trying to draw.
Regards
Sanjeev
On Sat, 7 May 2022, 16:31 Jan Öhman via Discuss, <
discuss@lists.openscad.org> wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
Thank you!
Begins to understand how it works. (It was not easy...)
but my solution was not good ...
Here are 2 files that do not work to render (F6)
= = product 1= = = = = = = = = = = = = = = = = = = = = = = = = = = = =
= = =
. - . _ . - . _ . - . _ . - . _ . -
include <BOSL2/std.scad>
fn = 150;
placering="left";
// placering="right"
box(0, 0, 0, placering, "#C0C0C0", fn); // (X, Y, Z, left/right,
colorName)
// Monteringsplattan
// mountingPlate(0, 0, 0, placering);
// LED belysning
// LEDlampa(0, 0, 0, placering);
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
// - - - - m o d u l e r - - - - - - - - - - - - - - - - - -
---================
//====== box
---===
module box(posX=0, posY=0, posZ=0, mountSide="left",
colorName="#00FF00", fn=24)
{
side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no
case worked
color(colorName)
translate([posX, posY, posZ])
mirror([side, 0, 0])
difference()
{
union()
{
// Skapa konturer på bottenplattan - x, y, r, angles, [grader],
början
// Rotation medurs - vänster lamphållare (bakant saknas)
points1 = circSect( 140, 0, 0, [0, 0], "right", 1, fn); // böj
nere till höger
points2 = circSect( 60, 5, 5, [0, 5], "bottom", 1, fn); //
brytpunkt längst ned
points3 = circSect( 10, 13, 10, [0, 90], "bottom", 1, fn); // böj
nere till vänster
points4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // böj
uppe till vänster
points5 = circSect( 140, 80, 5, [0, 1], "top", 1, fn); // böj
uppe till höger
edge = concat(points1, points2, points3, points4, points5);
path = path3d(reverse(edge));
section = wall();
path_sweep( section, path, closed=false);
// Skapa bakkant lite högre och smalare i topp
bottom1 = concat(points5, points1);
polygon(bottom1);
path1 = path3d(reverse(bottom1));
section1 = wall1(); // lite högre bakvägg wall(b=4, f=8, h=15, t=3.5)
path_sweep( section1, path1, closed=false);
// fyll upp bottenplattansbaksida
linear_extrude(4) // Bottomplate - fill up
polygon(concat(points1, points2, points3, points4, points5));
// skapa Utskjutande del under (tänk spegelvänt)
pt1 = circSect( 19.5, 85, 0, [0, 50], "top", 1, fn); // Uppe till
höger - moturs
pt2 = circSect( 39, 1.35, .1, [-5, 90], "right", 1, fn); // Nere
till höger
pt3 = circSect( 10, 13.05, 10, [0, 90], "bottom", 1, fn); // Nere
till vänster
pt4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // Uppe till
vänster
translate([0, 0, -2])
linear_extrude(2.1)
polygon(concat(pt1, pt2, pt3, pt4));
// utgången för kabeln på baksidan (diam 10mm) - pekar lite nedåt
cableExit(65, 35, 0, 15, "cyan", $fn=100);
}
// skapa ett borrhål i bakkant
translate([132,60,15])
{ rotate([0, 90, 0])
{ cylinder(h=10, d=2, $fn=100);
cylinder(h=4, d=9, $fn=100);
}
}
// skapa en borrmarkering i bakkant
translate([139,25,15])
{ rotate([0, 90, 0])
cylinder(h=2, d1=1, d2=2.5, $fn=100);
}
// ingravera årtalet på baksidan
translate([10, 80, -0.5])
{ mirror([side, 0, 0])
{ rotate([0, 180, 0])
{ linear_extrude(3)
text("2022", size=12, direction="ttb", font="Comic Sans
MS:style=Bold");
}
}
}
/*
// Markera skruvhål på bakkant
borr=3;
bredd=140;
hojd=8;
avstNed=20;
translate([bredd, avstNed, hojd])
{ rotate([0,90,0])
cylinder(h=2, d1=0.5, d2=borr, center=true, $fn=50);
}
*/
// borrhål
mountingHole(20, 36, 0, 7, 90.1, 15); // posX, posY, posZ, diam,
dist, deep, $fn=50
}
}
//======== Slut box
---=============================
---================
//====== cableExit
---==============================
module cableExit(posX, posY, posZ, angle, colorName)
{ diamHole = 7;
diamHolder = 9.8;
hight = 12;
topRad = diamHolder/2;
topDiam = diamHolder/2-topRad/2;
bowRad = 7;
offs1 = 0.1;
color(colorName)
translate([posX, posY, posZ])
{ rotate([180, 0, 180-angle])
{ difference()
{ hull()
{ cylinder(h=hight, d=diamHolder, center=false);
translate([0, 0, hight]) // rundad topp
rotate_extrude(angle=360, convexity=2)
translate([topDiam, 0, 0]) // yttre diam topp
circle(d=topRad); // radie topp
}
inpHight = 2; // ett värde som styr var utgångshålet hamnar
translate([0, 0, -offs1])
cylinder(h=inpHight+offs1, d=diamHole, center=false); //
Bottenhål
translate([-bowRad, 0, inpHight-offs1]) // böjen
{ rotate([90, 0, 0])
rotate_extrude(angle=90, convexity=10)
translate([bowRad, 0, 0]) // ställ in radien på
kabelböjen
circle(d=diamHole);
}
}
}
}
}
//====== slut cableExit
---=========================
---================
//====== mountingHole
---===========================
module mountingHole(posX=0, posY=0, posZ=0, diam=7, dist=90, deep=5,
$fn=50)
{ // diam = 6; // [mm]
// dist = 90; // [mm]
// deep = 12; // [mm]
translate([posX, posY, posZ])
{ translate([0, 0, -10])
cylinder(h=deep, d=diam); // fästhål 1
//cableHold1(dist/2, 0, .2, "#D5D5D5"); // Kabelgenomföring
translate([dist/2, 0, 0])
{ hull()
{ cylinder(h=5, d=6); // fästhål 1
sphere(d=7.5);
}
}
translate([dist, 0, -10])
cylinder(h=deep, d=diam); // fästhål 2
}
}
//====== slut mountingHole
---======================
---================
//====== LEDlampa
---===============================
// module LEDlampa(posX=8, posY=10, posZ=0)
module LEDlampa(posX=0, posY=0, posZ=0, mountSide="left")
{ side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no
case worked
xpos = mountSide == "left" ? 121
: mountSide == "right" ? -10
: assert(false,"invalid moutSide value"); // message if no
case worked
/*
ypos = mountSide == "left" ? 10.5
: mountSide == "right" ? 10.5
: assert(false,"invalid moutSide value"); // message if no
case worked
zpos = mountSide == "left" ? 5
: mountSide == "right" ? 5
: assert(false,"invalid moutSide value"); // message if no
case worked
*/
// echo(xpos,ypos,zpos);
// translate([xpos, ypos, zpos])
translate([xpos, 10.5, 5])
mirror([1, 0, 0])
translate([posX, posY, posZ])
{ LEDbottom();
translate([0, 0, 11])
LEDglas();
}
}
//====== Slut LEDlampa
---==========================
---================
//====== LEDglas
---================================
module LEDglas()
{
// Variabler botten
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mm
cornRad = 10; // Radien i alla hörn
wideCorn = 48; // Bredd i kanterna
diamHole = 6; // håldiameter i mm
colorBot = "gray";
colorTop = "orange";
// Variabler top
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mm
p1tx = 10; // the start value
p1ty = 49.25;
p2tx = 55.5; // the middle value
p2ty = 50.5;
p3tx = 101; // the end value
p3ty = p1ty;
p4tx = 101; // the start value
p4ty = 1.25;
p5tx = 55.5; // the middle value
p5ty = 0.0;
p6tx = 10; // the end value
p6ty = p4ty;
// Ger ovalt glas
points1 = 3points_arc([p1tx,p1ty], [p2tx,p2ty], [p3tx,p3ty], fn=100);
points2 = 3points_arc([p4tx,p4ty], [p5tx,p5ty], [p6tx,p6ty], fn=100);
color("orange")
linear_extrude(height=cornHigh+.1)
difference()
{ polygon(concat(points1, points2));
translate([length-10 , wideMid / 2, -.2])
circle(d=6);
translate([10 , wideMid / 2, -.2])
circle(d=6);
}
// Top
color(colorTop)
difference()
{ hull()
{ // hörn1
translate([cornRad, wideMid - ((wideMid-wideCorn)/2) - cornRad,
0]) // [10,39]
cylinder(h=cornHigh, d=cornRad*2, center=false);
// hörn2
translate([cornRad, cornRad + ((wideMid-wideCorn)/2), 0])
// [10,12]
cylinder(h=cornHigh, d=cornRad*2, center=false);
// hörn3
translate([length - cornRad, wideMid - ((wideMid-wideCorn)/2) -
cornRad, 0]) // [101 ,39]
cylinder(h=cornHigh, d=cornRad*2, center=false);
// hörn4
translate([length - cornRad, cornRad + ((wideMid-wideCorn)/2),
0]) //
cylinder(h=cornHigh, d=cornRad*2, center=false);
}
union()
{ // Monteringshål 1 & 2
translate([length-10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=highTop+.5, center=false);
translate([10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=highTop+.5, center=false);
}
}
}
//======== Slut LEDglas
---=========================
---================
//====== LEDbottom
---==============================
module LEDbottom()
{ p1x = 10; // the start value
p1y = 49.25;
p2x = 55.5; // the middle value
p2y = 50.5;
p3x = 101; // the end value
p3y = p1y;
p4x = 101; // the start value
p4y = 1.25;
p5x = 55.5; // the middle value
p5y = 0.0;
p6x = 10; // the end value
p6y = p4y;
// Variabler botten för borrhålen
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mm
diamHole = 6; // håldiameter i mm
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mm
// offs1 = 0.1;
heightHole = 15; //mm
height = 11; //mm
points1 = circSect( 10, 11.25, 10, [0, 90], "bottom", 1, fn); //
Hörn nere till vänster
points2 = circSect( 10, 39.25, 10, [0, 90], "left", 1, fn); //
Hörn uppe till vänster
points3 = 3points_arc([p1x,p1y], [p2x,p2y], [p3x,p3y], fn);
points4 = circSect( 101, 39.25, 10, [0, 90], "top", 1, fn); //
Hörn uppe till höger
points5 = circSect( 101, 11.25, 10, [0, 90], "right", 1, fn); //
Hörn nere till höger
points6 = 3points_arc([p4x,p4y], [p5x,p5y], [p6x,p6y], fn);
// The base plate for the LED lamp
difference()
{ color("gray", 0.5)
linear_extrude(height=height)
polygon(concat(points1, points2, points3, points4, points5,
points6));
// union()
{ // Monteringshål 1 & 2
translate([length-10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
translate([10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
}
}
}
//======== Slut LEDbottom
---=======================
---================
//====== circleSect
---=============================
// Create rounded corners 2D
// https://openhome.cc/eGossip/OpenSCAD/SectorArc.html
// ange .: x, y, radien,
// [från, till] vinkel,
// var vinkeln startar, (left, bottom, right, top)
// vilken rotation (-1=medsol, 1=motsols)
function circSect(x=0, y=0, radius=10, angles=[0,270],
startRef="bottom", rotate=1, fn=24) =
let(
startAngel = (startRef == "left") ? 0
: (startRef == "bottom") ? 90
: (startRef == "right") ? 180
: (startRef == "top") ? 270
: startRef, // valfri vinkel
// : assert(false,"invalid moutSide value"); //
Error message if no case worked
//: undef,
r = radius,
//r = radius / cos(180 / fn),
step = 360 / fn,
// points = [[x, y],
points = [
for(a = [angles[0]-startAngel : step :
angles[1]-startAngel])
[-rotate * r * cos(a)+x, r * sin(a)+y]]
) points;
//======== Slut circleSect
---======================
---================
//====== 3points_arc
---============================
// Create an arc with three points 2D
function 3points_arc(p0, p1, p2, fn=10) =
// an alternative expression for D
// D = 2 * ( (p1-p0).x * (p2-p0).y - (p1-p0).y * (p2-p0).x )
let( D = 2 * cross(p1-p0, (p2-p0)) )
assert( abs(D)>1e-9, "The 3 points should not be collinear." )
let(
Ux = ( (p2-p0).y*(p1-p0)(p1-p0) - (p1-p0).y(p2-p0)*(p2-p0)
)/D,
Uy = ( (p1-p0).x*(p2-p0)*(p2-p0) - (p2-p0).x*(p1-p0)*(p1-p0)
)/D,
radius = norm([Ux,Uy]),
center = [Ux,Uy] + p0,
ang0 = atan2( (p0-center).y, (p0-center).x ),
ang2 = atan2( (p2-center).y, (p2-center).x ),
// the points are in a cw winding iff D<0
// the angular difference between vectors p2-center and p0-center
// measured from p0-center; dang is positive iff D is negative
dang = D<0 ? ang2<ang0 ? ang2-ang0 : ang2-ang0-360
: ang2>ang0 ? ang2-ang0 : ang2-ang0+360
)
[ for(i=[0:fn-1])
let( ang = ang0 + idang/(fn-1) )
center + radius[cos(ang),sin(ang)] ];
//======== Slut 3points_arc
---=====================
---================
//====== Wall som ett "L"
---=======================
// Normal vägghöjd
function wall() =
let(
b = 4, // botten - tjocklek
f = 8, // Foten
h = 15, // Höjd
t = 3.5, // Top
x = (b+(t/2) - (h - ( (-h / (f-t)) *t) )) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) )
])
)
union([points, top, sqr, diff]);
//======== Slut Wall
---============================
---================
//====== Wall1 som ett "L"
---======================
// En högre vägg
function wall1() =
let(
b = 4, // botten - tjocklek
f = 7, // Foten
h = 25, // Höjd
t = 3, // Top
x = (b+(t/2) - (h - ((-h / (f-t)) *t))) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ])
)
union([points, top, sqr, diff]);
//======== Slut Wall1
---===========================
---================
//====== Plåt på släp
---===========================
module mountingPlate(posX=0, posY=0, posZ=0, mountSide="left",
colorName="#C0C0C0", $fn=50)
{ // Hörnpositionerna
posX1 = 120;
posY1 = 0;
posX2 = posX1;
posY2 = -200;
posX3 = 120 - 75;
posY3 = -200;
posX4 = 0;
posY4 = 0;
thick=2; // tjocklek
side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no
case worked
xpos = mountSide == "left" ? 20
: mountSide == "right" ? -20
: assert(false,"invalid moutSide value"); // message if no
case worked
/*
ypos = mountSide == "left" ? 85
: mountSide == "right" ? 85
: assert(false,"invalid moutSide value"); // message if no
case worked
zpos = mountSide == "left" ? -thick
: mountSide == "right" ? -thick
: assert(false,"invalid moutSide value"); // message if no
case worked
*/
color(colorName)
{ translate([posX, posY, posZ])
translate([xpos, 85, -thick])
{ mirror([side, 0, 0])
{ linear_extrude(thick)
hull()
{ translate([posX1, posY1, 0])
square(0.1, center = true);
translate([posX2, posY2, 0])
square(0.1, center = true);
translate([posX3, posY3, 0])
square(0.1, center = true);
translate([posX4, posY4, 0])
square(0.1, center = true);
}
}
}
}
}
= = END product 1= = = = = = = = = = = = = = = = = = = = = = = = = = =
= = =
. - . _ . - . _ . - . _ . - . _ . -
= = product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = = =
= = = =
. - . _ . - . _ . - . _ . - . _ . -
$fn=100;
//$fn=15;
//switch();
//cableHolder4(); //Switchboxen
// cableHolder3(0, 0, 0, 33.5, 23.5, 1.5, 2);
// showCables();
module cableHolder4(fn=24);
{ // idé från
// - https://www.thingiverse.com/thing:6400/files
// -
// mått på Switch
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
spaceHold = 10.0; // utrymmet bakom switch
holdRadie = 2; // radie i hörnen
thick = 2;
offset1=0.5; // öka toleransen
// innermått
holeW = widthHold + offset1;
holeH = heightHold + offset1;
holeD = depthHold + spaceHold+offset1;
// yttermått
pad = 0.1; // Padding to maintain manifold
box_l = holeW + thick*2; // Bredden på switchen
box_w = holeD + thick; // Djupet på switchen
box_h = holeH + thick; // Height
round_r = holdRadie; // Radius of round
smooth = 45; // Number of facets of rounding cylinder
difference()
{ union() // Detta utförs i två steg.
{ difference() // utför fasningar och kabelmarkeringar
{ mainBox(box_l, box_w, box_h, spaceHold+thick, round_r, thick,
smooth, pad);
// fasning vänster (underkant)
translate([box_l/2-0.85, spaceHold-4.3, thick-offset1]) //
sidled, fram/bak , upp/ned
rotate([0,180,45])
cylinder(h=thick, d1=holeW*1.414-thick-thick,
d2=holeW*1.414, $fn=4);
// fasning höger (underkant)
translate([box_l/2-3.65, spaceHold-4.3, thick-offset1]) //
sidled, fram/bak , upp/ned
rotate([0,180,45])
cylinder(h=thick, d1=holeW*1.414-thick-thick,
d2=holeW*1.414, $fn=4);
// kabelgenomföringar
rotate([90, 180, 90]) // Markering ena sidan (vänster under)
ovalCableHole(spaceHold/2-offset1, -1.75, -1.2);
rotate([90, 180, 180]) // Markering bakkant (vänster under)
ovalCableHole(spaceHold/2-1.55, -1.75, -spaceHold-0.85);
rotate([90, 180, 180]) // Markering bakkant (höger under)
ovalCableHole(widthHold-spaceHold/2-offset1, -1.75,
-spaceHold-0.85);
rotate([90, -180, 90]) // Markering ena sidan (höger under)
ovalCableHole(3.75, -1.75, widthHold-0.1);
}
} // Slut union - kropp
translate([-offset1/2, -spaceHold+pad, -pad]) // hålet där
switchen ska placeras
cube([holeW, holeD+pad, holeH+pad], center=false);
translate([4, 12, 0])
cylinder(h=15,d=3.2);
translate([4, 12, 17.7])
sphere(r=6);
translate([29.6, 12, 0])
cylinder(h=15,d=3.2);
translate([29.6, 12, 17.7])
sphere(r=6);
/* // Hål genom lock bak - om så önskas
translate([box_l/2-thick, -6, offset1/2])
cylinder(h=box_h+thick*4+offset1, d=3.2, $fn=100); // hål
genom lock bak
translate([box_l/2-thick, -6, 17.7])
sphere(r=6); // kona hålet bak
*/
} // Slut difference() - box
difference()
{ union()
{ translate([29.6, 12, heightHold-offset1*2])
cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv1
translate([4, 12, heightHold-offset1*2])
cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv2
translate([holeW/2, -spaceHold+thick+1, holeH/2])
rotate([180,0,0])
backHole();
} // union - slut
translate([4, 12, 0]) // Hålen i stödhylsorna
cylinder(h=15,d=3.2);
translate([29.6, 12, 0]) // Hålen i stödhylsorna
cylinder(h=15,d=3.2);
translate([box_l/2-thick, -6, -offset1]) // hål i stödhylsa bak
cylinder(h=box_h+offset1, d=3.2, $fn=100);
// Sänk stödhylsan
translate([ widthHold/2-7, -spaceHold-offset1, -thick+offset1])
// hål i stödhylsa bak
cube([15, 8, 3]);
// kabelmarkering
// translate([0, 0, 0]) // hål i stödhylsa bak
}
/*
translate([4, 12, 0])
#cylinder(h=15,d=3.2);
//translate([4, 13.5, 17.3])
//#sphere(r=6);
translate([29.6, 12, 0])
#cylinder(h=15,d=3.2);
//translate([29.6, 13.5, 17.3])
//#sphere(r=6);
*/
}
module backHole()
{ wallH = 10.5;
wide1 = 12; // endast runt cylindern
wide2 = 35; // hela väggen
deep1 = 4;
height1 = 10.5;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;
//rundadFot();
// Rundad stäcka mellan t.ex. vägg och tak -bakkant
translate([wide2/2, diam1/2-cornRad1/2, -height1/2])
{ rotate([90, 0, -90])
{ linear_extrude(wide2)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka1 (vänster) mellan t.ex. vägg och tak
translate([-wide2/2+0.15, deep1/2+cornRad1/2, -height1/2])
rotate([90, 0, 0])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
// rundad stäcka2 mellan t.ex. vägg och tak
translate([wide2/2-0.65, deep1/2+cornRad1/2, -height1/2])
rotate([0, -90, 90])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
// Skapa stödfot - bak
difference()
{ union()
{ //själva cylindern
translate([0, 1, 0])
{ cylinder(h=height1, d=diam1, center=true);
translate([0, diam1/2, 0])
cube([diam1,diam1-1,height1], center=true);
}
// Rundad fot under cylinder ovan
translate([0, 1, -height1/2])
{ rotate_extrude()
{ translate([diam1/2, 0, 0])
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad rakstäcka1 - cylinderfot - mellan t.ex. vägg och tak
translate([diam1/2, diam1, -height1/2])
{ rotate([90, 0, 0])
{ linear_extrude(diam1)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad rakstäcka2 - cylinderfot - mellan t.ex. vägg och tak
translate([-diam1/2, diam1, -height1/2])
{ rotate([0, -90, 90])
{ linear_extrude(diam1)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
//väggen bakom cylindern som ska rundas
translate([0, diam1/2-cornRad1, 0])
cube([wide1, cornRad1, height1], center=true);
}
// Avrunda hörn1 bak
translate([-wide1/2, cornRad1/2, cornRad1])
{ hull()
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
{ translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
}
}
// Avrunda hörn2 bak
translate([wide1/2, cornRad1/2, cornRad1])
{ hull()
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
{ translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
}
}
// Plocka bort rundad fot bak samt det som sticker ut
translate([-wide1/2, diam1/2-cornRad1/2, -height1/2-opt1])
cube([wide1, diam1/2+cornRad1, height1+opt1*2], center=false);
}
}
module ovalCableHole(posX, posY, posZ)
{ // Hål 5.5 x 3.5 mm
pan = 0.1;
cableHi = 1.5;
translate([posX, posY, posZ])
{ color("white")
{ translate([0, 0, -pan])
{ cylinder(h=cableHi, d=3.5);
//#translate([0, 0, 0]) cylinder(h=10, d=1);
//translate([0, 0, -1]) cylinder(h=1, d1=0, d2=1);
//translate([0, 0, 0]) sphere(d=1); // Inre kulan
//translate([0, 0, 1.5]) sphere(d=1); // Inre kulan
translate([0, 0, -1]) sphere(d=0.8); // yttre kulan
translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan
}
translate([2, 0, -pan])
{ cylinder(h=cableHi, d=3.5);
// #translate([0, 0, -cableHi*2]) cylinder(h=10, d=0.5);
//translate([0, 0, 0]) sphere(d=1); // Inre kulan
//translate([0, 0, 1.5]) sphere(d=1); // Inre kulan
translate([0, 0, -1]) sphere(d=0.8); // yttre kulan
translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan
}
translate([-3.5/2, 0, -pan])
cube([5.5, 3.5/2, cableHi]);
translate([-0.25, -1.74, -pan])
cube([2.5, 1.75, cableHi]);
}
}
}
module rundadFot()
{
// specifika värden för skruvdistansen bak
wallH = 10.5;
wide1 = 12; // endast runt cylindern
wide2 = 34; // hela väggen
deep1 = 4;
height1 = 10;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;
color("magenta")
{ translate([0, 0, wallH])
{ difference()
{ union()
{ // Bakgavel
translate([wide2/2, opt1, height1/2])
{ rotate([90, 180, 0])
cube([wide2, height1, opt1]);
}
// Golv
translate([wide2/2, -height1+opt1, -height1/2])
rotate([0, 180, 0])
cube([wide2, height1, opt1]);
//väggen bakom cylindern som kan rundas
translate([0, -cornRad1/2, 0])
cube([wide1, cornRad1, height1], center=true);
//själva cylindern
translate([0, -cornRad1/2, 0])
cylinder(h=height1, d=diam1, center=true);
// Rundad fot under cylinder ovan
translate([0, -cornRad1/2, -height1/2])
{ rotate_extrude()
{ translate([diam1/2, 0, 0])
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad stäcka mellan t.ex. vägg och tak -bakkant
translate([wide2/2, 0, -height1/2])
{ rotate([90, 0, -90])
{ linear_extrude(wide2)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka mellan t.ex. vägg och tak -sida1
translate([-wide2/2, 0, -height1/2])
{ rotate([90, 0, 0])
{ linear_extrude(10)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka mellan t.ex. vägg och tak -sida2
translate([wide2/2, -10, -height1/2])
{ rotate([90, 0, 180])
{ linear_extrude(10)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
} // Avsluta union = = = = = = = = = = = = = = = = = = = =
// Avrunda hörn1 bak
translate([-wide1/2+opt1*1.3, -deep1/2, cornRad1])
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
// Avrunda hörn2 bak
translate([wide1/2-opt1*1.3, -deep1/2, cornRad1])
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
// Plocka bort rundad fot bak samt det som sticker ut
translate([-wide1/2, 0, -height1/2-opt1])
cube([wide1, diam1/2+cornRad1, height1+opt1*2],
center=false);
}
}
}
}
module mainBox(box_l, box_w, box_h, spaceHold, round_r, thick, smooth,
pad)
{ translate([box_l/2-thick-offset1/2, box_w/2-spaceHold, box_h/2])
{
// To fix the corners cut the main cube with smaller cubes with
spheres removed
difference()
{ cube([box_l, box_w, box_h], center = true);
// Kant1 - liggande
translate([0, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([0,-round_r-pad,round_r+pad])
cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4*pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 - liggande
translate([0, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([0,round_r+pad,round_r+pad])
cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4*pad,round_r,round_r,center=true,$fn=smooth);
}
}
/*
// Kant3 - liggande
translate([0, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([0,-round_r-pad,-round_r-pad])
cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4*pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 - liggande
translate([0, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([0,round_r+pad,-round_r-pad])
cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4*pad,round_r,round_r,center=true,$fn=smooth);
}
}
*/
// ----
// Kant1 - stående
translate([-box_l/2+round_r, box_w/2-round_r, 0])
{ difference()
{ translate([-round_r-pad,round_r+pad,0])
cube([round_r*2+pad, round_r*2+pad, box_h+2*pad], center =
true);
cylinder(box_h+4*pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 - stående
translate([box_l/2-round_r, box_w/2-round_r, 0])
{ difference()
{ translate([round_r+pad,round_r+pad,0])
cube([round_r*2+pad, round_r*2+pad, box_h+2*pad], center =
true);
cylinder(box_h+4*pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant3 - stående
translate([-box_l/2+round_r, -box_w/2+round_r, 0])
{ difference()
{ translate([-round_r-pad,-round_r-pad,0])
cube([round_r*2+pad, round_r*2+pad, box_h+2*pad], center =
true);
cylinder(box_h+4*pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 - stående
translate([box_l/2-round_r, -box_w/2+round_r, 0])
{ difference()
{ translate([round_r+pad,-round_r-pad,0])
cube([round_r*2+pad, round_r*2+pad, box_h+2*pad], center =
true);
cylinder(box_h+4*pad,round_r,round_r,center=true,$fn=smooth);
}
}
// ----
// Kant1 liggande (andra hållet)
translate([-box_l/2+round_r, 0, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, 0, round_r+pad])
cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4*pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 liggande (andra hållet)
translate([box_l/2-round_r, 0, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, 0, round_r+pad])
cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4*pad,round_r,round_r,center=true,$fn=smooth);
}
}
/*
// Kant3 liggande (andra hållet)
translate([-box_l/2+round_r, 0, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, 0, -round_r-pad])
cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4*pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 liggande (andra hållet)
translate([box_l/2-round_r, 0, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, 0, -round_r-pad])
cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4*pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// ----
// Hörn1 (övre)
translate([box_l/2-round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center
= true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (övre)
translate([-box_l/2+round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, round_r+pad])
cube([round_r*2+pad, round_r*2+pad, round_r*2+pad], center
= true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (övre)
translate([box_l/2-round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, round_r+pad])
cube([round_r*2+pad, round_r*2+pad, round_r*2+pad], center
= true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (övre)
translate([-box_l/2+round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, round_r+pad])
cube([round_r*2+pad, round_r*2+pad, round_r*2+pad], center
= true);
sphere(round_r,$fn=smooth);
}
}
/*
// Hörn1 (undre)
translate([box_l/2-round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, -round_r-pad])
cube([round_r*2+pad, round_r*2+pad, round_r*2+pad], center
= true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (undre)
translate([-box_l/2+round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, -round_r-pad])
cube([round_r*2+pad, round_r*2+pad, round_r*2+pad], center
= true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (undre)
translate([box_l/2-round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, -round_r-pad])
cube([round_r*2+pad, round_r*2+pad, round_r*2+pad], center
= true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (undre)
translate([-box_l/2+round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, -round_r-pad])
cube([round_r*2+pad, round_r*2+pad, round_r*2+pad], center
= true);
sphere(round_r,$fn=smooth);
}
}
*/
}
}
}
//
module cableHolder3(posX, posY, posZ, length, width, height, radius)
{ // Skapa toppen över switchen
// mått på Switchen
fn = 96; // upplösning (endast bågen?)
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
holdRadie = 1.5; // radie i hörnen
thick = 1.5; // tjocklek
translate([0,-thick,0])
{
difference(0, 0, 0)
{ hull()
{ difference()
{ translate([thick, 0, heightHold]) // vänster kant
{ rotate([-90, 0, 0])
{ cylinder(h=depthHold, d=thick2);
translate([0, 0, depthHold])
sphere(d=thick2); // längst fram
}
}
translate([0, -0.1, heightHold]) // plocka bort underdelen
rotate([-90, 0, 0])
cube([thick*2, thick+.1, depthHold+thick+.1]);
}
difference()
{ translate([widthHold-thick, 0, heightHold]) // höger kant
{ rotate([-90, 0, 0])
{ cylinder(h=depthHold, d=thick*2);
translate([0, 0, depthHold])
sphere(d=thick*2); // längst fram
}
}
translate([widthHold-thick*2, -0.1, heightHold]) // plocka
bort underdelen
{ rotate([-90, 0, 0])
cube([thick*2, thick+.1, depthHold+thick+.1]);
}
}
}
// öppna hålen för monteringsskruvarna uppe på plattan
translate([4, 13.5, 0])
cylinder(h=15,d=3.2);
translate([4, 13.5, 17.3])
sphere(r=6);
translate([29.6, 13.5, 0])
cylinder(h=15,d=3.2);
translate([29.6, 13.5, 17.3])
sphere(r=6);
}
// halvbåge 1 bak
translate([thick, 0, heightHold/2+thick/2])
rotate([0, 90, 180])
rotate_extrude(angle = 180, convexity=20, $fn=64)
translate([heightHold/2-thick/2, 0, 0])
circle(d=thick*2);
translate([thick, 0, heightHold])
sphere(d=thick*2); // övre kulan
translate([thick, 0, thick])
sphere(d=thick*2); // undre kulan
// halvbåge 2 bak
translate([widthHold-thick, 0, heightHold/2+thick/2])
rotate([0, 90, 180])
rotate_extrude(angle = 180, convexity=20, $fn=64)
translate([heightHold/2-thick/2, 0, 0])
circle(d=thick*2);
translate([widthHold-thick, 0, heightHold])
sphere(d=thick*2); // övre kulan
translate([widthHold-thick, 0, thick])
sphere(d=thick*2); // undre kulan
// en cylinder tvärsöver längst upp
translate([thick, 0, heightHold])
{ rotate([0,90,0])
cylinder(h=widthHold-thick*2, r=thick);
}
}
// Halvbågen (kabelhållaren) på baksidan switchen
translate([widthHold-thick, -thick, heightHold/2+thick/2])
{ rotate([0,90,180])
linear_extrude(widthHold-thick*2)
arc(heightHold/2-thick/2, [0, 180], thick, fn); //radius,
angles, width, fn)
}
// en cylinder tvärsöver längst ned
translate([thick, -thick, thick])
{ rotate([0,90,0])
cylinder(h=widthHold-thick*2, r=thick);
}
}
module switch(posX=0, posY=0, posZ=0)
{ buttRadie = 1.5;
height = 10.5;
width = 33.5;
depth = 23.5;
h1x = buttRadie;
h1y = buttRadie;
h2x = width-buttRadie;
h2y = buttRadie;
h3x = width-buttRadie;
h3y = depth-buttRadie;
h4x = buttRadie;
h4y = depth-buttRadie;
translate([posX, posY, posZ])
{ difference()
{ color("#F9F9F3")
// tryck-knappen
union()
{ translate([width/2, depth+6-0.1, height/2])
{ rotate([90, 0, 0])
{ translate([0,0,6])
circle(d=6.8); // skuggan runt knapp
cylinder(h=6, d=6);
sphere(d=6);
}
}
hull() // Switchkropp
{ translate([h1x, h1y])
cylinder(h=height, r=1.5);
translate([h2x, h2y])
cylinder(h=height, r=1.5);
translate([h3x, h3y])
cylinder(h=height, r=1.5);
translate([h4x, h4y])
cylinder(h=height, r=1.5);
}
}
// Skruvhålen för switchen
hole( 4, 12, 0, "#FFD700", height);
hole(29.6, 12, 0, "#FFD700", height);
// hole( 4, 12, 0, "#FFD700", 50);
// hole(29.6, 12, 0, "#FFD700", 50);
// hål för kablar bak
color("gray")
{ translate([9.5, 16, height/2])
{ rotate([90, 0, 0])
cylinder(h=16.5, d=4);
}
translate([24.5, 16, height/2])
{ rotate([90, 0, 0])
cylinder(h=16.5, d=4);
}
}
// hål för kabelskruvar
color("white")
{ translate([29.5, 17.1, height/2])
{ rotate([0, 90, 0])
cylinder(h=4.1, d=4.5);
}
translate([-0.1, 17.1, height/2])
{ rotate([0, 90, 0])
cylinder(h=4.1, d=4.5);
}
}
}
// Kabelskruvar
cableScrew(3, 17, height/2, 90);
cableScrew(31, 17, height/2, -90);
}
}
// Skruven som håller fast kabeln i switchen
module cableScrew(posX=0, posY=0, posZ=0, angle=0)
{ color("#FFD700") // mässing
translate([posX, posY, posZ])
{ rotate([0, 0, angle])
{ difference()
{ // skruvskalle
translate([0, 0, 0])
rotate([90, 0, 0])
cylinder(h=2, d1=4, d2=3.5);
// stjärnan i skruven
translate([0, 1.85, -.25])
rotate([0, 0, 0])
cylinder(h=0.5, d=5);
translate([-0.25, -.6, 2.25])
rotate([0, 90, 0])
cube([4.5, 2, 0.5]);
}
}
}
}
// borrhål
module hole(posX=0, posY=0, posZ=0, colorName="yellow", height)
{ diamHole1 = 3;
highHole1 = height;
diamHole2 = 6;
highHole2 = 2.5;
offs=0.1;
color(colorName)
{
translate([posX, posY, posZ])
{ translate([0, 0, 0])
cylinder(h=highHole1, d=diamHole1);
translate([0, 0, -offs])
cylinder(h=highHole2, d=diamHole2);
translate([0, 0, height-highHole2+offs])
cylinder(h=highHole2, d=diamHole2);
}
}
}
module showCables()
{ translate([-25,8,24])
rotate([80,177,90])
cable(10,10,0,"brun");
translate([-43,8,15])
rotate([90,180,90])
cable(10,10,0,"blå");
}
module cable(posX=0, posY=0, posZ=0, colorName="blå", radius=1.26,
width=0.62, thick=50, fn=24)
{ // default 1.5mm2
// radius = inner radie
// width = bredd/tjocklek på cirkeln (inte höjd)
// thick = höjd på cirken/ röret
// pin=
colCupper = "#D7715A";
colGreen = "#07DA63";
colYellow = "#FFCC00";
if (colorName=="gröngul")
{ translate([posX, posY, posZ])
{ color(colGreen)
linear_extrude(thick)
arc(radius, [0, 60], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [60, 180], width, fn);
color(colGreen)
linear_extrude(thick)
arc(radius, [180, 240], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [240, 360], width, fn);
color(colCupper)
linear_extrude(10, center=true, convexity=10, $fn=100)
circle(d=1.24);
}
}
else // vanliga kablar 1.5mm2
{
cableColor = colorName == "blå" ? "#1870D5"
: colorName == "brun" ? "#9C6137"
: colorName == "svart" ? "#000000"
: assert(false,"invalid color value"); // message if
no case worked
// : nodef
translate([posX, posY, posZ])
{ //el kabel - ena änden rak - andra böjd
color(colCupper) //kopparstump tråd rakkabel
linear_extrude(10, center=true, convexity=10, $fn=100)
circle(d=1.24);
color(cableColor)
{ cylinder(h=thick, r=radius);
translate([-radius*2, 0, thick]) // kabelböj
rotate([90, 0, 0])
rotate_extrude(angle=90, convexity=20)
translate([2.5, 0, 0])
circle(r=1.26);
translate([-radius*2, 0, thick+radius*2])
rotate([0, -90, 0])
cylinder(h=5, r=radius);
}
translate([-10, 0, thick+radius*2])
{ rotate([0, -90, 0])
{ color(colCupper)
{ linear_extrude(5, center=true, convexity=10, $fn=100)
circle(d=1.24);
}
}
}
}
}
}
//
---====
module arc(radius, angles, width = 1, fn = 24) {
difference() {
sector(radius + width, angles, fn); // ytterradie
sector(radius, angles, fn); // innerradie (plockar
bort invändigt
}
}
module sector(radius, angles, fn = 24) {
r = radius / cos(180 / fn);
step = -360 / fn;
points = concat([[0, 0]],
[for(a = [angles[0] : step : angles[1] - 360])
[r * cos(a), r * sin(a)]
],
[[r * cos(angles[1]), r * sin(angles[1])]]
);
difference() {
circle(radius, $fn = fn);
polygon(points);
}
}
= = END product 2 = = = = = = = = = = = = = = = = = = = = = = = = = =
= = = =
. - . _ . - . _ . - . _ . - . _ . -
Den fredag 6 maj 2022 14:06:55 CEST, Michael Möller <
private2michael@gmail.com> skrev:
OpenSCAD code - is a description of your model in terms of a few
cylinder/cubes added and cut out
difference() {
cylinder(d=5,h=10);
translate([0,10,0]) cube([4,6,2]) ;
}
STL file is a list of triangles which make the same outer shell as
your model. OpenSCAD makes this complicated transform from shapes to
triangles.
solid OpenSCAD_Model
facet normal 0.92388 0.382682 0
outer loop
vertex 2.5 0 3
vertex 1.76777 1.76777 0
vertex 1.76777 1.76777 3
endloop
endfacet
facet normal 0.92388 0.382682 0
outer loop
vertex 1.76777 1.76777 0
vertex 2.5 0 3
vertex 2.5 0 0
endloop
endfacet
: (and so on for 300 lines) There is a binary/compressed version,
but the description is still just triangles.
Gcode is what a 3D printer understands - it is the exact list of moves
that the head has to do with how much plastic to squeeze to trace the
outline of your shape, layer, by layer. It will optionally create moves for
filling the inside or support for overhangs. Such a program is called a
SLICER and the printer will come with one.
G92 E0 ; reset extrusion distance
G1 Z2.330 F6600.000 ; lift Z
G1 X-0.000 Y1.505 F6600.000 ; move to first perimeter point
G1 Z0.330 F6600.000 ; restore layer Z
G1 E3.00000 F2400.00000 ; unretract extruder 0
G1 F1500
G1 X-1.064 Y1.064 E3.09259 ; perimeter
G1 X-1.505 Y0.000 E3.18517 ; perimeter
: (many similar lines)
G1 X1.515 Y1.515 E4.65860 ; perimeter
G1 X0.055 Y2.120 E4.78559 ; perimeter
G1 X-0.000 Y2.143 F6600.000 ; move inwards before travel
G1 X0.384 Y0.843 F6600.000 ; move to first infill point
G1 F1500
G1 X0.843 Y0.384 E4.84815 ; infill
G1 X1.097 Y-0.229 E4.91215 ; infill
:
(and so on for thousands of lines)
The 3MF still basically deals in triangles, and attributes (surface,
infill material, picture, ticket info ... ) which probably are not used by
your slicer/printer.
On Fri, 6 May 2022 at 12:37, Jan Öhman via Discuss <
discuss@lists.openscad.org> wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
Hi!
Thought to create some objects in openSCAD, to print later.
I do not have my own 3D printer (yet).
One I talked to, wanted to get the drawings in .STL or .3MF. (I don't
know the difference).
If I had my own printer, have I been able to print directly from
openSCAD?
(Without some export?)
In the openSCAD, no errors or problems occur.
but
The drawings I tested to export from openSCAD have given one or
another error message.
One message .:
WARNING: Object may not be a valid 2-manifold and may need repair!
Another message .:
WARNING: No top level geometry to render
What to do?
---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
Thanks every one.
I understand that Adrian Mariano has an explanation (probably pretty good).But still do not understand what to do in my case.
"...It has a 2d polygon (easily found as there is one lonepolygon call) that needs to be removed "I think it is the polygon call in the moule Box that it is referenced.
But if I delete the polygon call, that structure will disappear ... or ...?
"or linear_extruded" I don't understand...
"And it makes use of path_sweep in a manner that producesa self-intersecting polyhedron."
Now it will be very difficult - I think
"This issue is explained in the manual page for path_sweep."
OK!
"This can be fixed either by switching to path_extrude2d() or
by changing the corner radius to eliminate the self-intersections."
"or changing to a profile that can actually be rounded at the desired radius." Is this the same problem that is solved in another way?
Den lördag 7 maj 2022 19:50:51 CEST, Michael Möller <private2michael@gmail.com> skrev:
Indeed you did Adrian, I was curious what that long code was going to produce.
Michael, fra mobilen
lør. 7. maj 2022 19.06 skrev Adrian Mariano avm4@cornell.edu:
I already gave a full explanation of what's wrong and how to fix the
first program. It has a 2d polygon (easily found as there is one lone
polygon call) that needs to be removed or linear_extruded as
appropriate. And it makes use of path_sweep in a manner that produces
a self-intersecting polyhedron. This issue is explained in the manual
page for path_sweep. This can be fixed either by switching to
path_extrude2d() or by changing the corner radius to eliminate the
self-intersections. Or changing to a profile that can actually be
rounded at the desired radius.
https://github.com/revarbat/BOSL2/wiki/skin.scad#functionmodule-path_sweep
On Sat, May 7, 2022 at 12:57 PM Michael Möller
private2michael@gmail.com wrote:
Jan Öhman wrote it failed in Render/F6, but works in Preview/F5 - in so many words. I tried and got the following
First model
F6 Error: WARNING: Ignoring 2D child object for 3D operation in file , line 53
ERROR: CGAL error in CGALUtils::applyUnion3D: CGAL ERROR: assertion violation! Expr: G.mark(v1,0)==G.mark(v2,0)&& G.mark(v1,1)==G.mark(v2,1) File: /mxe/usr/x86_64-w64-mingw32.static.posix/include/CGAL/Nef_S2/SM_overlayer.h Line: 303
Which I think is pretty selfexplantory: Passed a 2D shape to something that expected a 3D shape - but you have to read the whole code to find it ... which I think Jan is more qualified to do :-)
2nd part
... which is one of those where zooming or rotating the model in preview takes >5 second
And I didn't bother waiting for the F6 error ... ;-)
Of course, we do not know if the above shapes I got are the ones that Jan wants - there are also sections of code commented out.
(From the comments it seems these are to be nice and alternative covers for wall outlet/switches.)
On Sat, 7 May 2022 at 18:26, Sanjeev Prabhakar sprabhakar2006@gmail.com wrote:
Quite a long code.
Can you paste a picture of what you are trying to draw.
Regards
Sanjeev
On Sat, 7 May 2022, 16:31 Jan Öhman via Discuss, discuss@lists.openscad.org wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
Thank you!
Begins to understand how it works. (It was not easy...)
but my solution was not good ...
Here are 2 files that do not work to render (F6)
= = product 1= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
include <BOSL2/std.scad>
fn = 150;
placering="left";
// placering="right"
box(0, 0, 0, placering, "#C0C0C0", fn); // (X, Y, Z, left/right, colorName)
// Monteringsplattan
// mountingPlate(0, 0, 0, placering);
// LED belysning
// LEDlampa(0, 0, 0, placering);
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
// - - - - m o d u l e r - - - - - - - - - - - - - - - - - -
---===
module box(posX=0, posY=0, posZ=0, mountSide="left", colorName="#00FF00", fn=24)
{
side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case worked
color(colorName)
translate([posX, posY, posZ])
mirror([side, 0, 0])
difference()
{
union()
{
// Skapa konturer på bottenplattan - x, y, r, angles, [grader], början
// Rotation medurs - vänster lamphållare (bakant saknas)
points1 = circSect( 140, 0, 0, [0, 0], "right", 1, fn); // böj nere till höger
points2 = circSect( 60, 5, 5, [0, 5], "bottom", 1, fn); // brytpunkt längst ned
points3 = circSect( 10, 13, 10, [0, 90], "bottom", 1, fn); // böj nere till vänster
points4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // böj uppe till vänster
points5 = circSect( 140, 80, 5, [0, 1], "top", 1, fn); // böj uppe till höger
edge = concat(points1, points2, points3, points4, points5);
path = path3d(reverse(edge));
section = wall();
path_sweep( section, path, closed=false);
// Skapa bakkant lite högre och smalare i topp
bottom1 = concat(points5, points1);
polygon(bottom1);
path1 = path3d(reverse(bottom1));
section1 = wall1(); // lite högre bakvägg wall(b=4, f=8, h=15, t=3.5)
path_sweep( section1, path1, closed=false);
// fyll upp bottenplattansbaksida
linear_extrude(4) // Bottomplate - fill up
polygon(concat(points1, points2, points3, points4, points5));
// skapa Utskjutande del under (tänk spegelvänt)
pt1 = circSect( 19.5, 85, 0, [0, 50], "top", 1, fn); // Uppe till höger - moturs
pt2 = circSect( 39, 1.35, .1, [-5, 90], "right", 1, fn); // Nere till höger
pt3 = circSect( 10, 13.05, 10, [0, 90], "bottom", 1, fn); // Nere till vänster
pt4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // Uppe till vänster
translate([0, 0, -2])
linear_extrude(2.1)
polygon(concat(pt1, pt2, pt3, pt4));
// utgången för kabeln på baksidan (diam 10mm) - pekar lite nedåt
cableExit(65, 35, 0, 15, "cyan", $fn=100);
}
// skapa ett borrhål i bakkant
translate([132,60,15])
{ rotate([0, 90, 0])
{ cylinder(h=10, d=2, $fn=100);
cylinder(h=4, d=9, $fn=100);
}
}
// skapa en borrmarkering i bakkant
translate([139,25,15])
{ rotate([0, 90, 0])
cylinder(h=2, d1=1, d2=2.5, $fn=100);
}
// ingravera årtalet på baksidan
translate([10, 80, -0.5])
{ mirror([side, 0, 0])
{ rotate([0, 180, 0])
{ linear_extrude(3)
text("2022", size=12, direction="ttb", font="Comic Sans MS:style=Bold");
}
}
}
/*
// Markera skruvhål på bakkant
borr=3;
bredd=140;
hojd=8;
avstNed=20;
translate([bredd, avstNed, hojd])
{ rotate([0,90,0])
cylinder(h=2, d1=0.5, d2=borr, center=true, $fn=50);
}
*/
// borrhål
mountingHole(20, 36, 0, 7, 90.1, 15); // posX, posY, posZ, diam, dist, deep, $fn=50
}
}
//======== Slut box
---=============================
---================
//====== cableExit
---==============================
module cableExit(posX, posY, posZ, angle, colorName)
{ diamHole = 7;
diamHolder = 9.8;
hight = 12;
topRad = diamHolder/2;
topDiam = diamHolder/2-topRad/2;
bowRad = 7;
offs1 = 0.1;
color(colorName)
translate([posX, posY, posZ])
{ rotate([180, 0, 180-angle])
{ difference()
{ hull()
{ cylinder(h=hight, d=diamHolder, center=false);
translate([0, 0, hight]) // rundad topp
rotate_extrude(angle=360, convexity=2)
translate([topDiam, 0, 0]) // yttre diam topp
circle(d=topRad); // radie topp
}
inpHight = 2; // ett värde som styr var utgångshålet hamnar
translate([0, 0, -offs1])
cylinder(h=inpHight+offs1, d=diamHole, center=false); // Bottenhål
translate([-bowRad, 0, inpHight-offs1]) // böjen
{ rotate([90, 0, 0])
rotate_extrude(angle=90, convexity=10)
translate([bowRad, 0, 0]) // ställ in radien på kabelböjen
circle(d=diamHole);
}
}
}
}
}
//====== slut cableExit
---=========================
---================
//====== mountingHole
---===========================
module mountingHole(posX=0, posY=0, posZ=0, diam=7, dist=90, deep=5, $fn=50)
{ // diam = 6; // [mm]
// dist = 90; // [mm]
// deep = 12; // [mm]
translate([posX, posY, posZ])
{ translate([0, 0, -10])
cylinder(h=deep, d=diam); // fästhål 1
//cableHold1(dist/2, 0, .2, "#D5D5D5"); // Kabelgenomföring
translate([dist/2, 0, 0])
{ hull()
{ cylinder(h=5, d=6); // fästhål 1
sphere(d=7.5);
}
}
translate([dist, 0, -10])
cylinder(h=deep, d=diam); // fästhål 2
}
}
//====== slut mountingHole
---======================
---================
//====== LEDlampa
---===============================
// module LEDlampa(posX=8, posY=10, posZ=0)
module LEDlampa(posX=0, posY=0, posZ=0, mountSide="left")
{ side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case worked
xpos = mountSide == "left" ? 121
: mountSide == "right" ? -10
: assert(false,"invalid moutSide value"); // message if no case worked
/*
ypos = mountSide == "left" ? 10.5
: mountSide == "right" ? 10.5
: assert(false,"invalid moutSide value"); // message if no case worked
zpos = mountSide == "left" ? 5
: mountSide == "right" ? 5
: assert(false,"invalid moutSide value"); // message if no case worked
*/
// echo(xpos,ypos,zpos);
// translate([xpos, ypos, zpos])
translate([xpos, 10.5, 5])
mirror([1, 0, 0])
translate([posX, posY, posZ])
{ LEDbottom();
translate([0, 0, 11])
LEDglas();
}
}
//====== Slut LEDlampa
---==========================
---================
//====== LEDglas
---================================
module LEDglas()
{
// Variabler botten
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mm
cornRad = 10; // Radien i alla hörn
wideCorn = 48; // Bredd i kanterna
diamHole = 6; // håldiameter i mm
colorBot = "gray";
colorTop = "orange";
// Variabler top
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mm
p1tx = 10; // the start value
p1ty = 49.25;
p2tx = 55.5; // the middle value
p2ty = 50.5;
p3tx = 101; // the end value
p3ty = p1ty;
p4tx = 101; // the start value
p4ty = 1.25;
p5tx = 55.5; // the middle value
p5ty = 0.0;
p6tx = 10; // the end value
p6ty = p4ty;
// Ger ovalt glas
points1 = 3points_arc([p1tx,p1ty], [p2tx,p2ty], [p3tx,p3ty], fn=100);
points2 = 3points_arc([p4tx,p4ty], [p5tx,p5ty], [p6tx,p6ty], fn=100);
color("orange")
linear_extrude(height=cornHigh+.1)
difference()
{ polygon(concat(points1, points2));
translate([length-10 , wideMid / 2, -.2])
circle(d=6);
translate([10 , wideMid / 2, -.2])
circle(d=6);
}
// Top
color(colorTop)
difference()
{ hull()
{ // hörn1
translate([cornRad, wideMid - ((wideMid-wideCorn)/2) - cornRad, 0]) // [10,39]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn2
translate([cornRad, cornRad + ((wideMid-wideCorn)/2), 0]) // [10,12]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn3
translate([length - cornRad, wideMid - ((wideMid-wideCorn)/2) - cornRad, 0]) // [101 ,39]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn4
translate([length - cornRad, cornRad + ((wideMid-wideCorn)/2), 0]) //
cylinder(h=cornHigh, d=cornRad2, center=false);
}
union()
{ // Monteringshål 1 & 2
translate([length-10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=highTop+.5, center=false);
translate([10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=highTop+.5, center=false);
}
}
}
//======== Slut LEDglas
---=========================
---================
//====== LEDbottom
---==============================
module LEDbottom()
{ p1x = 10; // the start value
p1y = 49.25;
p2x = 55.5; // the middle value
p2y = 50.5;
p3x = 101; // the end value
p3y = p1y;
p4x = 101; // the start value
p4y = 1.25;
p5x = 55.5; // the middle value
p5y = 0.0;
p6x = 10; // the end value
p6y = p4y;
// Variabler botten för borrhålen
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mm
diamHole = 6; // håldiameter i mm
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mm
// offs1 = 0.1;
heightHole = 15; //mm
height = 11; //mm
points1 = circSect( 10, 11.25, 10, [0, 90], "bottom", 1, fn); // Hörn nere till vänster
points2 = circSect( 10, 39.25, 10, [0, 90], "left", 1, fn); // Hörn uppe till vänster
points3 = 3points_arc([p1x,p1y], [p2x,p2y], [p3x,p3y], fn);
points4 = circSect( 101, 39.25, 10, [0, 90], "top", 1, fn); // Hörn uppe till höger
points5 = circSect( 101, 11.25, 10, [0, 90], "right", 1, fn); // Hörn nere till höger
points6 = 3points_arc([p4x,p4y], [p5x,p5y], [p6x,p6y], fn);
// The base plate for the LED lamp
difference()
{ color("gray", 0.5)
linear_extrude(height=height)
polygon(concat(points1, points2, points3, points4, points5, points6));
// union()
{ // Monteringshål 1 & 2
translate([length-10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
translate([10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
}
}
}
//======== Slut LEDbottom
---=======================
---================
//====== circleSect
---=============================
// Create rounded corners 2D
// https://openhome.cc/eGossip/OpenSCAD/SectorArc.html
// ange .: x, y, radien,
// [från, till] vinkel,
// var vinkeln startar, (left, bottom, right, top)
// vilken rotation (-1=medsol, 1=motsols)
function circSect(x=0, y=0, radius=10, angles=[0,270], startRef="bottom", rotate=1, fn=24) =
let(
startAngel = (startRef == "left") ? 0
: (startRef == "bottom") ? 90
: (startRef == "right") ? 180
: (startRef == "top") ? 270
: startRef, // valfri vinkel
// : assert(false,"invalid moutSide value"); // Error message if no case worked
//: undef,
r = radius,
//r = radius / cos(180 / fn),
step = 360 / fn,
// points = [[x, y],
points = [
for(a = [angles[0]-startAngel : step : angles[1]-startAngel])
[-rotate * r * cos(a)+x, r * sin(a)+y]]
) points;
//======== Slut circleSect
---======================
---================
//====== 3points_arc
---============================
// Create an arc with three points 2D
function 3points_arc(p0, p1, p2, fn=10) =
// an alternative expression for D
// D = 2 * ( (p1-p0).x * (p2-p0).y - (p1-p0).y * (p2-p0).x )
let( D = 2 * cross(p1-p0, (p2-p0)) )
assert( abs(D)>1e-9, "The 3 points should not be collinear." )
let(
Ux = ( (p2-p0).y*(p1-p0)(p1-p0) - (p1-p0).y(p2-p0)(p2-p0) )/D,
Uy = ( (p1-p0).x(p2-p0)(p2-p0) - (p2-p0).x(p1-p0)(p1-p0) )/D,
radius = norm([Ux,Uy]),
center = [Ux,Uy] + p0,
ang0 = atan2( (p0-center).y, (p0-center).x ),
ang2 = atan2( (p2-center).y, (p2-center).x ),
// the points are in a cw winding iff D<0
// the angular difference between vectors p2-center and p0-center
// measured from p0-center; dang is positive iff D is negative
dang = D<0 ? ang2<ang0 ? ang2-ang0 : ang2-ang0-360
: ang2>ang0 ? ang2-ang0 : ang2-ang0+360
)
[ for(i=[0:fn-1])
let( ang = ang0 + idang/(fn-1) )
center + radius*[cos(ang),sin(ang)] ];
//======== Slut 3points_arc
---=====================
---================
//====== Wall som ett "L"
---=======================
// Normal vägghöjd
function wall() =
let(
b = 4, // botten - tjocklek
f = 8, // Foten
h = 15, // Höjd
t = 3.5, // Top
x = (b+(t/2) - (h - ( (-h / (f-t)) *t) )) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ])
)
union([points, top, sqr, diff]);
//======== Slut Wall
---============================
---================
//====== Wall1 som ett "L"
---======================
// En högre vägg
function wall1() =
let(
b = 4, // botten - tjocklek
f = 7, // Foten
h = 25, // Höjd
t = 3, // Top
x = (b+(t/2) - (h - ((-h / (f-t)) *t))) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ])
)
union([points, top, sqr, diff]);
//======== Slut Wall1
---===========================
---================
//====== Plåt på släp
---===========================
module mountingPlate(posX=0, posY=0, posZ=0, mountSide="left", colorName="#C0C0C0", $fn=50)
{ // Hörnpositionerna
posX1 = 120;
posY1 = 0;
posX2 = posX1;
posY2 = -200;
posX3 = 120 - 75;
posY3 = -200;
posX4 = 0;
posY4 = 0;
thick=2; // tjocklek
side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case worked
xpos = mountSide == "left" ? 20
: mountSide == "right" ? -20
: assert(false,"invalid moutSide value"); // message if no case worked
/*
ypos = mountSide == "left" ? 85
: mountSide == "right" ? 85
: assert(false,"invalid moutSide value"); // message if no case worked
zpos = mountSide == "left" ? -thick
: mountSide == "right" ? -thick
: assert(false,"invalid moutSide value"); // message if no case worked
*/
color(colorName)
{ translate([posX, posY, posZ])
translate([xpos, 85, -thick])
{ mirror([side, 0, 0])
{ linear_extrude(thick)
hull()
{ translate([posX1, posY1, 0])
square(0.1, center = true);
translate([posX2, posY2, 0])
square(0.1, center = true);
translate([posX3, posY3, 0])
square(0.1, center = true);
translate([posX4, posY4, 0])
square(0.1, center = true);
}
}
}
}
}
= = END product 1= = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
= = product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
$fn=100;
//$fn=15;
//switch();
//cableHolder4(); //Switchboxen
// cableHolder3(0, 0, 0, 33.5, 23.5, 1.5, 2);
// showCables();
module cableHolder4(fn=24);
{ // idé från
// - https://www.thingiverse.com/thing:6400/files
// - https://ihrchive.wordpress.com/2011/02/14/openscad-tip-round-1-of-3-basic-rounding/
// mått på Switch
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
spaceHold = 10.0; // utrymmet bakom switch
holdRadie = 2; // radie i hörnen
thick = 2;
offset1=0.5; // öka toleransen
// innermått
holeW = widthHold + offset1;
holeH = heightHold + offset1;
holeD = depthHold + spaceHold+offset1;
// yttermått
pad = 0.1; // Padding to maintain manifold
box_l = holeW + thick*2; // Bredden på switchen
box_w = holeD + thick; // Djupet på switchen
box_h = holeH + thick; // Height
round_r = holdRadie; // Radius of round
smooth = 45; // Number of facets of rounding cylinder
difference()
{ union() // Detta utförs i två steg.
{ difference() // utför fasningar och kabelmarkeringar
{ mainBox(box_l, box_w, box_h, spaceHold+thick, round_r, thick, smooth, pad);
// fasning vänster (underkant)
translate([box_l/2-0.85, spaceHold-4.3, thick-offset1]) // sidled, fram/bak , upp/ned
rotate([0,180,45])
cylinder(h=thick, d1=holeW1.414-thick-thick, d2=holeW1.414, $fn=4);
// fasning höger (underkant)
translate([box_l/2-3.65, spaceHold-4.3, thick-offset1]) // sidled, fram/bak , upp/ned
rotate([0,180,45])
cylinder(h=thick, d1=holeW1.414-thick-thick, d2=holeW1.414, $fn=4);
// kabelgenomföringar
rotate([90, 180, 90]) // Markering ena sidan (vänster under)
ovalCableHole(spaceHold/2-offset1, -1.75, -1.2);
rotate([90, 180, 180]) // Markering bakkant (vänster under)
ovalCableHole(spaceHold/2-1.55, -1.75, -spaceHold-0.85);
rotate([90, 180, 180]) // Markering bakkant (höger under)
ovalCableHole(widthHold-spaceHold/2-offset1, -1.75, -spaceHold-0.85);
rotate([90, -180, 90]) // Markering ena sidan (höger under)
ovalCableHole(3.75, -1.75, widthHold-0.1);
}
} // Slut union - kropp
translate([-offset1/2, -spaceHold+pad, -pad]) // hålet där switchen ska placeras
cube([holeW, holeD+pad, holeH+pad], center=false);
translate([4, 12, 0])
cylinder(h=15,d=3.2);
translate([4, 12, 17.7])
sphere(r=6);
translate([29.6, 12, 0])
cylinder(h=15,d=3.2);
translate([29.6, 12, 17.7])
sphere(r=6);
/* // Hål genom lock bak - om så önskas
translate([box_l/2-thick, -6, offset1/2])
cylinder(h=box_h+thick*4+offset1, d=3.2, $fn=100); // hål genom lock bak
translate([box_l/2-thick, -6, 17.7])
sphere(r=6); // kona hålet bak
*/
} // Slut difference() - box
difference()
{ union()
{ translate([29.6, 12, heightHold-offset12])
cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv1
translate([4, 12, heightHold-offset12])
cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv2
translate([holeW/2, -spaceHold+thick+1, holeH/2])
rotate([180,0,0])
backHole();
} // union - slut
translate([4, 12, 0]) // Hålen i stödhylsorna
cylinder(h=15,d=3.2);
translate([29.6, 12, 0]) // Hålen i stödhylsorna
cylinder(h=15,d=3.2);
translate([box_l/2-thick, -6, -offset1]) // hål i stödhylsa bak
cylinder(h=box_h+offset1, d=3.2, $fn=100);
// Sänk stödhylsan
translate([ widthHold/2-7, -spaceHold-offset1, -thick+offset1]) // hål i stödhylsa bak
cube([15, 8, 3]);
// kabelmarkering
// translate([0, 0, 0]) // hål i stödhylsa bak
}
/*
translate([4, 12, 0])
#cylinder(h=15,d=3.2);
//translate([4, 13.5, 17.3])
//#sphere(r=6);
translate([29.6, 12, 0])
#cylinder(h=15,d=3.2);
//translate([29.6, 13.5, 17.3])
//#sphere(r=6);
*/
}
module backHole()
{ wallH = 10.5;
wide1 = 12; // endast runt cylindern
wide2 = 35; // hela väggen
deep1 = 4;
height1 = 10.5;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;
//rundadFot();
// Rundad stäcka mellan t.ex. vägg och tak -bakkant
translate([wide2/2, diam1/2-cornRad1/2, -height1/2])
{ rotate([90, 0, -90])
{ linear_extrude(wide2)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka1 (vänster) mellan t.ex. vägg och tak
translate([-wide2/2+0.15, deep1/2+cornRad1/2, -height1/2])
rotate([90, 0, 0])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
// rundad stäcka2 mellan t.ex. vägg och tak
translate([wide2/2-0.65, deep1/2+cornRad1/2, -height1/2])
rotate([0, -90, 90])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
// Skapa stödfot - bak
difference()
{ union()
{ //själva cylindern
translate([0, 1, 0])
{ cylinder(h=height1, d=diam1, center=true);
translate([0, diam1/2, 0])
cube([diam1,diam1-1,height1], center=true);
}
// Rundad fot under cylinder ovan
translate([0, 1, -height1/2])
{ rotate_extrude()
{ translate([diam1/2, 0, 0])
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad rakstäcka1 - cylinderfot - mellan t.ex. vägg och tak
translate([diam1/2, diam1, -height1/2])
{ rotate([90, 0, 0])
{ linear_extrude(diam1)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad rakstäcka2 - cylinderfot - mellan t.ex. vägg och tak
translate([-diam1/2, diam1, -height1/2])
{ rotate([0, -90, 90])
{ linear_extrude(diam1)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
//väggen bakom cylindern som ska rundas
translate([0, diam1/2-cornRad1, 0])
cube([wide1, cornRad1, height1], center=true);
}
// Avrunda hörn1 bak
translate([-wide1/2, cornRad1/2, cornRad1])
{ hull()
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
{ translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
}
}
// Avrunda hörn2 bak
translate([wide1/2, cornRad1/2, cornRad1])
{ hull()
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
{ translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
}
}
// Plocka bort rundad fot bak samt det som sticker ut
translate([-wide1/2, diam1/2-cornRad1/2, -height1/2-opt1])
cube([wide1, diam1/2+cornRad1, height1+opt1*2], center=false);
}
}
module ovalCableHole(posX, posY, posZ)
{ // Hål 5.5 x 3.5 mm
pan = 0.1;
cableHi = 1.5;
translate([posX, posY, posZ])
{ color("white")
{ translate([0, 0, -pan])
{ cylinder(h=cableHi, d=3.5);
//#translate([0, 0, 0]) cylinder(h=10, d=1);
//translate([0, 0, -1]) cylinder(h=1, d1=0, d2=1);
//translate([0, 0, 0]) sphere(d=1); // Inre kulan
//translate([0, 0, 1.5]) sphere(d=1); // Inre kulan
translate([0, 0, -1]) sphere(d=0.8); // yttre kulan
translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan
}
translate([2, 0, -pan])
{ cylinder(h=cableHi, d=3.5);
// #translate([0, 0, -cableHi*2]) cylinder(h=10, d=0.5);
//translate([0, 0, 0]) sphere(d=1); // Inre kulan
//translate([0, 0, 1.5]) sphere(d=1); // Inre kulan
translate([0, 0, -1]) sphere(d=0.8); // yttre kulan
translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan
}
translate([-3.5/2, 0, -pan])
cube([5.5, 3.5/2, cableHi]);
translate([-0.25, -1.74, -pan])
cube([2.5, 1.75, cableHi]);
}
}
}
module rundadFot()
{
// specifika värden för skruvdistansen bak
wallH = 10.5;
wide1 = 12; // endast runt cylindern
wide2 = 34; // hela väggen
deep1 = 4;
height1 = 10;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;
color("magenta")
{ translate([0, 0, wallH])
{ difference()
{ union()
{ // Bakgavel
translate([wide2/2, opt1, height1/2])
{ rotate([90, 180, 0])
cube([wide2, height1, opt1]);
}
// Golv
translate([wide2/2, -height1+opt1, -height1/2])
rotate([0, 180, 0])
cube([wide2, height1, opt1]);
//väggen bakom cylindern som kan rundas
translate([0, -cornRad1/2, 0])
cube([wide1, cornRad1, height1], center=true);
//själva cylindern
translate([0, -cornRad1/2, 0])
cylinder(h=height1, d=diam1, center=true);
// Rundad fot under cylinder ovan
translate([0, -cornRad1/2, -height1/2])
{ rotate_extrude()
{ translate([diam1/2, 0, 0])
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad stäcka mellan t.ex. vägg och tak -bakkant
translate([wide2/2, 0, -height1/2])
{ rotate([90, 0, -90])
{ linear_extrude(wide2)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka mellan t.ex. vägg och tak -sida1
translate([-wide2/2, 0, -height1/2])
{ rotate([90, 0, 0])
{ linear_extrude(10)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka mellan t.ex. vägg och tak -sida2
translate([wide2/2, -10, -height1/2])
{ rotate([90, 0, 180])
{ linear_extrude(10)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
} // Avsluta union = = = = = = = = = = = = = = = = = = = =
// Avrunda hörn1 bak
translate([-wide1/2+opt1*1.3, -deep1/2, cornRad1])
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
// Avrunda hörn2 bak
translate([wide1/2-opt1*1.3, -deep1/2, cornRad1])
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
// Plocka bort rundad fot bak samt det som sticker ut
translate([-wide1/2, 0, -height1/2-opt1])
cube([wide1, diam1/2+cornRad1, height1+opt1*2], center=false);
}
}
}
}
module mainBox(box_l, box_w, box_h, spaceHold, round_r, thick, smooth, pad)
{ translate([box_l/2-thick-offset1/2, box_w/2-spaceHold, box_h/2])
{
// To fix the corners cut the main cube with smaller cubes with spheres removed
difference()
{ cube([box_l, box_w, box_h], center = true);
// Kant1 - liggande
translate([0, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([0,-round_r-pad,round_r+pad])
cube([box_l+2pad, round_r2+pad, round_r2+pad], center = true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 - liggande
translate([0, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([0,round_r+pad,round_r+pad])
cube([box_l+2pad, round_r2+pad, round_r2+pad], center = true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/*
// Kant3 - liggande
translate([0, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([0,-round_r-pad,-round_r-pad])
cube([box_l+2pad, round_r2+pad, round_r2+pad], center = true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 - liggande
translate([0, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([0,round_r+pad,-round_r-pad])
cube([box_l+2pad, round_r2+pad, round_r2+pad], center = true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// ----
// Kant1 - stående
translate([-box_l/2+round_r, box_w/2-round_r, 0])
{ difference()
{ translate([-round_r-pad,round_r+pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center = true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 - stående
translate([box_l/2-round_r, box_w/2-round_r, 0])
{ difference()
{ translate([round_r+pad,round_r+pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center = true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant3 - stående
translate([-box_l/2+round_r, -box_w/2+round_r, 0])
{ difference()
{ translate([-round_r-pad,-round_r-pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center = true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 - stående
translate([box_l/2-round_r, -box_w/2+round_r, 0])
{ difference()
{ translate([round_r+pad,-round_r-pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center = true);
cylinder(box_h+4*pad,round_r,round_r,center=true,$fn=smooth);
}
}
// ----
// Kant1 liggande (andra hållet)
translate([-box_l/2+round_r, 0, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, 0, round_r+pad])
cube([round_r2+pad, box_w+2pad, round_r2+pad], center = true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 liggande (andra hållet)
translate([box_l/2-round_r, 0, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, 0, round_r+pad])
cube([round_r2+pad, box_w+2pad, round_r2+pad], center = true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/*
// Kant3 liggande (andra hållet)
translate([-box_l/2+round_r, 0, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, 0, -round_r-pad])
cube([round_r2+pad, box_w+2pad, round_r2+pad], center = true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 liggande (andra hållet)
translate([box_l/2-round_r, 0, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, 0, -round_r-pad])
cube([round_r2+pad, box_w+2pad, round_r2+pad], center = true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// ----
// Hörn1 (övre)
translate([box_l/2-round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (övre)
translate([-box_l/2+round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (övre)
translate([box_l/2-round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (övre)
translate([-box_l/2+round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
/
// Hörn1 (undre)
translate([box_l/2-round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (undre)
translate([-box_l/2+round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (undre)
translate([box_l/2-round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (undre)
translate([-box_l/2+round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center = true);
sphere(round_r,$fn=smooth);
}
}
*/
}
}
}
//
module cableHolder3(posX, posY, posZ, length, width, height, radius)
{ // Skapa toppen över switchen
// mått på Switchen
fn = 96; // upplösning (endast bågen?)
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
holdRadie = 1.5; // radie i hörnen
thick = 1.5; // tjocklek
translate([0,-thick,0])
{
difference(0, 0, 0)
{ hull()
{ difference()
{ translate([thick, 0, heightHold]) // vänster kant
{ rotate([-90, 0, 0])
{ cylinder(h=depthHold, d=thick2);
translate([0, 0, depthHold])
sphere(d=thick2); // längst fram
}
}
translate([0, -0.1, heightHold]) // plocka bort underdelen
rotate([-90, 0, 0])
cube([thick*2, thick+.1, depthHold+thick+.1]);
}
difference()
{ translate([widthHold-thick, 0, heightHold]) // höger kant
{ rotate([-90, 0, 0])
{ cylinder(h=depthHold, d=thick2);
translate([0, 0, depthHold])
sphere(d=thick2); // längst fram
}
}
translate([widthHold-thick2, -0.1, heightHold]) // plocka bort underdelen
{ rotate([-90, 0, 0])
cube([thick2, thick+.1, depthHold+thick+.1]);
}
}
}
// öppna hålen för monteringsskruvarna uppe på plattan
translate([4, 13.5, 0])
cylinder(h=15,d=3.2);
translate([4, 13.5, 17.3])
sphere(r=6);
translate([29.6, 13.5, 0])
cylinder(h=15,d=3.2);
translate([29.6, 13.5, 17.3])
sphere(r=6);
}
// halvbåge 1 bak
translate([thick, 0, heightHold/2+thick/2])
rotate([0, 90, 180])
rotate_extrude(angle = 180, convexity=20, $fn=64)
translate([heightHold/2-thick/2, 0, 0])
circle(d=thick2);
translate([thick, 0, heightHold])
sphere(d=thick2); // övre kulan
translate([thick, 0, thick])
sphere(d=thick*2); // undre kulan
// halvbåge 2 bak
translate([widthHold-thick, 0, heightHold/2+thick/2])
rotate([0, 90, 180])
rotate_extrude(angle = 180, convexity=20, $fn=64)
translate([heightHold/2-thick/2, 0, 0])
circle(d=thick2);
translate([widthHold-thick, 0, heightHold])
sphere(d=thick2); // övre kulan
translate([widthHold-thick, 0, thick])
sphere(d=thick*2); // undre kulan
// en cylinder tvärsöver längst upp
translate([thick, 0, heightHold])
{ rotate([0,90,0])
cylinder(h=widthHold-thick*2, r=thick);
}
}
// Halvbågen (kabelhållaren) på baksidan switchen
translate([widthHold-thick, -thick, heightHold/2+thick/2])
{ rotate([0,90,180])
linear_extrude(widthHold-thick2)
arc(heightHold/2-thick/2, [0, 180], thick, fn); //radius, angles, width, fn)
}
// en cylinder tvärsöver längst ned
translate([thick, -thick, thick])
{ rotate([0,90,0])
cylinder(h=widthHold-thick2, r=thick);
}
}
module switch(posX=0, posY=0, posZ=0)
{ buttRadie = 1.5;
height = 10.5;
width = 33.5;
depth = 23.5;
h1x = buttRadie;
h1y = buttRadie;
h2x = width-buttRadie;
h2y = buttRadie;
h3x = width-buttRadie;
h3y = depth-buttRadie;
h4x = buttRadie;
h4y = depth-buttRadie;
translate([posX, posY, posZ])
{ difference()
{ color("#F9F9F3")
// tryck-knappen
union()
{ translate([width/2, depth+6-0.1, height/2])
{ rotate([90, 0, 0])
{ translate([0,0,6])
circle(d=6.8); // skuggan runt knapp
cylinder(h=6, d=6);
sphere(d=6);
}
}
hull() // Switchkropp
{ translate([h1x, h1y])
cylinder(h=height, r=1.5);
translate([h2x, h2y])
cylinder(h=height, r=1.5);
translate([h3x, h3y])
cylinder(h=height, r=1.5);
translate([h4x, h4y])
cylinder(h=height, r=1.5);
}
}
// Skruvhålen för switchen
hole( 4, 12, 0, "#FFD700", height);
hole(29.6, 12, 0, "#FFD700", height);
// hole( 4, 12, 0, "#FFD700", 50);
// hole(29.6, 12, 0, "#FFD700", 50);
// hål för kablar bak
color("gray")
{ translate([9.5, 16, height/2])
{ rotate([90, 0, 0])
cylinder(h=16.5, d=4);
}
translate([24.5, 16, height/2])
{ rotate([90, 0, 0])
cylinder(h=16.5, d=4);
}
}
// hål för kabelskruvar
color("white")
{ translate([29.5, 17.1, height/2])
{ rotate([0, 90, 0])
cylinder(h=4.1, d=4.5);
}
translate([-0.1, 17.1, height/2])
{ rotate([0, 90, 0])
cylinder(h=4.1, d=4.5);
}
}
}
// Kabelskruvar
cableScrew(3, 17, height/2, 90);
cableScrew(31, 17, height/2, -90);
}
}
// Skruven som håller fast kabeln i switchen
module cableScrew(posX=0, posY=0, posZ=0, angle=0)
{ color("#FFD700") // mässing
translate([posX, posY, posZ])
{ rotate([0, 0, angle])
{ difference()
{ // skruvskalle
translate([0, 0, 0])
rotate([90, 0, 0])
cylinder(h=2, d1=4, d2=3.5);
// stjärnan i skruven
translate([0, 1.85, -.25])
rotate([0, 0, 0])
cylinder(h=0.5, d=5);
translate([-0.25, -.6, 2.25])
rotate([0, 90, 0])
cube([4.5, 2, 0.5]);
}
}
}
}
// borrhål
module hole(posX=0, posY=0, posZ=0, colorName="yellow", height)
{ diamHole1 = 3;
highHole1 = height;
diamHole2 = 6;
highHole2 = 2.5;
offs=0.1;
color(colorName)
{
translate([posX, posY, posZ])
{ translate([0, 0, 0])
cylinder(h=highHole1, d=diamHole1);
translate([0, 0, -offs])
cylinder(h=highHole2, d=diamHole2);
translate([0, 0, height-highHole2+offs])
cylinder(h=highHole2, d=diamHole2);
}
}
}
module showCables()
{ translate([-25,8,24])
rotate([80,177,90])
cable(10,10,0,"brun");
translate([-43,8,15])
rotate([90,180,90])
cable(10,10,0,"blå");
}
module cable(posX=0, posY=0, posZ=0, colorName="blå", radius=1.26, width=0.62, thick=50, fn=24)
{ // default 1.5mm2
// radius = inner radie
// width = bredd/tjocklek på cirkeln (inte höjd)
// thick = höjd på cirken/ röret
// pin=
colCupper = "#D7715A";
colGreen = "#07DA63";
colYellow = "#FFCC00";
if (colorName=="gröngul")
{ translate([posX, posY, posZ])
{ color(colGreen)
linear_extrude(thick)
arc(radius, [0, 60], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [60, 180], width, fn);
color(colGreen)
linear_extrude(thick)
arc(radius, [180, 240], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [240, 360], width, fn);
color(colCupper)
linear_extrude(10, center=true, convexity=10, $fn=100)
circle(d=1.24);
}
}
else // vanliga kablar 1.5mm2
{
cableColor = colorName == "blå" ? "#1870D5"
: colorName == "brun" ? "#9C6137"
: colorName == "svart" ? "#000000"
: assert(false,"invalid color value"); // message if no case worked
// : nodef
translate([posX, posY, posZ])
{ //el kabel - ena änden rak - andra böjd
color(colCupper) //kopparstump tråd rakkabel
linear_extrude(10, center=true, convexity=10, $fn=100)
circle(d=1.24);
color(cableColor)
{ cylinder(h=thick, r=radius);
translate([-radius*2, 0, thick]) // kabelböj
rotate([90, 0, 0])
rotate_extrude(angle=90, convexity=20)
translate([2.5, 0, 0])
circle(r=1.26);
translate([-radius2, 0, thick+radius2])
rotate([0, -90, 0])
cylinder(h=5, r=radius);
}
translate([-10, 0, thick+radius*2])
{ rotate([0, -90, 0])
{ color(colCupper)
{ linear_extrude(5, center=true, convexity=10, $fn=100)
circle(d=1.24);
}
}
}
}
}
}
---====
module arc(radius, angles, width = 1, fn = 24) {
difference() {
sector(radius + width, angles, fn); // ytterradie
sector(radius, angles, fn); // innerradie (plockar bort invändigt
}
}
module sector(radius, angles, fn = 24) {
r = radius / cos(180 / fn);
step = -360 / fn;
points = concat([[0, 0]],
[for(a = [angles[0] : step : angles[1] - 360])
[r * cos(a), r * sin(a)]
],
[[r * cos(angles[1]), r * sin(angles[1])]]
);
difference() {
circle(radius, $fn = fn);
polygon(points);
}
}
= = END product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
Den fredag 6 maj 2022 14:06:55 CEST, Michael Möller private2michael@gmail.com skrev:
OpenSCAD code - is a description of your model in terms of a few cylinder/cubes added and cut out
difference() {
cylinder(d=5,h=10);
translate([0,10,0]) cube([4,6,2]) ;
}
STL file is a list of triangles which make the same outer shell as your model. OpenSCAD makes this complicated transform from shapes to triangles.
solid OpenSCAD_Model
facet normal 0.92388 0.382682 0
outer loop
vertex 2.5 0 3
vertex 1.76777 1.76777 0
vertex 1.76777 1.76777 3
endloop
endfacet
facet normal 0.92388 0.382682 0
outer loop
vertex 1.76777 1.76777 0
vertex 2.5 0 3
vertex 2.5 0 0
endloop
endfacet
: (and so on for 300 lines) There is a binary/compressed version, but the description is still just triangles.
Gcode is what a 3D printer understands - it is the exact list of moves that the head has to do with how much plastic to squeeze to trace the outline of your shape, layer, by layer. It will optionally create moves for filling the inside or support for overhangs. Such a program is called a SLICER and the printer will come with one.
G92 E0 ; reset extrusion distance
G1 Z2.330 F6600.000 ; lift Z
G1 X-0.000 Y1.505 F6600.000 ; move to first perimeter point
G1 Z0.330 F6600.000 ; restore layer Z
G1 E3.00000 F2400.00000 ; unretract extruder 0
G1 F1500
G1 X-1.064 Y1.064 E3.09259 ; perimeter
G1 X-1.505 Y0.000 E3.18517 ; perimeter
: (many similar lines)
G1 X1.515 Y1.515 E4.65860 ; perimeter
G1 X0.055 Y2.120 E4.78559 ; perimeter
G1 X-0.000 Y2.143 F6600.000 ; move inwards before travel
G1 X0.384 Y0.843 F6600.000 ; move to first infill point
G1 F1500
G1 X0.843 Y0.384 E4.84815 ; infill
G1 X1.097 Y-0.229 E4.91215 ; infill
:
(and so on for thousands of lines)
The 3MF still basically deals in triangles, and attributes (surface, infill material, picture, ticket info ... ) which probably are not used by your slicer/printer.
On Fri, 6 May 2022 at 12:37, Jan Öhman via Discuss discuss@lists.openscad.org wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
Hi!
Thought to create some objects in openSCAD, to print later.
I do not have my own 3D printer (yet).
One I talked to, wanted to get the drawings in .STL or .3MF. (I don't know the difference).
If I had my own printer, have I been able to print directly from openSCAD?
(Without some export?)
In the openSCAD, no errors or problems occur.
but
The drawings I tested to export from openSCAD have given one or another error message.
One message .:
WARNING: Object may not be a valid 2-manifold and may need repair!
Another message .:
WARNING: No top level geometry to render
What to do?
---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
I tried to build the basic shape.
try the following code (you would need dependencies.scad which is available
at https://github.com/sprabhakar2006/openSCAD):
include<dependencies.scad>
sec=cr(pts1([[0,3,10],[40,-3,10],[100,0,.1],[0,80,.1],[-100,0,10],[-40,-3,10]]),10);
path=cr(pts1([[-10,0],[10,0,0],[0,15,1.5],[-1.5,0]]),10);
prism=prism1(sec,path);
path1=cr(pts1([[-10,3],[6,0,2],[1,12,1.5],[1.5,0],[0,1]]),10);
prism1=prism1(sec,path1);
prism2=l_extrude(offset(sec,-10),3);
sec1=cr(pts1([[0,0,1],[10,0,1],[0,25,1.5],[-3,0,1.5],[-2,-22,2],[-5,0]]),5);
prism3=trns([140-10,80,0],q_rot(["x90"],l_extrude(sec1,80)));
render()
difference(){
swp(prism);
swp(prism1);
}
swp(prism2);
swp(prism3);
dimensions are approximate and I have not checked the exact code.
above code renders successfully
On Sat, 7 May 2022 at 22:27, Michael Möller private2michael@gmail.com
wrote:
Jan Öhman wrote it failed in Render/F6, but works in Preview/F5 - in so
many words. I tried and got the following
First model
[image: image.png]
F6 Error: WARNING: Ignoring 2D child object for 3D operation in file ,
line 53
ERROR: CGAL error in CGALUtils::applyUnion3D: CGAL ERROR: assertion
violation! Expr: G.mark(v1,0)==G.mark(v2,0)&& G.mark(v1,1)==G.mark(v2,1)
File:
/mxe/usr/x86_64-w64-mingw32.static.posix/include/CGAL/Nef_S2/SM_overlayer.h
Line: 303
Which I think is pretty selfexplantory: Passed a 2D shape to something
that expected a 3D shape - but you have to read the whole code to find it
... which I think Jan is more qualified to do :-)
2nd part
[image: image.png]
... which is one of those where zooming or rotating the model in preview
takes >5 second
[image: image.png]
And I didn't bother waiting for the F6 error ... ;-)
Of course, we do not know if the above shapes I got are the ones that Jan
wants - there are also sections of code commented out.
(From the comments it seems these are to be nice and alternative covers
for wall outlet/switches.)
On Sat, 7 May 2022 at 18:26, Sanjeev Prabhakar sprabhakar2006@gmail.com
wrote:
Quite a long code.
Can you paste a picture of what you are trying to draw.
Regards
Sanjeev
On Sat, 7 May 2022, 16:31 Jan Öhman via Discuss, <
discuss@lists.openscad.org> wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
Thank you!
Begins to understand how it works. (It was not easy...)
but my solution was not good ...
Here are 2 files that do not work to render (F6)
= = product 1= = = = = = = = = = = = = = = = = = = = = = = = = = = = =
= = =
include <BOSL2/std.scad>
fn = 150;
placering="left";
// placering="right"
box(0, 0, 0, placering, "#C0C0C0", fn); // (X, Y, Z, left/right,
colorName)
// Monteringsplattan
// mountingPlate(0, 0, 0, placering);
// LED belysning
// LEDlampa(0, 0, 0, placering);
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
// - - - - m o d u l e r - - - - - - - - - - - - - - - - - -
---================
//====== box
---===
module box(posX=0, posY=0, posZ=0, mountSide="left",
colorName="#00FF00", fn=24)
{
side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case
worked
color(colorName)
translate([posX, posY, posZ])
mirror([side, 0, 0])
difference()
{
union()
{
// Skapa konturer på bottenplattan - x, y, r, angles, [grader], början
// Rotation medurs - vänster lamphållare (bakant saknas)
points1 = circSect( 140, 0, 0, [0, 0], "right", 1, fn); // böj
nere till höger
points2 = circSect( 60, 5, 5, [0, 5], "bottom", 1, fn); //
brytpunkt längst ned
points3 = circSect( 10, 13, 10, [0, 90], "bottom", 1, fn); // böj
nere till vänster
points4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // böj
uppe till vänster
points5 = circSect( 140, 80, 5, [0, 1], "top", 1, fn); // böj
uppe till höger
edge = concat(points1, points2, points3, points4, points5);
path = path3d(reverse(edge));
section = wall();
path_sweep( section, path, closed=false);
// Skapa bakkant lite högre och smalare i topp
bottom1 = concat(points5, points1);
polygon(bottom1);
path1 = path3d(reverse(bottom1));
section1 = wall1(); // lite högre bakvägg wall(b=4, f=8, h=15, t=3.5)
path_sweep( section1, path1, closed=false);
// fyll upp bottenplattansbaksida
linear_extrude(4) // Bottomplate - fill up
polygon(concat(points1, points2, points3, points4, points5));
// skapa Utskjutande del under (tänk spegelvänt)
pt1 = circSect( 19.5, 85, 0, [0, 50], "top", 1, fn); // Uppe till
höger - moturs
pt2 = circSect( 39, 1.35, .1, [-5, 90], "right", 1, fn); // Nere
till höger
pt3 = circSect( 10, 13.05, 10, [0, 90], "bottom", 1, fn); // Nere
till vänster
pt4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // Uppe till
vänster
translate([0, 0, -2])
linear_extrude(2.1)
polygon(concat(pt1, pt2, pt3, pt4));
// utgången för kabeln på baksidan (diam 10mm) - pekar lite nedåt
cableExit(65, 35, 0, 15, "cyan", $fn=100);
}
// skapa ett borrhål i bakkant
translate([132,60,15])
{ rotate([0, 90, 0])
{ cylinder(h=10, d=2, $fn=100);
cylinder(h=4, d=9, $fn=100);
}
}
// skapa en borrmarkering i bakkant
translate([139,25,15])
{ rotate([0, 90, 0])
cylinder(h=2, d1=1, d2=2.5, $fn=100);
}
// ingravera årtalet på baksidan
translate([10, 80, -0.5])
{ mirror([side, 0, 0])
{ rotate([0, 180, 0])
{ linear_extrude(3)
text("2022", size=12, direction="ttb", font="Comic Sans
MS:style=Bold");
}
}
}
/*
// Markera skruvhål på bakkant
borr=3;
bredd=140;
hojd=8;
avstNed=20;
translate([bredd, avstNed, hojd])
{ rotate([0,90,0])
cylinder(h=2, d1=0.5, d2=borr, center=true, $fn=50);
}
*/
// borrhål
mountingHole(20, 36, 0, 7, 90.1, 15); // posX, posY, posZ, diam, dist,
deep, $fn=50
}
}
//======== Slut box
---=============================
---================
//====== cableExit
---==============================
module cableExit(posX, posY, posZ, angle, colorName)
{ diamHole = 7;
diamHolder = 9.8;
hight = 12;
topRad = diamHolder/2;
topDiam = diamHolder/2-topRad/2;
bowRad = 7;
offs1 = 0.1;
color(colorName)
translate([posX, posY, posZ])
{ rotate([180, 0, 180-angle])
{ difference()
{ hull()
{ cylinder(h=hight, d=diamHolder, center=false);
translate([0, 0, hight]) // rundad topp
rotate_extrude(angle=360, convexity=2)
translate([topDiam, 0, 0]) // yttre diam topp
circle(d=topRad); // radie topp
}
inpHight = 2; // ett värde som styr var utgångshålet hamnar
translate([0, 0, -offs1])
cylinder(h=inpHight+offs1, d=diamHole, center=false); //
Bottenhål
translate([-bowRad, 0, inpHight-offs1]) // böjen
{ rotate([90, 0, 0])
rotate_extrude(angle=90, convexity=10)
translate([bowRad, 0, 0]) // ställ in radien på kabelböjen
circle(d=diamHole);
}
}
}
}
}
//====== slut cableExit
---=========================
---================
//====== mountingHole
---===========================
module mountingHole(posX=0, posY=0, posZ=0, diam=7, dist=90, deep=5,
$fn=50)
{ // diam = 6; // [mm]
// dist = 90; // [mm]
// deep = 12; // [mm]
translate([posX, posY, posZ])
{ translate([0, 0, -10])
cylinder(h=deep, d=diam); // fästhål 1
//cableHold1(dist/2, 0, .2, "#D5D5D5"); // Kabelgenomföring
translate([dist/2, 0, 0])
{ hull()
{ cylinder(h=5, d=6); // fästhål 1
sphere(d=7.5);
}
}
translate([dist, 0, -10])
cylinder(h=deep, d=diam); // fästhål 2
}
}
//====== slut mountingHole
---======================
---================
//====== LEDlampa
---===============================
// module LEDlampa(posX=8, posY=10, posZ=0)
module LEDlampa(posX=0, posY=0, posZ=0, mountSide="left")
{ side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case
worked
xpos = mountSide == "left" ? 121
: mountSide == "right" ? -10
: assert(false,"invalid moutSide value"); // message if no case
worked
/*
ypos = mountSide == "left" ? 10.5
: mountSide == "right" ? 10.5
: assert(false,"invalid moutSide value"); // message if no case
worked
zpos = mountSide == "left" ? 5
: mountSide == "right" ? 5
: assert(false,"invalid moutSide value"); // message if no case
worked
*/
// echo(xpos,ypos,zpos);
// translate([xpos, ypos, zpos])
translate([xpos, 10.5, 5])
mirror([1, 0, 0])
translate([posX, posY, posZ])
{ LEDbottom();
translate([0, 0, 11])
LEDglas();
}
}
//====== Slut LEDlampa
---==========================
---================
//====== LEDglas
---================================
module LEDglas()
{
// Variabler botten
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mm
cornRad = 10; // Radien i alla hörn
wideCorn = 48; // Bredd i kanterna
diamHole = 6; // håldiameter i mm
colorBot = "gray";
colorTop = "orange";
// Variabler top
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mm
p1tx = 10; // the start value
p1ty = 49.25;
p2tx = 55.5; // the middle value
p2ty = 50.5;
p3tx = 101; // the end value
p3ty = p1ty;
p4tx = 101; // the start value
p4ty = 1.25;
p5tx = 55.5; // the middle value
p5ty = 0.0;
p6tx = 10; // the end value
p6ty = p4ty;
// Ger ovalt glas
points1 = 3points_arc([p1tx,p1ty], [p2tx,p2ty], [p3tx,p3ty], fn=100);
points2 = 3points_arc([p4tx,p4ty], [p5tx,p5ty], [p6tx,p6ty], fn=100);
color("orange")
linear_extrude(height=cornHigh+.1)
difference()
{ polygon(concat(points1, points2));
translate([length-10 , wideMid / 2, -.2])
circle(d=6);
translate([10 , wideMid / 2, -.2])
circle(d=6);
}
// Top
color(colorTop)
difference()
{ hull()
{ // hörn1
translate([cornRad, wideMid - ((wideMid-wideCorn)/2) - cornRad,
0]) // [10,39]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn2
translate([cornRad, cornRad + ((wideMid-wideCorn)/2), 0])
// [10,12]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn3
translate([length - cornRad, wideMid - ((wideMid-wideCorn)/2) -
cornRad, 0]) // [101 ,39]
cylinder(h=cornHigh, d=cornRad2, center=false);
// hörn4
translate([length - cornRad, cornRad + ((wideMid-wideCorn)/2),
0]) //
cylinder(h=cornHigh, d=cornRad2, center=false);
}
union()
{ // Monteringshål 1 & 2
translate([length-10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=highTop+.5, center=false);
translate([10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=highTop+.5, center=false);
}
}
}
//======== Slut LEDglas
---=========================
---================
//====== LEDbottom
---==============================
module LEDbottom()
{ p1x = 10; // the start value
p1y = 49.25;
p2x = 55.5; // the middle value
p2y = 50.5;
p3x = 101; // the end value
p3y = p1y;
p4x = 101; // the start value
p4y = 1.25;
p5x = 55.5; // the middle value
p5y = 0.0;
p6x = 10; // the end value
p6y = p4y;
// Variabler botten för borrhålen
length = 111; // längd mm
wideMid = 50.5; // bredd i mitten mm
diamHole = 6; // håldiameter i mm
cornHigh = 5; //Höjd i ändarna
midHigh = 8;
highTop = cornHigh + 1; // höjd mm
// offs1 = 0.1;
heightHole = 15; //mm
height = 11; //mm
points1 = circSect( 10, 11.25, 10, [0, 90], "bottom", 1, fn); //
Hörn nere till vänster
points2 = circSect( 10, 39.25, 10, [0, 90], "left", 1, fn); //
Hörn uppe till vänster
points3 = 3points_arc([p1x,p1y], [p2x,p2y], [p3x,p3y], fn);
points4 = circSect( 101, 39.25, 10, [0, 90], "top", 1, fn); //
Hörn uppe till höger
points5 = circSect( 101, 11.25, 10, [0, 90], "right", 1, fn); //
Hörn nere till höger
points6 = 3points_arc([p4x,p4y], [p5x,p5y], [p6x,p6y], fn);
// The base plate for the LED lamp
difference()
{ color("gray", 0.5)
linear_extrude(height=height)
polygon(concat(points1, points2, points3, points4, points5,
points6));
// union()
{ // Monteringshål 1 & 2
translate([length-10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
translate([10 , wideMid / 2, -.2])
cylinder(d=diamHole, h=heightHole, center=false);
}
}
}
//======== Slut LEDbottom
---=======================
---================
//====== circleSect
---=============================
// Create rounded corners 2D
// https://openhome.cc/eGossip/OpenSCAD/SectorArc.html
// ange .: x, y, radien,
// [från, till] vinkel,
// var vinkeln startar, (left, bottom, right, top)
// vilken rotation (-1=medsol, 1=motsols)
function circSect(x=0, y=0, radius=10, angles=[0,270],
startRef="bottom", rotate=1, fn=24) =
let(
startAngel = (startRef == "left") ? 0
: (startRef == "bottom") ? 90
: (startRef == "right") ? 180
: (startRef == "top") ? 270
: startRef, // valfri vinkel
// : assert(false,"invalid moutSide value"); // Error
message if no case worked
//: undef,
r = radius,
//r = radius / cos(180 / fn),
step = 360 / fn,
// points = [[x, y],
points = [
for(a = [angles[0]-startAngel : step : angles[1]-startAngel])
[-rotate * r * cos(a)+x, r * sin(a)+y]]
) points;
//======== Slut circleSect
---======================
---================
//====== 3points_arc
---============================
// Create an arc with three points 2D
function 3points_arc(p0, p1, p2, fn=10) =
// an alternative expression for D
// D = 2 * ( (p1-p0).x * (p2-p0).y - (p1-p0).y * (p2-p0).x )
let( D = 2 * cross(p1-p0, (p2-p0)) )
assert( abs(D)>1e-9, "The 3 points should not be collinear." )
let(
Ux = ( (p2-p0).y*(p1-p0)(p1-p0) - (p1-p0).y(p2-p0)(p2-p0)
)/D,
Uy = ( (p1-p0).x(p2-p0)(p2-p0) - (p2-p0).x(p1-p0)(p1-p0)
)/D,
radius = norm([Ux,Uy]),
center = [Ux,Uy] + p0,
ang0 = atan2( (p0-center).y, (p0-center).x ),
ang2 = atan2( (p2-center).y, (p2-center).x ),
// the points are in a cw winding iff D<0
// the angular difference between vectors p2-center and p0-center
// measured from p0-center; dang is positive iff D is negative
dang = D<0 ? ang2<ang0 ? ang2-ang0 : ang2-ang0-360
: ang2>ang0 ? ang2-ang0 : ang2-ang0+360
)
[ for(i=[0:fn-1])
let( ang = ang0 + idang/(fn-1) )
center + radius*[cos(ang),sin(ang)] ];
//======== Slut 3points_arc
---=====================
---================
//====== Wall som ett "L"
---=======================
// Normal vägghöjd
function wall() =
let(
b = 4, // botten - tjocklek
f = 8, // Foten
h = 15, // Höjd
t = 3.5, // Top
x = (b+(t/2) - (h - ( (-h / (f-t)) *t) )) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ])
)
union([points, top, sqr, diff]);
//======== Slut Wall
---============================
---================
//====== Wall1 som ett "L"
---======================
// En högre vägg
function wall1() =
let(
b = 4, // botten - tjocklek
f = 7, // Foten
h = 25, // Höjd
t = 3, // Top
x = (b+(t/2) - (h - ((-h / (f-t)) *t))) / (-h / (f-t))
)
let(
points = [[0,0], [f,0], [t,h], [0,h]] ,
top = move([t/2, h, 0], circle(d=t, $fn=20)),
sqr = square([10, b]),
diff =
difference([
move([x, b], square([t/2, t/2])),
move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ])
)
union([points, top, sqr, diff]);
//======== Slut Wall1
---===========================
---================
//====== Plåt på släp
---===========================
module mountingPlate(posX=0, posY=0, posZ=0, mountSide="left",
colorName="#C0C0C0", $fn=50)
{ // Hörnpositionerna
posX1 = 120;
posY1 = 0;
posX2 = posX1;
posY2 = -200;
posX3 = 120 - 75;
posY3 = -200;
posX4 = 0;
posY4 = 0;
thick=2; // tjocklek
side = mountSide == "left" ? 0
: mountSide == "right" ? 1
: assert(false,"invalid moutSide value"); // message if no case
worked
xpos = mountSide == "left" ? 20
: mountSide == "right" ? -20
: assert(false,"invalid moutSide value"); // message if no case
worked
/*
ypos = mountSide == "left" ? 85
: mountSide == "right" ? 85
: assert(false,"invalid moutSide value"); // message if no case
worked
zpos = mountSide == "left" ? -thick
: mountSide == "right" ? -thick
: assert(false,"invalid moutSide value"); // message if no case
worked
*/
color(colorName)
{ translate([posX, posY, posZ])
translate([xpos, 85, -thick])
{ mirror([side, 0, 0])
{ linear_extrude(thick)
hull()
{ translate([posX1, posY1, 0])
square(0.1, center = true);
translate([posX2, posY2, 0])
square(0.1, center = true);
translate([posX3, posY3, 0])
square(0.1, center = true);
translate([posX4, posY4, 0])
square(0.1, center = true);
}
}
}
}
}
= = END product 1= = = = = = = = = = = = = = = = = = = = = = = = = = =
= = =
= = product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
= = =
$fn=100;
//$fn=15;
//switch();
//cableHolder4(); //Switchboxen
// cableHolder3(0, 0, 0, 33.5, 23.5, 1.5, 2);
// showCables();
module cableHolder4(fn=24);
{ // idé från
// - https://www.thingiverse.com/thing:6400/files
// -
https://ihrchive.wordpress.com/2011/02/14/openscad-tip-round-1-of-3-basic-rounding/
// mått på Switch
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
spaceHold = 10.0; // utrymmet bakom switch
holdRadie = 2; // radie i hörnen
thick = 2;
offset1=0.5; // öka toleransen
// innermått
holeW = widthHold + offset1;
holeH = heightHold + offset1;
holeD = depthHold + spaceHold+offset1;
// yttermått
pad = 0.1; // Padding to maintain manifold
box_l = holeW + thick*2; // Bredden på switchen
box_w = holeD + thick; // Djupet på switchen
box_h = holeH + thick; // Height
round_r = holdRadie; // Radius of round
smooth = 45; // Number of facets of rounding cylinder
difference()
{ union() // Detta utförs i två steg.
{ difference() // utför fasningar och kabelmarkeringar
{ mainBox(box_l, box_w, box_h, spaceHold+thick, round_r, thick,
smooth, pad);
// fasning vänster (underkant)
translate([box_l/2-0.85, spaceHold-4.3, thick-offset1]) //
sidled, fram/bak , upp/ned
rotate([0,180,45])
cylinder(h=thick, d1=holeW1.414-thick-thick,
d2=holeW1.414, $fn=4);
// fasning höger (underkant)
translate([box_l/2-3.65, spaceHold-4.3, thick-offset1]) //
sidled, fram/bak , upp/ned
rotate([0,180,45])
cylinder(h=thick, d1=holeW1.414-thick-thick,
d2=holeW1.414, $fn=4);
// kabelgenomföringar
rotate([90, 180, 90]) // Markering ena sidan (vänster under)
ovalCableHole(spaceHold/2-offset1, -1.75, -1.2);
rotate([90, 180, 180]) // Markering bakkant (vänster under)
ovalCableHole(spaceHold/2-1.55, -1.75, -spaceHold-0.85);
rotate([90, 180, 180]) // Markering bakkant (höger under)
ovalCableHole(widthHold-spaceHold/2-offset1, -1.75,
-spaceHold-0.85);
rotate([90, -180, 90]) // Markering ena sidan (höger under)
ovalCableHole(3.75, -1.75, widthHold-0.1);
}
} // Slut union - kropp
translate([-offset1/2, -spaceHold+pad, -pad]) // hålet där switchen
ska placeras
cube([holeW, holeD+pad, holeH+pad], center=false);
translate([4, 12, 0])
cylinder(h=15,d=3.2);
translate([4, 12, 17.7])
sphere(r=6);
translate([29.6, 12, 0])
cylinder(h=15,d=3.2);
translate([29.6, 12, 17.7])
sphere(r=6);
/* // Hål genom lock bak - om så önskas
translate([box_l/2-thick, -6, offset1/2])
cylinder(h=box_h+thick*4+offset1, d=3.2, $fn=100); // hål genom
lock bak
translate([box_l/2-thick, -6, 17.7])
sphere(r=6); // kona hålet bak
*/
} // Slut difference() - box
difference()
{ union()
{ translate([29.6, 12, heightHold-offset1*2])
cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv1
translate([4, 12, heightHold-offset1*2])
cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv2
translate([holeW/2, -spaceHold+thick+1, holeH/2])
rotate([180,0,0])
backHole();
} // union - slut
translate([4, 12, 0]) // Hålen i stödhylsorna
cylinder(h=15,d=3.2);
translate([29.6, 12, 0]) // Hålen i stödhylsorna
cylinder(h=15,d=3.2);
translate([box_l/2-thick, -6, -offset1]) // hål i stödhylsa bak
cylinder(h=box_h+offset1, d=3.2, $fn=100);
// Sänk stödhylsan
translate([ widthHold/2-7, -spaceHold-offset1, -thick+offset1])
// hål i stödhylsa bak
cube([15, 8, 3]);
// kabelmarkering
// translate([0, 0, 0]) // hål i stödhylsa bak
}
/*
translate([4, 12, 0])
#cylinder(h=15,d=3.2);
//translate([4, 13.5, 17.3])
//#sphere(r=6);
translate([29.6, 12, 0])
#cylinder(h=15,d=3.2);
//translate([29.6, 13.5, 17.3])
//#sphere(r=6);
*/
}
module backHole()
{ wallH = 10.5;
wide1 = 12; // endast runt cylindern
wide2 = 35; // hela väggen
deep1 = 4;
height1 = 10.5;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;
//rundadFot();
// Rundad stäcka mellan t.ex. vägg och tak -bakkant
translate([wide2/2, diam1/2-cornRad1/2, -height1/2])
{ rotate([90, 0, -90])
{ linear_extrude(wide2)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka1 (vänster) mellan t.ex. vägg och tak
translate([-wide2/2+0.15, deep1/2+cornRad1/2, -height1/2])
rotate([90, 0, 0])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
// rundad stäcka2 mellan t.ex. vägg och tak
translate([wide2/2-0.65, deep1/2+cornRad1/2, -height1/2])
rotate([0, -90, 90])
{ linear_extrude(spaceHold)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
// Skapa stödfot - bak
difference()
{ union()
{ //själva cylindern
translate([0, 1, 0])
{ cylinder(h=height1, d=diam1, center=true);
translate([0, diam1/2, 0])
cube([diam1,diam1-1,height1], center=true);
}
// Rundad fot under cylinder ovan
translate([0, 1, -height1/2])
{ rotate_extrude()
{ translate([diam1/2, 0, 0])
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad rakstäcka1 - cylinderfot - mellan t.ex. vägg och tak
translate([diam1/2, diam1, -height1/2])
{ rotate([90, 0, 0])
{ linear_extrude(diam1)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad rakstäcka2 - cylinderfot - mellan t.ex. vägg och tak
translate([-diam1/2, diam1, -height1/2])
{ rotate([0, -90, 90])
{ linear_extrude(diam1)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
//väggen bakom cylindern som ska rundas
translate([0, diam1/2-cornRad1, 0])
cube([wide1, cornRad1, height1], center=true);
}
// Avrunda hörn1 bak
translate([-wide1/2, cornRad1/2, cornRad1])
{ hull()
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
{ translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
}
}
// Avrunda hörn2 bak
translate([wide1/2, cornRad1/2, cornRad1])
{ hull()
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
{ translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
}
}
// Plocka bort rundad fot bak samt det som sticker ut
translate([-wide1/2, diam1/2-cornRad1/2, -height1/2-opt1])
cube([wide1, diam1/2+cornRad1, height1+opt1*2], center=false);
}
}
module ovalCableHole(posX, posY, posZ)
{ // Hål 5.5 x 3.5 mm
pan = 0.1;
cableHi = 1.5;
translate([posX, posY, posZ])
{ color("white")
{ translate([0, 0, -pan])
{ cylinder(h=cableHi, d=3.5);
//#translate([0, 0, 0]) cylinder(h=10, d=1);
//translate([0, 0, -1]) cylinder(h=1, d1=0, d2=1);
//translate([0, 0, 0]) sphere(d=1); // Inre kulan
//translate([0, 0, 1.5]) sphere(d=1); // Inre kulan
translate([0, 0, -1]) sphere(d=0.8); // yttre kulan
translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan
}
translate([2, 0, -pan])
{ cylinder(h=cableHi, d=3.5);
// #translate([0, 0, -cableHi*2]) cylinder(h=10, d=0.5);
//translate([0, 0, 0]) sphere(d=1); // Inre kulan
//translate([0, 0, 1.5]) sphere(d=1); // Inre kulan
translate([0, 0, -1]) sphere(d=0.8); // yttre kulan
translate([0, 0, 2.5]) sphere(d=0.8); // yttre kulan
}
translate([-3.5/2, 0, -pan])
cube([5.5, 3.5/2, cableHi]);
translate([-0.25, -1.74, -pan])
cube([2.5, 1.75, cableHi]);
}
}
}
module rundadFot()
{
// specifika värden för skruvdistansen bak
wallH = 10.5;
wide1 = 12; // endast runt cylindern
wide2 = 34; // hela väggen
deep1 = 4;
height1 = 10;
cornRad1 = 2;
diam1 = 8;
opt1 = 0.1;
color("magenta")
{ translate([0, 0, wallH])
{ difference()
{ union()
{ // Bakgavel
translate([wide2/2, opt1, height1/2])
{ rotate([90, 180, 0])
cube([wide2, height1, opt1]);
}
// Golv
translate([wide2/2, -height1+opt1, -height1/2])
rotate([0, 180, 0])
cube([wide2, height1, opt1]);
//väggen bakom cylindern som kan rundas
translate([0, -cornRad1/2, 0])
cube([wide1, cornRad1, height1], center=true);
//själva cylindern
translate([0, -cornRad1/2, 0])
cylinder(h=height1, d=diam1, center=true);
// Rundad fot under cylinder ovan
translate([0, -cornRad1/2, -height1/2])
{ rotate_extrude()
{ translate([diam1/2, 0, 0])
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// Rundad stäcka mellan t.ex. vägg och tak -bakkant
translate([wide2/2, 0, -height1/2])
{ rotate([90, 0, -90])
{ linear_extrude(wide2)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka mellan t.ex. vägg och tak -sida1
translate([-wide2/2, 0, -height1/2])
{ rotate([90, 0, 0])
{ linear_extrude(10)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
// rundad stäcka mellan t.ex. vägg och tak -sida2
translate([wide2/2, -10, -height1/2])
{ rotate([90, 0, 180])
{ linear_extrude(10)
{ difference()
{ square([cornRad1, cornRad1]);
translate([cornRad1, cornRad1])
circle(r=cornRad1);
}
}
}
}
} // Avsluta union = = = = = = = = = = = = = = = = = = = =
// Avrunda hörn1 bak
translate([-wide1/2+opt1*1.3, -deep1/2, cornRad1])
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
// Avrunda hörn2 bak
translate([wide1/2-opt1*1.3, -deep1/2, cornRad1])
{ cylinder(h=height1+opt1, r=cornRad1, center=true);
translate([0, 0, -height1/2])
sphere(r=cornRad1);
}
// Plocka bort rundad fot bak samt det som sticker ut
translate([-wide1/2, 0, -height1/2-opt1])
cube([wide1, diam1/2+cornRad1, height1+opt1*2], center=false);
}
}
}
}
module mainBox(box_l, box_w, box_h, spaceHold, round_r, thick, smooth,
pad)
{ translate([box_l/2-thick-offset1/2, box_w/2-spaceHold, box_h/2])
{
// To fix the corners cut the main cube with smaller cubes with
spheres removed
difference()
{ cube([box_l, box_w, box_h], center = true);
// Kant1 - liggande
translate([0, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([0,-round_r-pad,round_r+pad])
cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 - liggande
translate([0, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([0,round_r+pad,round_r+pad])
cube([box_l+2pad, round_r2+pad, round_r2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// Kant3 - liggande
translate([0, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([0,-round_r-pad,-round_r-pad])
cube([box_l+2pad, round_r2+pad, round_r2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 - liggande
translate([0, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([0,round_r+pad,-round_r-pad])
cube([box_l+2*pad, round_r*2+pad, round_r*2+pad], center =
true);
rotate(a=[0,90,0])
cylinder(box_l+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// ----
// Kant1 - stående
translate([-box_l/2+round_r, box_w/2-round_r, 0])
{ difference()
{ translate([-round_r-pad,round_r+pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 - stående
translate([box_l/2-round_r, box_w/2-round_r, 0])
{ difference()
{ translate([round_r+pad,round_r+pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant3 - stående
translate([-box_l/2+round_r, -box_w/2+round_r, 0])
{ difference()
{ translate([-round_r-pad,-round_r-pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 - stående
translate([box_l/2-round_r, -box_w/2+round_r, 0])
{ difference()
{ translate([round_r+pad,-round_r-pad,0])
cube([round_r2+pad, round_r2+pad, box_h+2pad], center =
true);
cylinder(box_h+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// ----
// Kant1 liggande (andra hållet)
translate([-box_l/2+round_r, 0, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, 0, round_r+pad])
cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant2 liggande (andra hållet)
translate([box_l/2-round_r, 0, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, 0, round_r+pad])
cube([round_r2+pad, box_w+2pad, round_r2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// Kant3 liggande (andra hållet)
translate([-box_l/2+round_r, 0, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, 0, -round_r-pad])
cube([round_r2+pad, box_w+2pad, round_r2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
// Kant4 liggande (andra hållet)
translate([box_l/2-round_r, 0, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, 0, -round_r-pad])
cube([round_r*2+pad, box_w+2*pad, round_r*2+pad], center =
true);
rotate(a=[0,90,90])
cylinder(box_w+4pad,round_r,round_r,center=true,$fn=smooth);
}
}
/
// ----
// Hörn1 (övre)
translate([box_l/2-round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (övre)
translate([-box_l/2+round_r, box_w/2-round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (övre)
translate([box_l/2-round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (övre)
translate([-box_l/2+round_r, -box_w/2+round_r, box_h/2-round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, round_r+pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
/*
// Hörn1 (undre)
translate([box_l/2-round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, round_r+pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn2 (undre)
translate([-box_l/2+round_r, box_w/2-round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, round_r+pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn3 (undre)
translate([box_l/2-round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([round_r+pad, -round_r-pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
// Hörn4 (undre)
translate([-box_l/2+round_r, -box_w/2+round_r, -box_h/2+round_r])
{ difference()
{ translate([-round_r-pad, -round_r-pad, -round_r-pad])
cube([round_r2+pad, round_r2+pad, round_r2+pad], center =
true);
sphere(round_r,$fn=smooth);
}
}
*/
}
}
}
//
module cableHolder3(posX, posY, posZ, length, width, height, radius)
{ // Skapa toppen över switchen
// mått på Switchen
fn = 96; // upplösning (endast bågen?)
heightHold = 10.5;
widthHold = 33.5;
depthHold = 23.5;
holdRadie = 1.5; // radie i hörnen
thick = 1.5; // tjocklek
translate([0,-thick,0])
{
difference(0, 0, 0)
{ hull()
{ difference()
{ translate([thick, 0, heightHold]) // vänster kant
{ rotate([-90, 0, 0])
{ cylinder(h=depthHold, d=thick2);
translate([0, 0, depthHold])
sphere(d=thick2); // längst fram
}
}
translate([0, -0.1, heightHold]) // plocka bort underdelen
rotate([-90, 0, 0])
cube([thick*2, thick+.1, depthHold+thick+.1]);
}
difference()
{ translate([widthHold-thick, 0, heightHold]) // höger kant
{ rotate([-90, 0, 0])
{ cylinder(h=depthHold, d=thick*2);
translate([0, 0, depthHold])
sphere(d=thick*2); // längst fram
}
}
translate([widthHold-thick*2, -0.1, heightHold]) // plocka
bort underdelen
{ rotate([-90, 0, 0])
cube([thick*2, thick+.1, depthHold+thick+.1]);
}
}
}
// öppna hålen för monteringsskruvarna uppe på plattan
translate([4, 13.5, 0])
cylinder(h=15,d=3.2);
translate([4, 13.5, 17.3])
sphere(r=6);
translate([29.6, 13.5, 0])
cylinder(h=15,d=3.2);
translate([29.6, 13.5, 17.3])
sphere(r=6);
}
// halvbåge 1 bak
translate([thick, 0, heightHold/2+thick/2])
rotate([0, 90, 180])
rotate_extrude(angle = 180, convexity=20, $fn=64)
translate([heightHold/2-thick/2, 0, 0])
circle(d=thick*2);
translate([thick, 0, heightHold])
sphere(d=thick*2); // övre kulan
translate([thick, 0, thick])
sphere(d=thick*2); // undre kulan
// halvbåge 2 bak
translate([widthHold-thick, 0, heightHold/2+thick/2])
rotate([0, 90, 180])
rotate_extrude(angle = 180, convexity=20, $fn=64)
translate([heightHold/2-thick/2, 0, 0])
circle(d=thick*2);
translate([widthHold-thick, 0, heightHold])
sphere(d=thick*2); // övre kulan
translate([widthHold-thick, 0, thick])
sphere(d=thick*2); // undre kulan
// en cylinder tvärsöver längst upp
translate([thick, 0, heightHold])
{ rotate([0,90,0])
cylinder(h=widthHold-thick*2, r=thick);
}
}
// Halvbågen (kabelhållaren) på baksidan switchen
translate([widthHold-thick, -thick, heightHold/2+thick/2])
{ rotate([0,90,180])
linear_extrude(widthHold-thick2)
arc(heightHold/2-thick/2, [0, 180], thick, fn); //radius,
angles, width, fn)
}
// en cylinder tvärsöver längst ned
translate([thick, -thick, thick])
{ rotate([0,90,0])
cylinder(h=widthHold-thick2, r=thick);
}
}
module switch(posX=0, posY=0, posZ=0)
{ buttRadie = 1.5;
height = 10.5;
width = 33.5;
depth = 23.5;
h1x = buttRadie;
h1y = buttRadie;
h2x = width-buttRadie;
h2y = buttRadie;
h3x = width-buttRadie;
h3y = depth-buttRadie;
h4x = buttRadie;
h4y = depth-buttRadie;
translate([posX, posY, posZ])
{ difference()
{ color("#F9F9F3")
// tryck-knappen
union()
{ translate([width/2, depth+6-0.1, height/2])
{ rotate([90, 0, 0])
{ translate([0,0,6])
circle(d=6.8); // skuggan runt knapp
cylinder(h=6, d=6);
sphere(d=6);
}
}
hull() // Switchkropp
{ translate([h1x, h1y])
cylinder(h=height, r=1.5);
translate([h2x, h2y])
cylinder(h=height, r=1.5);
translate([h3x, h3y])
cylinder(h=height, r=1.5);
translate([h4x, h4y])
cylinder(h=height, r=1.5);
}
}
// Skruvhålen för switchen
hole( 4, 12, 0, "#FFD700", height);
hole(29.6, 12, 0, "#FFD700", height);
// hole( 4, 12, 0, "#FFD700", 50);
// hole(29.6, 12, 0, "#FFD700", 50);
// hål för kablar bak
color("gray")
{ translate([9.5, 16, height/2])
{ rotate([90, 0, 0])
cylinder(h=16.5, d=4);
}
translate([24.5, 16, height/2])
{ rotate([90, 0, 0])
cylinder(h=16.5, d=4);
}
}
// hål för kabelskruvar
color("white")
{ translate([29.5, 17.1, height/2])
{ rotate([0, 90, 0])
cylinder(h=4.1, d=4.5);
}
translate([-0.1, 17.1, height/2])
{ rotate([0, 90, 0])
cylinder(h=4.1, d=4.5);
}
}
}
// Kabelskruvar
cableScrew(3, 17, height/2, 90);
cableScrew(31, 17, height/2, -90);
}
}
// Skruven som håller fast kabeln i switchen
module cableScrew(posX=0, posY=0, posZ=0, angle=0)
{ color("#FFD700") // mässing
translate([posX, posY, posZ])
{ rotate([0, 0, angle])
{ difference()
{ // skruvskalle
translate([0, 0, 0])
rotate([90, 0, 0])
cylinder(h=2, d1=4, d2=3.5);
// stjärnan i skruven
translate([0, 1.85, -.25])
rotate([0, 0, 0])
cylinder(h=0.5, d=5);
translate([-0.25, -.6, 2.25])
rotate([0, 90, 0])
cube([4.5, 2, 0.5]);
}
}
}
}
// borrhål
module hole(posX=0, posY=0, posZ=0, colorName="yellow", height)
{ diamHole1 = 3;
highHole1 = height;
diamHole2 = 6;
highHole2 = 2.5;
offs=0.1;
color(colorName)
{
translate([posX, posY, posZ])
{ translate([0, 0, 0])
cylinder(h=highHole1, d=diamHole1);
translate([0, 0, -offs])
cylinder(h=highHole2, d=diamHole2);
translate([0, 0, height-highHole2+offs])
cylinder(h=highHole2, d=diamHole2);
}
}
}
module showCables()
{ translate([-25,8,24])
rotate([80,177,90])
cable(10,10,0,"brun");
translate([-43,8,15])
rotate([90,180,90])
cable(10,10,0,"blå");
}
module cable(posX=0, posY=0, posZ=0, colorName="blå", radius=1.26,
width=0.62, thick=50, fn=24)
{ // default 1.5mm2
// radius = inner radie
// width = bredd/tjocklek på cirkeln (inte höjd)
// thick = höjd på cirken/ röret
// pin=
colCupper = "#D7715A";
colGreen = "#07DA63";
colYellow = "#FFCC00";
if (colorName=="gröngul")
{ translate([posX, posY, posZ])
{ color(colGreen)
linear_extrude(thick)
arc(radius, [0, 60], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [60, 180], width, fn);
color(colGreen)
linear_extrude(thick)
arc(radius, [180, 240], width, fn);
color(colYellow)
linear_extrude(thick)
arc(radius, [240, 360], width, fn);
color(colCupper)
linear_extrude(10, center=true, convexity=10, $fn=100)
circle(d=1.24);
}
}
else // vanliga kablar 1.5mm2
{
cableColor = colorName == "blå" ? "#1870D5"
: colorName == "brun" ? "#9C6137"
: colorName == "svart" ? "#000000"
: assert(false,"invalid color value"); // message if no
case worked
// : nodef
translate([posX, posY, posZ])
{ //el kabel - ena änden rak - andra böjd
color(colCupper) //kopparstump tråd rakkabel
linear_extrude(10, center=true, convexity=10, $fn=100)
circle(d=1.24);
color(cableColor)
{ cylinder(h=thick, r=radius);
translate([-radius*2, 0, thick]) // kabelböj
rotate([90, 0, 0])
rotate_extrude(angle=90, convexity=20)
translate([2.5, 0, 0])
circle(r=1.26);
translate([-radius*2, 0, thick+radius*2])
rotate([0, -90, 0])
cylinder(h=5, r=radius);
}
translate([-10, 0, thick+radius*2])
{ rotate([0, -90, 0])
{ color(colCupper)
{ linear_extrude(5, center=true, convexity=10, $fn=100)
circle(d=1.24);
}
}
}
}
}
}
---====
module arc(radius, angles, width = 1, fn = 24) {
difference() {
sector(radius + width, angles, fn); // ytterradie
sector(radius, angles, fn); // innerradie (plockar bort
invändigt
}
}
module sector(radius, angles, fn = 24) {
r = radius / cos(180 / fn);
step = -360 / fn;
points = concat([[0, 0]],
[for(a = [angles[0] : step : angles[1] - 360])
[r * cos(a), r * sin(a)]
],
[[r * cos(angles[1]), r * sin(angles[1])]]
);
difference() {
circle(radius, $fn = fn);
polygon(points);
}
}
= = END product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = =
= = =
Den fredag 6 maj 2022 14:06:55 CEST, Michael Möller <
private2michael@gmail.com> skrev:
OpenSCAD code - is a description of your model in terms of a few
cylinder/cubes added and cut out
difference() {
cylinder(d=5,h=10);
translate([0,10,0]) cube([4,6,2]) ;
}
STL file is a list of triangles which make the same outer shell as your
model. OpenSCAD makes this complicated transform from shapes to triangles.
solid OpenSCAD_Model
facet normal 0.92388 0.382682 0
outer loop
vertex 2.5 0 3
vertex 1.76777 1.76777 0
vertex 1.76777 1.76777 3
endloop
endfacet
facet normal 0.92388 0.382682 0
outer loop
vertex 1.76777 1.76777 0
vertex 2.5 0 3
vertex 2.5 0 0
endloop
endfacet
: (and so on for 300 lines) There is a binary/compressed version, but
the description is still just triangles.
Gcode is what a 3D printer understands - it is the exact list of moves
that the head has to do with how much plastic to squeeze to trace the
outline of your shape, layer, by layer. It will optionally create moves for
filling the inside or support for overhangs. Such a program is called a
SLICER and the printer will come with one.
G92 E0 ; reset extrusion distance
G1 Z2.330 F6600.000 ; lift Z
G1 X-0.000 Y1.505 F6600.000 ; move to first perimeter point
G1 Z0.330 F6600.000 ; restore layer Z
G1 E3.00000 F2400.00000 ; unretract extruder 0
G1 F1500
G1 X-1.064 Y1.064 E3.09259 ; perimeter
G1 X-1.505 Y0.000 E3.18517 ; perimeter
: (many similar lines)
G1 X1.515 Y1.515 E4.65860 ; perimeter
G1 X0.055 Y2.120 E4.78559 ; perimeter
G1 X-0.000 Y2.143 F6600.000 ; move inwards before travel
G1 X0.384 Y0.843 F6600.000 ; move to first infill point
G1 F1500
G1 X0.843 Y0.384 E4.84815 ; infill
G1 X1.097 Y-0.229 E4.91215 ; infill
:
(and so on for thousands of lines)
The 3MF still basically deals in triangles, and attributes (surface,
infill material, picture, ticket info ... ) which probably are not used by
your slicer/printer.
On Fri, 6 May 2022 at 12:37, Jan Öhman via Discuss <
discuss@lists.openscad.org> wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
Hi!
Thought to create some objects in openSCAD, to print later.
I do not have my own 3D printer (yet).
One I talked to, wanted to get the drawings in .STL or .3MF. (I don't
know the difference).
If I had my own printer, have I been able to print directly from
openSCAD?
(Without some export?)
In the openSCAD, no errors or problems occur.
but
The drawings I tested to export from openSCAD have given one or another
error message.
One message .:
WARNING: Object may not be a valid 2-manifold and may need repair!
Another message .:
WARNING: No top level geometry to render
What to do?
---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD General Discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Fri, 6 May 2022 10:38:46 +0000 (UTC)
Subject: [OpenSCAD] Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
---------- Forwarded message ----------
From: "Jan Öhman via Discuss" discuss@lists.openscad.org
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc: "Jan Öhman" jan_ohman@yahoo.com
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org
Thanks everyone!
Wrote a new program (below) where all the features are removed, then I changed a variable
From points5 = circSect( 140, 80, 5, [0, 1], "top", 1, fn); // böj uppe till höger
to points5 = circSect( 140, 80, 5, [0, 0], "top", 1, fn); // böj uppe till höger
Now another problem was occurred (like the second structure above)
but now allways
WARNING: No top level geometry to render
What does this mean?
---==========
include <BOSL2/std.scad>fn = 50;
points1 = circSect( 140, 0, 0, [0, 0], "right", 1, fn); // böj nere till högerpoints2 = circSect( 60, 5, 5, [0, 5], "bottom", 1, fn); // brytpunkt längst nedpoints3 = circSect( 10, 13, 10, [0, 90], "bottom", 1, fn); // böj nere till vänsterpoints4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // böj uppe till vänsterpoints5 = circSect( 140, 80, 5, [0, 0], "top", 1, fn); // böj uppe till högeredge = concat(points1, points2, points3, points4, points5);// echo(edge); // [140, 85] to [140, 85]path = path3d(reverse(edge));section = theWall(4, 8, 15, 3.5); // bottom thickness, foot, height, top [mm]path_sweep( section, path, closed=false);
// Skapa bakkant lite högre och smalare i toppbottom1 = concat(points5, points1);// echo(bottom1); // [140, 85] to [140, 0]polygon(bottom1);path1 = path3d(reverse(bottom1));section1 = theWall(4, 7, 25, 3); // bottom thickness, foot, height, top [mm]path_sweep( section1, path1, closed=false );
---================//====== circleSect
---=============================// Create rounded corners 2D// https://openhome.cc/eGossip/OpenSCAD/SectorArc.html// ange .: x, y, radien,// [från, till] vinkel,// var vinkeln startar, (left, bottom, right, top)// vilken rotation (-1=medsol, 1=motsols)function circSect(x=0, y=0, radius=10, angles=[0,270], startRef="bottom", rotate=1, fn=24) = let( startAngel = (startRef == "left") ? 0 : (startRef == "bottom") ? 90 : (startRef == "right") ? 180 : (startRef == "top") ? 270 : startRef, // valfri vinkel // : assert(false,"invalid moutSide value"); // Error message if no case worked //: undef, r = radius, //r = radius / cos(180 / fn), step = 360 / fn, // points = [[x, y], points = [ for(a = [angles[0]-startAngel : step : angles[1]-startAngel]) [-rotate * r * cos(a)+x, r * sin(a)+y]] ) points;//======== Slut circleSect
---======================
---================//====== theWall som ett "L"
---=======================// Normal vägghöjdfunction theWall(b, f, h, t) = let( x = (b+(t/2) - (h - ( (-h / (f-t)) *t) )) / (-h / (f-t)) ) let( points = [[0,0], [f,0], [t,h], [0,h]] , top = move([t/2, h, 0], circle(d=t, $fn=20)), sqr = square([10, b]), diff = difference([ move([x, b], square([t/2, t/2])), move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ]) ) union([points, top, sqr, diff]);//======== Slut theWall
---============================
Den söndag 8 maj 2022 15:51:35 CEST, Sanjeev Prabhakar sprabhakar2006@gmail.com skrev:
I tried to build the basic shape.
try the following code (you would need dependencies.scad which is available at https://github.com/sprabhakar2006/openSCAD):
include<dependencies.scad>
sec=cr(pts1([[0,3,10],[40,-3,10],[100,0,.1],[0,80,.1],[-100,0,10],[-40,-3,10]]),10);
path=cr(pts1([[-10,0],[10,0,0],[0,15,1.5],[-1.5,0]]),10);
prism=prism1(sec,path);
path1=cr(pts1([[-10,3],[6,0,2],[1,12,1.5],[1.5,0],[0,1]]),10);
prism1=prism1(sec,path1);
prism2=l_extrude(offset(sec,-10),3);
sec1=cr(pts1([[0,0,1],[10,0,1],[0,25,1.5],[-3,0,1.5],[-2,-22,2],[-5,0]]),5);
prism3=trns([140-10,80,0],q_rot(["x90"],l_extrude(sec1,80)));
render()
difference(){
swp(prism);
swp(prism1);
}
swp(prism2);
swp(prism3);
dimensions are approximate and I have not checked the exact code.above code renders successfully
On Sat, 7 May 2022 at 22:27, Michael Möller private2michael@gmail.com wrote:
Jan Öhman wrote it failed in Render/F6, but works in Preview/F5 - in so many words. I tried and got the following
First model
F6 Error: WARNING: Ignoring 2D child object for 3D operation in file , line 53
ERROR: CGAL error in CGALUtils::applyUnion3D: CGAL ERROR: assertion violation! Expr: G.mark(v1,0)==G.mark(v2,0)&& G.mark(v1,1)==G.mark(v2,1) File: /mxe/usr/x86_64-w64-mingw32.static.posix/include/CGAL/Nef_S2/SM_overlayer.h Line: 303
Which I think is pretty selfexplantory: Passed a 2D shape to something that expected a 3D shape - but you have to read the whole code to find it ... which I think Jan is more qualified to do :-)
2nd part
... which is one of those where zooming or rotating the model in preview takes >5 second
And I didn't bother waiting for the F6 error ... ;-)
Of course, we do not know if the above shapes I got are the ones that Jan wants - there are also sections of code commented out.
(From the comments it seems these are to be nice and alternative covers for wall outlet/switches.)
On Sat, 7 May 2022 at 18:26, Sanjeev Prabhakar sprabhakar2006@gmail.com wrote:
Quite a long code.Can you paste a picture of what you are trying to draw.RegardsSanjeev
On Sat, 7 May 2022, 16:31 Jan Öhman via Discuss, discuss@lists.openscad.org wrote:
---------- Forwarded message ----------
From: "Jan Öhman" jan_ohman@yahoo.com
To: OpenSCAD general discussion discuss@lists.openscad.org
Cc:
Bcc:
Date: Sat, 7 May 2022 11:04:31 +0000 (UTC)
Subject: [OpenSCAD] Re: Export to .STL / .3MF for later 3D-printing.
Thank you!
Begins to understand how it works. (It was not easy...)
but my solution was not good ...
Here are 2 files that do not work to render (F6)
= = product 1= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . -
include <BOSL2/std.scad>fn = 150;
placering="left";// placering="right"
box(0, 0, 0, placering, "#C0C0C0", fn); // (X, Y, Z, left/right, colorName)
// Monteringsplattan// mountingPlate(0, 0, 0, placering);
// LED belysning// LEDlampa(0, 0, 0, placering);
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - // - - - - m o d u l e r - - - - - - - - - - - - - - - - - -
---===module box(posX=0, posY=0, posZ=0, mountSide="left", colorName="#00FF00", fn=24){ side = mountSide == "left" ? 0 : mountSide == "right" ? 1 : assert(false,"invalid moutSide value"); // message if no case worked color(colorName) translate([posX, posY, posZ]) mirror([side, 0, 0]) difference() { union() { // Skapa konturer på bottenplattan - x, y, r, angles, [grader], början // Rotation medurs - vänster lamphållare (bakant saknas) points1 = circSect( 140, 0, 0, [0, 0], "right", 1, fn); // böj nere till höger points2 = circSect( 60, 5, 5, [0, 5], "bottom", 1, fn); // brytpunkt längst ned points3 = circSect( 10, 13, 10, [0, 90], "bottom", 1, fn); // böj nere till vänster points4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // böj uppe till vänster points5 = circSect( 140, 80, 5, [0, 1], "top", 1, fn); // böj uppe till höger edge = concat(points1, points2, points3, points4, points5); path = path3d(reverse(edge)); section = wall(); path_sweep( section, path, closed=false);
// Skapa bakkant lite högre och smalare i topp bottom1 = concat(points5, points1); polygon(bottom1); path1 = path3d(reverse(bottom1)); section1 = wall1(); // lite högre bakvägg wall(b=4, f=8, h=15, t=3.5) path_sweep( section1, path1, closed=false);
// fyll upp bottenplattansbaksida linear_extrude(4) // Bottomplate - fill up polygon(concat(points1, points2, points3, points4, points5)); // skapa Utskjutande del under (tänk spegelvänt) pt1 = circSect( 19.5, 85, 0, [0, 50], "top", 1, fn); // Uppe till höger - moturs pt2 = circSect( 39, 1.35, .1, [-5, 90], "right", 1, fn); // Nere till höger pt3 = circSect( 10, 13.05, 10, [0, 90], "bottom", 1, fn); // Nere till vänster pt4 = circSect( 5, 80, 5, [0, 90], "left", 1, fn); // Uppe till vänster translate([0, 0, -2]) linear_extrude(2.1) polygon(concat(pt1, pt2, pt3, pt4));
// utgången för kabeln på baksidan (diam 10mm) - pekar lite nedåt cableExit(65, 35, 0, 15, "cyan", $fn=100); } // skapa ett borrhål i bakkant translate([132,60,15]) { rotate([0, 90, 0]) { cylinder(h=10, d=2, $fn=100); cylinder(h=4, d=9, $fn=100); } } // skapa en borrmarkering i bakkant translate([139,25,15]) { rotate([0, 90, 0]) cylinder(h=2, d1=1, d2=2.5, $fn=100); } // ingravera årtalet på baksidan translate([10, 80, -0.5]) { mirror([side, 0, 0]) { rotate([0, 180, 0]) { linear_extrude(3) text("2022", size=12, direction="ttb", font="Comic Sans MS:style=Bold"); } } } /* // Markera skruvhål på bakkant borr=3; bredd=140; hojd=8; avstNed=20; translate([bredd, avstNed, hojd]) { rotate([0,90,0]) cylinder(h=2, d1=0.5, d2=borr, center=true, $fn=50); } */ // borrhål mountingHole(20, 36, 0, 7, 90.1, 15); // posX, posY, posZ, diam, dist, deep, $fn=50 }}//======== Slut box
---=============================
---================//====== cableExit
---==============================module cableExit(posX, posY, posZ, angle, colorName){ diamHole = 7; diamHolder = 9.8; hight = 12; topRad = diamHolder/2; topDiam = diamHolder/2-topRad/2; bowRad = 7; offs1 = 0.1;
color(colorName) translate([posX, posY, posZ]) { rotate([180, 0, 180-angle]) { difference() { hull() { cylinder(h=hight, d=diamHolder, center=false); translate([0, 0, hight]) // rundad topp rotate_extrude(angle=360, convexity=2) translate([topDiam, 0, 0]) // yttre diam topp circle(d=topRad); // radie topp } inpHight = 2; // ett värde som styr var utgångshålet hamnar translate([0, 0, -offs1]) cylinder(h=inpHight+offs1, d=diamHole, center=false); // Bottenhål translate([-bowRad, 0, inpHight-offs1]) // böjen { rotate([90, 0, 0]) rotate_extrude(angle=90, convexity=10) translate([bowRad, 0, 0]) // ställ in radien på kabelböjen circle(d=diamHole); } } } }}//====== slut cableExit
---=========================
---================//====== mountingHole
---===========================module mountingHole(posX=0, posY=0, posZ=0, diam=7, dist=90, deep=5, $fn=50){ // diam = 6; // [mm] // dist = 90; // [mm] // deep = 12; // [mm]
translate([posX, posY, posZ]) { translate([0, 0, -10]) cylinder(h=deep, d=diam); // fästhål 1 //cableHold1(dist/2, 0, .2, "#D5D5D5"); // Kabelgenomföring translate([dist/2, 0, 0]) { hull() { cylinder(h=5, d=6); // fästhål 1 sphere(d=7.5); } } translate([dist, 0, -10]) cylinder(h=deep, d=diam); // fästhål 2 }}//====== slut mountingHole
---======================
---================//====== LEDlampa
---===============================// module LEDlampa(posX=8, posY=10, posZ=0)module LEDlampa(posX=0, posY=0, posZ=0, mountSide="left"){ side = mountSide == "left" ? 0 : mountSide == "right" ? 1 : assert(false,"invalid moutSide value"); // message if no case worked xpos = mountSide == "left" ? 121 : mountSide == "right" ? -10 : assert(false,"invalid moutSide value"); // message if no case worked /* ypos = mountSide == "left" ? 10.5 : mountSide == "right" ? 10.5 : assert(false,"invalid moutSide value"); // message if no case worked zpos = mountSide == "left" ? 5 : mountSide == "right" ? 5 : assert(false,"invalid moutSide value"); // message if no case worked*/// echo(xpos,ypos,zpos); // translate([xpos, ypos, zpos]) translate([xpos, 10.5, 5]) mirror([1, 0, 0]) translate([posX, posY, posZ]) { LEDbottom(); translate([0, 0, 11]) LEDglas(); }}//====== Slut LEDlampa
---==========================
---================//====== LEDglas
---================================module LEDglas(){ // Variabler botten length = 111; // längd mm wideMid = 50.5; // bredd i mitten mm cornRad = 10; // Radien i alla hörn wideCorn = 48; // Bredd i kanterna diamHole = 6; // håldiameter i mm colorBot = "gray"; colorTop = "orange"; // Variabler top cornHigh = 5; //Höjd i ändarna midHigh = 8; highTop = cornHigh + 1; // höjd mm p1tx = 10; // the start value p1ty = 49.25; p2tx = 55.5; // the middle value p2ty = 50.5; p3tx = 101; // the end value p3ty = p1ty; p4tx = 101; // the start value p4ty = 1.25; p5tx = 55.5; // the middle value p5ty = 0.0; p6tx = 10; // the end value p6ty = p4ty; // Ger ovalt glas points1 = 3points_arc([p1tx,p1ty], [p2tx,p2ty], [p3tx,p3ty], fn=100); points2 = 3points_arc([p4tx,p4ty], [p5tx,p5ty], [p6tx,p6ty], fn=100); color("orange") linear_extrude(height=cornHigh+.1) difference() { polygon(concat(points1, points2)); translate([length-10 , wideMid / 2, -.2]) circle(d=6); translate([10 , wideMid / 2, -.2]) circle(d=6); } // Top color(colorTop) difference() { hull() { // hörn1 translate([cornRad, wideMid - ((wideMid-wideCorn)/2) - cornRad, 0]) // [10,39] cylinder(h=cornHigh, d=cornRad2, center=false); // hörn2 translate([cornRad, cornRad + ((wideMid-wideCorn)/2), 0]) // [10,12] cylinder(h=cornHigh, d=cornRad2, center=false); // hörn3 translate([length - cornRad, wideMid - ((wideMid-wideCorn)/2) - cornRad, 0]) // [101 ,39] cylinder(h=cornHigh, d=cornRad2, center=false); // hörn4 translate([length - cornRad, cornRad + ((wideMid-wideCorn)/2), 0]) // cylinder(h=cornHigh, d=cornRad2, center=false); } union() { // Monteringshål 1 & 2 translate([length-10 , wideMid / 2, -.2]) cylinder(d=diamHole, h=highTop+.5, center=false); translate([10 , wideMid / 2, -.2]) cylinder(d=diamHole, h=highTop+.5, center=false); } }}//======== Slut LEDglas
---=========================
---================//====== LEDbottom
---==============================module LEDbottom(){ p1x = 10; // the start value p1y = 49.25; p2x = 55.5; // the middle value p2y = 50.5; p3x = 101; // the end value p3y = p1y;
p4x = 101; // the start value p4y = 1.25; p5x = 55.5; // the middle value p5y = 0.0; p6x = 10; // the end value p6y = p4y; // Variabler botten för borrhålen length = 111; // längd mm wideMid = 50.5; // bredd i mitten mm diamHole = 6; // håldiameter i mm cornHigh = 5; //Höjd i ändarna midHigh = 8; highTop = cornHigh + 1; // höjd mm // offs1 = 0.1; heightHole = 15; //mm height = 11; //mm points1 = circSect( 10, 11.25, 10, [0, 90], "bottom", 1, fn); // Hörn nere till vänster points2 = circSect( 10, 39.25, 10, [0, 90], "left", 1, fn); // Hörn uppe till vänster points3 = 3points_arc([p1x,p1y], [p2x,p2y], [p3x,p3y], fn); points4 = circSect( 101, 39.25, 10, [0, 90], "top", 1, fn); // Hörn uppe till höger points5 = circSect( 101, 11.25, 10, [0, 90], "right", 1, fn); // Hörn nere till höger points6 = 3points_arc([p4x,p4y], [p5x,p5y], [p6x,p6y], fn);
// The base plate for the LED lamp
difference() { color("gray", 0.5) linear_extrude(height=height) polygon(concat(points1, points2, points3, points4, points5, points6));
// union() { // Monteringshål 1 & 2 translate([length-10 , wideMid / 2, -.2]) cylinder(d=diamHole, h=heightHole, center=false); translate([10 , wideMid / 2, -.2]) cylinder(d=diamHole, h=heightHole, center=false); } }}//======== Slut LEDbottom
---=======================
---================//====== circleSect
---=============================// Create rounded corners 2D// https://openhome.cc/eGossip/OpenSCAD/SectorArc.html// ange .: x, y, radien,// [från, till] vinkel,// var vinkeln startar, (left, bottom, right, top)// vilken rotation (-1=medsol, 1=motsols)function circSect(x=0, y=0, radius=10, angles=[0,270], startRef="bottom", rotate=1, fn=24) = let( startAngel = (startRef == "left") ? 0 : (startRef == "bottom") ? 90 : (startRef == "right") ? 180 : (startRef == "top") ? 270 : startRef, // valfri vinkel // : assert(false,"invalid moutSide value"); // Error message if no case worked //: undef, r = radius, //r = radius / cos(180 / fn), step = 360 / fn, // points = [[x, y], points = [ for(a = [angles[0]-startAngel : step : angles[1]-startAngel]) [-rotate * r * cos(a)+x, r * sin(a)+y]] ) points;//======== Slut circleSect
---======================
---================//====== 3points_arc
---============================// Create an arc with three points 2Dfunction 3points_arc(p0, p1, p2, fn=10) = // an alternative expression for D // D = 2 * ( (p1-p0).x * (p2-p0).y - (p1-p0).y * (p2-p0).x ) let( D = 2 * cross(p1-p0, (p2-p0)) ) assert( abs(D)>1e-9, "The 3 points should not be collinear." ) let( Ux = ( (p2-p0).y*(p1-p0)(p1-p0) - (p1-p0).y(p2-p0)(p2-p0) )/D, Uy = ( (p1-p0).x(p2-p0)(p2-p0) - (p2-p0).x(p1-p0)(p1-p0) )/D, radius = norm([Ux,Uy]), center = [Ux,Uy] + p0, ang0 = atan2( (p0-center).y, (p0-center).x ), ang2 = atan2( (p2-center).y, (p2-center).x ), // the points are in a cw winding iff D<0 // the angular difference between vectors p2-center and p0-center // measured from p0-center; dang is positive iff D is negative dang = D<0 ? ang2<ang0 ? ang2-ang0 : ang2-ang0-360 : ang2>ang0 ? ang2-ang0 : ang2-ang0+360 ) [ for(i=[0:fn-1]) let( ang = ang0 + idang/(fn-1) ) center + radius*[cos(ang),sin(ang)] ];//======== Slut 3points_arc
---=====================
---================//====== Wall som ett "L"
---=======================// Normal vägghöjdfunction wall() = let( b = 4, // botten - tjocklek f = 8, // Foten h = 15, // Höjd t = 3.5, // Top x = (b+(t/2) - (h - ( (-h / (f-t)) *t) )) / (-h / (f-t)) ) let( points = [[0,0], [f,0], [t,h], [0,h]] , top = move([t/2, h, 0], circle(d=t, $fn=20)), sqr = square([10, b]), diff = difference([ move([x, b], square([t/2, t/2])), move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ]) ) union([points, top, sqr, diff]);//======== Slut Wall
---============================
---================//====== Wall1 som ett "L"
---======================// En högre väggfunction wall1() = let( b = 4, // botten - tjocklek f = 7, // Foten h = 25, // Höjd t = 3, // Top x = (b+(t/2) - (h - ((-h / (f-t)) *t))) / (-h / (f-t)) ) let( points = [[0,0], [f,0], [t,h], [0,h]] , top = move([t/2, h, 0], circle(d=t, $fn=20)), sqr = square([10, b]), diff = difference([ move([x, b], square([t/2, t/2])), move([x+(t/2), b+(t/2), 0], circle(d = t, $fn=20) ) ]) ) union([points, top, sqr, diff]);//======== Slut Wall1
---===========================
---================//====== Plåt på släp
---===========================module mountingPlate(posX=0, posY=0, posZ=0, mountSide="left", colorName="#C0C0C0", $fn=50){ // Hörnpositionerna posX1 = 120; posY1 = 0; posX2 = posX1; posY2 = -200; posX3 = 120 - 75; posY3 = -200; posX4 = 0; posY4 = 0; thick=2; // tjocklek side = mountSide == "left" ? 0 : mountSide == "right" ? 1 : assert(false,"invalid moutSide value"); // message if no case worked xpos = mountSide == "left" ? 20 : mountSide == "right" ? -20 : assert(false,"invalid moutSide value"); // message if no case worked/* ypos = mountSide == "left" ? 85 : mountSide == "right" ? 85 : assert(false,"invalid moutSide value"); // message if no case worked zpos = mountSide == "left" ? -thick : mountSide == "right" ? -thick : assert(false,"invalid moutSide value"); // message if no case worked*/ color(colorName) { translate([posX, posY, posZ]) translate([xpos, 85, -thick]) { mirror([side, 0, 0]) { linear_extrude(thick) hull() { translate([posX1, posY1, 0]) square(0.1, center = true); translate([posX2, posY2, 0]) square(0.1, center = true); translate([posX3, posY3, 0]) square(0.1, center = true); translate([posX4, posY4, 0]) square(0.1, center = true); } } } }}= = END product 1= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . -
= = product 2 = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . - . _ . -
$fn=100;//$fn=15;
//switch();//cableHolder4(); //Switchboxen
// cableHolder3(0, 0, 0, 33.5, 23.5, 1.5, 2);// showCables();
module cableHolder4(fn=24);{ // idé från // - https://www.thingiverse.com/thing:6400/files // - https://ihrchive.wordpress.com/2011/02/14/openscad-tip-round-1-of-3-basic-rounding/ // mått på Switch heightHold = 10.5; widthHold = 33.5; depthHold = 23.5; spaceHold = 10.0; // utrymmet bakom switch holdRadie = 2; // radie i hörnen thick = 2; offset1=0.5; // öka toleransen // innermått holeW = widthHold + offset1; holeH = heightHold + offset1; holeD = depthHold + spaceHold+offset1; // yttermått pad = 0.1; // Padding to maintain manifold box_l = holeW + thick*2; // Bredden på switchen box_w = holeD + thick; // Djupet på switchen box_h = holeH + thick; // Height round_r = holdRadie; // Radius of round smooth = 45; // Number of facets of rounding cylinder
difference() { union() // Detta utförs i två steg. { difference() // utför fasningar och kabelmarkeringar { mainBox(box_l, box_w, box_h, spaceHold+thick, round_r, thick, smooth, pad);
// fasning vänster (underkant) translate([box_l/2-0.85, spaceHold-4.3, thick-offset1]) // sidled, fram/bak , upp/ned rotate([0,180,45]) cylinder(h=thick, d1=holeW1.414-thick-thick, d2=holeW1.414, $fn=4); // fasning höger (underkant) translate([box_l/2-3.65, spaceHold-4.3, thick-offset1]) // sidled, fram/bak , upp/ned rotate([0,180,45]) cylinder(h=thick, d1=holeW1.414-thick-thick, d2=holeW1.414, $fn=4); // kabelgenomföringar rotate([90, 180, 90]) // Markering ena sidan (vänster under) ovalCableHole(spaceHold/2-offset1, -1.75, -1.2); rotate([90, 180, 180]) // Markering bakkant (vänster under) ovalCableHole(spaceHold/2-1.55, -1.75, -spaceHold-0.85); rotate([90, 180, 180]) // Markering bakkant (höger under) ovalCableHole(widthHold-spaceHold/2-offset1, -1.75, -spaceHold-0.85); rotate([90, -180, 90]) // Markering ena sidan (höger under) ovalCableHole(3.75, -1.75, widthHold-0.1); } } // Slut union - kropp translate([-offset1/2, -spaceHold+pad, -pad]) // hålet där switchen ska placeras cube([holeW, holeD+pad, holeH+pad], center=false);
translate([4, 12, 0]) cylinder(h=15,d=3.2); translate([4, 12, 17.7]) sphere(r=6); translate([29.6, 12, 0]) cylinder(h=15,d=3.2); translate([29.6, 12, 17.7]) sphere(r=6); /* // Hål genom lock bak - om så önskas translate([box_l/2-thick, -6, offset1/2]) cylinder(h=box_h+thick4+offset1, d=3.2, $fn=100); // hål genom lock bak translate([box_l/2-thick, -6, 17.7]) sphere(r=6); // kona hålet bak / } // Slut difference() - box
difference() { union() { translate([29.6, 12, heightHold-offset12]) cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv1 translate([4, 12, heightHold-offset12]) cylinder(h=2,d=5.2); // Stödhylsa för Switchskruv2
translate([holeW/2, -spaceHold+thick+1, holeH/2]) rotate([180,0,0]) backHole(); } // union - slut translate([4, 12, 0]) // Hålen i stödhylsorna cylinder(h=15,d=3.2); translate([29.6, 12, 0]) // Hålen i stödhylsorna cylinder(h=15,d=3.2); translate([box_l/2-thick, -6, -offset1]) // hål i stödhylsa bak cylinder(h=box_h+offset1, d=3.2, $fn=100); // Sänk stödhylsan translate([ widthHold/2-7, -spaceHold-offset1, -thick+offset1]) // hål i stödhylsa bak cube([15, 8, 3]); // kabelmarkering // translate([0, 0, 0]) // hål i stödhylsa bak
}
/* translate([4, 12, 0]) #cylinder(h=15,d=3.2); //translate([4, 13.5, 17.3]) //#sphere(r=6); translate([29.6, 12, 0]) #cylinder(h=15,d=3.2); //translate([29.6, 13.5, 17.3]
