adrianv avm4@cornell.edu wrote:

You are right regarding the degrees. I wrongly said 5 instead of 4 and 6
instead of 5. A degree n Bezier curve has n+1 control points.

However I disagree that you could meet the zero curvature constraint at
both end with degree 3 curves. To have a zero curvature at the beginning of
the arc, the first 3 control points should co-linear. The same is true for
the ending point. If we require zero curvature at both ends all four
control points should be co-linear and the arc reduces to a straight
segment.

Degree 4 is in fact the minimal degree for zero curvature at both ends for
a non-straight line Bezier arc. However degree 5 solution give us not only
more degrees of freedom but a better arc shape as will see bellow. Degree 4
solution produces an arc with a greater curvature variation and a more
pointed arc. Degree 5 shape is able to produce arcs that resemble circular
arcs.

I have revised my codes in order to generate alternatively both solutions.
The two missed functions and line() module are defined as before.

q = [ [0,0], [30,0], [30,30], [0,30] ];

color("blue")  roundedPoly(q, 20, 4, 1/3);
color("yellow") roundedPoly(q, 20, 4, 2/3);
color("red")    roundedPoly(q, 20, 4,  1);

translate([35,0,0]) {
color("blue")  roundedPoly(q, 20, 5, 1/3, 17/32);
color("yellow") roundedPoly(q, 20, 5, 2/3, 17/32);
color("red")    roundedPoly(q, 20, 5,  1, 17/32);
color("green")  translate([15,15,-1]) circle(15);
}

module roundedPoly(p, n=20, degree=4, r=1/4, r0=2/3, r1=17/32)
{
assert(len(p)>2, "polygonal has less than 3 points");
assert(r>0 && r<=1, "r out of range");
assert(r0>0 && r<=1, "r0 out of range");
assert(degree==4 || degree==5, "degree should be 4 or 5");
assert(degree==5 || (r1>0 && r1<=1), "r1 out of range");
l = len(p);
q = [for(i=[0:l-1])
let( p0 = (1-r/2)p[i] + rp[(i+l-1)%l]/2 ,
p1 = p[i],
p2 = (1-r/2)p[i] + rp[(i+1)%l]/2 )
each BZeroCurvature(p0,p1,p2,n,degree,r0,r1) ];
line(q, closed=true,w=0.2);
}

// a Bezier arc of degree 4 or 5 from p0 to p2, tangent to
// [p0,p1] at p0, tangent to [p1,p2) at p2 and
// with zero curvature at p0 and p2
// n  - # of points in the arc
// r0 - form factor in the interval [0,1]
// r1 - form factor in the interval [0,1] (for degree=5 only)
function BZeroCurvature(p0,p1,p2,n=20,degree=4,r0=2/3,r1=1/2) =
assert(r0>0 && r0<=1, "r0 out of range")
assert(degree==4 || degree==5, "degree should be 4 or 5")
assert(degree==5 || (r1>0 && r1<=1), "r1 out of range")
let( r1 = degree==4 ? 1 : r1,
p  = [ p0,
p0 + r0*(p1-p0)r1,
each degree==4 ?
[p1] :
[p0 + r0(p1-p0), p2 + r0*(p1-p2)],
p2 + r0*(p1-p2)*r1,
p2 ] )
BezierCurve(p,n);

And got the following image:

[image: roundedPoly2.PNG]

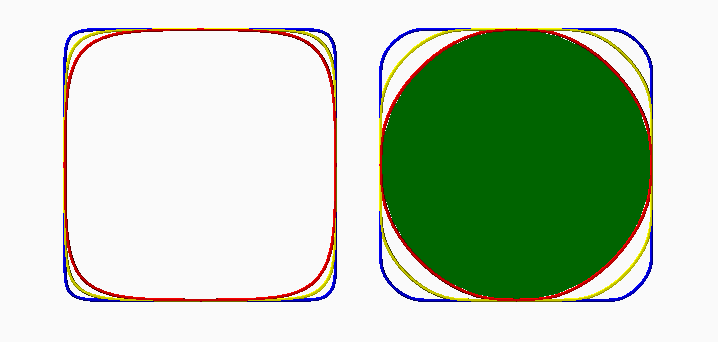

At left we have the arcs of degree 4 and at right the degree 5 alternative
for similar form factors. With r=1, which means that the straight lines
between arcs reduce to a point, drawn here with red lines, the degree 4
solution keeps the middle point of each arc much nearer to the polygon
vertex. With degree 5 on the other hand it is possible to get a good
approximation of a circular arc with r1~= 17/32, a value I got empirically.

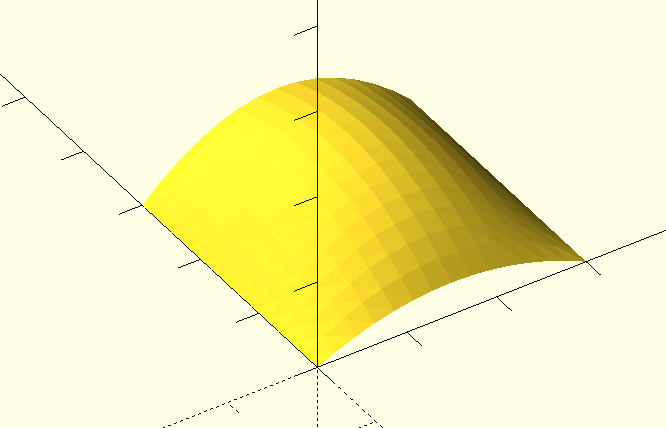

I played around a little bit with Bezier curves in OpenSCAD before, and its
fairly trivial to write a recursive bezier curve function that can handle
arbitrary curve orders.  They are also agnostic to the dimension of points
2D/3D(or higher dimension?)

Here are the functions I have used:

// return point along curve at position "t" in range [0,1]
// use ctlPts[index] as the first control point
// Bezier curve has order == n
function BezierPoint(ctlPts, t, index, n) =
let (
l = len(ctlPts),
end = index+n
)
//assert(end < l)
(n > 0) ?
BezierPoint([
for (i = [index:end])
let (p1 = ctlPts[i], p2 = ctlPts[i+1]) p1 + t * (p2 - p1)
], t, 0, n-1) :
ctlPts[0];

function flatten(l) = [ for (a = l) for (b = a) b ];

// n sets the order of the Bezier curves that will be stitched together
// if no parameter n is given, points will be generated for a single curve
of order == len(ctlPts) - 1
function BezierPath(ctlPts, index, n) =
let (
l1 = $fn > 3 ? $fn-1 : 200,
index = index == undef ? 0 : index,
l2 = len(ctlPts),
n = (n == undef || n > l2-1) ? l2 - 1 : n
)
//assert(n > 0)
flatten([for (segment = [index:1:l2-1-n])
[for (i = [0:l1] ) BezierPoint(ctlPts, i / l1, index+segment*n, n)]
]);

On Thu, Mar 14, 2019 at 1:53 PM Ronaldo Persiano rcmpersiano@gmail.com
wrote:

Ronaldo wrote

No it doesn't.  I posted graphs a few messages back showing zero curvature
order 3 beziers, and I had directly verified that the curvature was indeed
zero by calculating the derivatives both symbolically and numerically, so I
am reasonably sure it was correct.  With p0=p3 set to the endpoints of the
arc you then set p1=p2 equal to the point of the corner.  You achieve the
co-linearity condition in a degenerate fashion, since p1 and p2 are on both
lines.

It appears that your degree 4 code can also generate a nearly circular arc:
just set r1 very small, like .01 and you get something visually
indistinguishable from a circle.  In fact, it looks very similar to your
empirically determined 17/32 value.  I wonder what are the parameters for
the order 5 bezier that reduce it to the order 4.

On the left is order 4 with r1=0.01 and on the right, order 5 with r1=17/32.

http://forum.openscad.org/file/t2477/round2.png

--
Sent from: http://forum.openscad.org/

Well I'm a bit embarrassed after playing with the Bezier code I previously
posted(hadn't messed with it in a while).  I realized it had some bugs and
some inefficiencies.
I fixed it up a bit and included a more complete example with example of
various orders along random path, and a classic circle approximation.

Posting gist this time in case I need to update it again, but I believe the
code is correct now :
https://gist.github.com/thehans/2da9f7c608f4a689456e714eaa2189e6

On Thu, Mar 14, 2019 at 5:03 PM adrianv avm4@cornell.edu wrote:

You are right. Putting both intermediate control points at the corner will
meet the conditions of zero curvature at the two ends of a degree 3 Bezier
arc. I could not imagine that solution before. And certainly this is a very
constrained alternative.

I have confirmed your statement about the approximation of circular arcs by
degree 4 curves. It seems even better than the degree 5 arc with r0=17/32.

I have applied the degree elevation formulas to deduce algebraically the
conditions r0 and r1 should satisfy in order the degree 4 and degree 5
curves be equal. From my math exercise, we should have:

degree 5 with  r0 = 3/5  and r1=0 will be equivalent to
degree 4 with r0=0

I also found that r0 may be set to 0 for degree 4 and r1 may be set to 0
for degree 5 but r0 should not be 0 for degree 5 because the arc degenerate
into a line segment. I have changed the assert conditions in the my
functions accordingly.

I agree that rounding corners with degree 4 Bezier arcs give us enough
flexibility and there is no point to use greater degree. In my functions,
the parameter r of roundedPoly() controls how much the corner is rounded
like your proposed d parameter. That parameter sets the end points
relatively to the polygon edge length instead of an absolute value. The
problem with this solution is that the arc will not be symmetrical when the
two edges meeting a corner have different length. But the alternative of a
absolute value d requires a validation to avoid that two arcs rounding the
two corners of an edge intercept.

Finally, I have checked that my code works well even with not convex

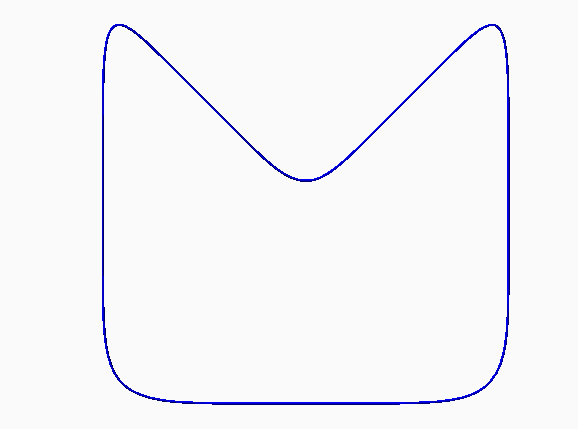

polygons as can be seen in the image.

Going back to the apple article I don't think the change in shade is
anything to do with curvature. Reflected light is related to the surface
angle and that doesn't change discontinuously. It's rate of change does but
I don't see how that would affect reflected light. It looks like the left
corner is lit from both sides and the right corner is lit from right side
only.

On Fri, 15 Mar 2019 at 03:15, Ronaldo Persiano rcmpersiano@gmail.com
wrote:

I understand your point because I am also unable to perceive visually
curvature discontinuities. But people from visual arts have training eye to
perceive it. However, even for people like us it may be noticible on
shinning and reflecting surfaces.

The following YouTube video gives an idea of the effect of different kinds
of continuity.

https://youtu.be/ryVe0aTTfrc

It was clearer to me the effect of the various kinds of continuity with the
stripe view. Designers from automobile industry are very concerned with the
effect of shadows and light reflexions on the surface of their models.

Besides, curvature continuity is a requeriment on the design of a road
track. Any discontinuity on the track is prone to an accident because a
sudden wheel turn is needed to keep the vehicle on track when you cross the
discontinuity.

nophead wrote

You wouldn't see it on completely mat or reflected surface. But on brushed
or structured surfaces a lot of additional effects accumulate. Neverless,
DIY-people like most of us in this forum, me including, with a "function
first" attitude usually have only a poor understanding of surface erotics.
Only after having read "Zen And The Art Of Motorcycle Maintenance" I could
develop a first poor understandig about what kind of gears seem to purr
within Apple customer brains.

In Open Source based 3D printing, where 90% of the prints are done with
layers >= 0.2 mm and nozzles >= 0.4mm there is no point in trying to
optimize curvatures to C3 or more.

--
Sent from: http://forum.openscad.org/

On 15/03/2019 14:07, Ronaldo Persiano wrote:

Railways used to be designed with straight and curves, and it made them
uncomfortable and restricted speeds, and ditto "loop the loop" on roller
coasters as the sudden changes in acceleration (high jerk) caused neck
injuries.

Then along came what I still call clothoid curves, but wikipedia prefers
Euler Spirals.

https://en.wikipedia.org/wiki/Euler_spiral

They are used to link straights to circles on railways, rollercoasters,
and much more.

https://en.wikipedia.org/wiki/Track_transition_curve
