No need for a cone and a pyramid. A circle and a square will do.
On 12/11/2022 5:33 PM, Steve Lelievre wrote:
FYI,
I know that this thread is old now so interest will have waned and the
OP's requirement has been solved ... but I just realized that there is
a better way than I suggested in my original post from weeks ago, for
morphing a tube from having a rectangular end to a circular end (which
is what the OP wanted to do for a fan housing.)
The transition can be achieved, both exactly and code-efficiently, by
hulling a cone and an inverted pyramid. I implemented this solution as
the very small module called morph contained in the code pasted after
my signature (feel free to copy/adapt). To convert the morphed shape
to a hollow tube you either use Minkowski or make slightly oversize
version of the same shape, then subtract the original shape to leave
only walls (see the notes in my code.)

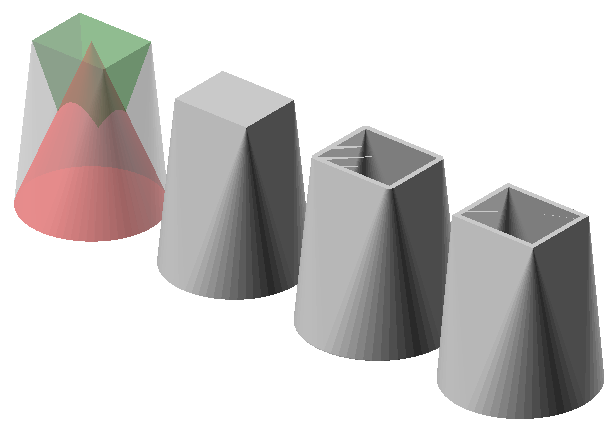

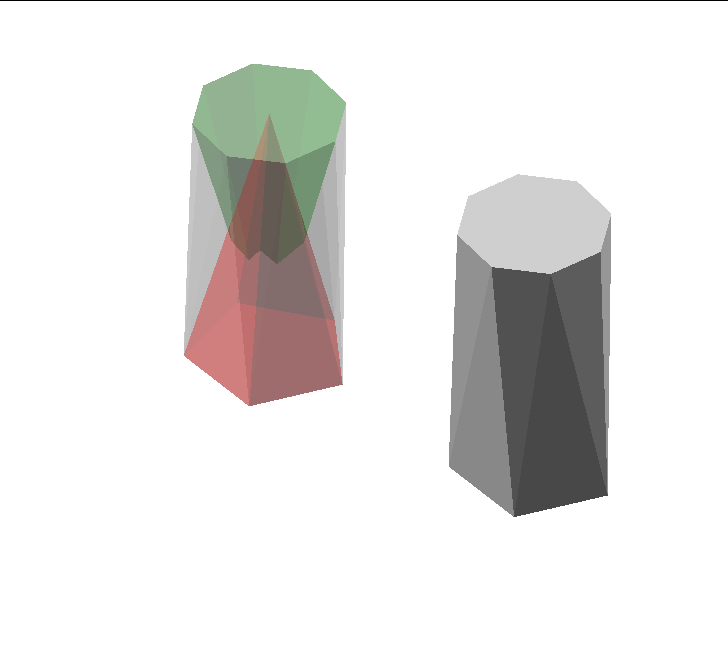

More generally, if you want to morph any polygon to any other polygon,
such as a pentagon to octagon as shown here, you just hull together a
cone and an inverted cone, setting the number of sides required for
each cone by supplying $fn parameters.
Cheers,
Steve
$fn = 60;
module morph(h, d, x, y) {
// Morphs a rectangle to a circle. By Steve Lelievre, 2022.
// h: transition height.
// d: diameter of circular lower end.
// x: x dimension (length) of rectangular upper end.
// y: y dimension (width) of rectangular upper end.
hull() {
resize([d, d, h]) cylinder(h = 1, r1 = 0, r2 = 1); // cone
resize([x, y, h]) rotate(45) cylinder(h = 1, r1 = 1, r2 = 0, $fn
= 4); // inverted pyramid
}
}
// Example usage
translate([-15, 0, 0]) morph(30, 25, 15, 12);
// Code snippet to demonstrate how the morph works
translate([-45, 0, 0]) union() {
color("red", 0.3) resize([25, 25, 30]) cylinder(h = 1, r1 = 0, r2 =
1); // cone
color("green", 0.3) resize([15, 12, 30]) rotate(45) cylinder(h = 1,
r1 = 1, r2 = 0, $fn = 4); // inverted pyramid
color("silver", 0.3) morph(30, 25, 15, 12);
}
// Extending the idea to make a tubular connector:
// Option A. Using Minkowski ensures wall thickness is exactly as
specified when measured in cross section.
// Corners of the rectangular end are rounded accordingly. THe corner
radius is the wall thickness.
module tubeA(h, d, x, y, w) {
// Creates an open tube by Minkowski addition of a sphere to an
internal shape,
// followed by trimming back to height and then subtraction of the
internal shape to hollow out the tube.
// w: wall thickness. This is the thickness in cross section (what
would usually be considered the 'true' value).
// The other parameters are those used in the morph module.
sizeLimit = max(d / 2 + w, sqrt((x + w)^2 + (y + d)^2)); // maximum
radius needed for trimming cylinder
difference() {
intersection() {
minkowski() {
morph(h, d, x, y);
sphere(r = w);
}
cylinder(h = h, r = sizeLimit);
}
morph(h, d, x, y);
}
}
translate([15, 0, 0]) tubeA(30, 25, 15, 12, 1);
// Option B. Subtract inner shape from geometrically similar but
slightly larger outer shape.
// Gives square corners to rectangular end.
// !!! However, in some cases, the wall's cross section will be
thinner than this value !!!
module tubeB(h, d, x, y, w) {
// w: wall thickness in horizontal section.
// The other parameters are those used in the morph module.
difference() {
morph(h, d + 2 * w, x + 2 * w, y + 2 * w);
morph(h, d, x, y);
}
}
translate([45, 0, 0]) tubeB(30, 25, 15, 12, 1);
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
On 2022-11-13 3:00 p.m., Steve Lelievre wrote:

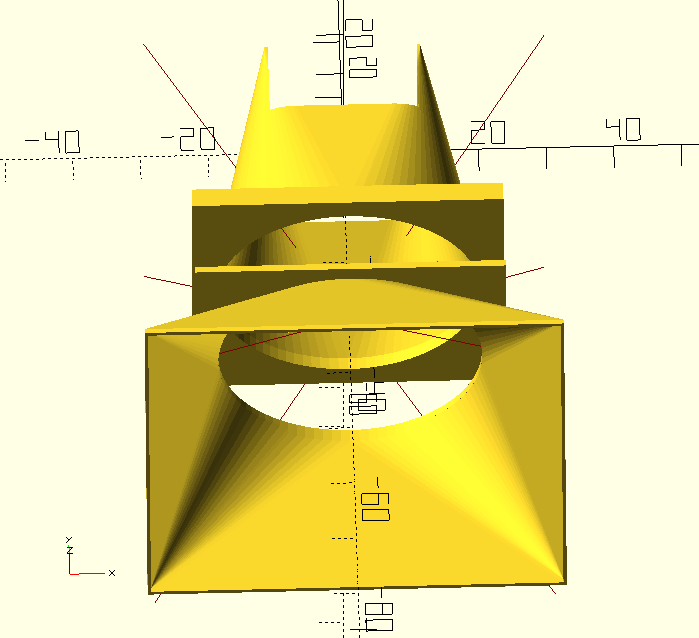

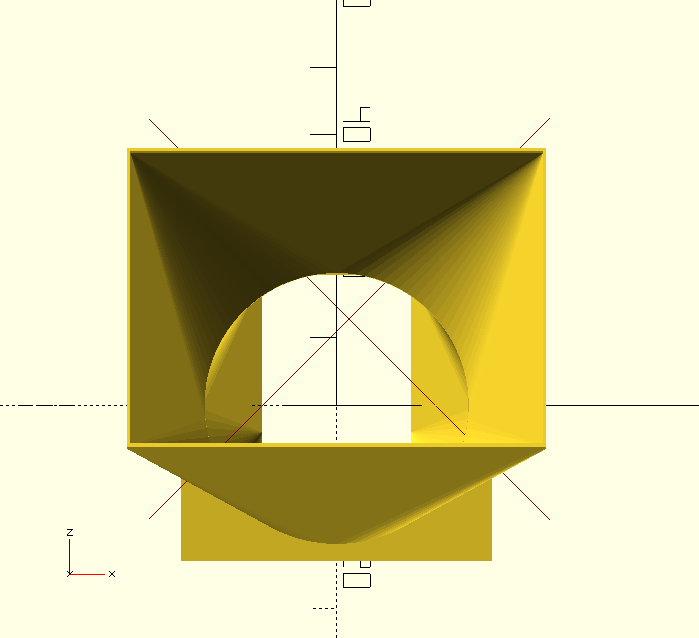

I'm not entirely clear what shape you're aiming for; is it something
like this? (once adjusted for your exact dimensions)
Steve
OpenSCAD mailing list
To unsubscribe send an email todiscuss-leave@lists.openscad.org
Hi,
On 2022-12-11 3:04 p.m., jon wrote:
No need for a cone and a pyramid. A circle and a square will do.
I need to be told how.
Because hulling 2D shapes to get a 3D shape is not possible, I just
can't see a method to achieve the shape directly from a square and a
circle.
That is, unless you actually mean a very thin disk and very thin cube.
That is what I originally came up with but am replacing because it was a
little more complex and doesn't produce a geometrically-correct transition.
Thanks,
Steve
On 12/11/2022 5:33 PM, Steve Lelievre wrote:
FYI,
I know that this thread is old now so interest will have waned and
the OP's requirement has been solved ... but I just realized that
there is a better way than I suggested in my original post from weeks
ago, for morphing a tube from having a rectangular end to a circular
end (which is what the OP wanted to do for a fan housing.)
The transition can be achieved, both exactly and code-efficiently, by
hulling a cone and an inverted pyramid. I implemented this solution
as the very small module called morph contained in the code pasted
after my signature (feel free to copy/adapt). To convert the morphed
shape to a hollow tube you either use Minkowski or make slightly
oversize version of the same shape, then subtract the original shape
to leave only walls (see the notes in my code.)

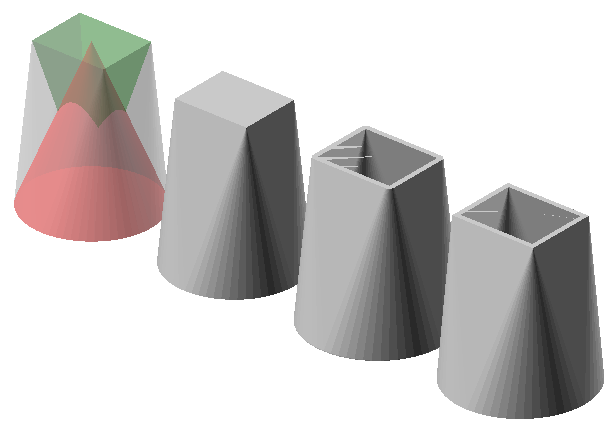

More generally, if you want to morph any polygon to any other
polygon, such as a pentagon to octagon as shown here, you just hull
together a cone and an inverted cone, setting the number of sides
required for each cone by supplying $fn parameters.
Cheers,
Steve
$fn = 60;
module morph(h, d, x, y) {
// Morphs a rectangle to a circle. By Steve Lelievre, 2022.
// h: transition height.
// d: diameter of circular lower end.
// x: x dimension (length) of rectangular upper end.
// y: y dimension (width) of rectangular upper end.
hull() {
resize([d, d, h]) cylinder(h = 1, r1 = 0, r2 = 1); // cone
resize([x, y, h]) rotate(45) cylinder(h = 1, r1 = 1, r2 = 0,
$fn = 4); // inverted pyramid
}
}
// Example usage
translate([-15, 0, 0]) morph(30, 25, 15, 12);
// Code snippet to demonstrate how the morph works
translate([-45, 0, 0]) union() {
color("red", 0.3) resize([25, 25, 30]) cylinder(h = 1, r1 = 0, r2
= 1); // cone
color("green", 0.3) resize([15, 12, 30]) rotate(45) cylinder(h =
1, r1 = 1, r2 = 0, $fn = 4); // inverted pyramid
color("silver", 0.3) morph(30, 25, 15, 12);
}
// Extending the idea to make a tubular connector:
// Option A. Using Minkowski ensures wall thickness is exactly as
specified when measured in cross section.
// Corners of the rectangular end are rounded accordingly. THe corner
radius is the wall thickness.
module tubeA(h, d, x, y, w) {
// Creates an open tube by Minkowski addition of a sphere to an
internal shape,
// followed by trimming back to height and then subtraction of the
internal shape to hollow out the tube.
// w: wall thickness. This is the thickness in cross section (what
would usually be considered the 'true' value).
// The other parameters are those used in the morph module.
sizeLimit = max(d / 2 + w, sqrt((x + w)^2 + (y + d)^2)); //
maximum radius needed for trimming cylinder
difference() {
intersection() {
minkowski() {
morph(h, d, x, y);
sphere(r = w);
}
cylinder(h = h, r = sizeLimit);
}
morph(h, d, x, y);
}
}
translate([15, 0, 0]) tubeA(30, 25, 15, 12, 1);
// Option B. Subtract inner shape from geometrically similar but
slightly larger outer shape.
// Gives square corners to rectangular end.
// !!! However, in some cases, the wall's cross section will be
thinner than this value !!!
module tubeB(h, d, x, y, w) {
// w: wall thickness in horizontal section.
// The other parameters are those used in the morph module.
difference() {
morph(h, d + 2 * w, x + 2 * w, y + 2 * w);
morph(h, d, x, y);
}
}
translate([45, 0, 0]) tubeB(30, 25, 15, 12, 1);
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
On 2022-11-13 3:00 p.m., Steve Lelievre wrote:
I'm not entirely clear what shape you're aiming for; is it something
like this? (once adjusted for your exact dimensions)
Steve
OpenSCAD mailing list
To unsubscribe send an email todiscuss-leave@lists.openscad.org
Yes. A circle and a square linearly extruded to be 0.01 mm thick.
