I'm not sure I understand your goal.  Here's a couple references:

https://pages.mtu.edu/~shene/COURSES/cs3621/NOTES/notes.html
https://pomax.github.io/bezierinfo/

Both of these methods are ways of using control points to specify a curve.
In the case of beziers the control points globally alter the curve.  In the
case of B-splines the control points have a local effect whose "distance"
depends on the degree.

On Sun, Aug 11, 2024 at 9:52 AM William F. Adams willadams@aol.com wrote:

On Sunday, August 11, 2024 at 09:35:30 AM EDT, Sanjeev Prabhakar via Discuss discuss@lists.openscad.org wrote:

That is exactly the sort of thing I was reaching for when I wrote the below, and I thank you for validating that.

William

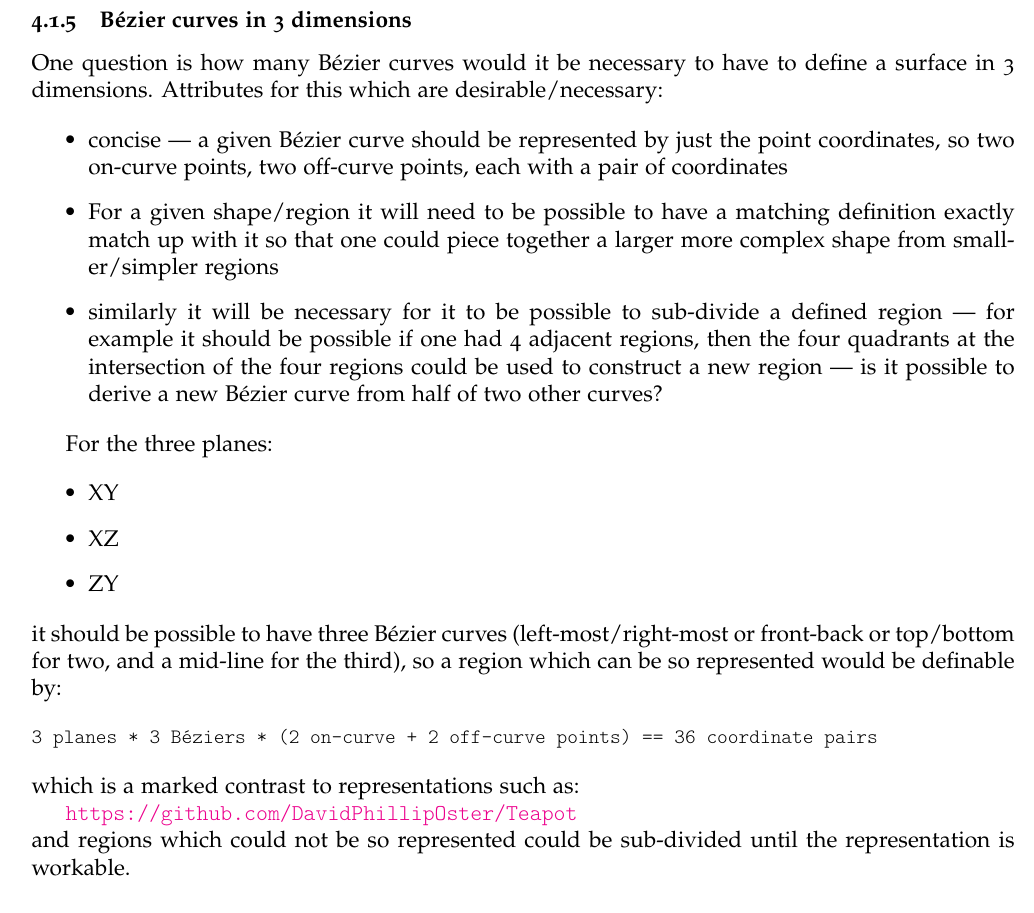

\subsubsection{Bézier curves in 3 dimensions}

One question is how many Bézier curves would it be necessary to have to define a surface

in 3 dimensions. Attributes for this which are desirable/necessary:

\begin{itemize}

\item concise --- a given Bézier curve should be represented by just the point coordinates,

so two on-curve points, two off-curve points, each with a pair of coordinates

\item For a given shape/region it will need to be possible to have a matching definition

exactly match up with it so that one could piece together a larger more complex shape

from smaller/simpler regions

\item similarly it will be necessary for it to be possible to sub-divide a defined region ---

for example it should be possible if one had 4 adjacent regions, then the four quadrants

at the intersection of the four regions could be used to construct a new region --- is it

possible to derive a new Bézier curve from half of two other curves?

\end{itemize}

\begin{samepage}

For the three planes:

\begin{itemize}

\item XY

\item XZ

\item ZY

\end{itemize}

\noindent it should be possible to have three Bézier curves (left-most/right-most or front-back or

top/bottom for two, and a mid-line for the third), so a region which can be so represented would

be definable by:

\begin{verbatim}

3 planes * 3 Béziers * (2 on-curve + 2 off-curve points) == 36 coordinate pairs

\end{verbatim}

\end{samepage}

\noindent which is a marked contrast to representations such as:

\url{https://github.com/DavidPhillipOster/Teapot}

\noindent and regions which could not be so represented could be sub-divided until the

representation is workable.

Hi William,

Bezier is much simpler to write mathematically.

There is Bernstein polynomial equation which is similar to calculating like
(a+b)^2 .... or up to (a+b)^n where n is the degree of polynomial.

So how do you calculate (a+b)^2 or for that matter to any polynomial degree
n

an integer i => 0 to n calculates each term of the above equation

n!/(i! * (n-i)!)a^ib^(n-i)  where n! means factorial of n --equation 1
substituting a=t and b=(1-t)
where t is a parameter which goes from 0 ->1 and you can have any numbers
within that range

in bezier the degree of the curve is 1 less than the control points e.g. if
you have 10 control points the polynomial degree will be 9.

so finally equation for bezier is:

sum(p[i]*n!/(i! * (n-i)!)t^i(1-t)^(n-i)) where p[i] is the ith control
point

my simple 6 lines function for bezier curve is following:

def bezier(p,s=10):
'''
bezier curve defined by points 'p' and number of segments 's'
'''
p=a_(p)
n=len(p)
k=n-1
f=[[p[i]*comb(k,i)u**i(1-u)**(k-i) for i in range(n)]
for u in linspace(0,1,s)]
p1=l_(a_([p.sum(0) for p in a_(f)]))
return p1

On Sun, 11 Aug 2024 at 19:22, William F. Adams via Discuss <
discuss@lists.openscad.org> wrote:

On Sunday, August 11, 2024 at 10:40:03 AM EDT, Adrian Mariano avm4@cornell.edu wrote:

My thanks. I had found those previously, but have now made specific note of them.

Let me turn this around a bit.

Imagine if OpenSCAD had been written as a Literate Program: https://www.goodreads.com/review/list/21394355-william-adams?ref=nav_mybooks&shelf=literateprograms --- and if at the back of that listing, or during the course of writing all that code there were various footnotes to books which explained in further detail the various mathematical and geometric and trigonometric principles involved --- what would those books be?

I've been working on a list of books related to CNC concepts/principles, some of which relate to geometry and so forth:

https://www.goodreads.com/review/list/21394355-william-adams?ref=nav_mybooks&shelf=cnc

what additional books would I need to read and understand so as to be able to "grok" the underlying concepts of code such as Sanjeev Prabhakar has been very generously sharing with us?

William

--
Sphinx of black quartz, judge my vow.
https://designinto3d.com/

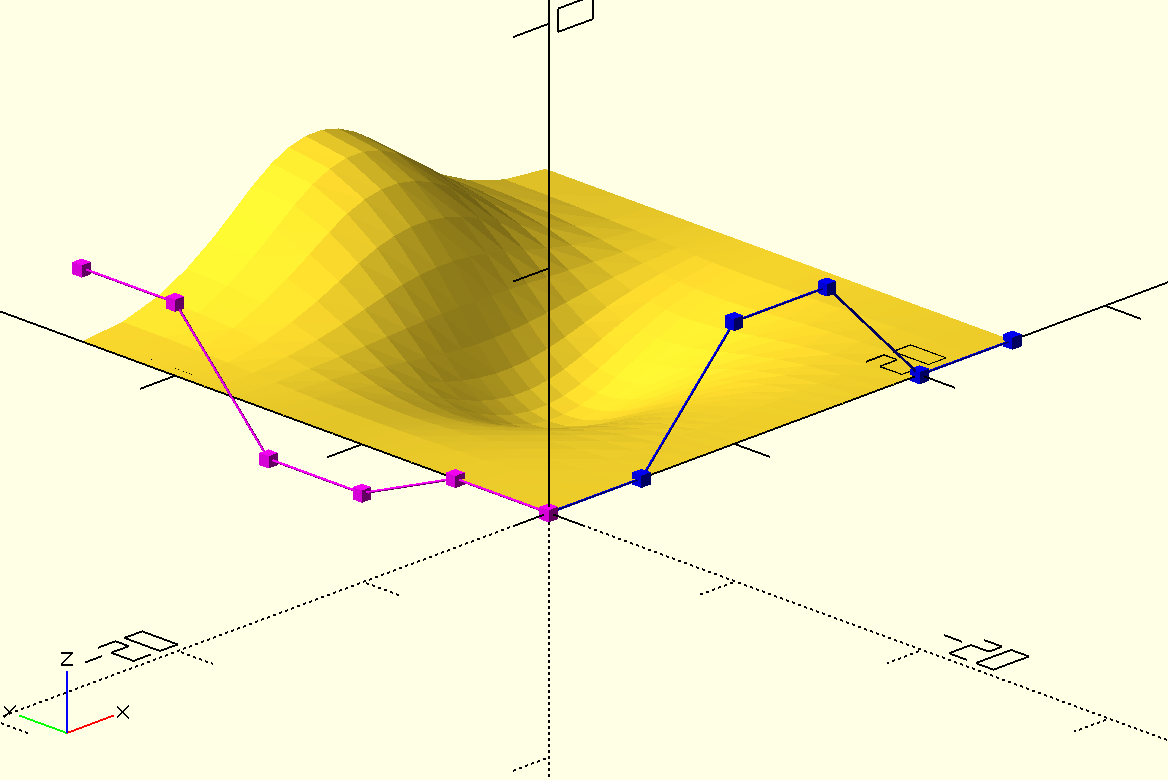

I think the basis function in bspline consumes most of the time as it
checks the condition if parameter value lies with in 2 consecutive knots
and switches 1 or 0.

In case of 2 lines method it is checked only sum of 2 bspline line points

whereas in case of surface it gets multiplied and therefore such
inefficiency

On Sun, 11 Aug 2024 at 20:05, Adrian Mariano avm4@cornell.edu wrote:

Part of the challenge in implementing b splines is devising the right
interface.  A request came in that BOSL2 add b splines to help with
exporting stuff from some other cad software (freecad, maybe?), and I
looked it over to understand the API.  From your description above, it
sounds like you're doing non-uniform b-splines.  But it sounds like nobody
uses those---they provide little benefit over uniform b-splines.  With
uniform b-splines---possibly with non-unity knot multiplicity----it's easy
to compute the correct knot index to associate with a parameter value.  The
API seems to be giving just a vector of multiplicities, since knot spacing
is assumed uniform.

It sounds like you evaluate the basis functions instead of directly
computing the bspline points?  I wonder about the advantage of doing it
that way.  Most sources seem to suggest computing the points directly
without ever computing the basis functions.  I have written a function
that works that way.  There is nothing I can point at as "the reason this
would be slow" other than it being a quadratic algorithm implemented by
recursion, which is kinda slow in OpenSCAD.

On Sun, Aug 11, 2024 at 11:14 AM Sanjeev Prabhakar sprabhakar2006@gmail.com
wrote:

I have calculated uniform bspline and you can check the algorithm in the
file dependencies.scad

Whatever way you calculate it you need to find whether the current
parameter is within which knots.

To do an open bspline you have to clamp the spline at both ends and
accordingly the knots needs to be defined.

If the number of points are higher and degree is higher  it becomes quite
slow in my case.

On Mon, 12 Aug, 2024, 12:12 am Adrian Mariano, avm4@cornell.edu wrote:

I'm having some confusion with the clamped case where I have a knot
multiplicity (at the ends) that is higher than the degree.  This case isn't
really addressed by the formula I was using.  I'm also not sure how you
clamp if you don't have very many control points.  With degree p and n
control points you have p+n+1 knots but if you need p+1 multiplicity at
each end then if n is too small it's impossible.

I am also hazy also about the closed case.  You are supposed to duplicate p
control points, but I don't understand how to handle the knots.

You need to find which knot interval the current parameter lies within.
This can be done for the uniform case by floor(u/(knotcount-1)), which is
not a slow calculation.  If you have non-unity multiplicities then you can
use a slightly more complex calculation but it will still be fast.

My code is currently taking about 1s to compute 1000 points on a b-spline
with 100 control points and degree 7.  Degree 3 is 0.9 s.  Degree 16 is
1.1s.  So it doesn't seem very sensitive to degree, nor horribly slow.  (My
computer is pretty fast.)

On Sun, Aug 11, 2024 at 7:05 PM Sanjeev Prabhakar sprabhakar2006@gmail.com
wrote:
