Provide a simple measurement tool

BE
Bob Ewart
Fri, Aug 27, 2021 8:22 PM

I've been following issue #3638
https://github.com/openscad/openscad/issues/3638 on openscad at
github.  I'm not alone in wanting to know where a particular point is
located or how far apart two points are.

If you have something like:

translate([a,b,c]) {
    rotate([d,e,f]) {
        translate([g,h,i]) {

OpenSCAD has to be keeping track of where you are.  So it should be
possible to insert something like /echo($X,$Y,$Z);/

You would be able to check alignment and distance from those echo's.

Even better would be to have /Point1 = [$X,$Y,$Z]; /A simple function
could calculate the distance between two such points.  Angles could also
be determined with three points.
//

--
Bob

The goal of Computer Science is to build something
that will last at least until we've finished building it.

I've been following issue #3638 <https://github.com/openscad/openscad/issues/3638> on openscad at github.  I'm not alone in wanting to know where a particular point is located or how far apart two points are. If you have something like: translate([a,b,c]) {     rotate([d,e,f]) {         translate([g,h,i]) { OpenSCAD has to be keeping track of where you are.  So it should be possible to insert something like /echo($X,$Y,$Z);/ You would be able to check alignment and distance from those echo's. Even better would be to have /Point1 = [$X,$Y,$Z]; /A simple function could calculate the distance between two such points.  Angles could also be determined with three points. // -- Bob The goal of Computer Science is to build something that will last at least until we've finished building it.
NH
nop head
Fri, Aug 27, 2021 9:49 PM

IIRC this has been done in user code by redefining translate, rotate, etc
to use multmatrix and maintaining an inverse transform in a $variable.

On Fri, 27 Aug 2021 at 21:22, Bob Ewart jinnicky@bobsown.net wrote:

I've been following issue #3638
https://github.com/openscad/openscad/issues/3638 on openscad at
github.  I'm not alone in wanting to know where a particular point is
located or how far apart two points are.

If you have something like:

translate([a,b,c]) {
rotate([d,e,f]) {
translate([g,h,i]) {

OpenSCAD has to be keeping track of where you are.  So it should be
possible to insert something like echo($X,$Y,$Z);

You would be able to check alignment and distance from those echo's.

Even better would be to have *Point1 = [$X,$Y,$Z];  *A simple function
could calculate the distance between two such points.  Angles could also be
determined with three points.

--
Bob

The goal of Computer Science is to build something
that will last at least until we've finished building it.


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

IIRC this has been done in user code by redefining translate, rotate, etc to use multmatrix and maintaining an inverse transform in a $variable. On Fri, 27 Aug 2021 at 21:22, Bob Ewart <jinnicky@bobsown.net> wrote: > I've been following issue #3638 > <https://github.com/openscad/openscad/issues/3638> on openscad at > github. I'm not alone in wanting to know where a particular point is > located or how far apart two points are. > > If you have something like: > > translate([a,b,c]) { > rotate([d,e,f]) { > translate([g,h,i]) { > > OpenSCAD has to be keeping track of where you are. So it should be > possible to insert something like *echo($X,$Y,$Z);* > > You would be able to check alignment and distance from those echo's. > > Even better would be to have *Point1 = [$X,$Y,$Z]; *A simple function > could calculate the distance between two such points. Angles could also be > determined with three points. > > -- > Bob > > The goal of Computer Science is to build something > that will last at least until we've finished building it. > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org >
JB
Jordan Brown
Sat, Aug 28, 2021 2:18 AM

On 8/27/2021 1:22 PM, Bob Ewart wrote:

If you have something like:

translate([a,b,c]) {
    rotate([d,e,f]) {
        translate([g,h,i]) {

OpenSCAD has to be keeping track of where you are.

You might think so.  And it could.  But no, it doesn't.

Turning the example into a concrete one:

translate([1,2,3]) {
    rotate([4,5,6]) {
        translate([7,8,9]) {
            cube();
        }
    }
}

the result of executing the OpenSCAD program is this CSG tree:

multmatrix([[1, 0, 0, 1], [0, 1, 0, 2], [0, 0, 1, 3], [0, 0, 0, 1]]) {
  multmatrix([[0.990737, -0.0982275, 0.0937587, 0], [0.104131, 0.992735, -0.0602863, 0], [-0.0871557, 0.069491, 0.993768, 0], [0, 0, 0, 1]]) {
    multmatrix([[1, 0, 0, 7], [0, 1, 0, 8], [0, 0, 1, 9], [0, 0, 0, 1]]) {
      cube(size = [1, 1, 1], center = false);
    }
  }
}

It is a later stage, after the execution is done, after the program has
any control, that actually does the geometric work.

As nophead says, it's possible to do something equivalent in the
OpenSCAD program, by carrying redefining the various transformations and
using $ variables to pass down the accumulated transformation.

Here's a thread that discusses some experiments in doing that:
https://forum.openscad.org/Some-thoughts-on-deriving-world-coordinates-for-objects-td30377.html

Perhaps it would be a worthwhile project to make that capability
available using the built-in transforms.

Even better would be to have /Point1 = [$X,$Y,$Z];  /A simple function
could calculate the distance between two such points.

norm(p1-p2) will give you the distance between two points.  But:  even
with the $-variable trickery above, the "physics" of the OpenSCAD
universe constrain what you can do.  OpenSCAD modules are black holes;
you cannot get information out of them.  Thus, if you have

... some sequence of transforms ... {
    A();
}
... some other sequence of transforms ... {
    B();
}

although A() could maybe know where it is, and B() could maybe know
where it is, nothing can know where both A() and B() are, because
there is no way to get the information out of the stack of transforms.
(Except via echo() or text(), but the information is not then available
to the OpenSCAD program.)

Angles could also be determined with three points.

Yes, with some appropriate use of atan2(), but with the same physics
limitations.

On 8/27/2021 1:22 PM, Bob Ewart wrote: > > If you have something like: > > translate([a,b,c]) { >     rotate([d,e,f]) { >         translate([g,h,i]) { > > OpenSCAD has to be keeping track of where you are. > You might think so.  And it could.  But no, it doesn't. Turning the example into a concrete one: translate([1,2,3]) { rotate([4,5,6]) { translate([7,8,9]) { cube(); } } } the result of executing the OpenSCAD program is this CSG tree: multmatrix([[1, 0, 0, 1], [0, 1, 0, 2], [0, 0, 1, 3], [0, 0, 0, 1]]) { multmatrix([[0.990737, -0.0982275, 0.0937587, 0], [0.104131, 0.992735, -0.0602863, 0], [-0.0871557, 0.069491, 0.993768, 0], [0, 0, 0, 1]]) { multmatrix([[1, 0, 0, 7], [0, 1, 0, 8], [0, 0, 1, 9], [0, 0, 0, 1]]) { cube(size = [1, 1, 1], center = false); } } } It is a later stage, after the execution is done, after the program has any control, that actually does the geometric work. As nophead says, it's possible to do something equivalent in the OpenSCAD program, by carrying redefining the various transformations and using $ variables to pass down the accumulated transformation. Here's a thread that discusses some experiments in doing that: https://forum.openscad.org/Some-thoughts-on-deriving-world-coordinates-for-objects-td30377.html Perhaps it would be a worthwhile project to make that capability available using the built-in transforms. > Even better would be to have /Point1 = [$X,$Y,$Z];  /A simple function > could calculate the distance between two such points.  > norm(p1-p2) will give you the distance between two points.  But:  even with the $-variable trickery above, the "physics" of the OpenSCAD universe constrain what you can do.  OpenSCAD modules are black holes; you cannot get information out of them.  Thus, if you have ... some sequence of transforms ... { A(); } ... some other sequence of transforms ... { B(); } although A() could maybe know where it is, and B() could maybe know where it is, nothing can know where *both* A() *and* B() are, because there is no way to get the information out of the stack of transforms.  (Except via echo() or text(), but the information is not then available to the OpenSCAD program.) > Angles could also be determined with three points. > Yes, with some appropriate use of atan2(), but with the same physics limitations.
GH
Gene Heskett
Sat, Aug 28, 2021 6:31 AM

On Friday 27 August 2021 22:18:03 Jordan Brown wrote:

On 8/27/2021 1:22 PM, Bob Ewart wrote:

If you have something like:

translate([a,b,c]) {
    rotate([d,e,f]) {
        translate([g,h,i]) {

OpenSCAD has to be keeping track of where you are.

You might think so.  And it could.  But no, it doesn't.

Turning the example into a concrete one:

 translate([1,2,3]) {
     rotate([4,5,6]) {
         translate([7,8,9]) {
             cube();
         }
     }
 }

the result of executing the OpenSCAD program is this CSG tree:

 multmatrix([[1, 0, 0, 1], [0, 1, 0, 2], [0, 0, 1, 3], [0, 0, 0,

1]]) { multmatrix([[0.990737, -0.0982275, 0.0937587, 0], [0.104131,
0.992735, -0.0602863, 0], [-0.0871557, 0.069491, 0.993768, 0], [0, 0,
0, 1]]) { multmatrix([[1, 0, 0, 7], [0, 1, 0, 8], [0, 0, 1, 9], [0, 0,
0, 1]]) { cube(size = [1, 1, 1], center = false);
}
}
}

It is a later stage, after the execution is done, after the program
has any control, that actually does the geometric work.

As nophead says, it's possible to do something equivalent in the
OpenSCAD program, by carrying redefining the various transformations
and using $ variables to pass down the accumulated transformation.

Here's a thread that discusses some experiments in doing that:
https://forum.openscad.org/Some-thoughts-on-deriving-world-coordinates
-for-objects-td30377.html

Perhaps it would be a worthwhile project to make that capability
available using the built-in transforms.

Even better would be to have /Point1 = [$X,$Y,$Z];  /A simple
function could calculate the distance between two such points.

norm(p1-p2) will give you the distance between two points.  But:  even
with the $-variable trickery above, the "physics" of the OpenSCAD
universe constrain what you can do.  OpenSCAD modules are black holes;
you cannot get information out of them.  Thus, if you have

 ... some sequence of transforms ... {
     A();
 }
 ... some other sequence of transforms ... {
     B();
 }

although A() could maybe know where it is, and B() could maybe know
where it is, nothing can know where both A() and B() are, because
there is no way to get the information out of the stack of
transforms.  (Except via echo() or text(), but the information is not
then available to the OpenSCAD program.)

Angles could also be determined with three points.

Yes, with some appropriate use of atan2(), but with the same physics
limitations.

I know I'd sure like to have the ruler thats located at 0,0,0 in the
display, made portable so its available to lay across a part to find out
how big it is. That would be handier than the turn button on the
outhouse door at a family reunion. I'm also aware thats one very tall
order to do in 3d space. But the need is there.

Cheers, Gene Heskett

"There are four boxes to be used in defense of liberty:
soap, ballot, jury, and ammo. Please use in that order."
-Ed Howdershelt (Author)
If we desire respect for the law, we must first make the law respectable.

On Friday 27 August 2021 22:18:03 Jordan Brown wrote: > On 8/27/2021 1:22 PM, Bob Ewart wrote: > > If you have something like: > > > > translate([a,b,c]) { > >     rotate([d,e,f]) { > >         translate([g,h,i]) { > > > > OpenSCAD has to be keeping track of where you are. > > You might think so.  And it could.  But no, it doesn't. > > Turning the example into a concrete one: > > translate([1,2,3]) { > rotate([4,5,6]) { > translate([7,8,9]) { > cube(); > } > } > } > > the result of executing the OpenSCAD program is this CSG tree: > > multmatrix([[1, 0, 0, 1], [0, 1, 0, 2], [0, 0, 1, 3], [0, 0, 0, > 1]]) { multmatrix([[0.990737, -0.0982275, 0.0937587, 0], [0.104131, > 0.992735, -0.0602863, 0], [-0.0871557, 0.069491, 0.993768, 0], [0, 0, > 0, 1]]) { multmatrix([[1, 0, 0, 7], [0, 1, 0, 8], [0, 0, 1, 9], [0, 0, > 0, 1]]) { cube(size = [1, 1, 1], center = false); > } > } > } > > It is a later stage, after the execution is done, after the program > has any control, that actually does the geometric work. > > As nophead says, it's possible to do something equivalent in the > OpenSCAD program, by carrying redefining the various transformations > and using $ variables to pass down the accumulated transformation. > > Here's a thread that discusses some experiments in doing that: > https://forum.openscad.org/Some-thoughts-on-deriving-world-coordinates >-for-objects-td30377.html > > Perhaps it would be a worthwhile project to make that capability > available using the built-in transforms. > > > Even better would be to have /Point1 = [$X,$Y,$Z];  /A simple > > function could calculate the distance between two such points. > > norm(p1-p2) will give you the distance between two points.  But:  even > with the $-variable trickery above, the "physics" of the OpenSCAD > universe constrain what you can do.  OpenSCAD modules are black holes; > you cannot get information out of them.  Thus, if you have > > ... some sequence of transforms ... { > A(); > } > ... some other sequence of transforms ... { > B(); > } > > although A() could maybe know where it is, and B() could maybe know > where it is, nothing can know where *both* A() *and* B() are, because > there is no way to get the information out of the stack of > transforms.  (Except via echo() or text(), but the information is not > then available to the OpenSCAD program.) > > > Angles could also be determined with three points. > > Yes, with some appropriate use of atan2(), but with the same physics > limitations. I know I'd sure like to have the ruler thats located at 0,0,0 in the display, made portable so its available to lay across a part to find out how big it is. That would be handier than the turn button on the outhouse door at a family reunion. I'm also aware thats one very tall order to do in 3d space. But the need is there. Cheers, Gene Heskett -- "There are four boxes to be used in defense of liberty: soap, ballot, jury, and ammo. Please use in that order." -Ed Howdershelt (Author) If we desire respect for the law, we must first make the law respectable. - Louis D. Brandeis Genes Web page <http://geneslinuxbox.net:6309/gene>
AM
Adrian Mariano
Sat, Aug 28, 2021 11:41 AM

Many people have written rulers.  You can probably easily find a few with
google.  Also there's one in BOSL2:

include<BOSL2/std.scad>
cylinder(h=10,r=7.5,$fn=25);

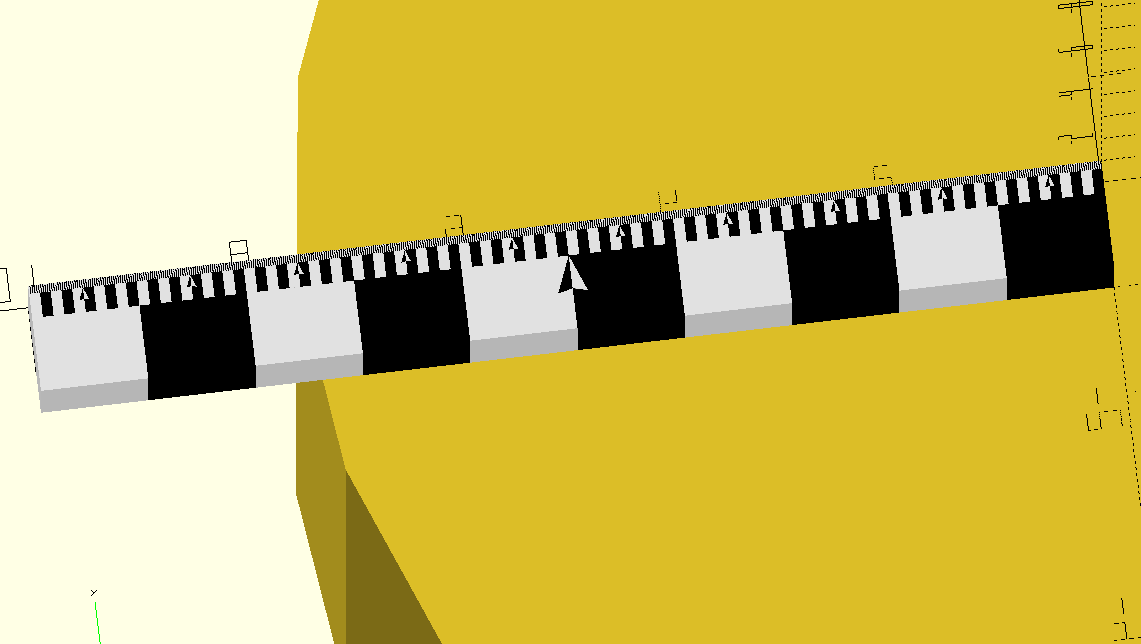

ruler(10);

Of course, this ruler is part of your model, not something you can lay down
over your mode as you view it.

To the original poster I'd ask why you want to measure a distance.  What
are you planning to do with the result?  There may be some simple way to
achieve your end goal that doesn't require measuring.

On Sat, Aug 28, 2021 at 2:32 AM Gene Heskett gheskett@shentel.net wrote:

On Friday 27 August 2021 22:18:03 Jordan Brown wrote:

On 8/27/2021 1:22 PM, Bob Ewart wrote:

If you have something like:

translate([a,b,c]) {
rotate([d,e,f]) {
translate([g,h,i]) {

OpenSCAD has to be keeping track of where you are.

You might think so.  And it could.  But no, it doesn't.

Turning the example into a concrete one:

 translate([1,2,3]) {
     rotate([4,5,6]) {
         translate([7,8,9]) {
             cube();
         }
     }
 }

the result of executing the OpenSCAD program is this CSG tree:

 multmatrix([[1, 0, 0, 1], [0, 1, 0, 2], [0, 0, 1, 3], [0, 0, 0,

1]]) { multmatrix([[0.990737, -0.0982275, 0.0937587, 0], [0.104131,
0.992735, -0.0602863, 0], [-0.0871557, 0.069491, 0.993768, 0], [0, 0,
0, 1]]) { multmatrix([[1, 0, 0, 7], [0, 1, 0, 8], [0, 0, 1, 9], [0, 0,
0, 1]]) { cube(size = [1, 1, 1], center = false);
}
}
}

It is a later stage, after the execution is done, after the program
has any control, that actually does the geometric work.

As nophead says, it's possible to do something equivalent in the
OpenSCAD program, by carrying redefining the various transformations
and using $ variables to pass down the accumulated transformation.

Here's a thread that discusses some experiments in doing that:
https://forum.openscad.org/Some-thoughts-on-deriving-world-coordinates
-for-objects-td30377.html

Perhaps it would be a worthwhile project to make that capability
available using the built-in transforms.

Even better would be to have /Point1 = [$X,$Y,$Z];  /A simple
function could calculate the distance between two such points.

norm(p1-p2) will give you the distance between two points.  But:  even
with the $-variable trickery above, the "physics" of the OpenSCAD
universe constrain what you can do.  OpenSCAD modules are black holes;
you cannot get information out of them.  Thus, if you have

 ... some sequence of transforms ... {
     A();
 }
 ... some other sequence of transforms ... {
     B();
 }

although A() could maybe know where it is, and B() could maybe know
where it is, nothing can know where both A() and B() are, because
there is no way to get the information out of the stack of
transforms.  (Except via echo() or text(), but the information is not
then available to the OpenSCAD program.)

Angles could also be determined with three points.

Yes, with some appropriate use of atan2(), but with the same physics
limitations.

I know I'd sure like to have the ruler thats located at 0,0,0 in the
display, made portable so its available to lay across a part to find out
how big it is. That would be handier than the turn button on the
outhouse door at a family reunion. I'm also aware thats one very tall
order to do in 3d space. But the need is there.

Cheers, Gene Heskett

"There are four boxes to be used in defense of liberty:
soap, ballot, jury, and ammo. Please use in that order."
-Ed Howdershelt (Author)
If we desire respect for the law, we must first make the law respectable.


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

Many people have written rulers. You can probably easily find a few with google. Also there's one in BOSL2: include<BOSL2/std.scad> cylinder(h=10,r=7.5,$fn=25); ruler(10); Of course, this ruler is part of your model, not something you can lay down over your mode as you view it. To the original poster I'd ask why you want to measure a distance. What are you planning to do with the result? There may be some simple way to achieve your end goal that doesn't require measuring. On Sat, Aug 28, 2021 at 2:32 AM Gene Heskett <gheskett@shentel.net> wrote: > On Friday 27 August 2021 22:18:03 Jordan Brown wrote: > > > On 8/27/2021 1:22 PM, Bob Ewart wrote: > > > If you have something like: > > > > > > translate([a,b,c]) { > > > rotate([d,e,f]) { > > > translate([g,h,i]) { > > > > > > OpenSCAD has to be keeping track of where you are. > > > > You might think so. And it could. But no, it doesn't. > > > > Turning the example into a concrete one: > > > > translate([1,2,3]) { > > rotate([4,5,6]) { > > translate([7,8,9]) { > > cube(); > > } > > } > > } > > > > the result of executing the OpenSCAD program is this CSG tree: > > > > multmatrix([[1, 0, 0, 1], [0, 1, 0, 2], [0, 0, 1, 3], [0, 0, 0, > > 1]]) { multmatrix([[0.990737, -0.0982275, 0.0937587, 0], [0.104131, > > 0.992735, -0.0602863, 0], [-0.0871557, 0.069491, 0.993768, 0], [0, 0, > > 0, 1]]) { multmatrix([[1, 0, 0, 7], [0, 1, 0, 8], [0, 0, 1, 9], [0, 0, > > 0, 1]]) { cube(size = [1, 1, 1], center = false); > > } > > } > > } > > > > It is a later stage, after the execution is done, after the program > > has any control, that actually does the geometric work. > > > > As nophead says, it's possible to do something equivalent in the > > OpenSCAD program, by carrying redefining the various transformations > > and using $ variables to pass down the accumulated transformation. > > > > Here's a thread that discusses some experiments in doing that: > > https://forum.openscad.org/Some-thoughts-on-deriving-world-coordinates > >-for-objects-td30377.html > > > > Perhaps it would be a worthwhile project to make that capability > > available using the built-in transforms. > > > > > Even better would be to have /Point1 = [$X,$Y,$Z]; /A simple > > > function could calculate the distance between two such points. > > > > norm(p1-p2) will give you the distance between two points. But: even > > with the $-variable trickery above, the "physics" of the OpenSCAD > > universe constrain what you can do. OpenSCAD modules are black holes; > > you cannot get information out of them. Thus, if you have > > > > ... some sequence of transforms ... { > > A(); > > } > > ... some other sequence of transforms ... { > > B(); > > } > > > > although A() could maybe know where it is, and B() could maybe know > > where it is, nothing can know where *both* A() *and* B() are, because > > there is no way to get the information out of the stack of > > transforms. (Except via echo() or text(), but the information is not > > then available to the OpenSCAD program.) > > > > > Angles could also be determined with three points. > > > > Yes, with some appropriate use of atan2(), but with the same physics > > limitations. > > I know I'd sure like to have the ruler thats located at 0,0,0 in the > display, made portable so its available to lay across a part to find out > how big it is. That would be handier than the turn button on the > outhouse door at a family reunion. I'm also aware thats one very tall > order to do in 3d space. But the need is there. > > Cheers, Gene Heskett > -- > "There are four boxes to be used in defense of liberty: > soap, ballot, jury, and ammo. Please use in that order." > -Ed Howdershelt (Author) > If we desire respect for the law, we must first make the law respectable. > - Louis D. Brandeis > Genes Web page <http://geneslinuxbox.net:6309/gene> > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org >
BE
Bob Ewart
Sat, Aug 28, 2021 1:14 PM

I am working on a little sign in two parts, the sign itself and a
support bracket.  I want to make sure that the connectors are the same
distance apart and that the are far enough apart to fit over a bracket
holding my monitor.

--
Bob

Truth is stranger than fiction because fiction has to make sense.

On 8/28/21 7:41 AM, Adrian Mariano wrote:

Many people have written rulers.  You can probably easily find a few
with google.  Also there's one in BOSL2:

include<BOSL2/std.scad>
cylinder(h=10,r=7.5,$fn=25);
ruler(10);

Of course, this ruler is part of your model, not something you can lay
down over your mode as you view it.

To the original poster I'd ask why you want to measure a distance.
What are you planning to do with the result?  There may be some simple
way to achieve your end goal that doesn't require measuring.

On Sat, Aug 28, 2021 at 2:32 AM Gene Heskett <gheskett@shentel.net
mailto:gheskett@shentel.net> wrote:

 On Friday 27 August 2021 22:18:03 Jordan Brown wrote:

On 8/27/2021 1:22 PM, Bob Ewart wrote:

If you have something like:

translate([a,b,c]) {
    rotate([d,e,f]) {
        translate([g,h,i]) {

OpenSCAD has to be keeping track of where you are.

You might think so.  And it could.  But no, it doesn't.

Turning the example into a concrete one:

     translate([1,2,3]) {
         rotate([4,5,6]) {
             translate([7,8,9]) {
                 cube();
             }
         }
     }

the result of executing the OpenSCAD program is this CSG tree:

     multmatrix([[1, 0, 0, 1], [0, 1, 0, 2], [0, 0, 1, 3], [0, 0, 0,
1]]) { multmatrix([[0.990737, -0.0982275, 0.0937587, 0], [0.104131,
0.992735, -0.0602863, 0], [-0.0871557, 0.069491, 0.993768, 0],

 [0, 0,

0, 1]]) { multmatrix([[1, 0, 0, 7], [0, 1, 0, 8], [0, 0, 1, 9],

 [0, 0,

0, 1]]) { cube(size = [1, 1, 1], center = false);
         }
       }
     }

It is a later stage, after the execution is done, after the program
has any control, that actually does the geometric work.

As nophead says, it's possible to do something equivalent in the
OpenSCAD program, by carrying redefining the various transformations
and using $ variables to pass down the accumulated transformation.

Here's a thread that discusses some experiments in doing that:

 https://forum.openscad.org/Some-thoughts-on-deriving-world-coordinates
 <https://forum.openscad.org/Some-thoughts-on-deriving-world-coordinates>

-for-objects-td30377.html

Perhaps it would be a worthwhile project to make that capability
available using the built-in transforms.

Even better would be to have /Point1 = [$X,$Y,$Z]; /A simple
function could calculate the distance between two such points.

norm(p1-p2) will give you the distance between two points.

 But:  even

with the $-variable trickery above, the "physics" of the OpenSCAD
universe constrain what you can do.  OpenSCAD modules are black

 holes;

you cannot get information out of them.  Thus, if you have

     ... some sequence of transforms ... {
         A();
     }
     ... some other sequence of transforms ... {
         B();
     }

although A() could maybe know where it is, and B() could maybe know
where it is, nothing can know where both A() and B() are,

 because

there is no way to get the information out of the stack of
transforms.  (Except via echo() or text(), but the information

 is not

then available to the OpenSCAD program.)

Angles could also be determined with three points.

Yes, with some appropriate use of atan2(), but with the same physics
limitations.

 I know I'd sure like to have the ruler thats located at 0,0,0 in the
 display, made portable so its available to lay across a part to
 find out
 how big it is. That would be handier than the turn button on the
 outhouse door at a family reunion. I'm also aware thats one very tall
 order to do in 3d space. But the need is there.

 Cheers, Gene Heskett
 --
 "There are four boxes to be used in defense of liberty:
  soap, ballot, jury, and ammo. Please use in that order."
 -Ed Howdershelt (Author)
 If we desire respect for the law, we must first make the law
 respectable.
  - Louis D. Brandeis
 Genes Web page <http://geneslinuxbox.net:6309/gene
 <http://geneslinuxbox.net:6309/gene>>
 _______________________________________________
 OpenSCAD mailing list
 To unsubscribe send an email to discuss-leave@lists.openscad.org
 <mailto:discuss-leave@lists.openscad.org>

OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

I am working on a little sign in two parts, the sign itself and a support bracket.  I want to make sure that the connectors are the same distance apart and that the are far enough apart to fit over a bracket holding my monitor. -- Bob Truth is stranger than fiction because fiction has to make sense. On 8/28/21 7:41 AM, Adrian Mariano wrote: > Many people have written rulers.  You can probably easily find a few > with google.  Also there's one in BOSL2: > > include<BOSL2/std.scad> > cylinder(h=10,r=7.5,$fn=25); > ruler(10); > > Of course, this ruler is part of your model, not something you can lay > down over your mode as you view it. > > To the original poster I'd ask why you want to measure a distance.  > What are you planning to do with the result?  There may be some simple > way to achieve your end goal that doesn't require measuring. > > On Sat, Aug 28, 2021 at 2:32 AM Gene Heskett <gheskett@shentel.net > <mailto:gheskett@shentel.net>> wrote: > > On Friday 27 August 2021 22:18:03 Jordan Brown wrote: > > > On 8/27/2021 1:22 PM, Bob Ewart wrote: > > > If you have something like: > > > > > > translate([a,b,c]) { > > >     rotate([d,e,f]) { > > >         translate([g,h,i]) { > > > > > > OpenSCAD has to be keeping track of where you are. > > > > You might think so.  And it could.  But no, it doesn't. > > > > Turning the example into a concrete one: > > > >     translate([1,2,3]) { > >         rotate([4,5,6]) { > >             translate([7,8,9]) { > >                 cube(); > >             } > >         } > >     } > > > > the result of executing the OpenSCAD program is this CSG tree: > > > >     multmatrix([[1, 0, 0, 1], [0, 1, 0, 2], [0, 0, 1, 3], [0, 0, 0, > > 1]]) { multmatrix([[0.990737, -0.0982275, 0.0937587, 0], [0.104131, > > 0.992735, -0.0602863, 0], [-0.0871557, 0.069491, 0.993768, 0], > [0, 0, > > 0, 1]]) { multmatrix([[1, 0, 0, 7], [0, 1, 0, 8], [0, 0, 1, 9], > [0, 0, > > 0, 1]]) { cube(size = [1, 1, 1], center = false); > >         } > >       } > >     } > > > > It is a later stage, after the execution is done, after the program > > has any control, that actually does the geometric work. > > > > As nophead says, it's possible to do something equivalent in the > > OpenSCAD program, by carrying redefining the various transformations > > and using $ variables to pass down the accumulated transformation. > > > > Here's a thread that discusses some experiments in doing that: > > > https://forum.openscad.org/Some-thoughts-on-deriving-world-coordinates > <https://forum.openscad.org/Some-thoughts-on-deriving-world-coordinates> > >-for-objects-td30377.html > > > > Perhaps it would be a worthwhile project to make that capability > > available using the built-in transforms. > > > > > Even better would be to have /Point1 = [$X,$Y,$Z]; /A simple > > > function could calculate the distance between two such points. > > > > norm(p1-p2) will give you the distance between two points.  > But:  even > > with the $-variable trickery above, the "physics" of the OpenSCAD > > universe constrain what you can do.  OpenSCAD modules are black > holes; > > you cannot get information out of them.  Thus, if you have > > > >     ... some sequence of transforms ... { > >         A(); > >     } > >     ... some other sequence of transforms ... { > >         B(); > >     } > > > > although A() could maybe know where it is, and B() could maybe know > > where it is, nothing can know where *both* A() *and* B() are, > because > > there is no way to get the information out of the stack of > > transforms.  (Except via echo() or text(), but the information > is not > > then available to the OpenSCAD program.) > > > > > Angles could also be determined with three points. > > > > Yes, with some appropriate use of atan2(), but with the same physics > > limitations. > > I know I'd sure like to have the ruler thats located at 0,0,0 in the > display, made portable so its available to lay across a part to > find out > how big it is. That would be handier than the turn button on the > outhouse door at a family reunion. I'm also aware thats one very tall > order to do in 3d space. But the need is there. > > Cheers, Gene Heskett > -- > "There are four boxes to be used in defense of liberty: >  soap, ballot, jury, and ammo. Please use in that order." > -Ed Howdershelt (Author) > If we desire respect for the law, we must first make the law > respectable. >  - Louis D. Brandeis > Genes Web page <http://geneslinuxbox.net:6309/gene > <http://geneslinuxbox.net:6309/gene>> > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org > <mailto:discuss-leave@lists.openscad.org> > > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org
MM
Michael Möller
Sat, Aug 28, 2021 1:15 PM

Hey, I'd like that, too ....

But,

Executive summary : The point or elegance of OpenSCAD is that you define
exactly where you want each part to go. Why measure it? (Answer: to verify
your code)

Longer version: There have also been requests that you can "nudge" a part
interactively with the mouse. I'd like that, too, but again - that's not
the point of the declarative language and only exact numbers. If you want
to design with drag-n-drop use tinkercad.com or blender etc. Yes, I too,
sometimes am too lazy, or do not have the required
trigonometric/mathematical skill. So I fudge it. I keep entering a new
fudge value until it fits. Of course I never know if it actually fits, it
just looks good on screen (zoom in zoom in ,...). For my average 3D printer
that's often good enough. Hint: Use the animation feature, then you get a
refresh as you type.

Of course, if I do proper design, ie. think about what I want to do,
modularize my OpenSCAD program, use wiki for a "math refresher course" and
so on, then I do not need to measure my output.

Actually I do. I have this seperate visualizer tool for STL files (3D Tool
Free), and there I can get the 3D distance and angle between any two
points, edges, surface and what not. As it is NOT part of OpenSCAD it
also checks for other bugs that might be. Verifying my design before
committing to plastic, so to speak.

Remember that you can write a module that only does a transform - see
"children()". I've also used a module/function combination in a sub
assembly whose only purpose is to return a number (a distance f.ex) that
needs to be repeated in another part of the model. Which brings me back to
the executive summary.

Msquare

On Fri, 27 Aug 2021 at 22:22, Bob Ewart jinnicky@bobsown.net wrote:

I've been following issue #3638
https://github.com/openscad/openscad/issues/3638 on openscad at
github.  I'm not alone in wanting to know where a particular point is
located or how far apart two points are.

If you have something like:

translate([a,b,c]) {
rotate([d,e,f]) {
translate([g,h,i]) {

OpenSCAD has to be keeping track of where you are.  So it should be
possible to insert something like echo($X,$Y,$Z);

You would be able to check alignment and distance from those echo's.

Even better would be to have *Point1 = [$X,$Y,$Z];  *A simple function
could calculate the distance between two such points.  Angles could also be
determined with three points.

--
Bob

The goal of Computer Science is to build something
that will last at least until we've finished building it.


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

Hey, I'd like that, too .... But, Executive summary : The point or elegance of OpenSCAD is that you define exactly where you want each part to go. Why measure it? (Answer: to verify your code) Longer version: There have also been requests that you can "nudge" a part interactively with the mouse. I'd like that, too, but again - that's not the point of the declarative language and only exact numbers. If you want to design with drag-n-drop use tinkercad.com or blender etc. Yes, I too, sometimes am too lazy, or do not have the required trigonometric/mathematical skill. So I fudge it. I keep entering a new fudge value until it fits. Of course I never know if it actually fits, it just looks good on screen (zoom in zoom in ,...). For my average 3D printer that's often good enough. Hint: Use the animation feature, then you get a refresh as you type. Of course, if I do proper design, ie. think about what I want to do, modularize my OpenSCAD program, use wiki for a "math refresher course" and so on, then I do not need to measure my output. Actually I do. I have this seperate visualizer tool for STL files (3D Tool Free), and there I can get the 3D distance and angle between any two points, edges, surface and what not. As it is NOT part of OpenSCAD it also checks for other bugs that might be. Verifying my design before committing to plastic, so to speak. Remember that you can write a module that only does a transform - see "children()". I've also used a module/function combination in a sub assembly whose only purpose is to return a number (a distance f.ex) that needs to be repeated in another part of the model. Which brings me back to the executive summary. Msquare On Fri, 27 Aug 2021 at 22:22, Bob Ewart <jinnicky@bobsown.net> wrote: > I've been following issue #3638 > <https://github.com/openscad/openscad/issues/3638> on openscad at > github. I'm not alone in wanting to know where a particular point is > located or how far apart two points are. > > If you have something like: > > translate([a,b,c]) { > rotate([d,e,f]) { > translate([g,h,i]) { > > OpenSCAD has to be keeping track of where you are. So it should be > possible to insert something like *echo($X,$Y,$Z);* > > You would be able to check alignment and distance from those echo's. > > Even better would be to have *Point1 = [$X,$Y,$Z]; *A simple function > could calculate the distance between two such points. Angles could also be > determined with three points. > > -- > Bob > > The goal of Computer Science is to build something > that will last at least until we've finished building it. > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org >
MM
Michael Möller
Sat, Aug 28, 2021 1:25 PM

Hi Bob, mine and your last email crossed in time. This was sort of what I
was hinting at. You define the critical distance in a separate module or
file which you use in both part designs.

You create a module with the common parts (the shape of a screw hole?)
and/or a function which returns the critical distance. Then in your two
parts you call that module/function. (modules return a shape or transform a
child shape; functions are just mathematical one-line functions)

You can have both parts in the same file, where you just comment out a line
or other which determines which part to render this time - or - you have a
common file, and in your two shape files you use "include <filename>".
Either way you are certain you have used the same distance.

And the point is - you don't measure the distance created in one module and
then recode it in the other part - you code the distance, once.

On Sat, 28 Aug 2021 at 15:14, Bob Ewart jinnicky@bobsown.net wrote:

I am working on a little sign in two parts, the sign itself and a support
bracket.  I want to make sure that the connectors are the same distance
apart and that the are far enough apart to fit over a bracket holding my
monitor.

--
Bob

Truth is stranger than fiction because fiction has to make sense.

On 8/28/21 7:41 AM, Adrian Mariano wrote:

Many people have written rulers.  You can probably easily find a few with
google.  Also there's one in BOSL2:

include<BOSL2/std.scad>
cylinder(h=10,r=7.5,$fn=25);
ruler(10);

Of course, this ruler is part of your model, not something you can lay
down over your mode as you view it.

To the original poster I'd ask why you want to measure a distance.  What
are you planning to do with the result?  There may be some simple way to
achieve your end goal that doesn't require measuring.

On Sat, Aug 28, 2021 at 2:32 AM Gene Heskett gheskett@shentel.net wrote:

On Friday 27 August 2021 22:18:03 Jordan Brown wrote:

On 8/27/2021 1:22 PM, Bob Ewart wrote:

If you have something like:

translate([a,b,c]) {
rotate([d,e,f]) {
translate([g,h,i]) {

OpenSCAD has to be keeping track of where you are.

You might think so.  And it could.  But no, it doesn't.

Turning the example into a concrete one:

 translate([1,2,3]) {
     rotate([4,5,6]) {
         translate([7,8,9]) {
             cube();
         }
     }
 }

the result of executing the OpenSCAD program is this CSG tree:

 multmatrix([[1, 0, 0, 1], [0, 1, 0, 2], [0, 0, 1, 3], [0, 0, 0,

1]]) { multmatrix([[0.990737, -0.0982275, 0.0937587, 0], [0.104131,
0.992735, -0.0602863, 0], [-0.0871557, 0.069491, 0.993768, 0], [0, 0,
0, 1]]) { multmatrix([[1, 0, 0, 7], [0, 1, 0, 8], [0, 0, 1, 9], [0, 0,
0, 1]]) { cube(size = [1, 1, 1], center = false);
}
}
}

It is a later stage, after the execution is done, after the program
has any control, that actually does the geometric work.

As nophead says, it's possible to do something equivalent in the
OpenSCAD program, by carrying redefining the various transformations
and using $ variables to pass down the accumulated transformation.

Here's a thread that discusses some experiments in doing that:
https://forum.openscad.org/Some-thoughts-on-deriving-world-coordinates
-for-objects-td30377.html

Perhaps it would be a worthwhile project to make that capability
available using the built-in transforms.

Even better would be to have /Point1 = [$X,$Y,$Z];  /A simple
function could calculate the distance between two such points.

norm(p1-p2) will give you the distance between two points.  But:  even
with the $-variable trickery above, the "physics" of the OpenSCAD
universe constrain what you can do.  OpenSCAD modules are black holes;
you cannot get information out of them.  Thus, if you have

 ... some sequence of transforms ... {
     A();
 }
 ... some other sequence of transforms ... {
     B();
 }

although A() could maybe know where it is, and B() could maybe know
where it is, nothing can know where both A() and B() are, because
there is no way to get the information out of the stack of
transforms.  (Except via echo() or text(), but the information is not
then available to the OpenSCAD program.)

Angles could also be determined with three points.

Yes, with some appropriate use of atan2(), but with the same physics
limitations.

I know I'd sure like to have the ruler thats located at 0,0,0 in the
display, made portable so its available to lay across a part to find out
how big it is. That would be handier than the turn button on the
outhouse door at a family reunion. I'm also aware thats one very tall
order to do in 3d space. But the need is there.

Cheers, Gene Heskett

"There are four boxes to be used in defense of liberty:
soap, ballot, jury, and ammo. Please use in that order."
-Ed Howdershelt (Author)
If we desire respect for the law, we must first make the law respectable.


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

Hi Bob, mine and your last email crossed in time. This was sort of what I was hinting at. You define the critical distance in a separate module or file which you use in both part designs. You create a module with the common parts (the shape of a screw hole?) and/or a function which returns the critical distance. Then in your two parts you call that module/function. (modules return a shape or transform a child shape; functions are just mathematical one-line functions) You can have both parts in the same file, where you just comment out a line or other which determines which part to render this time - or - you have a common file, and in your two shape files you use "include <filename>". Either way you are certain you have used the same distance. And the point is - you don't measure the distance created in one module and then recode it in the other part - you code the distance, once. On Sat, 28 Aug 2021 at 15:14, Bob Ewart <jinnicky@bobsown.net> wrote: > I am working on a little sign in two parts, the sign itself and a support > bracket. I want to make sure that the connectors are the same distance > apart and that the are far enough apart to fit over a bracket holding my > monitor. > > > -- > Bob > > Truth is stranger than fiction because fiction has to make sense. > > On 8/28/21 7:41 AM, Adrian Mariano wrote: > > Many people have written rulers. You can probably easily find a few with > google. Also there's one in BOSL2: > > include<BOSL2/std.scad> > cylinder(h=10,r=7.5,$fn=25); > ruler(10); > > Of course, this ruler is part of your model, not something you can lay > down over your mode as you view it. > > To the original poster I'd ask why you want to measure a distance. What > are you planning to do with the result? There may be some simple way to > achieve your end goal that doesn't require measuring. > > On Sat, Aug 28, 2021 at 2:32 AM Gene Heskett <gheskett@shentel.net> wrote: > >> On Friday 27 August 2021 22:18:03 Jordan Brown wrote: >> >> > On 8/27/2021 1:22 PM, Bob Ewart wrote: >> > > If you have something like: >> > > >> > > translate([a,b,c]) { >> > > rotate([d,e,f]) { >> > > translate([g,h,i]) { >> > > >> > > OpenSCAD has to be keeping track of where you are. >> > >> > You might think so. And it could. But no, it doesn't. >> > >> > Turning the example into a concrete one: >> > >> > translate([1,2,3]) { >> > rotate([4,5,6]) { >> > translate([7,8,9]) { >> > cube(); >> > } >> > } >> > } >> > >> > the result of executing the OpenSCAD program is this CSG tree: >> > >> > multmatrix([[1, 0, 0, 1], [0, 1, 0, 2], [0, 0, 1, 3], [0, 0, 0, >> > 1]]) { multmatrix([[0.990737, -0.0982275, 0.0937587, 0], [0.104131, >> > 0.992735, -0.0602863, 0], [-0.0871557, 0.069491, 0.993768, 0], [0, 0, >> > 0, 1]]) { multmatrix([[1, 0, 0, 7], [0, 1, 0, 8], [0, 0, 1, 9], [0, 0, >> > 0, 1]]) { cube(size = [1, 1, 1], center = false); >> > } >> > } >> > } >> > >> > It is a later stage, after the execution is done, after the program >> > has any control, that actually does the geometric work. >> > >> > As nophead says, it's possible to do something equivalent in the >> > OpenSCAD program, by carrying redefining the various transformations >> > and using $ variables to pass down the accumulated transformation. >> > >> > Here's a thread that discusses some experiments in doing that: >> > https://forum.openscad.org/Some-thoughts-on-deriving-world-coordinates >> >-for-objects-td30377.html >> > >> > Perhaps it would be a worthwhile project to make that capability >> > available using the built-in transforms. >> > >> > > Even better would be to have /Point1 = [$X,$Y,$Z]; /A simple >> > > function could calculate the distance between two such points. >> > >> > norm(p1-p2) will give you the distance between two points. But: even >> > with the $-variable trickery above, the "physics" of the OpenSCAD >> > universe constrain what you can do. OpenSCAD modules are black holes; >> > you cannot get information out of them. Thus, if you have >> > >> > ... some sequence of transforms ... { >> > A(); >> > } >> > ... some other sequence of transforms ... { >> > B(); >> > } >> > >> > although A() could maybe know where it is, and B() could maybe know >> > where it is, nothing can know where *both* A() *and* B() are, because >> > there is no way to get the information out of the stack of >> > transforms. (Except via echo() or text(), but the information is not >> > then available to the OpenSCAD program.) >> > >> > > Angles could also be determined with three points. >> > >> > Yes, with some appropriate use of atan2(), but with the same physics >> > limitations. >> >> I know I'd sure like to have the ruler thats located at 0,0,0 in the >> display, made portable so its available to lay across a part to find out >> how big it is. That would be handier than the turn button on the >> outhouse door at a family reunion. I'm also aware thats one very tall >> order to do in 3d space. But the need is there. >> >> Cheers, Gene Heskett >> -- >> "There are four boxes to be used in defense of liberty: >> soap, ballot, jury, and ammo. Please use in that order." >> -Ed Howdershelt (Author) >> If we desire respect for the law, we must first make the law respectable. >> - Louis D. Brandeis >> Genes Web page <http://geneslinuxbox.net:6309/gene> >> _______________________________________________ >> OpenSCAD mailing list >> To unsubscribe send an email to discuss-leave@lists.openscad.org >> > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org > > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org >
GH
Gene Heskett
Sat, Aug 28, 2021 2:30 PM

On Saturday 28 August 2021 09:15:26 Michael Möller wrote:

Hey, I'd like that, too ....

But,

Executive summary : The point or elegance of OpenSCAD is that you
define exactly where you want each part to go. Why measure it?
(Answer: to verify your code)

Longer version: There have also been requests that you can "nudge" a
part interactively with the mouse. I'd like that, too, but again -
that's not the point of the declarative language and only exact
numbers. If you want to design with drag-n-drop use tinkercad.com or
blender etc. Yes, I too, sometimes am too lazy, or do not have the
required
trigonometric/mathematical skill. So I fudge it. I keep entering a new
fudge value until it fits. Of course I never know if it actually fits,
it just looks good on screen (zoom in zoom in ,...). For my average 3D
printer that's often good enough. Hint: Use the animation feature,
then you get a refresh as you type.

I don't think my machine has the horsepower to do that in real time. And
printers seem to have a mind of their own, I have some parts that are
supposed to be 5.98mm tall, and I watched it finish as 5.99mm on the
printers own display, but when mic'd, it is 6.51mm tall. Needs lots of
sanding to fix that...

Of course, if I do proper design, ie. think about what I want to do,
modularize my OpenSCAD program, use wiki for a "math refresher course"
and so on, then I do not need to measure my output.

Actually I do. I have this seperate visualizer tool for STL files (3D
Tool Free), and there I can get the 3D distance and angle between any
two points, edges, surface and what not. As it is NOT part of OpenSCAD
it also checks for other bugs that might be. Verifying my design
before committing to plastic, so to speak.

Remember that you can write a module that only does a transform - see
"children()". I've also used a module/function combination in a sub
assembly whose only purpose is to return a number (a distance f.ex)
that needs to be repeated in another part of the model. Which brings
me back to the executive summary.

Msquare

On Fri, 27 Aug 2021 at 22:22, Bob Ewart jinnicky@bobsown.net wrote:

I've been following issue #3638
https://github.com/openscad/openscad/issues/3638 on openscad at
github.  I'm not alone in wanting to know where a particular point
is located or how far apart two points are.

If you have something like:

translate([a,b,c]) {
rotate([d,e,f]) {
translate([g,h,i]) {

OpenSCAD has to be keeping track of where you are.  So it should be
possible to insert something like echo($X,$Y,$Z);

You would be able to check alignment and distance from those echo's.

Even better would be to have *Point1 = [$X,$Y,$Z];  *A simple
function could calculate the distance between two such points.
Angles could also be determined with three points.

--
Bob

The goal of Computer Science is to build something
that will last at least until we've finished building it.


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

Cheers, Gene Heskett

"There are four boxes to be used in defense of liberty:
soap, ballot, jury, and ammo. Please use in that order."
-Ed Howdershelt (Author)
If we desire respect for the law, we must first make the law respectable.

On Saturday 28 August 2021 09:15:26 Michael Möller wrote: > Hey, I'd like that, too .... > > But, > > Executive summary : The point or elegance of OpenSCAD is that you > define exactly where you want each part to go. Why measure it? > (Answer: to verify your code) > > Longer version: There have also been requests that you can "nudge" a > part interactively with the mouse. I'd like that, too, but again - > that's not the point of the declarative language and only exact > numbers. If you want to design with drag-n-drop use tinkercad.com or > blender etc. Yes, I too, sometimes am too lazy, or do not have the > required > trigonometric/mathematical skill. So I fudge it. I keep entering a new > fudge value until it fits. Of course I never know if it actually fits, > it just looks good on screen (zoom in zoom in ,...). For my average 3D > printer that's often good enough. Hint: Use the animation feature, > then you get a refresh as you type. > I don't think my machine has the horsepower to do that in real time. And printers seem to have a mind of their own, I have some parts that are supposed to be 5.98mm tall, and I watched it finish as 5.99mm on the printers own display, but when mic'd, it is 6.51mm tall. Needs lots of sanding to fix that... > Of course, if I do proper design, ie. think about what I want to do, > modularize my OpenSCAD program, use wiki for a "math refresher course" > and so on, then I do not need to measure my output. > > Actually I do. I have this seperate visualizer tool for STL files (3D > Tool Free), and there I can get the 3D distance and angle between any > two points, edges, surface and what not. As it is NOT part of OpenSCAD > it also checks for other bugs that might be. Verifying my design > before committing to plastic, so to speak. > > Remember that you can write a module that only does a transform - see > "children()". I've also used a module/function combination in a sub > assembly whose only purpose is to return a number (a distance f.ex) > that needs to be repeated in another part of the model. Which brings > me back to the executive summary. > > Msquare > > On Fri, 27 Aug 2021 at 22:22, Bob Ewart <jinnicky@bobsown.net> wrote: > > I've been following issue #3638 > > <https://github.com/openscad/openscad/issues/3638> on openscad at > > github. I'm not alone in wanting to know where a particular point > > is located or how far apart two points are. > > > > If you have something like: > > > > translate([a,b,c]) { > > rotate([d,e,f]) { > > translate([g,h,i]) { > > > > OpenSCAD has to be keeping track of where you are. So it should be > > possible to insert something like *echo($X,$Y,$Z);* > > > > You would be able to check alignment and distance from those echo's. > > > > Even better would be to have *Point1 = [$X,$Y,$Z]; *A simple > > function could calculate the distance between two such points. > > Angles could also be determined with three points. > > > > -- > > Bob > > > > The goal of Computer Science is to build something > > that will last at least until we've finished building it. > > > > _______________________________________________ > > OpenSCAD mailing list > > To unsubscribe send an email to discuss-leave@lists.openscad.org Cheers, Gene Heskett -- "There are four boxes to be used in defense of liberty: soap, ballot, jury, and ammo. Please use in that order." -Ed Howdershelt (Author) If we desire respect for the law, we must first make the law respectable. - Louis D. Brandeis Genes Web page <http://geneslinuxbox.net:6309/gene>
GC
Gareth Chen
Sun, Aug 29, 2021 12:51 AM

If your printer is printing 5.98mm parts to be 6.51mm tall it's seriously
out of calibration...

On Sat, Aug 28, 2021, 7:31 AM Gene Heskett gheskett@shentel.net wrote:

On Saturday 28 August 2021 09:15:26 Michael Möller wrote:

Hey, I'd like that, too ....

But,

Executive summary : The point or elegance of OpenSCAD is that you
define exactly where you want each part to go. Why measure it?
(Answer: to verify your code)

Longer version: There have also been requests that you can "nudge" a
part interactively with the mouse. I'd like that, too, but again -
that's not the point of the declarative language and only exact
numbers. If you want to design with drag-n-drop use tinkercad.com or
blender etc. Yes, I too, sometimes am too lazy, or do not have the
required
trigonometric/mathematical skill. So I fudge it. I keep entering a new
fudge value until it fits. Of course I never know if it actually fits,
it just looks good on screen (zoom in zoom in ,...). For my average 3D
printer that's often good enough. Hint: Use the animation feature,
then you get a refresh as you type.

I don't think my machine has the horsepower to do that in real time. And
printers seem to have a mind of their own, I have some parts that are
supposed to be 5.98mm tall, and I watched it finish as 5.99mm on the
printers own display, but when mic'd, it is 6.51mm tall. Needs lots of
sanding to fix that...

Of course, if I do proper design, ie. think about what I want to do,
modularize my OpenSCAD program, use wiki for a "math refresher course"
and so on, then I do not need to measure my output.

Actually I do. I have this seperate visualizer tool for STL files (3D
Tool Free), and there I can get the 3D distance and angle between any
two points, edges, surface and what not. As it is NOT part of OpenSCAD
it also checks for other bugs that might be. Verifying my design
before committing to plastic, so to speak.

Remember that you can write a module that only does a transform - see
"children()". I've also used a module/function combination in a sub
assembly whose only purpose is to return a number (a distance f.ex)
that needs to be repeated in another part of the model. Which brings
me back to the executive summary.

Msquare

On Fri, 27 Aug 2021 at 22:22, Bob Ewart jinnicky@bobsown.net wrote:

I've been following issue #3638
https://github.com/openscad/openscad/issues/3638 on openscad at
github.  I'm not alone in wanting to know where a particular point
is located or how far apart two points are.

If you have something like:

translate([a,b,c]) {
rotate([d,e,f]) {
translate([g,h,i]) {

OpenSCAD has to be keeping track of where you are.  So it should be
possible to insert something like echo($X,$Y,$Z);

You would be able to check alignment and distance from those echo's.

Even better would be to have *Point1 = [$X,$Y,$Z];  *A simple
function could calculate the distance between two such points.
Angles could also be determined with three points.

--
Bob

The goal of Computer Science is to build something
that will last at least until we've finished building it.


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

Cheers, Gene Heskett

"There are four boxes to be used in defense of liberty:
soap, ballot, jury, and ammo. Please use in that order."
-Ed Howdershelt (Author)
If we desire respect for the law, we must first make the law respectable.


OpenSCAD mailing list
To unsubscribe send an email to discuss-leave@lists.openscad.org

If your printer is printing 5.98mm parts to be 6.51mm tall it's seriously out of calibration... On Sat, Aug 28, 2021, 7:31 AM Gene Heskett <gheskett@shentel.net> wrote: > On Saturday 28 August 2021 09:15:26 Michael Möller wrote: > > > Hey, I'd like that, too .... > > > > But, > > > > Executive summary : The point or elegance of OpenSCAD is that you > > define exactly where you want each part to go. Why measure it? > > (Answer: to verify your code) > > > > Longer version: There have also been requests that you can "nudge" a > > part interactively with the mouse. I'd like that, too, but again - > > that's not the point of the declarative language and only exact > > numbers. If you want to design with drag-n-drop use tinkercad.com or > > blender etc. Yes, I too, sometimes am too lazy, or do not have the > > required > > trigonometric/mathematical skill. So I fudge it. I keep entering a new > > fudge value until it fits. Of course I never know if it actually fits, > > it just looks good on screen (zoom in zoom in ,...). For my average 3D > > printer that's often good enough. Hint: Use the animation feature, > > then you get a refresh as you type. > > > I don't think my machine has the horsepower to do that in real time. And > printers seem to have a mind of their own, I have some parts that are > supposed to be 5.98mm tall, and I watched it finish as 5.99mm on the > printers own display, but when mic'd, it is 6.51mm tall. Needs lots of > sanding to fix that... > > > Of course, if I do proper design, ie. think about what I want to do, > > modularize my OpenSCAD program, use wiki for a "math refresher course" > > and so on, then I do not need to measure my output. > > > > Actually I do. I have this seperate visualizer tool for STL files (3D > > Tool Free), and there I can get the 3D distance and angle between any > > two points, edges, surface and what not. As it is NOT part of OpenSCAD > > it also checks for other bugs that might be. Verifying my design > > before committing to plastic, so to speak. > > > > Remember that you can write a module that only does a transform - see > > "children()". I've also used a module/function combination in a sub > > assembly whose only purpose is to return a number (a distance f.ex) > > that needs to be repeated in another part of the model. Which brings > > me back to the executive summary. > > > > Msquare > > > > On Fri, 27 Aug 2021 at 22:22, Bob Ewart <jinnicky@bobsown.net> wrote: > > > I've been following issue #3638 > > > <https://github.com/openscad/openscad/issues/3638> on openscad at > > > github. I'm not alone in wanting to know where a particular point > > > is located or how far apart two points are. > > > > > > If you have something like: > > > > > > translate([a,b,c]) { > > > rotate([d,e,f]) { > > > translate([g,h,i]) { > > > > > > OpenSCAD has to be keeping track of where you are. So it should be > > > possible to insert something like *echo($X,$Y,$Z);* > > > > > > You would be able to check alignment and distance from those echo's. > > > > > > Even better would be to have *Point1 = [$X,$Y,$Z]; *A simple > > > function could calculate the distance between two such points. > > > Angles could also be determined with three points. > > > > > > -- > > > Bob > > > > > > The goal of Computer Science is to build something > > > that will last at least until we've finished building it. > > > > > > _______________________________________________ > > > OpenSCAD mailing list > > > To unsubscribe send an email to discuss-leave@lists.openscad.org > > > Cheers, Gene Heskett > -- > "There are four boxes to be used in defense of liberty: > soap, ballot, jury, and ammo. Please use in that order." > -Ed Howdershelt (Author) > If we desire respect for the law, we must first make the law respectable. > - Louis D. Brandeis > Genes Web page <http://geneslinuxbox.net:6309/gene> > _______________________________________________ > OpenSCAD mailing list > To unsubscribe send an email to discuss-leave@lists.openscad.org >
