Re: [OpenSCAD] puzzlecutlib rendering problem & STL export error Current top level object is empty.
FourthDr wrote
So, what can I do to get revisions of this part to do the same without any
problems?
What do you mean by 'get revisions of this part'?
Do you mean you want to do something to that STL, like add a hole or chop
off an end?
If so you can do something like;
difference()
{
translate([52.254,16.372,-9.77]) // close to origin
import("nopheads repaired.stl", convexity=8);
// -
translate([-15,40,20])
#rotate([0,90,0])
cylinder(r=2,h=20,$fn=18);
}
http://forum.openscad.org/file/n17481/td17440_edit_f5.jpg
Which renders & exports;
http://forum.openscad.org/file/n17481/td17440_edit_f6.jpg
Admin - PM me if you need anything, or if I've done something stupid...
Unless specifically shown otherwise above, my contribution is in the Public Domain; to the extent possible under law, I have waived all copyright and related or neighbouring rights to this work. Obviously inclusion of works of previous authors is not included in the above.
The TPP is no simple “trade agreement.” Fight it! http://www.ourfairdeal.org/ time is running out!
View this message in context: http://forum.openscad.org/puzzlecutlib-rendering-problem-STL-export-error-Current-top-level-object-is-empty-tp17440p17481.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
If the original STL is generated by OpenScad then you can remove the close
vertices. If you post the code I can have a look at it. If you look at the
triangulation there seem to be far too many triangles to tessellate such a
simple shape. In particular these look very suspicious.
Another solution would be to apply the puzzle cut directly to the OpenScad
object to avoid exporting it to STL and reading it back in again, which in
general doesn't work with OpenScad.
On 31 May 2016 at 07:02, MichaelAtOz oz.at.michael@gmail.com wrote:
FourthDr wrote
So, what can I do to get revisions of this part to do the same without
any
problems?
What do you mean by 'get revisions of this part'?
Do you mean you want to do something to that STL, like add a hole or chop
off an end?
If so you can do something like;
difference()
{
translate([52.254,16.372,-9.77]) // close to origin
import("nopheads repaired.stl", convexity=8);
// -
translate([-15,40,20])
#rotate([0,90,0])
cylinder(r=2,h=20,$fn=18);
}
http://forum.openscad.org/file/n17481/td17440_edit_f5.jpg
Which renders & exports;
http://forum.openscad.org/file/n17481/td17440_edit_f6.jpg
Admin - PM me if you need anything, or if I've done something stupid...
Unless specifically shown otherwise above, my contribution is in the
Public Domain; to the extent possible under law, I have waived all
copyright and related or neighbouring rights to this work. Obviously
inclusion of works of previous authors is not included in the above.
The TPP is no simple “trade agreement.” Fight it!
http://www.ourfairdeal.org/ time is running out!
View this message in context:
http://forum.openscad.org/puzzlecutlib-rendering-problem-STL-export-error-Current-top-level-object-is-empty-tp17440p17481.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
Hi MichaelAtOz:
This is what I was originally doing before I got mired in OpenSCAD error
messages. I am building a milling machine. I have all but 2 of the 3D
printable parts printed. The two parts that are too big to print are already
in stl format. I was experimenting with where to cut the part to maximize
strength when rejoining the parts. So I first opened one of the stl files in
netfabb(5.1.2, since have upgraded to v7) and made a few cuts. I then opened
the stl in OpenSCAD to use the puzzlecut library. Once I had the puzzle cut
in what I thought was the right place, I tried to render and export back to
stl. Once that was done I was going to open the stl in netfabb again and
rejoin the parts. This way I would then have the puzzle cut where I needed
it. There where over hangs so that is why I was cutting first, then
puzzling, then rejoining. Here are the original stl files before any
changes:
Cycl_XleftFrame.stl
http://forum.openscad.org/file/n17491/Cycl_XleftFrame.stl
Cycl_XrightFrame.stl
http://forum.openscad.org/file/n17491/Cycl_XrightFrame.stl
As you can see, these parts are too long on one dimension for a 150mm^3
printing volume My idea was to puzzle the base in such a way to shorten the
object to fit while at the same time making the pieces fit together so the x
and y movement would not cause the parts to come apart.
--
View this message in context: http://forum.openscad.org/puzzlecutlib-rendering-problem-STL-export-error-Current-top-level-object-is-empty-tp17440p17491.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
If you're printing in ABS, solvent welds are very strong in my
experience. I do sometimes add alignment features though, like a short
pin and hole, to make sure the bond doesn't go askew. But large ABS
prints are prone to warping if you don't have a heated building chamber.
Sometimes you can print as mirror symmetrical half parts that can be
bonded back to back to cancel out warps.
Dave
On Tue, May 31, 2016, at 11:59 AM, FourthDr wrote:
Hi MichaelAtOz:
This is what I was originally doing before I got mired in
OpenSCAD error
messages. I am building a milling machine. I have all but 2 of the 3D
printable parts printed. The two parts that are too big to print are
already
in stl format. I was experimenting with where to cut the part to
maximize
strength when rejoining the parts. So I first opened one of the
stl files
in
netfabb(5.1.2, since have upgraded to v7) and made a few cuts. I then
opened
the stl in OpenSCAD to use the puzzlecut library. Once I had
the puzzle
cut
in what I thought was the right place, I tried to render and
export back
to
stl. Once that was done I was going to open the stl in netfabb
again and
rejoin the parts. This way I would then have the puzzle cut where I
needed
it. There where over hangs so that is why I was cutting first, then
puzzling, then rejoining. Here are the original stl files before any
changes:
Cycl_XleftFrame.stl
http://forum.openscad.org/file/n17491/Cycl_XleftFrame.stl
Cycl_XrightFrame.stl
http://forum.openscad.org/file/n17491/Cycl_XrightFrame.stl
As you can see, these parts are too long on one dimension for a
150mm^3
printing volume My idea was to puzzle the base in such a way
to shorten
the
object to fit while at the same time making the pieces fit together so
the x
and y movement would not cause the parts to come apart.
--
View this message in context:
http://forum.openscad.org/puzzlecutlib-rendering-problem-STL-export-error-Current-top-level-object-is-empty-tp17440p17491.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
Hi David B. Gustavson:
I'm printing is PLA. No heated bed at the moment. That is on my to-do list.
--
View this message in context: http://forum.openscad.org/puzzlecutlib-rendering-problem-STL-export-error-Current-top-level-object-is-empty-tp17440p17493.html
Sent from the OpenSCAD mailing list archive at Nabble.com.

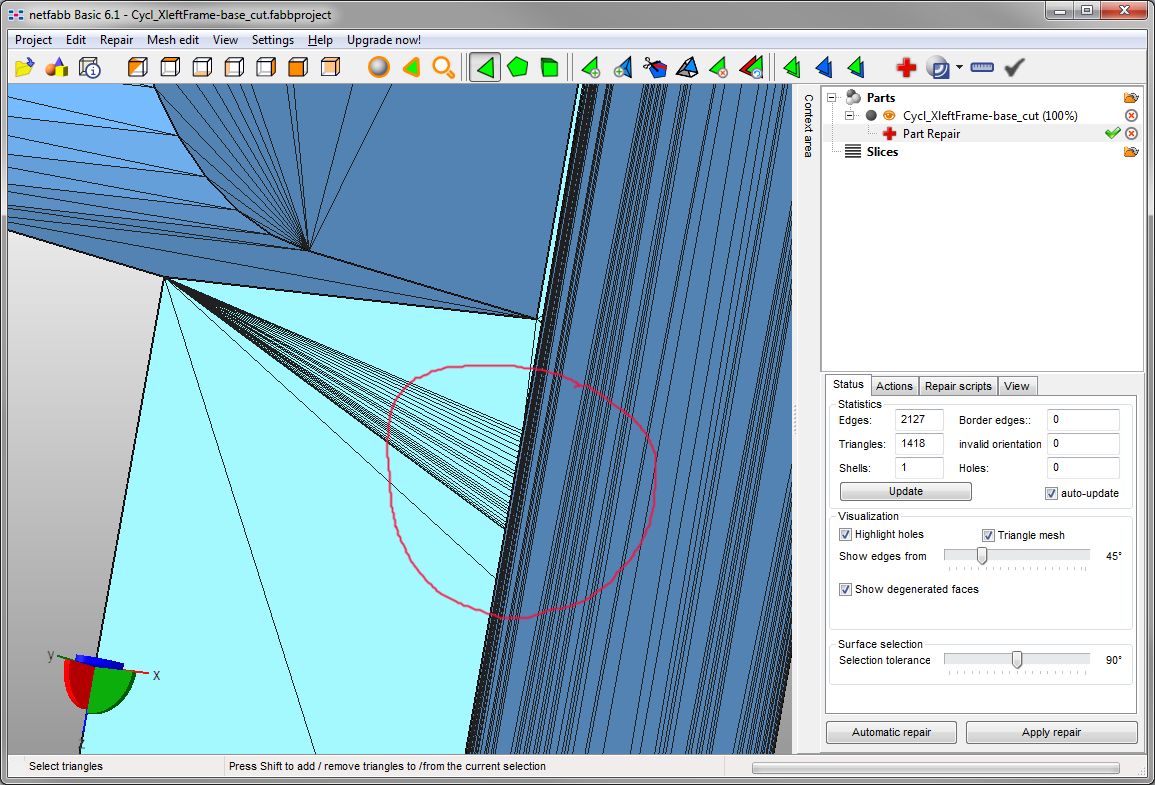

I can see where the crazy tessellation comes from now. There is a fan of
triangles for the simicircular cutout in the tall part that you have
removed. Netfabb is a mesh editor so it just truncates the fan of triangles
leaving some very close vertices. OpenScad can't handle close vertices.
Does it work if you puzzlecut the whole part rather than a section of it
made with Netfabb?
--
View this message in context: http://forum.openscad.org/puzzlecutlib-rendering-problem-STL-export-error-Current-top-level-object-is-empty-tp17440p17495.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
FourthDr wrote
Here are the original stl files before any changes:
Unfortunately those original files have the problem. They are degenerate.
Unfortunately when run thru Netfabb online they then get the other CGAL
error. I can't see a way to fix them.
Perhaps get someone with a bigger printer to print them for you??
Admin - PM me if you need anything, or if I've done something stupid...
Unless specifically shown otherwise above, my contribution is in the Public Domain; to the extent possible under law, I have waived all copyright and related or neighbouring rights to this work. Obviously inclusion of works of previous authors is not included in the above.
The TPP is no simple “trade agreement.” Fight it! http://www.ourfairdeal.org/ time is running out!
View this message in context: http://forum.openscad.org/puzzlecutlib-rendering-problem-STL-export-error-Current-top-level-object-is-empty-tp17440p17498.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
Hi: MichaelAtOz:
Unfortunately I don't know anyone with a larger printer. For hire places
charge a fortune for "making". I can't afford to pay someone $100/hour to do
nothing but click File>open, then File>Print. Anyone can do that. Wish I got
paid that much for something so simple. On top of that most places also want
the file ready to go to their specs so they don't have to do any work at
all. So not worth it. Guess I'll have to work on this for a little longer.
There is one other thing I have not been able to figure out. How would I
change the puzzle cut from the default "T" shape to a round cutout? Like a
ball and socket shape. I don't see where in the code that does that.
--
View this message in context: http://forum.openscad.org/puzzlecutlib-rendering-problem-STL-export-error-Current-top-level-object-is-empty-tp17440p17513.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
FourthDr wrote
There is one other thing I have not been able to figure out. How would I
change the puzzle cut from the default "T" shape to a round cutout? Like a
ball and socket shape. I don't see where in the code that does that.
The T lock is shaped by the following lines of makePuzzleStamp() in the
puzzlecutlib.scad:
translate([i,0,0])
cube ([(cutSize / 2) - kerf * 2, cutSize - kerf * 2,stampSize[2]],
center = true);
translate([i,cutSize / 2,0])
cube ([cutSize - kerf * 2,(cutSize / 2) - kerf * 2, stampSize[2]],
center = true);
To get a ball socket substitute those lines by:
translate([i,0,0]) ball_socket(cutSize, kerf, stampSize[2]);
and for a dovetail by:
translate([i,0,0]) dovetail(cutSize, kerf, stampSize[2]);
where those modules should be defined as:
module dovetail(cutSize, kerf, height) {
angle = 12;
offset = kerf*(1/2+tan(angle));
intersection(){
translate([-cutSize/2-offset, cutSize+kerf, -1])
rotate([0,0,-90+angle]) cube([cutSize2, cutSize2,
height+2]);
scale([-1,1,1])
translate([-cutSize/2-offset, cutSize+kerf, -1])
rotate([0,0,-90+angle]) cube([cutSize2, cutSize2,
height+2]);
cube([2*(cutSize+kerf), 2cutSize+kerf, 2(height+1)], center =
true);
}
}
module ball_socket(cutSize, kerf, height){
cube ([(cutSize / 2) + kerf, cutSize - kerf * 2,height+2], center
= true);
translate([0,cutSize/2,0])
cylinder(r=cutSize/2 + kerf/2, h = height+2, $fn=12, center =
true);
}
I guess dovetail is safer, stronger and easier to adjust.
--
View this message in context: http://forum.openscad.org/puzzlecutlib-rendering-problem-STL-export-error-Current-top-level-object-is-empty-tp17440p17518.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
Well, I got the file manually repaired in Sketchup. It is now disgestible by
CGAL.
Cycl_XleftFrame-base_cut-repaired.stl
http://forum.openscad.org/file/n17520/Cycl_XleftFrame-base_cut-repaired.stl
http://forum.openscad.org/file/n17520/Cycl_XleftFrame.png
http://forum.openscad.org/file/n17520/Cycl_XleftFrame2.png
--
View this message in context: http://forum.openscad.org/puzzlecutlib-rendering-problem-STL-export-error-Current-top-level-object-is-empty-tp17440p17520.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
