Slice object into overlapping slices for laser cutter (like 123D Make but better)
123D Make can slice objects and these slices can be cut on a laser cutter and
glued together to form an object. Great, only the slices don't overlap so
the resulting object is not so strong, especially if you are using slices
that lock together to form an object bigger than you can cut in your cutter.
Here's what I need:
http://forum.openscad.org/file/n17332/block_work.png
Would it be possible, appropriate to commission someone here to make a
function to take an object and slices it according to how thick the material
is we are cutting, and according the the size limit of the laser cutter?
This would be really useful to be able to do. What would be a fair price for
this programming? Perhaps I could release it to everyone as I'd imagine it
would be useful for a lot of people? Or maybe it's already out there and I
just need to know the right words to search for?
Just to be clear again, here's the program that does it imperfectly:
www.123dapp.com/make
and some screenshots:
http://forum.openscad.org/file/n17332/google_images.png
As I say, I just want to be able to make something with OVERLAPPING slices
that can form an object bigger than the laser cutter bed strongly. I don't
even mind a bit of excess material as I can trim that off manually
--
View this message in context: http://forum.openscad.org/Slice-object-into-overlapping-slices-for-laser-cutter-like-123D-Make-but-better-tp17332.html
Sent from the OpenSCAD mailing list archive at Nabble.com.

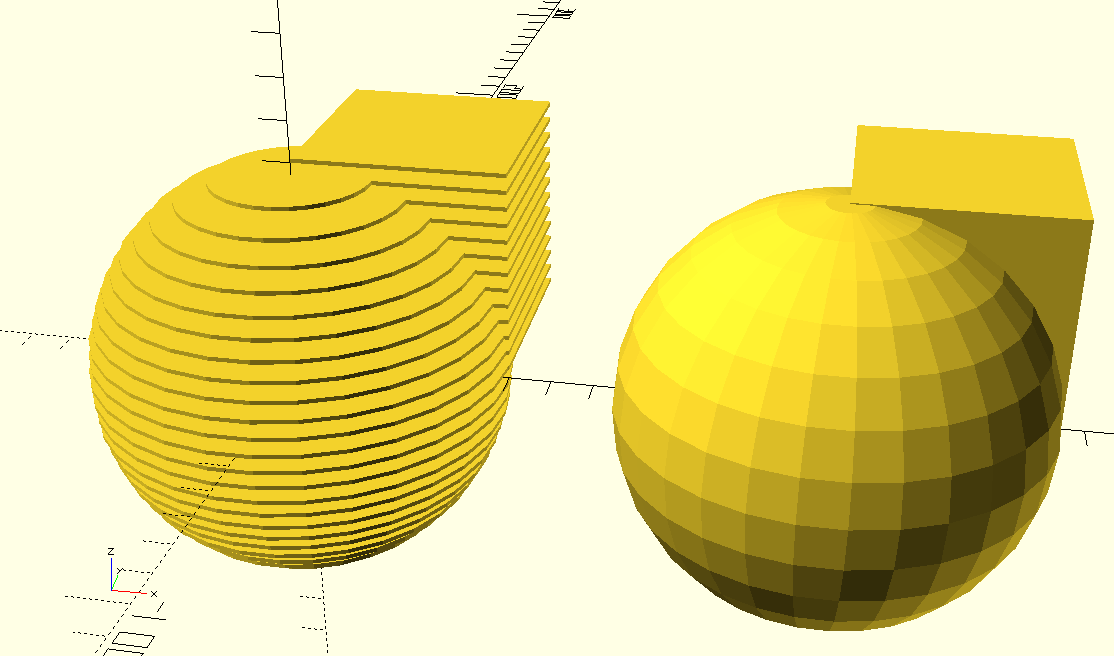

Is this what you need?
r=50;
dr=4;
module my_object(){
sphere(r);
cube(r);
}
module slice(dr=dr){
for(i=[-r:dr:r]){
translate([0,0,i])linear_extrude(1)translate([0,0,i*r])projection(cut=true)translate([0,0,-i])children();
}
}
slice()my_object();
translate([2.5*r,0,0])my_object();
2016-05-17 14:45 GMT+02:00 Jago Jago25_98@hotmail.com:
123D Make can slice objects and these slices can be cut on a laser cutter
and
glued together to form an object. Great, only the slices don't overlap so
the resulting object is not so strong, especially if you are using slices
that lock together to form an object bigger than you can cut in your
cutter.
Here's what I need:
http://forum.openscad.org/file/n17332/block_work.png
Would it be possible, appropriate to commission someone here to make a
function to take an object and slices it according to how thick the
material
is we are cutting, and according the the size limit of the laser cutter?
This would be really useful to be able to do. What would be a fair price
for
this programming? Perhaps I could release it to everyone as I'd imagine it
would be useful for a lot of people? Or maybe it's already out there and I
just need to know the right words to search for?
Just to be clear again, here's the program that does it imperfectly:
www.123dapp.com/make
and some screenshots:
http://forum.openscad.org/file/n17332/google_images.png
As I say, I just want to be able to make something with OVERLAPPING slices
that can form an object bigger than the laser cutter bed strongly. I don't
even mind a bit of excess material as I can trim that off manually
--
View this message in context:
http://forum.openscad.org/Slice-object-into-overlapping-slices-for-laser-cutter-like-123D-Make-but-better-tp17332.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
No, you want to have every slice cut into smaler pieces.
How do you want them labeled to put them together in the right order?
And you need alignment tabs?
There are already soltions for a similar problem on thingiverse: Cut stl's
into smaller pieces to print them on smaller print beds of 3d-printers.
Does someone remember this? I cant find it t the moment.
2016-05-17 23:26 GMT+02:00 Peter Falke stempeldergeschichte@googlemail.com
:
Is this what you need?
r=50;
dr=4;
module my_object(){
sphere(r);
cube(r);
}
module slice(dr=dr){
for(i=[-r:dr:r]){
translate([0,0,i])linear_extrude(1)translate([0,0,i*r])projection(cut=true)translate([0,0,-i])children();
}
}
slice()my_object();
translate([2.5*r,0,0])my_object();
2016-05-17 14:45 GMT+02:00 Jago Jago25_98@hotmail.com:
123D Make can slice objects and these slices can be cut on a laser cutter
and
glued together to form an object. Great, only the slices don't overlap so
the resulting object is not so strong, especially if you are using slices
that lock together to form an object bigger than you can cut in your
cutter.
Here's what I need:
http://forum.openscad.org/file/n17332/block_work.png
Would it be possible, appropriate to commission someone here to make a
function to take an object and slices it according to how thick the
material
is we are cutting, and according the the size limit of the laser cutter?
This would be really useful to be able to do. What would be a fair price
for
this programming? Perhaps I could release it to everyone as I'd imagine it
would be useful for a lot of people? Or maybe it's already out there and I
just need to know the right words to search for?
Just to be clear again, here's the program that does it imperfectly:
www.123dapp.com/make
and some screenshots:
http://forum.openscad.org/file/n17332/google_images.png
As I say, I just want to be able to make something with OVERLAPPING slices
that can form an object bigger than the laser cutter bed strongly. I don't
even mind a bit of excess material as I can trim that off manually
--
View this message in context:
http://forum.openscad.org/Slice-object-into-overlapping-slices-for-laser-cutter-like-123D-Make-but-better-tp17332.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
Jago,
slicing a 3D object into any pattern of pieces with free (or fixed) sizing
is a task OpenScad is equipped for. What about the data format and object
size you deliver and which formats can your laser cutter consume? OpenScad
can read STL and write DXF and SVG for this purpose.
If that is what you are seeking, a batch file with parametrized OpenScad
commandline calls generating a series of pieces with naming scheme would be
the preferable solution. So, what is your platform (Windows, Linux, MacOS)?
Rudolf
--
View this message in context: http://forum.openscad.org/Slice-object-into-overlapping-slices-for-laser-cutter-like-123D-Make-but-better-tp17332p17340.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
Also you can render OpenSCAD to STL and slice with Slic3r, which is
free/open source.
It can render to G-code or SVG.
On Tue, May 17, 2016 at 4:02 PM, Parkinbot rudolf@parkinbot.com wrote:
Jago,
slicing a 3D object into any pattern of pieces with free (or fixed) sizing
is a task OpenScad is equipped for. What about the data format and object
size you deliver and which formats can your laser cutter consume? OpenScad
can read STL and write DXF and SVG for this purpose.
If that is what you are seeking, a batch file with parametrized OpenScad
commandline calls generating a series of pieces with naming scheme would be
the preferable solution. So, what is your platform (Windows, Linux, MacOS)?
Rudolf
--
View this message in context: http://forum.openscad.org/Slice-object-into-overlapping-slices-for-laser-cutter-like-123D-Make-but-better-tp17332p17340.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
--
Best Regards.
This is unedited.
This message came out of me
via a suboptimal keyboard.

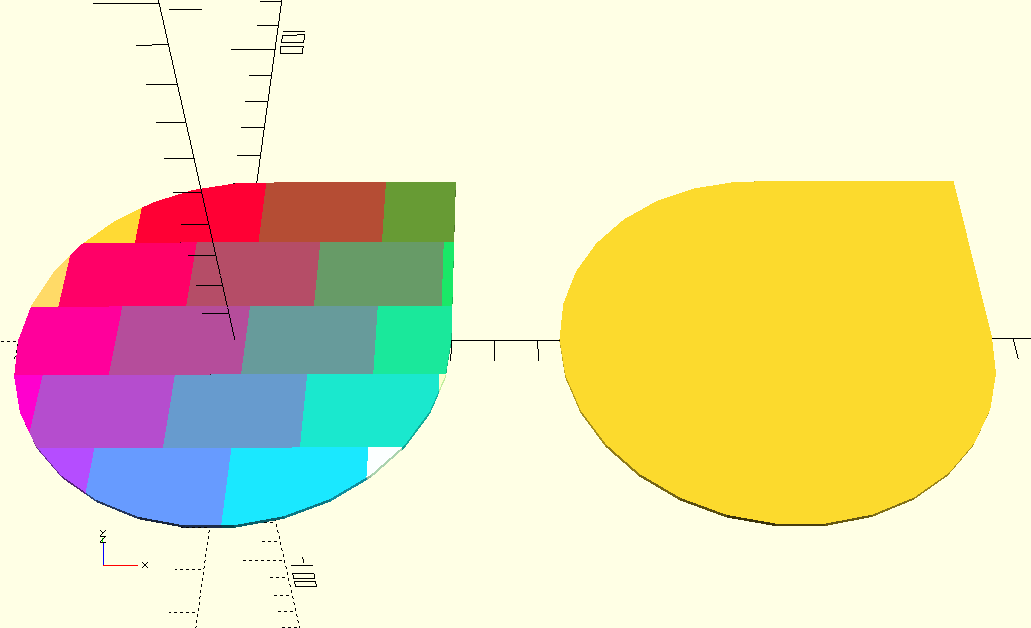

So here is one slice (z=0) tiled:
