Re: Need help creating a design similar with the pictures

SP
Sanjeev Prabhakar
Mon, May 9, 2022 10:15 AM

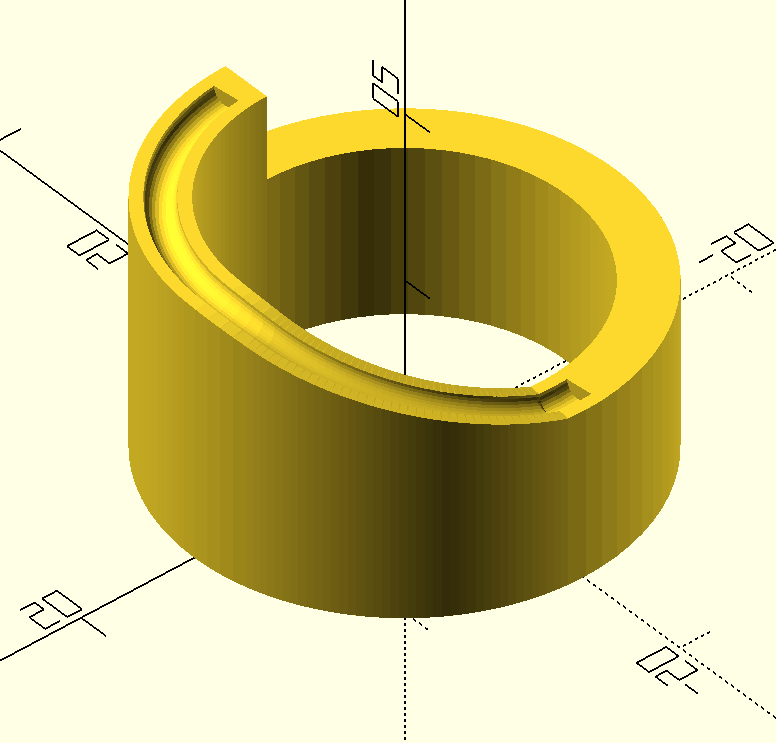

Idea is in this code:

include<dependencies.scad>

sec=m_points_so(cr(pts1([[0,10],[0,5],[12,0,5],[10,-5],[23,0]]),5),20,.1);
max_x=max(sec*[1,0]);
p_line(sec,.1);
echo(max_x);

sec1=[for(i=[0:len(sec)-1])[13cos(sec[i].x/max_x360),13sin(sec[i].x/max_x360),sec[i].y]];
sec2=[for(i=[0:len(sec)-1])[10cos(sec[i].x/max_x360),10sin(sec[i].x/max_x360),sec[i].y]];

sec3=cpo([sec1,sec2]);

surf_base(sec3);

On Mon, 9 May 2022 at 06:01, sorin vatasoiu via Discuss <
discuss@lists.openscad.org> wrote:

---------- Forwarded message ----------
From: sorin vatasoiu svatasoiu@yahoo.com
To: "discuss@lists.openscad.org" discuss@lists.openscad.org
Cc:
Bcc:
Date: Mon, 9 May 2022 00:31:07 +0000 (UTC)
Subject: [OpenSCAD] Need help creating a design similar with the pictures
Hi,

I'm trying to simulate this knob. I can handle everything but the circular
side with a channel on it.

I can do the flat circular side with the channel, but I cannot figure out
how to do the halt side that has an inclination.
the code I have for the side part it is:

$fn = 360;

outsideChannelFlat();
//channelProfile();

module outsideChannelFlat(){
rotate_extrude(angle = 180, convexity = 2) {
translate([57.5/2,0,0])
channelProfile();
}
}

module channelProfile(){
difference(){
square([7.2,16.5],center = false);
translate([7.2/2,16.5,0])
circle($fn = 180,  r = 4.5/2);
}
}

Any help with the inclined part it is welcomed.

Thank you,

Sorin
