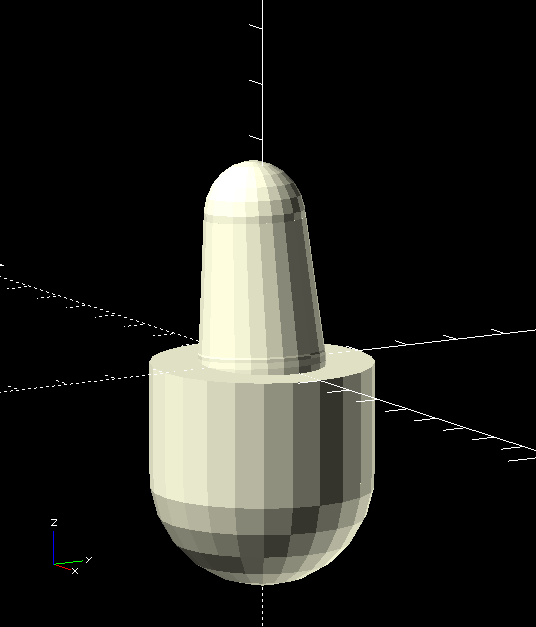

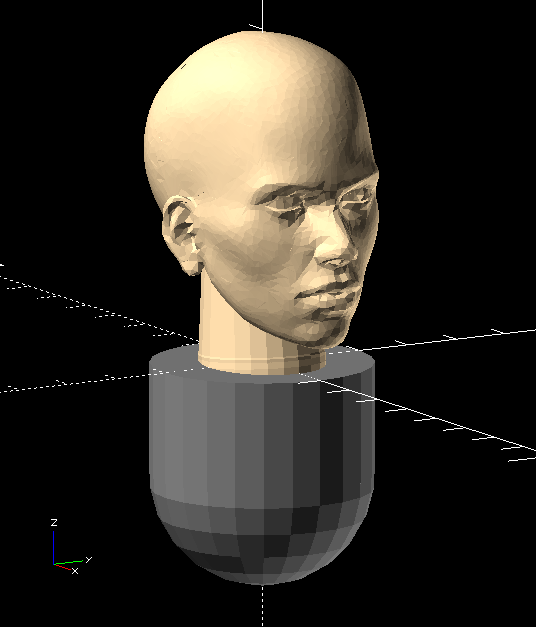

I have OpenSCAD 2015.3-2. The STL was repaired in MS 3D Builder, and again with NetFabb Online Service. STL, and pictures of error attached. Getting Error: ERROR: CGAL error in CGAL_Nef_polyhedron3(): CGAL ERROR: assertion violation! Expr: e->incident_sface() != SFace_const_handle() File: /opt/mxe/usr/x86_64-w64-mingw32.static/include/CGAL/Nef_S2/SM_const_decorator.h Line: 326 A google search revealed: https://github.com/openscad/openscad/issues/1090 Any tips to getting this to work? Thank you very much, Ari M. Diacou //////////////////////// Code //////////////////////////// /////////////////// Parameters ////////////////////////// neck_width=4; $fn=24; /////////////// Derived Parameters ////////////////////// w=neck_width; ///////////////////// Main() //////////////////////////// color("gray")ball_joint(); color("NavajoWhite"){ neck(); head(); } /////////////////// Functions /////////////////////////// module head(){ translate([.6,0,.6]) rotate([0,-5,0]) scale(.17) import("Head 3_fixed.stl",convexity=8); } module neck(){ w1=.64*w; a=0.8; b=0.85; w2=a*w1; rotate([0,-atan((w1-w2)/2/w1),0]) scale([1,b,1]){ translate([0,0,0]) sphere(d=w1); translate([0,0,0]) cylinder(d1=w1,d2=w2,h=w1); translate([0,0,w1]) sphere(d=w2); } } module ball_joint(){ translate([0,0,-w/2]) cylinder(d=w,h=w/2); translate([0,0,-w/2]) sphere(d=w); } ///////////////////////////// Console ////////////////////// Compiling design (CSG Tree generation)... Rendering Polygon Mesh using CGAL... ERROR: CGAL error in CGAL_Nef_polyhedron3(): CGAL ERROR: assertion violation! Expr: e->incident_sface() != SFace_const_handle() File: /opt/mxe/usr/x86_64-w64-mingw32.static/include/CGAL/Nef_S2/SM_const_decorator.h Line: 326 Geometries in cache: 102 Geometry cache size in bytes: 33869136 CGAL Polyhedrons in cache: 20 CGAL cache size in bytes: 20900192 Total rendering time: 0 hours, 0 minutes, 4 seconds Top level object is a 3D object: Simple: yes Vertices: 627 Halfedges: 2704 Edges: 1352 Halffacets: 1460 Facets: 730 Volumes: 2 Rendering finished. ///////////////////////////////// Library Info ////////////////////////////////// OpenSCAD Version: 2015.03-2 System information: Windows 8 (v6.2.0.0) 4 CPUs 6.96 GB RAM Compiler: GCC "5.2.0" 64bit Boost version: 1_57 Eigen version: 3.2.5 CGAL version, kernels: 4.5, Cartesian, Extended_cartesian, Epeck OpenCSG version: OpenCSG 1.4.0 Qt version: 5.5.1 QScintilla version: 2.8.4 MingW build: MingW64 GLib version: 2.44.1 Application Path: C:/Program Files/OpenSCAD Documents Path: C:\Users\kimbe\Documents Resource Path: C:/Program Files/OpenSCAD User Library Path: C:/Users/kimbe/Documents/OpenSCAD/libraries User Config Path: C:\Users\kimbe\AppData\Local/OpenSCAD Backup Path: C:/Users/kimbe/Documents/OpenSCAD/backups OPENSCADPATH: OpenSCAD library path: C:/Users/kimbe/Documents/OpenSCAD/libraries C:/Program Files/OpenSCAD\libraries OPENSCAD_FONT_PATH: OpenSCAD font path: GLEW version: 1.12.0 OpenGL Version: 4.5.13469 Compatibility Profile Context 21.19.512.0 GL Renderer: AMD Radeon(TM) R4 Graphics GL Vendor: ATI Technologies Inc. RGBA(8888), depth(24), stencil(8) GL_ARB_framebuffer_object: yes GL_EXT_framebuffer_object: yes GL_EXT_packed_depth_stencil: yes Using QGLWidget GL Extensions: GL_AMDX_debug_output GL_AMD_blend_minmax_factor GL_AMD_conservative_depth GL_AMD_debug_output GL_AMD_depth_clamp_separate GL_AMD_draw_buffers_blend GL_AMD_framebuffer_sample_positions GL_AMD_gcn_shader GL_AMD_gpu_shader_int64 GL_AMD_interleaved_elements GL_AMD_multi_draw_indirect GL_AMD_name_gen_delete GL_AMD_occlusion_query_event GL_AMD_performance_monitor GL_AMD_pinned_memory GL_AMD_query_buffer_object GL_AMD_sample_positions GL_AMD_seamless_cubemap_per_texture GL_AMD_shader_atomic_counter_ops GL_AMD_shader_stencil_export GL_AMD_shader_stencil_value_export GL_AMD_shader_trace GL_AMD_shader_trinary_minmax GL_AMD_sparse_texture GL_AMD_sparse_texture_pool GL_AMD_stencil_operation_extended GL_AMD_texture_cube_map_array GL_AMD_texture_texture4 GL_AMD_transform_feedback3_lines_triangles GL_AMD_transform_feedback4 GL_AMD_vertex_shader_layer GL_AMD_vertex_shader_viewport_index GL_ARB_ES2_compatibility GL_ARB_ES3_1_compatibility GL_ARB_ES3_compatibility GL_ARB_arrays_of_arrays GL_ARB_base_instance GL_ARB_bindless_texture GL_ARB_blend_func_extended GL_ARB_buffer_storage GL_ARB_clear_buffer_object GL_ARB_clear_texture GL_ARB_clip_control GL_ARB_color_buffer_float GL_ARB_compatibility GL_ARB_compressed_texture_pixel_storage GL_ARB_compute_shader GL_ARB_conditional_render_inverted GL_ARB_conservative_depth GL_ARB_copy_buffer GL_ARB_copy_image GL_ARB_cull_distance GL_ARB_debug_output GL_ARB_depth_buffer_float GL_ARB_depth_clamp GL_ARB_depth_texture GL_ARB_derivative_control GL_ARB_direct_state_access GL_ARB_draw_buffers GL_ARB_draw_buffers_blend GL_ARB_draw_elements_base_vertex GL_ARB_draw_indirect GL_ARB_draw_instanced GL_ARB_enhanced_layouts GL_ARB_explicit_attrib_location GL_ARB_explicit_uniform_location GL_ARB_fragment_coord_conventions GL_ARB_fragment_layer_viewport GL_ARB_fragment_program GL_ARB_fragment_program_shadow GL_ARB_fragment_shader GL_ARB_framebuffer_no_attachments GL_ARB_framebuffer_object GL_ARB_framebuffer_sRGB GL_ARB_geometry_shader4 GL_ARB_get_program_binary GL_ARB_get_texture_sub_image GL_ARB_gl_spirv GL_ARB_gpu_shader5 GL_ARB_gpu_shader_fp64 GL_ARB_half_float_pixel GL_ARB_half_float_vertex GL_ARB_imaging GL_ARB_indirect_parameters GL_ARB_instanced_arrays GL_ARB_internalformat_query GL_ARB_internalformat_query2 GL_ARB_invalidate_subdata GL_ARB_map_buffer_alignment GL_ARB_map_buffer_range GL_ARB_multi_bind GL_ARB_multi_draw_indirect GL_ARB_multisample GL_ARB_multitexture GL_ARB_occlusion_query GL_ARB_occlusion_query2 GL_ARB_pipeline_statistics_query GL_ARB_pixel_buffer_object GL_ARB_point_parameters GL_ARB_point_sprite GL_ARB_program_interface_query GL_ARB_provoking_vertex GL_ARB_query_buffer_object GL_ARB_robust_buffer_access_behavior GL_ARB_sample_shading GL_ARB_sampler_objects GL_ARB_seamless_cube_map GL_ARB_seamless_cubemap_per_texture GL_ARB_separate_shader_objects GL_ARB_shader_atomic_counters GL_ARB_shader_ballot GL_ARB_shader_bit_encoding GL_ARB_shader_draw_parameters GL_ARB_shader_group_vote GL_ARB_shader_image_load_store GL_ARB_shader_image_size GL_ARB_shader_objects GL_ARB_shader_precision GL_ARB_shader_stencil_export GL_ARB_shader_storage_buffer_object GL_ARB_shader_subroutine GL_ARB_shader_texture_image_samples GL_ARB_shader_texture_lod GL_ARB_shading_language_100 GL_ARB_shading_language_420pack GL_ARB_shading_language_packing GL_ARB_shadow GL_ARB_shadow_ambient GL_ARB_sparse_buffer GL_ARB_sparse_texture GL_ARB_stencil_texturing GL_ARB_sync GL_ARB_tessellation_shader GL_ARB_texture_barrier GL_ARB_texture_border_clamp GL_ARB_texture_buffer_object GL_ARB_texture_buffer_object_rgb32 GL_ARB_texture_buffer_range GL_ARB_texture_compression GL_ARB_texture_compression_bptc GL_ARB_texture_compression_rgtc GL_ARB_texture_cube_map GL_ARB_texture_cube_map_array GL_ARB_texture_env_add GL_ARB_texture_env_combine GL_ARB_texture_env_crossbar GL_ARB_texture_env_dot3 GL_ARB_texture_float GL_ARB_texture_gather GL_ARB_texture_mirror_clamp_to_edge GL_ARB_texture_mirrored_repeat GL_ARB_texture_multisample GL_ARB_texture_non_power_of_two GL_ARB_texture_query_levels GL_ARB_texture_query_lod GL_ARB_texture_rectangle GL_ARB_texture_rg GL_ARB_texture_rgb10_a2ui GL_ARB_texture_snorm GL_ARB_texture_stencil8 GL_ARB_texture_storage GL_ARB_texture_storage_multisample GL_ARB_texture_swizzle GL_ARB_texture_view GL_ARB_timer_query GL_ARB_transform_feedback2 GL_ARB_transform_feedback3 GL_ARB_transform_feedback_instanced GL_ARB_transform_feedback_overflow_query GL_ARB_transpose_matrix GL_ARB_uniform_buffer_object GL_ARB_vertex_array_bgra GL_ARB_vertex_array_object GL_ARB_vertex_attrib_64bit GL_ARB_vertex_attrib_binding GL_ARB_vertex_buffer_object GL_ARB_vertex_program GL_ARB_vertex_shader GL_ARB_vertex_type_10f_11f_11f_rev GL_ARB_vertex_type_2_10_10_10_rev GL_ARB_viewport_array GL_ARB_window_pos GL_ATI_draw_buffers GL_ATI_envmap_bumpmap GL_ATI_fragment_shader GL_ATI_separate_stencil GL_ATI_texture_compression_3dc GL_ATI_texture_env_combine3 GL_ATI_texture_float GL_ATI_texture_mirror_once GL_EXT_abgr GL_EXT_bgra GL_EXT_bindable_uniform GL_EXT_blend_color GL_EXT_blend_equation_separate GL_EXT_blend_func_separate GL_EXT_blend_minmax GL_EXT_blend_subtract GL_EXT_compiled_vertex_array GL_EXT_copy_buffer GL_EXT_copy_texture GL_EXT_depth_bounds_test GL_EXT_direct_state_access GL_EXT_draw_buffers2 GL_EXT_draw_instanced GL_EXT_draw_range_elements GL_EXT_fog_coord GL_EXT_framebuffer_blit GL_EXT_framebuffer_multisample GL_EXT_framebuffer_object GL_EXT_framebuffer_sRGB GL_EXT_geometry_shader4 GL_EXT_gpu_program_parameters GL_EXT_gpu_shader4 GL_EXT_histogram GL_EXT_multi_draw_arrays GL_EXT_packed_depth_stencil GL_EXT_packed_float GL_EXT_packed_pixels GL_EXT_pixel_buffer_object GL_EXT_point_parameters GL_EXT_polygon_offset_clamp GL_EXT_provoking_vertex GL_EXT_rescale_normal GL_EXT_secondary_color GL_EXT_separate_specular_color GL_EXT_shader_image_load_store GL_EXT_shader_integer_mix GL_EXT_shadow_funcs GL_EXT_stencil_wrap GL_EXT_subtexture GL_EXT_texgen_reflection GL_EXT_texture3D GL_EXT_texture_array GL_EXT_texture_buffer_object GL_EXT_texture_compression_bptc GL_EXT_texture_compression_latc GL_EXT_texture_compression_rgtc GL_EXT_texture_compression_s3tc GL_EXT_texture_cube_map GL_EXT_texture_edge_clamp GL_EXT_texture_env_add GL_EXT_texture_env_combine GL_EXT_texture_env_dot3 GL_EXT_texture_filter_anisotropic GL_EXT_texture_integer GL_EXT_texture_lod GL_EXT_texture_lod_bias GL_EXT_texture_mirror_clamp GL_EXT_texture_object GL_EXT_texture_rectangle GL_EXT_texture_sRGB GL_EXT_texture_sRGB_decode GL_EXT_texture_shared_exponent GL_EXT_texture_snorm GL_EXT_texture_storage GL_EXT_texture_swizzle GL_EXT_timer_query GL_EXT_transform_feedback GL_EXT_vertex_array GL_EXT_vertex_array_bgra GL_EXT_vertex_attrib_64bit GL_IBM_texture_mirrored_repeat GL_INTEL_fragment_shader_ordering GL_KHR_context_flush_control GL_KHR_debug GL_KHR_robust_buffer_access_behavior GL_KHR_robustness GL_KTX_buffer_region GL_NV_blend_square GL_NV_conditional_render GL_NV_copy_depth_to_color GL_NV_copy_image GL_NV_depth_buffer_float GL_NV_explicit_multisample GL_NV_float_buffer GL_NV_half_float GL_NV_primitive_restart GL_NV_texgen_reflection GL_NV_texture_barrier GL_OES_EGL_image GL_SGIS_generate_mipmap GL_SGIS_texture_edge_clamp GL_SGIS_texture_lod GL_SUN_multi_draw_arrays GL_WIN_swap_hint WGL_EXT_swap_control

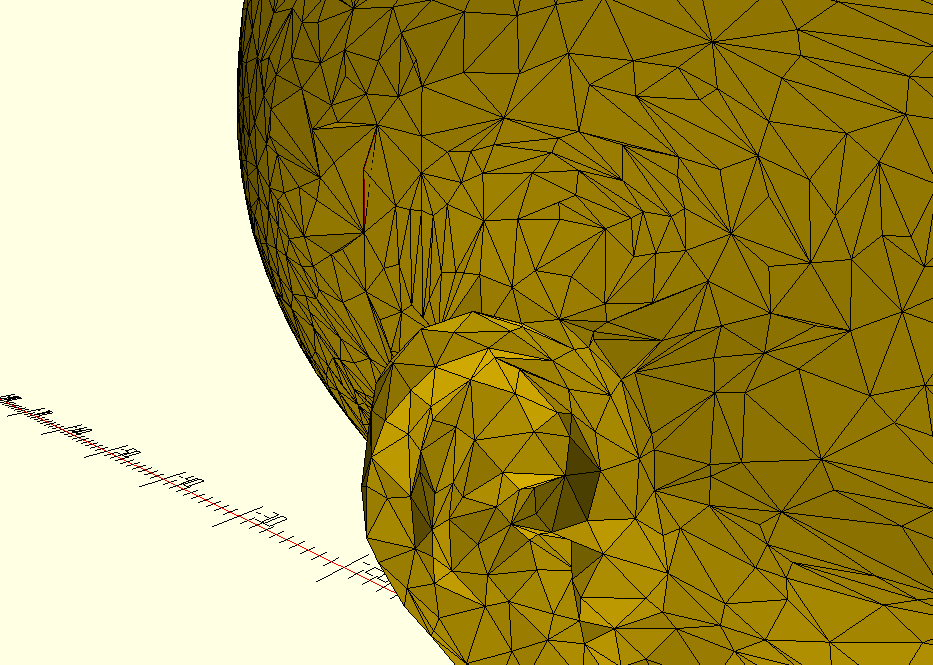

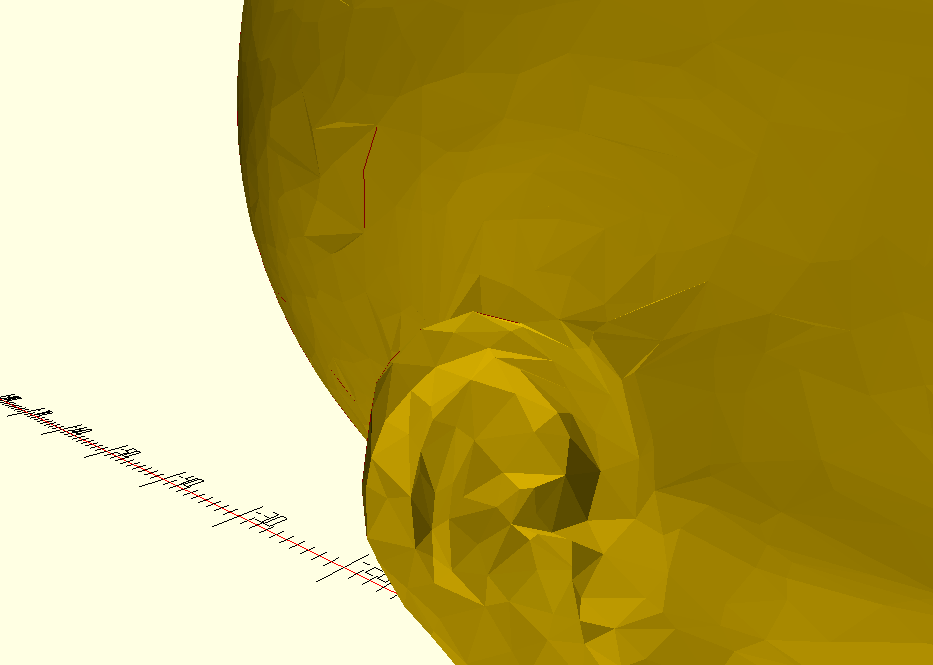

On 28. mars 2018 15:50, Ari Diacou wrote: > I have OpenSCAD 2015.3-2. The STL was repaired in MS 3D Builder, and > again with NetFabb Online Service. STL, and pictures of error attached. > > Getting Error: > ERROR: CGAL error in CGAL_Nef_polyhedron3(): CGAL ERROR: assertion > violation! Expr: e->incident_sface() != SFace_const_handle() File: > /opt/mxe/usr/x86_64-w64-mingw32.static/include/CGAL/Nef_S2/SM_const_decorator.h > Line: 326 > > A google search revealed: https://github.com/openscad/openscad/issues/1090 > > Any tips to getting this to work? > > Thank you very much, > > Ari M. Diacou There are several issues with this STL file, automatic repair is unlikely to work. In short there are overlapping faces, so it cannot be interpreted as 2-manifold. One example is shown in the attached 2 images, where one of the overlaps is indicated (there are several others). I think you will have to fix the problem in the software that generated the original head model. Carsten Arnholm

Thanks, I'll see what I can do. On Wed, Mar 28, 2018, 2:05 PM Carsten Arnholm <arnholm@arnholm.org> wrote: > On 28. mars 2018 15:50, Ari Diacou wrote: > > I have OpenSCAD 2015.3-2. The STL was repaired in MS 3D Builder, and > > again with NetFabb Online Service. STL, and pictures of error attached. > > > > Getting Error: > > ERROR: CGAL error in CGAL_Nef_polyhedron3(): CGAL ERROR: assertion > > violation! Expr: e->incident_sface() != SFace_const_handle() File: > > > /opt/mxe/usr/x86_64-w64-mingw32.static/include/CGAL/Nef_S2/SM_const_decorator.h > > Line: 326 > > > > A google search revealed: > https://github.com/openscad/openscad/issues/1090 > > > > Any tips to getting this to work? > > > > Thank you very much, > > > > Ari M. Diacou > > There are several issues with this STL file, automatic repair is > unlikely to work. In short there are overlapping faces, so it cannot be > interpreted as 2-manifold. > > One example is shown in the attached 2 images, where one of the overlaps > is indicated (there are several others). I think you will have to fix > the problem in the software that generated the original head model. > > > Carsten Arnholm > _______________________________________________ > OpenSCAD mailing list > Discuss@lists.openscad.org > http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org >
