Reversed faces
I don't think detecting and highlighting reversed polyhedra faces has any
connection to tangential problems with cylinder does it?
Basically you need to avoid a tangential interfaces because even with a
perfect mathematical curve you create an infinitely thin knife edge that is
problematical.
Keeping $fn a multiple of 4 is a good idea and using hull instead of union
if possible. Now that 2D uses fixed point things get even more tricky.
On 12 January 2016 at 12:06, MichaelAtOz oz.at.michael@gmail.com wrote:
Many of my issues occur with lines/planes and faces of circles/cylinders
with
varying $fn values, particularly intersection/difference, how does this
approach consider the tangential inconsistency of the curve approximation.
He says naively... ;) or provocatively...if I have 1/2 an understanding...
Newly minted Admin - PM me if you need anything, or if I've done something
stupid...
Unless specifically shown otherwise above, my contribution is in the
Public Domain; to the extent possible under law, I have waived all
copyright and related or neighbouring rights to this work. Obviously
inclusion of works of previous authors is not included in the above.
The TPP is no simple “trade agreement.” Fight it!
http://www.ourfairdeal.org/ time is running out!
View this message in context:
http://forum.openscad.org/Reversed-faces-tp15649p15673.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
kintel wrote
Some related issues:
https://github.com/openscad/openscad/issues/348
https://github.com/openscad/openscad/issues/1042
https://github.com/openscad/openscad/issues/590
Two things:
o We should rewrite our mesh class to support tests and operators like
this. This would also be a good step towards repairing imported STLs which
CGAL struggles with. We could also look at external libraries with good
mesh classes.
o Highlights of reversed faces in preview mode: It should be possible to
simply turn this on.
-Marius
Hi Marius,
Has anyone (re)visited the "Polygon Mesh Processing" features available in
latest CGAL?
http://doc.cgal.org/latest/Polygon_mesh_processing/index.html
There seem to be quite a few Useful Features built in now related to hole
filling, and related mesh repair and manifold-ness.
Andrew.
--
View this message in context: http://forum.openscad.org/Reversed-faces-tp15649p15706.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
On Jan 15, 2016, at 12:24 PM, clothbot andrew@plumb.org wrote:
Has anyone (re)visited the "Polygon Mesh Processing" features available in
latest CGAL?
I haven’t looked into it yet. CGAL APIs scare me : /
-Marius
I decided to prod “mesh processing" a bit with a pointset primitive stick. Nothing formal commit-able to the master tree yet, but it “does stuff that is (mostly) manifold."
https://github.com/clothbot/openscad/tree/read_issue1324 https://github.com/clothbot/openscad/tree/read_issue1324
On Jan 15, 2016, at 1:15 PM, Marius Kintel marius@kintel.net wrote:
On Jan 15, 2016, at 12:24 PM, clothbot andrew@plumb.org wrote:
Has anyone (re)visited the "Polygon Mesh Processing" features available in
latest CGAL?
I haven’t looked into it yet. CGAL APIs scare me : /
-Marius
OpenSCAD mailing list
Discuss@lists.openscad.org
http://lists.openscad.org/mailman/listinfo/discuss_lists.openscad.org
--
"The future is already here. It's just not very evenly distributed" -- William Gibson
On Jan 18, 2016, at 20:49 PM, Andrew Plumb andrew@plumb.org wrote:
I decided to prod “mesh processing" a bit with a pointset primitive stick. Nothing formal commit-able to the master tree yet, but it “does stuff that is (mostly) manifold.”
Nice.
Btw., what’s the main difference between this, and doing a convex hull over the points?
Would this be used to e.g. tessellate a 3D scan point cloud?
-Marius
kintel wrote
On Jan 18, 2016, at 20:49 PM, Andrew Plumb <
andrew@
> wrote:
I decided to prod “mesh processing" a bit with a pointset primitive
stick. Nothing formal commit-able to the master tree yet, but it “does
stuff that is (mostly) manifold.”
Nice.
Btw., what’s the main difference between this, and doing a convex hull
over the points?
Would this be used to e.g. tessellate a 3D scan point cloud?
-Marius
The convex examples are just me picking my battles. Yes, I used the surface
reconstruction from point sets code as a starting point:
...to get a feel for how all the different parameters interact. I used the
POLYHEDRON primitive pieces as a starting-point for the code.
Next-up: pair it with a "read_xyz()" function to read in .xyz scannner
pointset files and see how far I get.
Andrew.
--
View this message in context: http://forum.openscad.org/Reversed-faces-tp15649p15761.html
Sent from the OpenSCAD mailing list archive at Nabble.com.
Mwahahaha! Function read_xyz() added.
https://github.com/clothbot/openscad/tree/read_issue1324
https://github.com/clothbot/ClothBotCreations/blob/master/examples/test_read_xyz.scad
https://github.com/clothbot/ClothBotCreations/blob/master/examples/oni.xyz
Aside: The error is expected because of the read_xyz("invalid.xyz") call.

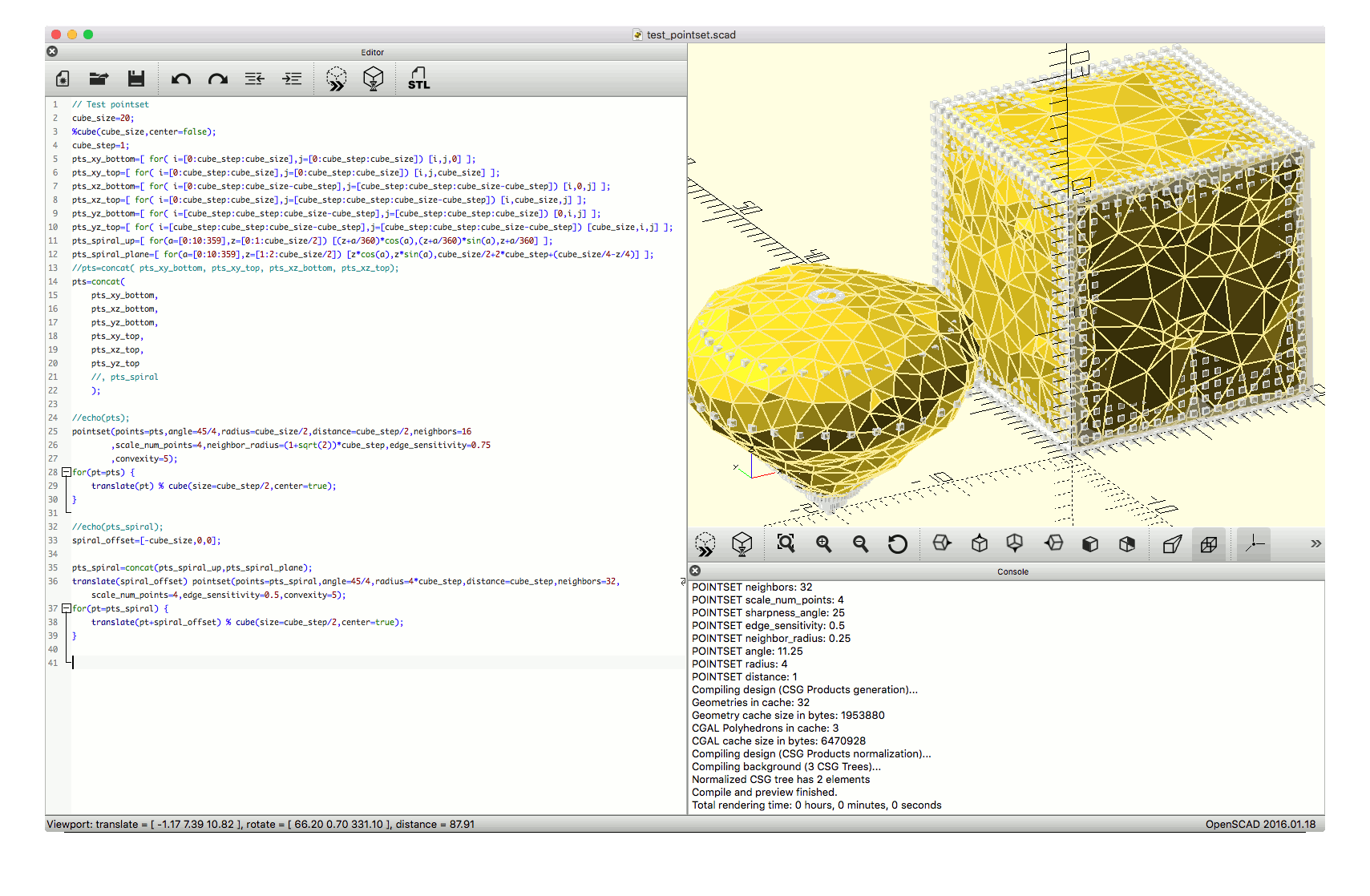

http://forum.openscad.org/file/n15777/test_xyz_screenshot.png
--
